Schneider TSXMRPC001M SRAM Module for Modicon Premium PLC Systems

TSXMRPC001M SRAM Memory Module for Modicon TSX Micro PLCs

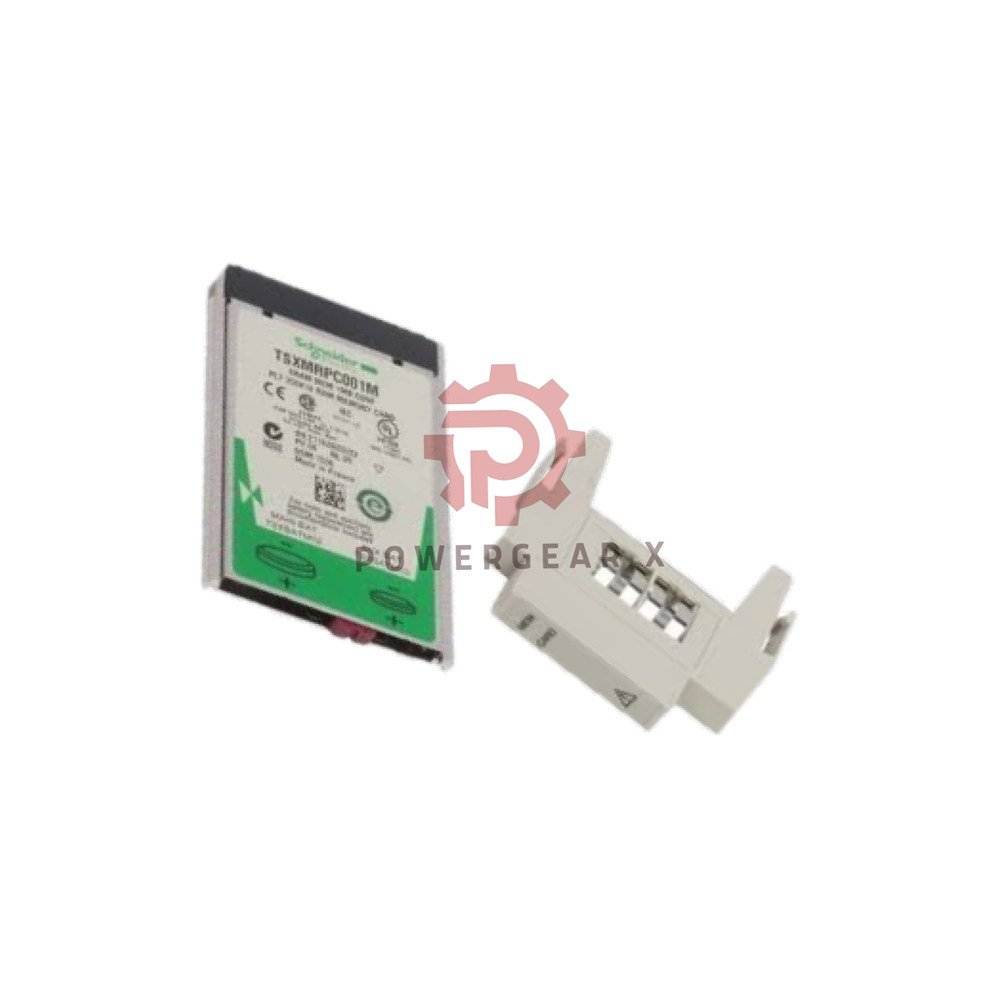

The TSXMRPC001M from Schneider Electric is a configurable SRAM memory extension. It fits TSX Micro PLC systems. This module expands application and file memory. Capacity ranges from 192 kB to 1024 kB. It installs in Slot 0. The unit supports TSX57C, TSX570 to TSX576, and TSXPCI572/3 processors.

This memory module is compact and lightweight. It weighs only 0.076 kg. It meets EU RoHS rules. You can use it in temperatures from 0 to 60 °C. Storage ranges from -25 to 70 °C. Humidity tolerance is 5 to 95% without condensation. The module resists shock and vibration well. It is a reliable spare part for legacy Modicon Premium systems.

Technical Specifications

• Brand: Schneider Electric
• Model: TSXMRPC001M
• Product Line: Modicon Premium Automation Platform
• Series: TSX Micro PLCs
• Component Type: SRAM memory
• Part Category: Separate parts, memory extension
• Memory Type: SRAM
• Memory Capacity: 192 to 1024 kB application
• Data Storage: 832 to 0 kB
• Installation Slot: Slot 0
• Compatibility: TSX57C, TSX570 to TSX576, TSXPCI572/3
• Operating Temperature: 0 to 60 °C (32 to 140 °F)
• Storage Temperature: -25 to 70 °C (-13 to 158 °F)
• Relative Humidity: 5 to 95% non-condensing
• Shock Resistance: 15 gn for 11 ms
• Vibration Resistance: 1.5 mm peak to peak at 3 to 13 Hz
• Environmental Compliance: EU RoHS directive
• Net Weight: 0.076 kg (0.168 lb)
• Package Weight: 85.9 g (3.03 oz)
• Dimensions (Net): 2.6 cm × 9.1 cm × 13.2 cm
• EAN / GTIN: 3595862065023
• Returnability: No
• Discount Schedule: PC22
• Category Code: US1PC2222558

Expert Review

Manager’s Insight: The TSXMRPC001M is a niche but vital part. It serves engineers who maintain older TSX Micro PLC systems. The adjustable 192–1024 kB range gives flexibility. You can match memory to your application without overbuying. The SRAM design keeps data safe with battery backup. The module handles tough factory floors. It resists shock and vibration. The 0–60 °C range covers most control cabinets. For new designs, look at Modicon M580. But for existing TSX Micro racks, this memory extension is a smart choice. It is easy to install in Slot 0. No special tools are needed. Just plug it in and configure.

Installation Guide

• Power down the TSX Micro PLC before you start.
• Locate Slot 0 on the processor backplane.
• Align the TSXMRPC001M with the slot guides.
• Insert the module firmly until it seats.
• Secure the module with its retention screw.
• Power up the system and check for recognition.
• Configure memory size in your programming software.

Commissioning and Maintenance

• Use the correct software for TSX Micro PLCs.
• Set application memory between 192 and 1024 kB.
• Set data storage between 832 and 0 kB.
• Check the backup battery regularly.
• Keep spare modules for critical lines.
• Clean the slot with dry air if needed.
• Do not touch the connector pins.

Compatibility Notes

• Works with TSX57C processors.
• Works with TSX570 to TSX576 processors.
• Works with TSXPCI572/3 processors.
• Fits Modicon Premium automation platform.
• Installs only in Slot 0.
• Not compatible with Modicon M580 or M340.

Certifications and Packaging

• Certifications: EU RoHS compliant. Contact us for full documents.
• Package Contents: 1× TSXMRPC001M SRAM memory module.
• Warranty: 12 months
• Shipping: 12–24 hours dispatch via FedEx, UPS, or DHL.

Ideal Applications and Equipment

• Legacy TSX Micro PLC installations.
• Modicon Premium control systems.
• Factory automation lines with TSX57C or TSX57x CPUs.
• Process control in food, water, and energy.
• Spare parts inventory for maintenance teams.
• Systems needing extra SRAM for application files.

Frequently Asked Questions

Q: What is the TSXMRPC001M used for?

A: It adds SRAM memory to TSX Micro PLCs. You can set it from 192 to 1024 kB.

Q: Which processors work with this module?

A: It fits TSX57C, TSX570 to TSX576, and TSXPCI572/3 CPUs.

Q: Where do I install this module?

A: It goes in Slot 0 only. No other slot works.

Q: Is this part still available?

A: It is a legacy part. Check stock with us before you order.

Q: What is the operating temperature range?

A: 0 to 60 °C. Storage is -25 to 70 °C.

Q: Does it need a battery?

A: Yes. SRAM needs a backup battery to keep data when power is off.

Q: Can I use this in a Modicon M580 rack?

A: No. It only works with TSX Micro and Modicon Premium systems.

Q: How heavy is the module?

A: It weighs 0.076 kg. The package weighs 85.9 g.

Q: What is the warranty period?

A: We offer a 12-month warranty.

Q: How fast do you ship?

A: We dispatch in 12 to 24 hours. We use FedEx, UPS, or DHL.

Q: Can I return the part?

A: No. This item is non-returnable. Please confirm compatibility first.

Q: Do you offer bulk pricing?

A: Yes. Contact our sales team for volume discounts.

Buying Guide

• Confirm your PLC model before ordering. This part fits only specific TSX Micro CPUs.
• Check Slot 0 availability on your backplane.
• Decide your memory needs. The module supports 192 to 1024 kB.
• Remember that data storage shrinks as application memory grows.
• Order spare units for critical systems because the part is non-returnable.
• For urgent needs, ask about our 12–24 hour dispatch and FedEx, UPS, DHL options.
• Reach out to sales@powergearx.com or +86 18030005825 for stock checks and technical help.
