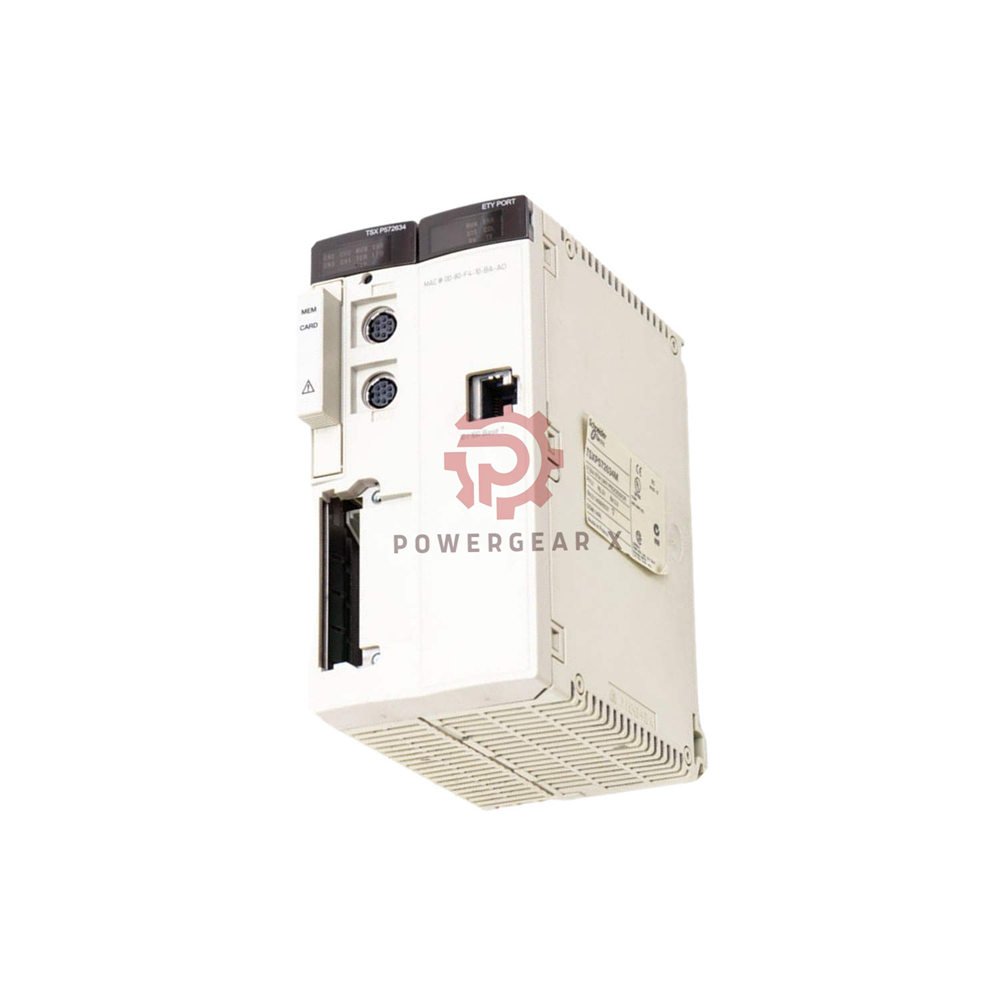

TSXP572634M Schneider Modicon Premium CPU | Modbus TCP/IP PLC

Product Overview

TSXP572634M is a Unity processor for the Modicon Premium series by Schneider Electric. It uses a PowerPC core. This module handles demanding control tasks. It is discontinued but still supported by Modicon M580 (BMEP58xxx) as a modern replacement.

This processor fits 4, 6, 8, or 12-slot backplanes. It supports up to 8 local racks with 12 slots. For smaller racks, you can use up to 16 local racks. Expansion racks are not available. The unit delivers fast scan times and solid memory for complex logic.

Key uses include manufacturing lines, water treatment, and energy management. The built-in Ethernet and serial ports simplify networking. Communication modules add Fipio, Fipway, Modbus Plus, PROFIBUS DP, and more.

Technical Specifications

• Brand: Schneider Electric
• Model: TSXP572634M
• Series: Modicon Premium
• Processor: Unity, PowerPC-based
• Clock Speed: 66 MHz
• Math Coprocessor: Integrated PowerPC FPU
• Program Memory: 768 KB (with PCMCIA expansion)
• Data Memory: 160 KB
• Internal RAM: 160 KB (data)
• Programming Software: Unity Pro / EcoStruxure Control Expert
• Scan Speed: 0.19 to 0.21 µs per boolean instruction
• Discrete I/O (max): 1024 points
• Analog I/O (max): 80 points
• Backplane Slots: 4, 6, 8, 12
• Local Racks: 8 (12-slot) or 16 (4/6/8-slot)
• Expansion Racks: Not available
• Built-in Ports: 1× Ethernet 10/100 (RJ45), 2× RS-485 serial
• Protocols: Modbus TCP/IP, Modbus RTU (serial)
• Communication Expansion: Premium backplane modules (Fipio, Fipway, Modbus Plus, Ethernet, PROFIBUS DP)
• Supply Voltage: 5 V DC (backplane)
• Power Consumption: 5.6 W
• Bus Current: 1650 mA @ 5 V DC
• Operating Temperature: Not available
• Storage Temperature: Not available
• Relative Humidity: Not available
• Protection Rating: IP20
• Dimensions (H×W×D): 140 × 35 × 80 mm
• Weight: 0.5 kg
• Lifecycle: Discontinued (Last verified: 2026-09)
• Replacement: Modicon M580 (BMEP58xxx)

Expert Review

Manager’s Insight: The TSXP572634M is a workhorse for legacy Premium systems. Its 66 MHz PowerPC core and fast scan speed handle logic-heavy tasks well. The 768 KB program memory is generous for its class. Built-in Ethernet is a big plus for plant networks. However, the lack of expansion racks limits large I/O counts. For new projects, consider the M580. For existing installations, this processor remains a reliable drop-in spare.

We recommend this module for system integrators who maintain Modicon Premium lines. It shines in mid-size applications. The integrated FPU speeds up math operations. The serial ports work well with older HMIs and drives. If you need more analog I/O, plan carefully because the limit is 80 points.

Installation Guide

• Mount the processor in a compatible Premium backplane (4, 6, 8, or 12 slots).
• Ensure the backplane supplies 5 V DC with at least 1650 mA.
• Connect the Ethernet cable to the RJ45 port for Modbus TCP/IP.
• Use the RS-485 ports for Modbus RTU devices.
• Add communication modules for Fipio, Fipway, or PROFIBUS DP.
• Keep the environment within IP20 limits. Avoid dust and moisture.
• Do not exceed 8 local racks (12-slot) or 16 local racks (4/6/8-slot).

Commissioning and Maintenance

• Use Unity Pro or EcoStruxure Control Expert for programming.
• Download the program via Ethernet or serial port.
• Monitor scan time to ensure it stays near 0.19–0.21 µs per boolean instruction.
• Check the 160 KB data memory for usage. Expand program memory with a PCMCIA card if needed.
• Replace the backup battery regularly to avoid data loss.
• Keep spare units on hand because the product is discontinued.

Compatibility Notes

• Works with Modicon Premium backplanes (4, 6, 8, 12 slots).
• Compatible with Unity Pro and EcoStruxure Control Expert software.
• Supports Modbus TCP/IP and Modbus RTU natively.
• Accepts Premium communication modules for Fipio, Fipway, Modbus Plus, Ethernet, and PROFIBUS DP.
• Direct replacement for older Premium processors in the same series.
• Modern alternative is Modicon M580 (BMEP58xxx).

Certifications and Packaging

• Certifications: CE, UL, CSA (typical for Schneider Electric industrial gear). Contact us for specific documents.
• Protection Rating: IP20
• Package Contents: 1× TSXP572634M processor, 1× quick start guide.
• Warranty: 12 months
• Shipping: 12–24 hours dispatch via FedEx, UPS, or DHL.

Ideal Applications and Equipment

• Manufacturing lines with discrete and analog control.
• Water and wastewater treatment plants.
• Energy management systems.
• Legacy Modicon Premium installations needing spare processors.
• Equipment that uses Modbus TCP/IP or Modbus RTU communication.
• Systems with up to 1024 discrete points and 80 analog points.

Frequently Asked Questions

Q: Is this processor still in production?

A: No. Schneider Electric has discontinued it. The recommended replacement is the Modicon M580 (BMEP58xxx).

Q: Can I use this in a new project?

A: For new designs, choose the M580. This unit fits legacy systems and spare parts needs.

Q: How fast is the scan time?

A: It runs 0.19 to 0.21 microseconds per boolean instruction. That is fast for its class.

Q: What programming software do I need?

A: Use Unity Pro or EcoStruxure Control Expert. Both are from Schneider Electric.

Q: Does it have built-in Ethernet?

A: Yes. One 10/100 RJ45 port supports Modbus TCP/IP.

Q: Can I expand I/O with remote racks?

A: No. Expansion racks are not available. You can use up to 8 or 16 local racks depending on slot size.

Q: What is the maximum analog I/O?

A: 80 points. Plan your analog needs carefully.

Q: How many discrete points can it handle?

A: Up to 1024 discrete I/O points.

Q: What communication modules can I add?

A: You can add Premium backplane modules for Fipio, Fipway, Modbus Plus, Ethernet, and PROFIBUS DP.

Q: What is the power consumption?

A: 5.6 W. It draws 1650 mA at 5 V DC from the backplane.

Q: What is the warranty period?

A: 12 months from the date of purchase.

Q: How fast do you ship?

A: We dispatch within 12 to 24 hours. We use FedEx, UPS, or DHL.

Q: Can I get a bulk discount?

A: Yes. Contact our sales team for volume pricing.

Buying Guide

• Check your backplane slot count before ordering. This processor fits 4, 6, 8, or 12 slots.
• Confirm your I/O needs. Max discrete is 1024 points. Max analog is 80 points.
• Make sure your software version supports Unity Pro or EcoStruxure Control Expert.
• For new installations, consider the Modicon M580 instead.
• Order spare units because the product is discontinued.
• For urgent needs, ask about our 12–24 hour dispatch and FedEx, UPS, DHL options.
• Reach out to sales@powergearx.com or +86 18030005825 for stock checks and technical help.
