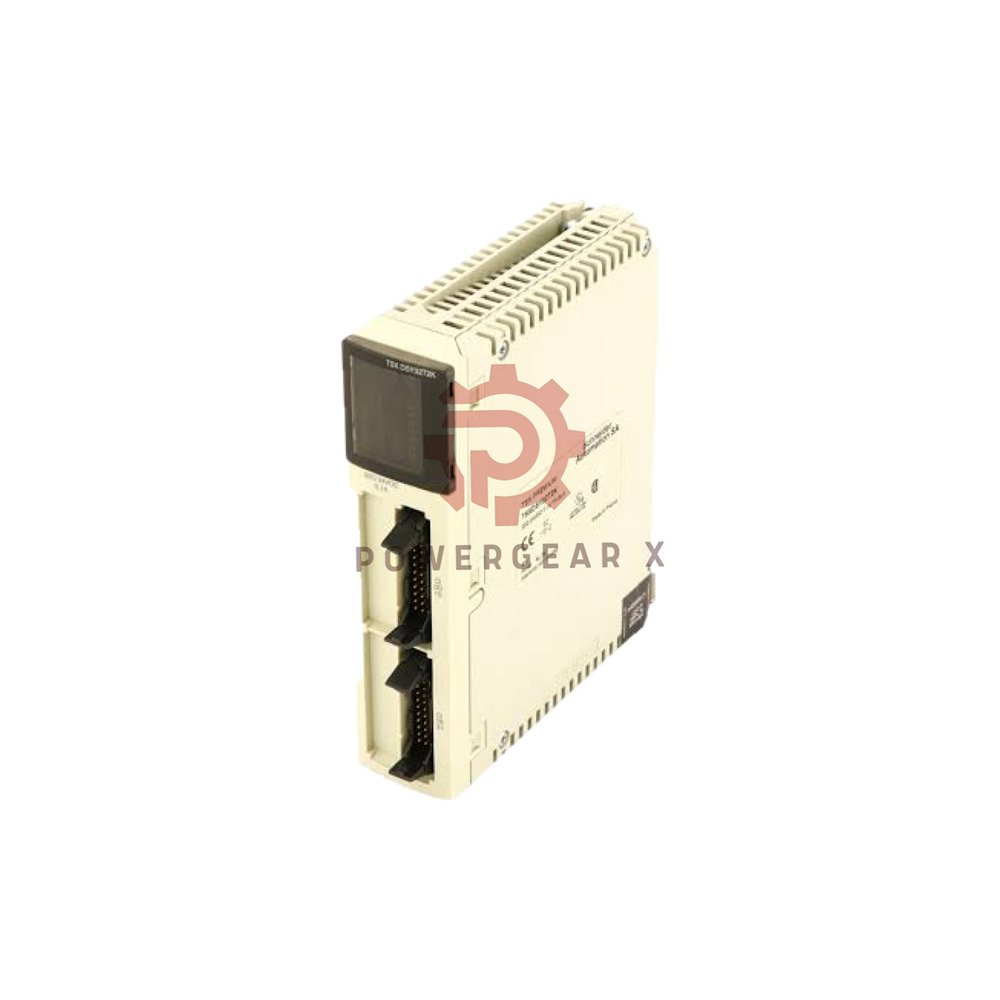

TSXDSY32T2K Schneider Modicon Premium 32-Point PNP Output Module

TSXDSY32T2K Schneider Electric Modicon Premium 32-Point Transistor PNP Discrete Output Module

TSXDSY32T2K is a discontinued 32-point discrete output module from the Schneider Electric Modicon Premium series. It delivers fast DC switching for industrial control panels. Each channel handles 0.5 A at 24 V DC. The module uses transistor source (PNP) output. It also offers automatic overload and short-circuit trip. This unit suits machine builders, system integrators, and maintenance teams. It fits applications that still run Modicon Premium PLC systems. The module occupies 1 slot and weighs only 0.15 kg. It remains a practical spare part for legacy automation lines.

Technical Data

• Brand: Schneider Electric
• Model: TSXDSY32T2K
• Series: Modicon Premium
• Module type: Discrete output module
• Channels: 32 points, arranged as 4 groups × 8
• Signal type: DC output, transistor, source (PNP)
• Voltage range: 24 V DC
• Output current: 0.5 A per channel
• Isolation: Channel-to-bus 1500 V AC dielectric
• Isolation resistance: Greater than 10 MΩ at 500 V
• Diagnostics: Automatic overload and short-circuit trip
• Response time: 1.2 ms
• Slots required: 1
• Supply voltage: 24 V DC field, plus 5 V DC backplane
• Bus current: 140 mA at 5 V DC
• Power consumption: 1.6 W plus 0.1 W per active output
• Protection rating: IP20
• Dimensions: 140 × 35 × 80 mm (H × W × D)
• Weight: 0.15 kg
• Operating temperature: Not available
• Storage temperature: Not available
• Relative humidity: Not available
• Lifecycle status: Discontinued, last verified 2026-09

Measurement range, frequency response, sensitivity, linearity, and resolution do not apply to this discrete output module. It works as a digital switching device, not an analog measuring unit. Its key performance values are response time, output current, and isolation strength. For temperature range, environment tolerance, and anti-interference ability, please refer to the original Schneider Electric datasheet. The IP20 rating protects against solid objects above 12.5 mm. It does not protect against water. Install the module inside a clean control cabinet. Keep it away from conductive dust, moisture, and strong electromagnetic sources.

Installation Guide

• Switch off all power before you touch the module.
• Use a Modicon Premium rack with an open slot.
• Align the module with the rack guides.
• Push it gently until the connector seats.
• Tighten the retaining screw to lock it.
• Wire the 24 V DC field supply with correct polarity.
• Connect each output to its load within 0.5 A.
• Keep signal wires away from high-voltage cables.
• Check terminal torque and wire labels before power-up.
• Confirm the PNP wiring matches your common return.

Commissioning and Maintenance Convenience

• Automatic trip protection reduces setup risk.
• Clear channel grouping speeds up fault finding.
• Single-slot design saves rack space.
• Front access helps fast module replacement.
• Diagnostic feedback supports quick overload checks.
• Low weight makes spare handling easy.
• Regular inspection of terminals prevents loose contacts.
• Clean dust from the cabinet to protect IP20 parts.
• Replace faulty channels with a matching spare module.

Compatibility Notes

• Designed for the Schneider Electric Modicon Premium platform.
• Works with TSX Premium racks and compatible backplanes.
• Requires 24 V DC field power for output loads.
• Uses 5 V DC backplane current at 140 mA.
• PNP source outputs suit sinking input devices.
• Check your PLC CPU and rack firmware before purchase.
• Confirm terminal block and connector compatibility.
• Not a drop-in replacement for relay output modules.
• Contact us for help with legacy system matching.

Certifications and Compliance

• Original Schneider Electric product family documentation applies.
• CE and other marks depend on the original factory label.
• Check the label on your unit for final approval marks.
• Use the module within its stated electrical limits.
• Follow local electrical codes during installation.
• Keep proof of purchase for warranty support.

Packing List

• 1 × TSXDSY32T2K discrete output module
• 1 × protective antistatic bag
• 1 × original or equivalent carton
• 1 × packing slip
• Terminal blocks only if stated in the offer
• Manual not included unless clearly listed

Warranty and Shipping

• Warranty: 12 months
• Dispatch time: 12 to 24 hours
• Couriers: FedEx, UPS, DHL
• Tracking number shared after dispatch
• Packed for safe international transport
• Delivery time depends on destination and customs

Need a quote or stock check? Email sales@powergearx.com or message +86 18030005825 on WhatsApp. Our team replies fast during business hours.

Expert Review

The TSXDSY32T2K earns respect for one clear reason. It packs 32 fast transistor outputs into a single Premium slot. The 1.2 ms response time suits sorting, packaging, and interlock tasks. The 0.5 A per channel rating covers most small solenoids, lamps, and PLC input triggers. PNP sourcing also matches common European wiring practice. Automatic overload trip protects the module from field faults. The IP20 rating limits it to clean cabinets. That is normal for this module class. Its discontinued status is the main concern. Buyers should treat it as a legacy spare, not a long-term new design choice. Stock quality and correct handling matter more than ever. For plants that still run Modicon Premium, this module can cut downtime and avoid a full rack upgrade.

Manager’s Insight

From a planning view, the TSXDSY32T2K is a smart bridge buy. It keeps older Premium lines alive without a full migration. The 32-point density lowers cost per channel. The 24 V DC PNP design simplifies field wiring. The 12-month warranty and 12 to 24 hour dispatch reduce project risk. Keep one or two units as critical spares. Check rack compatibility before you order. Confirm that your CPU supports the module and that your field devices accept PNP outputs. If your line runs 24 V DC loads under 0.5 A, this module is a strong fit. If you need analog signals or higher current, choose a different module. For legacy support, speed, and value, this unit remains a dependable choice.

Best Fit Equipment and Applications

• Modicon Premium PLC control racks
• Discrete valve and solenoid banks
• Indicator lamps and panel signals
• Packaging and sorting machines
• Assembly and test stations
• Material handling and conveyor controls
• Legacy line retrofits and spare pools
• Water treatment and pump control panels
• Energy and utility monitoring cabinets
• Any 24 V DC PNP load under 0.5 A

FAQ

Q: What is the TSXDSY32T2K?

A: It is a 32-point transistor output module for Modicon Premium PLC systems.

Q: Is this module still in production?

A: No. Schneider Electric lists it as discontinued. We supply tested legacy stock.

Q: What output type does it use?

A: It uses transistor source output, also called PNP.

Q: How much current can each channel handle?

A: Each channel handles up to 0.5 A at 24 V DC.

Q: How fast does it switch?

A: The response time is 1.2 ms.

Q: Does it protect against short circuits?

A: Yes. It trips automatically on overload or short circuit.

Q: How many slots does it need?

A: It needs one slot in a compatible Premium rack.

Q: What is the isolation rating?

A: Channel-to-bus isolation is 1500 V AC dielectric.

Q: Can I use it in a damp area?

A: No. Its IP20 rating suits clean, dry control cabinets only.

Q: What is the warranty?

A: We offer a 12-month warranty on this module.

Q: How fast do you ship?

A: We dispatch within 12 to 24 hours after order confirmation.

Q: Which couriers do you use?

A: We ship by FedEx, UPS, and DHL.

Q: How do I confirm compatibility?

A: Send us your rack, CPU, and load details. We will check them for you.

Q: What if I am not sure about PNP wiring?

A: PNP outputs source current to the load. The load returns to 0 V. Ask us for a wiring check before you install.

Q: What should I check before buying a discontinued module?

A: Check rack type, CPU support, output type, current needs, and connector style. Also confirm the module label and warranty terms. Buy from a supplier who tests and packs the unit well.

Buying Guide

• Match the module to your exact Premium rack.
• Confirm your CPU supports this output module.
• Check that every load stays under 0.5 A.
• Use 24 V DC field power with correct polarity.
• Choose PNP outputs only for compatible field devices.
• Ask for a tested unit with a 12-month warranty.
• Keep spare units for critical production lines.
• Order from a seller with fast dispatch and tracking.
• Contact us for help before you place an order.
