Product details

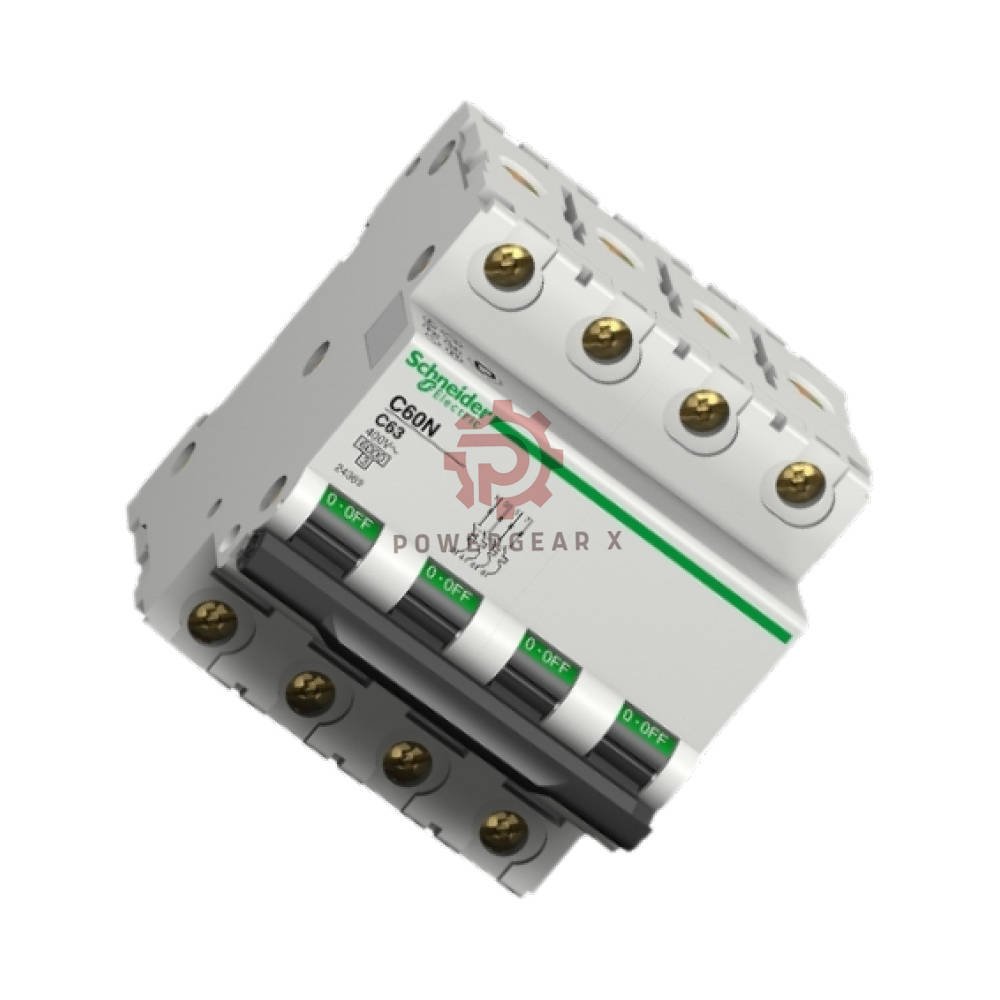

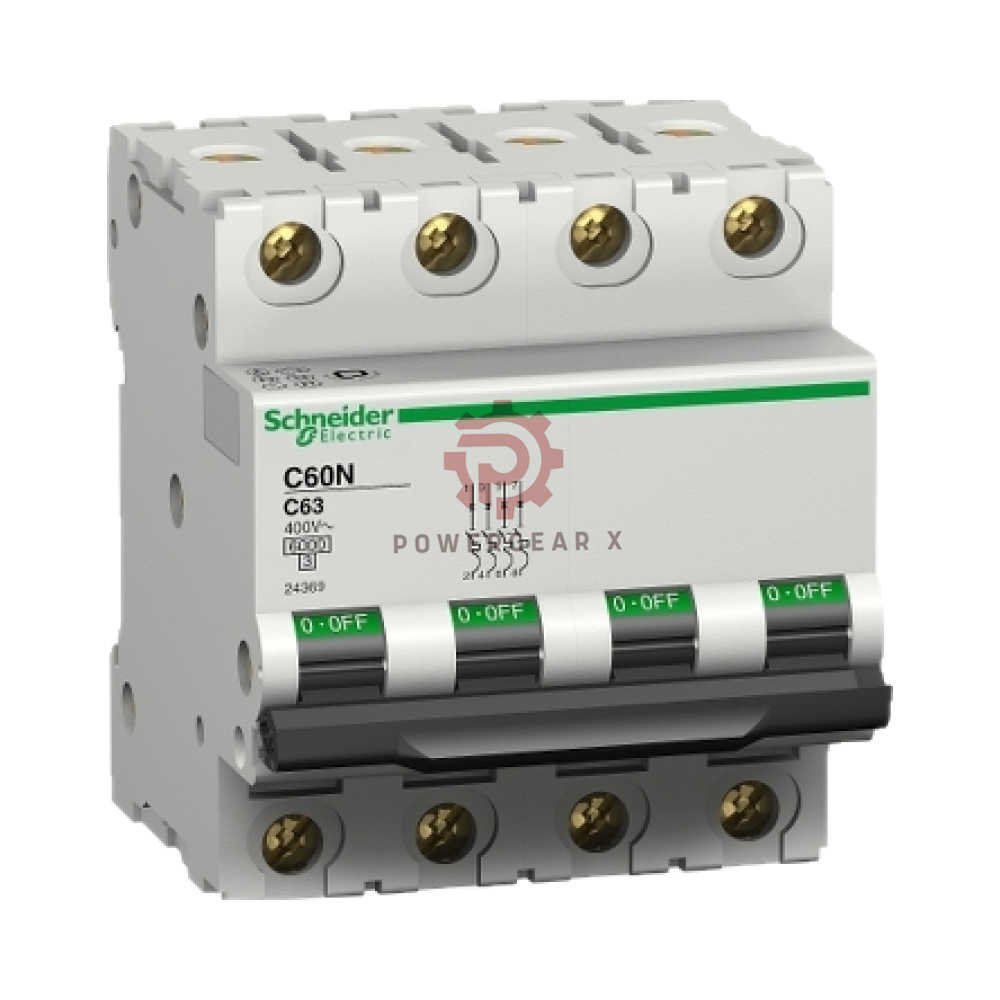

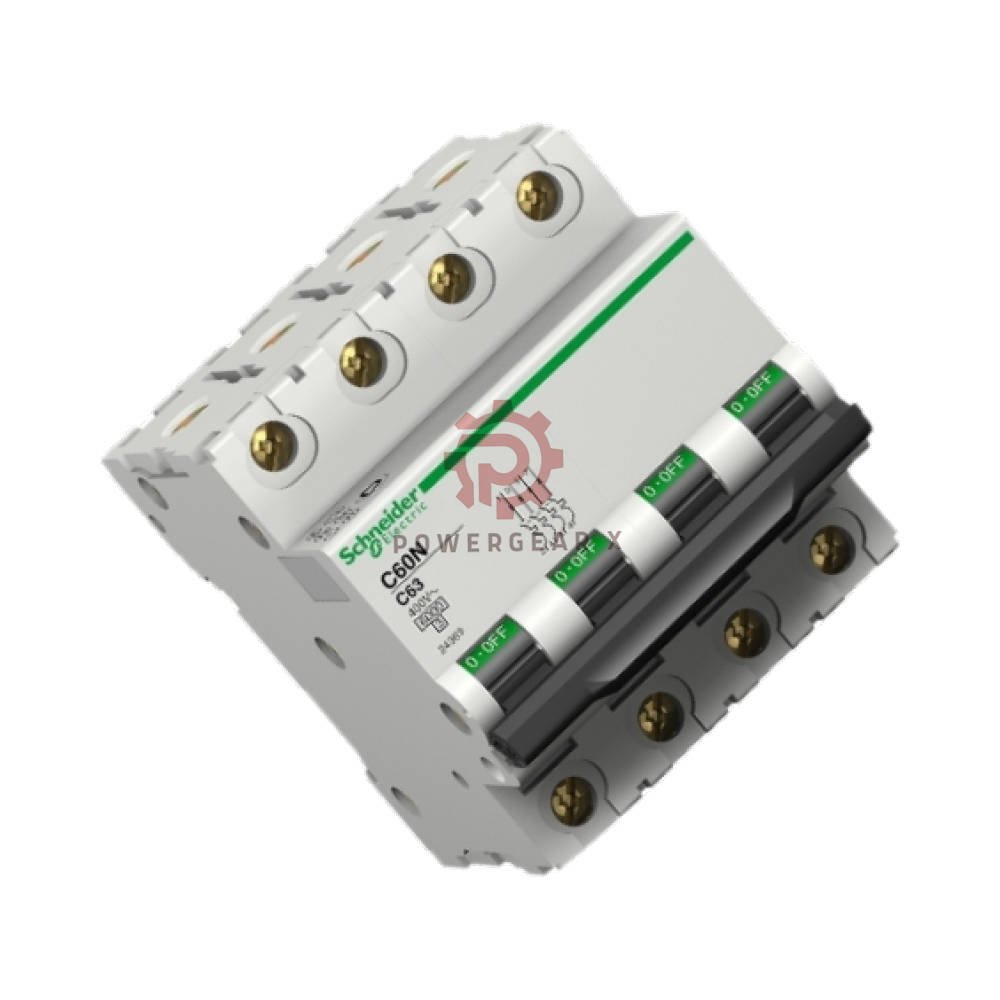

iC60N 4P C63 Schneider Electric Acti9 iC60 Miniature Circuit Breaker
The iC60N 4P C63 is a four-pole miniature circuit breaker from the Acti9 iC60 range by Schneider Electric. It protects circuits up to 63 A. The C-curve trips at 8 times the rated current. It breaks faults up to 6 kA. This breaker fits standard 35 mm DIN rail. It is active and in production.
Product Identity
- Model: iC60N 4P C63
- Brand: Schneider Electric
- Series: Acti9 iC60
- Type: Miniature circuit breaker (MCB)
- Poles: 4P
Electrical Specifications
- Rated current: 63 A
- Trip curve: C (thermal-magnetic)
- Magnetic trip: 8×In ±20%
- Breaking capacity: 6 kA @ 230/400 V (IEC 60898-1)
- Rated voltage: 400 V AC
Standards and Certifications
- EN/IEC 60898-1
- EN/IEC 60947-2
Environmental Data
- Operating temperature: -35 to 70 °C
Physical Data
- Mounting: 35 mm DIN rail
- Mechanical life: 20,000 cycles
- Electrical life: 10,000 cycles
- Dimensions (H×W×D): 85 × 72 × 78.5 mm
- Weight: 0.5 kg
Lifecycle
- Status: Active (in production, Acti9 range)
- Last verified: 2026-09
Expert Review
The iC60N 4P C63 is a workhorse breaker. It handles 63 A on four poles. That makes it good for three-phase loads. The C-curve is forgiving on motor inrush. It trips at 8×In. That is higher than a B-curve. So it avoids nuisance trips on small motors and transformers. The 6 kA breaking capacity is fine for most commercial panels. It is not for heavy industrial faults. The 20,000 mechanical cycles mean long service. The 10,000 electrical cycles are normal for this class. The main limit is 6 kA. If your fault level is higher, step up to a higher-rated breaker. For most panel builders, this unit is a safe, proven choice. It is widely stocked and easy to replace.
Manager’s Insight
Stock this breaker. It moves fast. The iC60N 4P C63 fits many three-phase panels. Electricians know the Acti9 line. They trust it. The 4-pole 63 A C-curve is a common size. Keep at least five on the shelf. Lead times can stretch. The 12-month warranty covers defects. We ship in 12–24 hours by Fedex, UPS, or DHL. That keeps your projects on schedule. Do not substitute a lower breaking capacity. Match the 6 kA rating to your panel design.
Best Fit Devices and Applications
- Three-phase distribution boards
- Small motor circuits
- HVAC equipment
- Pump and fan panels
- Commercial lighting circuits
- Workshop power outlets
- Transformer protection
- Control panel feeders
FAQ
Q: What does the C-curve mean on this breaker?
A: It trips between 5 and 10 times the rated current. This model trips at 8×In ±20%. It handles motor start-up well.
Q: Can I use this breaker on a single-phase circuit?
A: Yes. You can use only two poles. But you pay for four. It is better to use a 2P breaker for single-phase work.
Q: Is 6 kA enough for my building?
A: Check your fault level. Most small commercial panels are under 6 kA. If your fault level is higher, choose a higher-rated breaker.
Q: How do I mount this breaker?
A: Clip it onto a 35 mm DIN rail. No tools are needed for mounting. Tighten terminal screws to the torque in the datasheet.
Q: What warranty and shipping do you offer?
A: We offer a 12-month warranty. We ship in 12–24 hours via Fedex, UPS, or DHL. Email sales@powergearx.com or message +86 18030005825 on WhatsApp for stock and lead time.
Q: My old breaker keeps tripping. Should I replace it with this one?
A: First find the cause. Loose wires, overload, or a bad load can trip a breaker. If the breaker itself is worn, replace it. This unit has 10,000 electrical cycles. That is a long life for most panels.
Q: Can I get a bulk price for a panel project?
A: Yes. Contact us with your quantity and project details. We quote fast.
Q: What is the difference between iC60N and iC60H?
A: The iC60H has a higher breaking capacity, usually 10 kA or more. The iC60N gives 6 kA. Choose based on your fault level.
Buying Guide
- Confirm you need 4 poles. Three-phase plus neutral is common.
- Check your load current. 63 A suits many small panels.
- Match the trip curve to your load. C-curve for motors.
- Verify your fault level is under 6 kA.
- Order spares for critical panels.
- Ask for the Acti9 iC60 range if you need other ratings.
