Name: iC60N 4P C32 Schneider Acti9 iC60 Breaker 32A C-Curve 4-Pole
SKU: iC60N 4P C32
Price: 234.00 USD
Availability: InStock

Product details

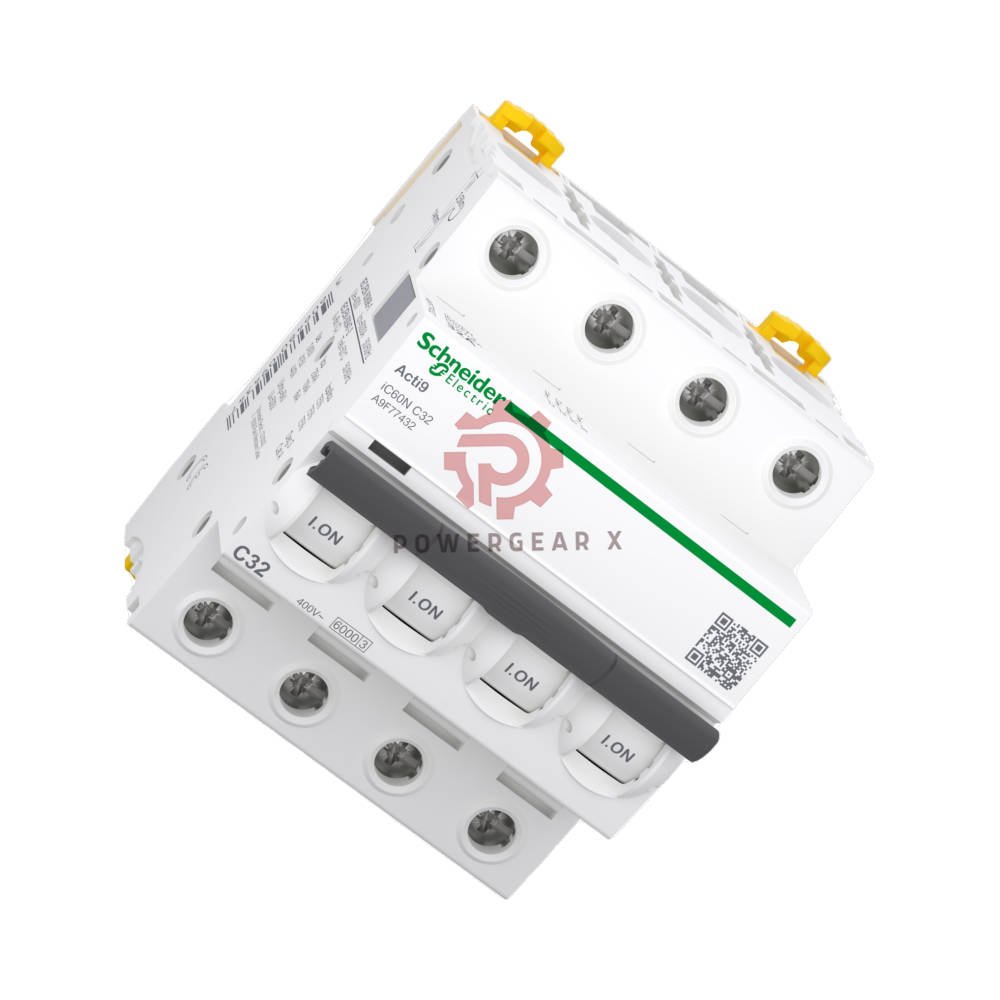

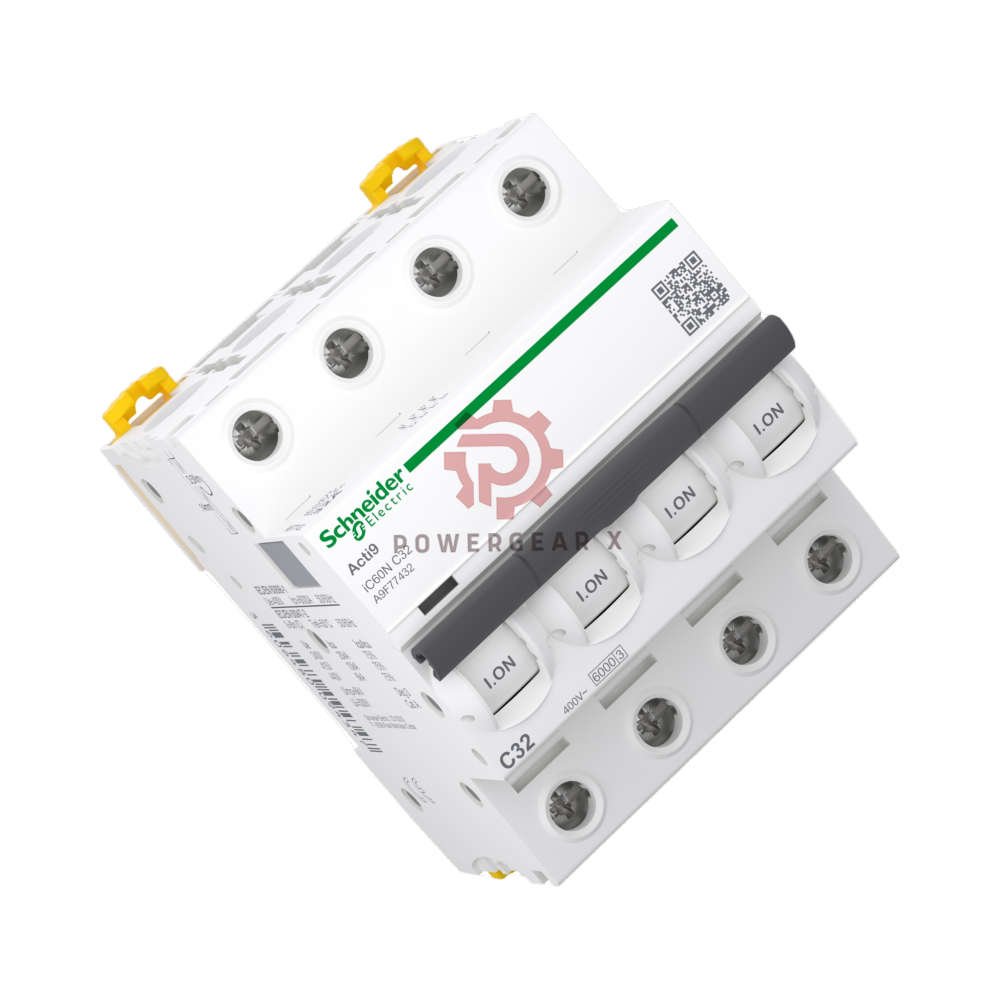

iC60N 4P C32 Schneider Electric Acti9 iC60 Miniature Circuit Breaker

iC60N 4P C32 is a miniature circuit breaker from Schneider Electric. It comes from the Acti9 iC60 series. This unit has 4 poles and a 32 A rating. It uses a C trip curve. The breaker protects circuits from overload and short circuit. It fits 400 V AC networks. The 6 kA breaking capacity handles many daily faults. It mounts fast on a 35 mm DIN rail. This is a strong pick for shops, panels, and machines.

The device follows EN/IEC 60898-1 and EN/IEC 60947-2. It works in cold and hot sites. The operating range is -35 to 70 °C. Mechanical life reaches 20,000 cycles. Electrical life reaches 10,000 cycles. The body measures 85 × 72 × 78.5 mm. It weighs about 0.5 kg. The Acti9 range is active and in production. Last verified: 2026-09.

Product Highlights

Brand: Schneider Electric
Model: iC60N 4P C32
Series: Acti9 iC60
Type: Miniature circuit breaker
Name: Acti9 iC60N Miniature Circuit Breaker, 4P, 32 A, C-curve

Electrical Data

Poles
- Count: 4P
Current
- Rated current: 32 A
Trip Curve
- Type: C
- Style: Thermal-magnetic
- Magnetic trip: 8 × In ±20%
Breaking Capacity
- Rating: 6 kA
- Voltage: 230/400 V
- Standard: IEC 60898-1
Rated Voltage
- Value: 400 V AC

Standards and Certifications

Primary Standard
- Code: EN/IEC 60898-1
Secondary Standard
- Code: EN/IEC 60947-2

Environmental Data

Temperature
- Operating range: -35 to 70 °C

Physical Data

Mounting
- Type: 35 mm DIN rail
Life
- Mechanical: 20,000 cycles
- Electrical: 10,000 cycles
Size
- Dimensions: 85 × 72 × 78.5 mm
Mass
- Weight: 0.5 kg

Lifecycle Status

State
- Status: Active
- Note: In production, Acti9 range
- Last verified: 2026-09

Expert Review

The iC60N 4P C32 does a simple job well. It guards four-pole circuits against overload and short circuit. The C curve rides through small motor surges. The 6 kA rating suits most building panels. The wide heat range helps in cold rooms and hot plants. The DIN rail clip saves install time. The 20,000 mechanical cycles give long service. Buyers who need steady stock should pick this active model. It is a safe, proven part for daily electrical work.

Manager’s Insight

This breaker sells well to panel builders and maintenance crews. It fits three-phase loads that need full isolation. The four-pole layout cuts shock risk during service. The 32 A size matches many small machines and sub-panels. Keep this unit on the shelf for quick swaps. Pair it with Acti9 accessories for clean wiring. Stock depth pays off when clients need same-day repair parts.

Best Applications

FAQ

Q: What does the C curve mean?
A: It trips at 8 × In for short circuit faults.
Q: Can this unit take 400 V AC?
A: Yes. It is rated for 400 V AC networks.
Q: How many poles does it switch?
A: It switches four poles at once.
Q: What is the breaking capacity?
A: It clears faults up to 6 kA.
Q: Which rail does it use?
A: It clips onto a 35 mm DIN rail.

Experience-Based Q&A

Q: Why does my breaker trip on motor start?
A: The surge may exceed the C curve limit. Check motor size first.
Q: How do I spot a weak unit?
A: Look for heat marks or a loose handle.
Q: Can I use it in a cold room?
A: Yes. It works down to -35 °C.
Q: How often should I test it?
A: Test the handle every six months.
Q: What spare parts should I keep?
A: Keep one spare breaker per panel size.
