Product details

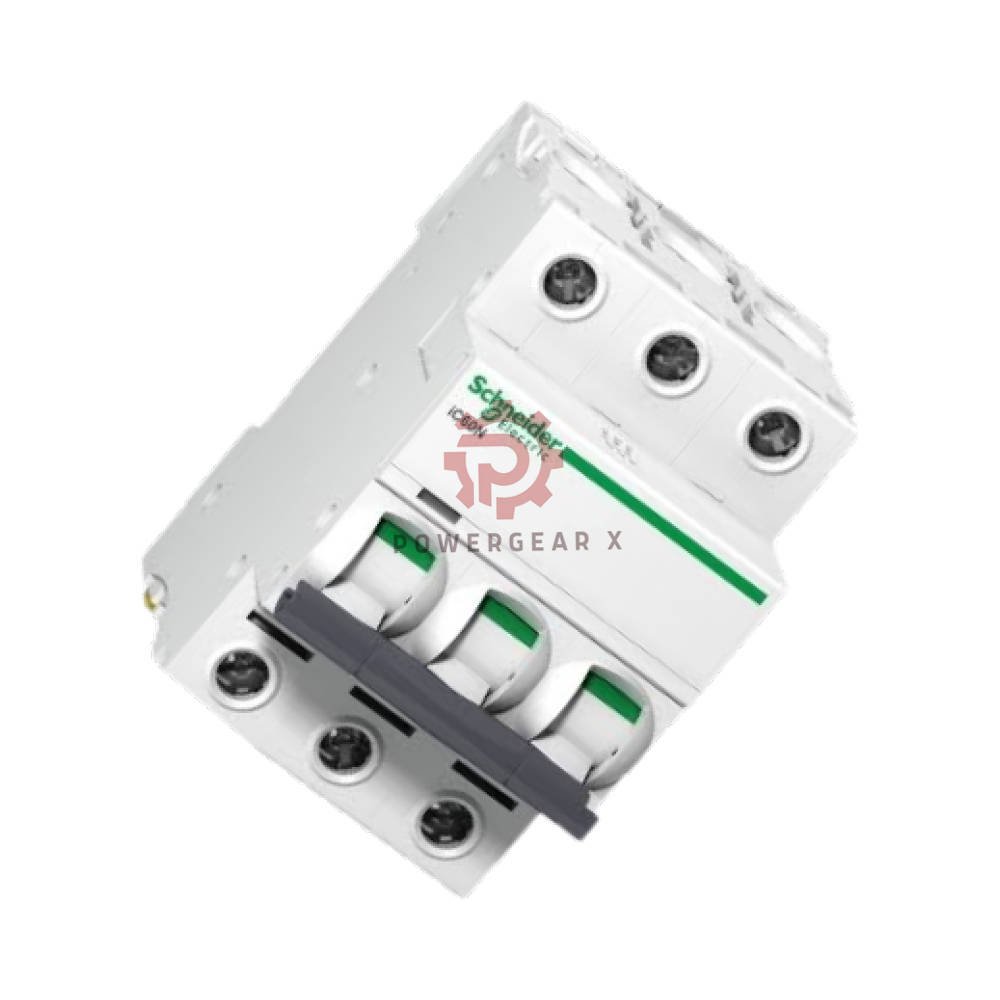

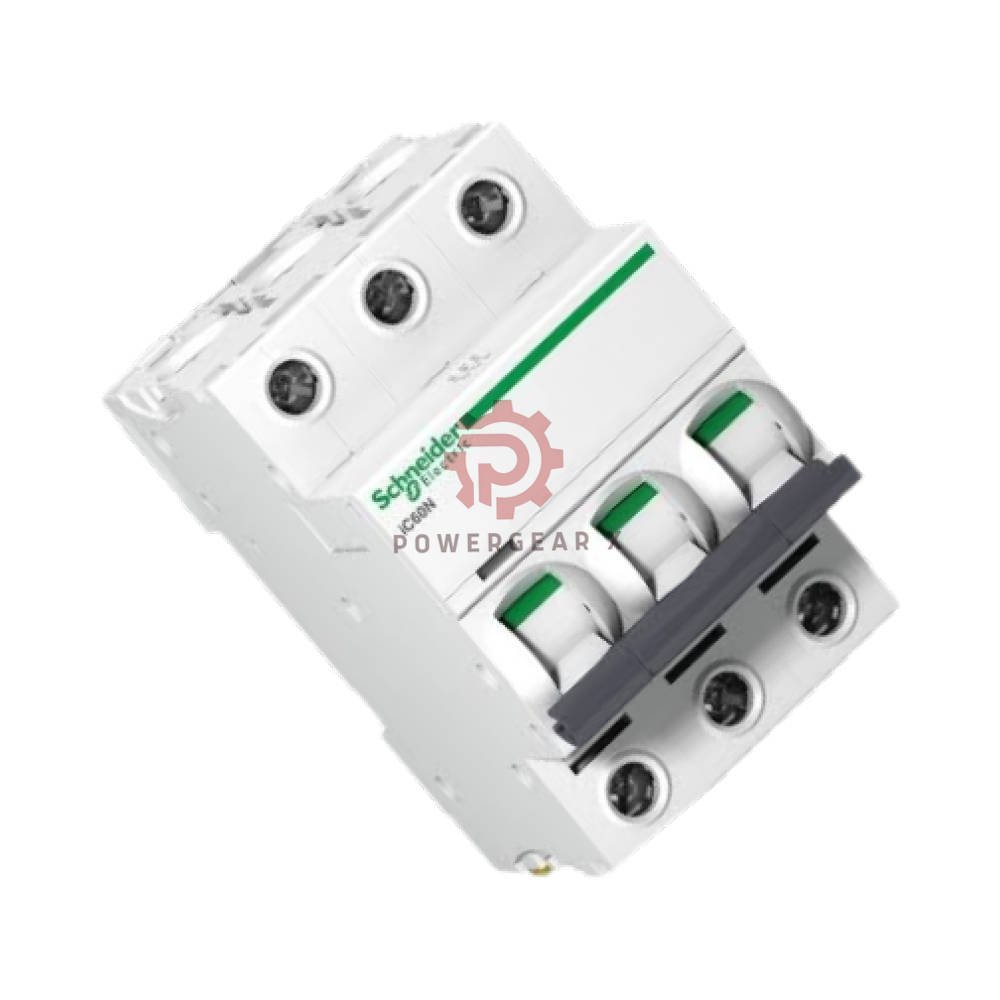

iC60N 3P C25 Circuit Breaker by Schneider Electric – Acti9 Series
Model iC60N 3P C25 is a miniature circuit breaker from the Acti9 iC60 range. It combines thermal and magnetic protection in one compact unit. This 3-pole device handles 25 A with a C-curve trip. It is built for industrial and commercial power distribution. The breaker offers reliable overcurrent and short-circuit protection. It mounts easily on a 35 mm DIN rail.
Description
- Brand: Schneider Electric
- Series: Acti9 iC60
- Model: iC60N 3P C25
- Type: Miniature Circuit Breaker (MCB)
- Function: Thermal-magnetic protection
- Target: Industrial automation, panel builders, OEMs
- Key benefit: High breaking capacity, long mechanical life
Technical Data
- Brand: Schneider Electric
- Model: iC60N 3P C25
- Series: Acti9 iC60
- Poles: 3P
- Rated current: 25 A
- Trip curve: C (magnetic trip 8 × In ±20%)
- Breaking capacity: 6 kA @ 230/400 V (IEC 60898-1)
- Rated voltage: 400 V AC
- Frequency: 50/60 Hz (standard AC)
- Operating temperature: -35 to 70 °C
- Mounting: 35 mm DIN rail
- Mechanical life: 20,000 cycles
- Electrical life: 10,000 cycles
- Dimensions (H×W×D): 85 × 54 × 78.5 mm
- Weight: 0.375 kg
- Standards: EN/IEC 60898-1, EN/IEC 60947-2
- Lifecycle: Active (Acti9 range, last verified 2026-09)
Installation Guide
- Switch off main power before wiring.
- Snap the breaker onto a 35 mm DIN rail.
- Use cables rated for 25 A and 400 V AC.
- Tighten terminals to the specified torque.
- Verify C-curve suits your load inrush current.
- Test the trip function after installation.
Commissioning and Maintenance
- Check wiring polarity and phase sequence.
- Confirm trip curve matches downstream equipment.
- Inspect for loose connections every 6 months.
- Replace after 10,000 electrical operations.
- Keep the device free from dust and moisture.
- Do not exceed 70 °C ambient temperature.
Compatibility Notes
- Fits standard 35 mm DIN rail enclosures.
- Works with Acti9 iC60 accessories.
- Compatible with Schneider auxiliaries and shunt trips.
- Interchangeable with other iC60N 3P devices.
- Use copper conductors only.
Certifications
- EN/IEC 60898-1
- EN/IEC 60947-2
- CE marked (implied by standards)
- RoHS compliant (typical for Acti9 range)
Packing List
- 1 × Schneider iC60N 3P C25 circuit breaker
- 1 × Quick start guide (multi-language)
- Original packaging with label
Warranty and Shipping
- Warranty: 12 months from delivery date
- Dispatch: 12–24 hours after payment
- Carriers: FedEx, UPS, DHL
- Tracking: Provided within 24 hours
Expert Review
The iC60N 3P C25 is a solid choice for panel builders. Its 6 kA breaking capacity covers most commercial circuits. The C-curve handles small motor loads and transformers well. Mechanical life of 20,000 cycles reduces replacement costs. The wide temperature range suits harsh environments. However, for higher fault currents, consider the iC60H range. This breaker balances price and performance for standard industrial use.
Manager’s Insight
We stock the iC60N 3P C25 because it is a top seller in the Acti9 line. Customers value its reliable tripping and easy DIN rail mounting. It works with many Schneider accessories. Lead times are short, and FedEx, UPS, or DHL ship fast. For projects needing 25 A and 3-pole protection, this model rarely disappoints. Keep spares on hand for maintenance teams.
Best Applications and Equipment
- Industrial control panels
- Commercial distribution boards
- Small motor circuits
- HVAC equipment
- Lighting circuits with inrush current
- OEM machinery
- Power distribution units
- Automation cabinets
FAQ
Q: What does C-curve mean on this breaker?
A: C-curve trips at 5 to 10 times the rated current. It handles moderate inrush loads. This suits motors and transformers.
Q: Can I use this for a 3-phase motor?
A: Yes, if the motor current stays below 25 A. Check the inrush current. The C-curve may need a higher rating for large motors.
Q: How long does shipping take?
A: We dispatch within 12–24 hours. FedEx, UPS, or DHL delivers in 3–7 business days. Tracking is provided.
Q: Is a 12-month warranty included?
A: Yes, every unit comes with a 12-month warranty. Contact sales@powergearx.com for claims.
Q: What wire size should I use?
A: Use copper wire rated for 25 A. Typical size is 4 mm² to 6 mm². Follow local electrical codes.
Q: Can I mount this breaker in any direction?
A: Yes, it works on a 35 mm DIN rail in any orientation. Keep it vertical for best heat dissipation.
Q: How do I know if the breaker is still good?
A: Test the trip button monthly. After 10,000 electrical cycles, replace it. Visual checks for burn marks help too.
Q: What is the difference between iC60N and iC60H?
A: iC60N offers 6 kA breaking capacity. iC60H offers 10 kA. Choose based on your fault current level.
Q: Do you offer bulk pricing?
A: Yes, contact sales@powergearx.com or WhatsApp +86 18030005825 for quotes.
Buying Guide
- Match the rated current to your load.
- Check the breaking capacity for your network.
- Use C-curve for mixed loads.
- Confirm 3-pole suits your system.
- Verify DIN rail compatibility.
- Order spares for critical panels.
- Ask about Acti9 accessories for added functions.
