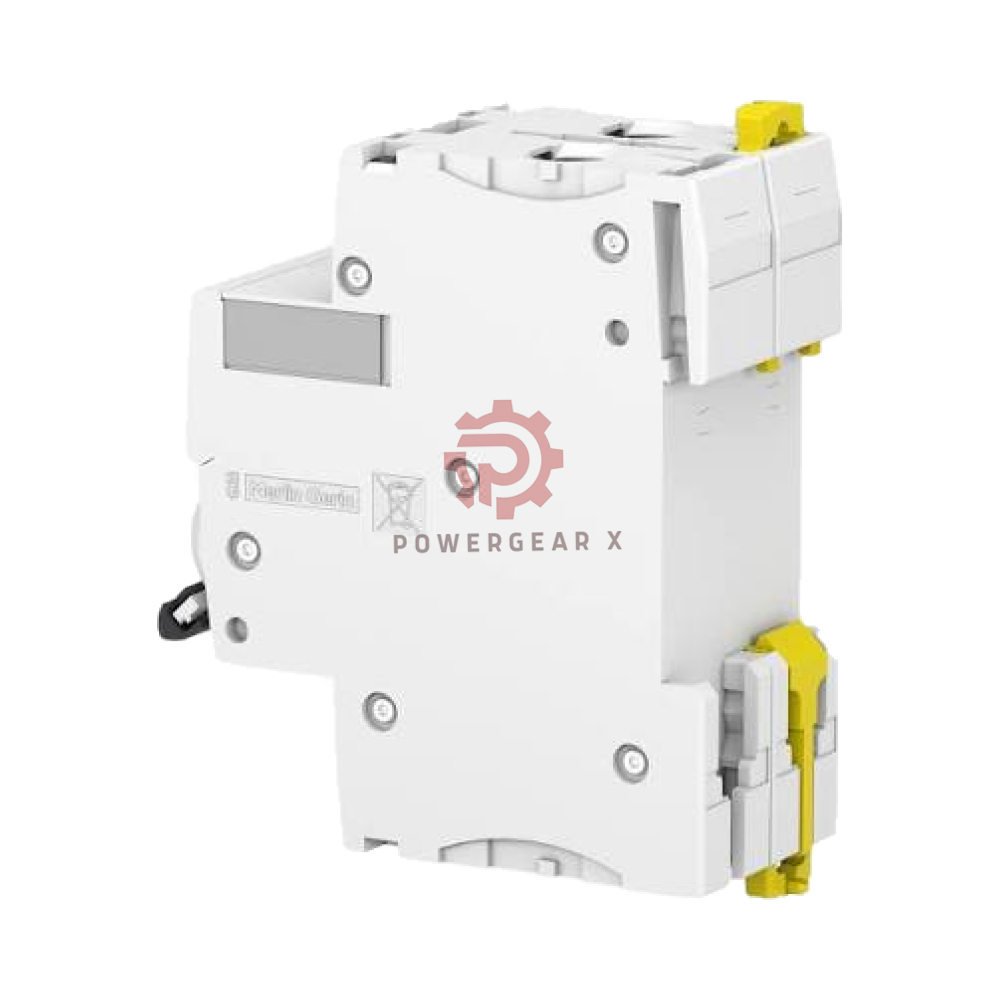

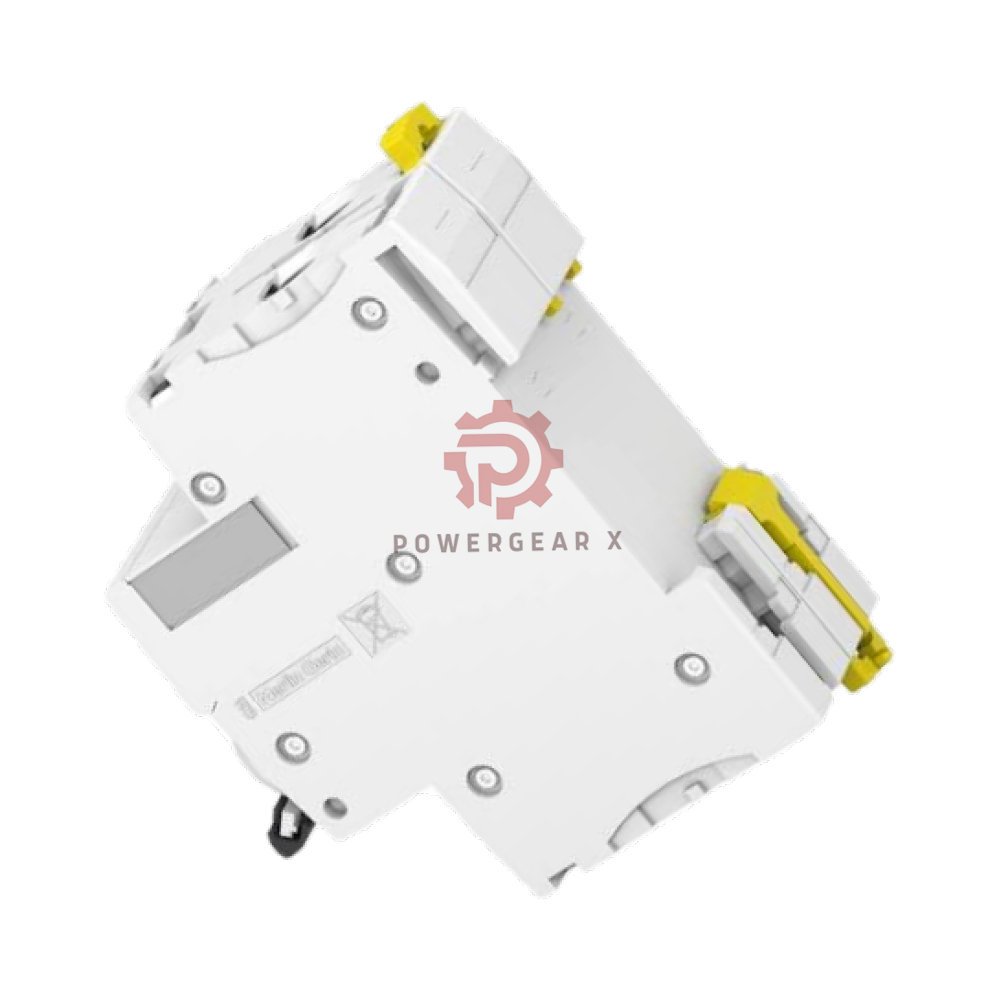

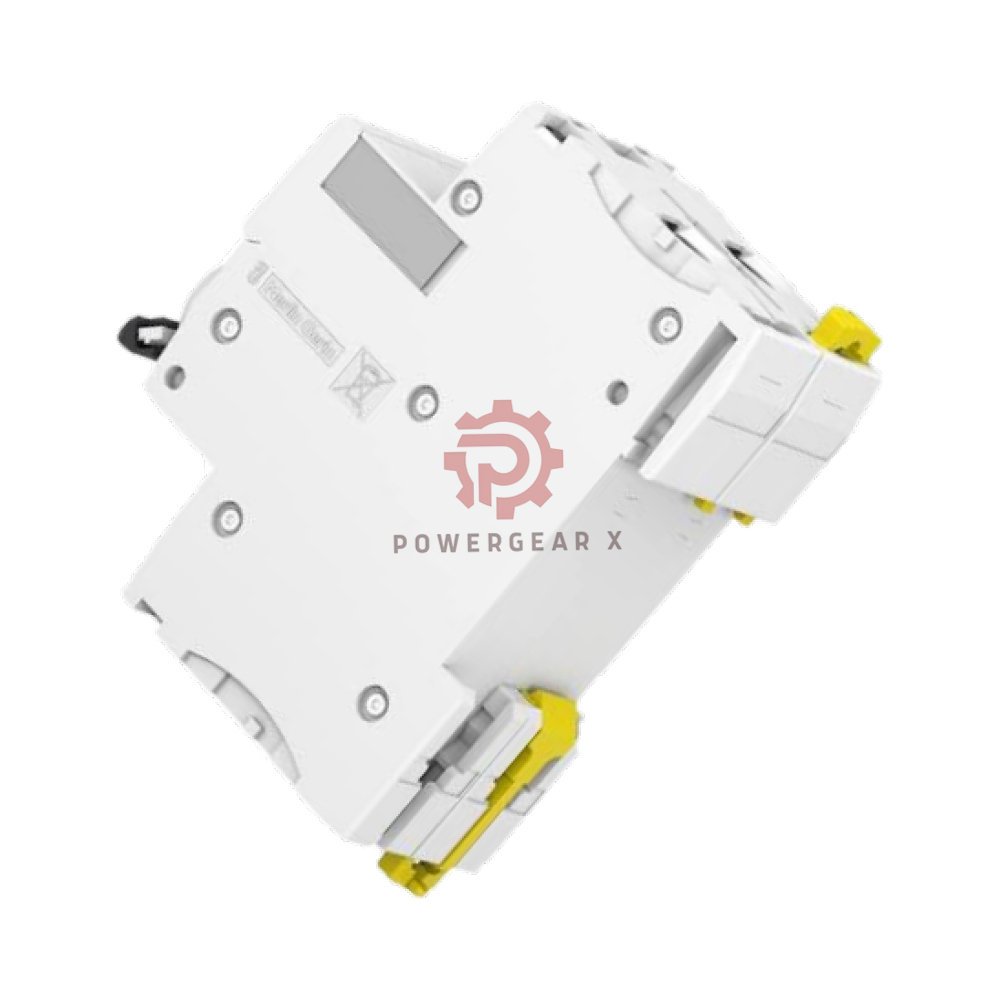

Schneider iC60N 2P C40 Acti9 Miniature Circuit Breaker 40A 2-Pole

Product Snapshot

• iC60N 2P C40 is a miniature circuit breaker from Schneider Electric.
• It sits in the Acti9 iC60 range.
• It has 2 poles and a 40 A rating.
• The trip curve is C type. It protects against overload and short circuit.

Core Electrical Data

• Poles
  • 2P
• Rated Current
  • 40 A
• Trip Curve
  • C curve
  • Thermal-magnetic type
  • Magnetic trip at 8×In, plus or minus 20%
• Breaking Capacity
  • 6 kA at 230/400 V
  • Meets IEC 60898-1
• Rated Voltage
  • 400 V AC
  • 125 V DC

Standards and Certifications

• Main Standards
  • EN/IEC 60898-1
  • EN/IEC 60947-2

Environment and Physical Data

• Operating Temperature
  • -35 to 70 °C
• Mounting
  • 35 mm DIN rail
• Service Life
  • Mechanical: 20,000 cycles
  • Electrical: 10,000 cycles
• Size and Weight
  • Height × Width × Depth: 85 × 36 × 78.5 mm
  • Weight: 0.25 kg

Lifecycle

• Status
  • Active, in production
  • Part of the Acti9 range
  • Last checked: 2026-09

Expert Review

• The iC60N 2P C40 is a workhorse breaker.
• It is easy to wire and easy to replace.
• The C curve handles motor and lighting surges well.
• 6 kA covers most small panels and sub-boards.
• The DIN clip holds tight on standard rail.
• It fits tight spaces at 36 mm wide.
• For busy panels, this is a safe, boring choice. That is a good thing.

Manager’s Insight

• Stock this breaker. It moves fast.
• Most callbacks are simple swaps, not repairs.
• A spare on the shelf saves a full shift.
• Buy genuine Acti9 parts to avoid fit issues.
• Keep 2P and 1P versions side by side.
• Track serial batches for warranty claims.

Best Fit Equipment and Applications

• Small distribution boards
• Lighting circuits with inrush current
• Small motor feeds
• Office and shop sub-panels
• Solar DC combiner boxes at 125 V DC
• Machine control cabinets
• Retail and hotel power circuits

FAQ

• Q: How do I pick between C curve and B curve?
  A: Pick C for motors and lamps with inrush. Pick B for pure resistive loads.
• Q: Can I use this on a 400 V three-phase system?
  A: Yes, it is rated for 400 V AC. Use two poles for phase and neutral, or per your design.
• Q: What does the 6 kA number mean for my panel?
  A: It must be equal to or higher than the short-circuit current at that point.
• Q: How often should I replace it?
  A: After a heavy short-circuit trip, test it. Replace if it will not reset or feels loose.
• Q: Do you offer bulk pricing for panel builders?
  A: Yes. Email us your list and quantities for a quote.
• Q: What is the warranty and delivery time?
  A: 12-month warranty. Orders ship in 12-24 hours by FedEx, UPS, or DHL.

Buying Guide

• Check your system voltage first. AC or DC.
• Confirm the pole count you need. This part is 2P.
• Match the current rating to your cable and load.
• Check the fault level at the board. 6 kA must be enough.
• Count spare ways in the panel before you buy.
• Order spare units for critical circuits.
• Questions? Reach us at sales@powergearx.com or +86 18030005825.
