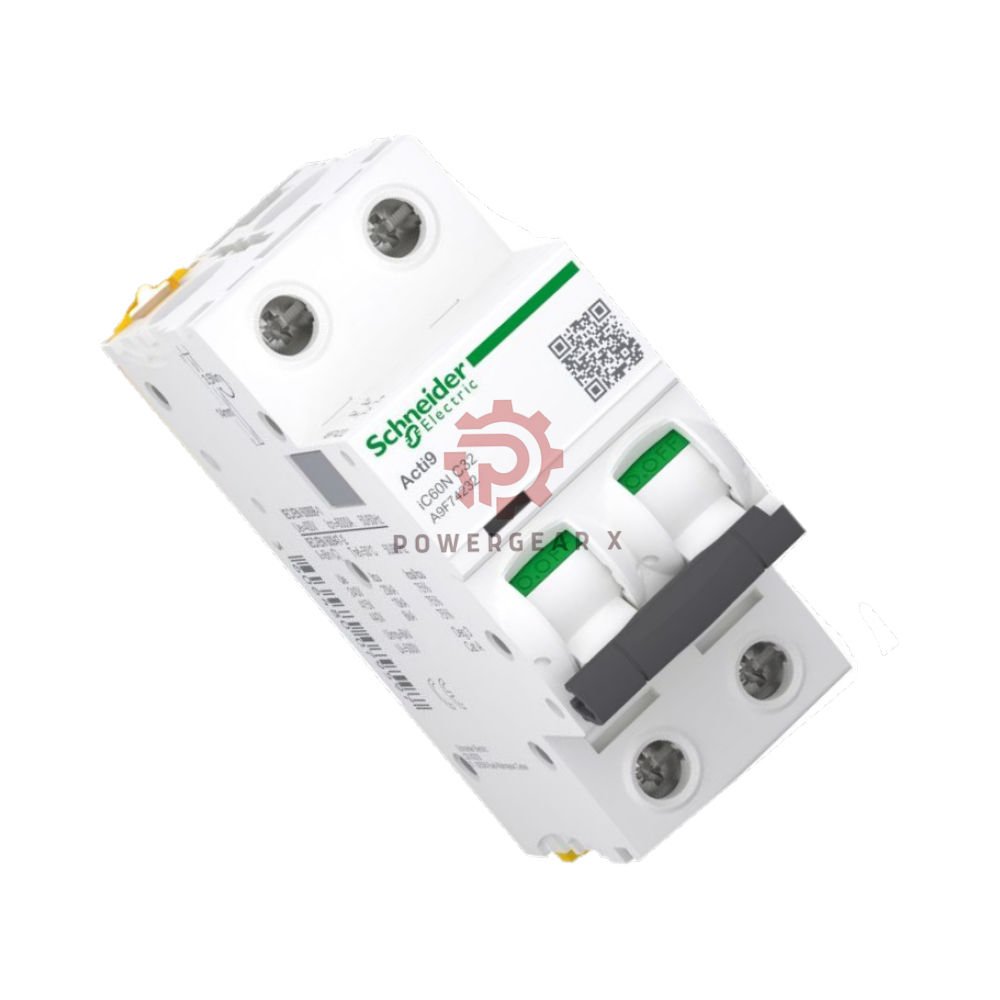

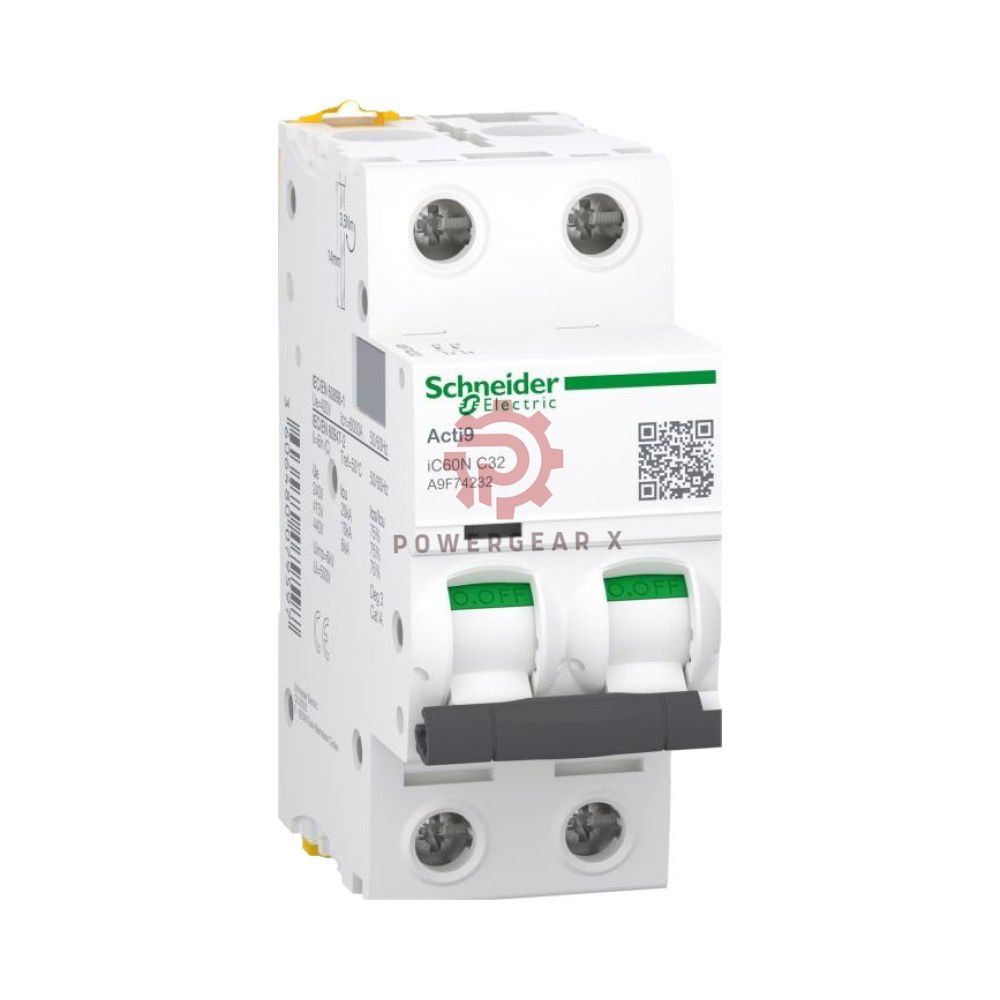

iC60N 2P C32 Acti9 iC60 Breaker by Schneider Electric 32A

iC60N 2P C32 | Schneider Electric Acti9 iC60 Miniature Circuit Breaker

iC60N 2P C32 is a miniature circuit breaker from Schneider Electric. This unit belongs to the Acti9 iC60 series. Because it uses a C-curve trip, it handles 32 A with ease. In addition, it protects circuits in homes, shops, and small plants.

Product Snapshot

• Brand: Schneider Electric
• Model: iC60N 2P C32
• Series: Acti9 iC60
• Type: Miniature circuit breaker
• Poles: 2P
• Rated Current: 32 A
• Trip Curve: C curve

Electrical Specifications

• Poles
  • 2P
• Rated Current
  • 32 A
• Trip Curve
  • C curve
  • Thermal-magnetic type
  • Magnetic trip at 8×In ±20%
• Breaking Capacity
  • 6 kA at 230/400 V
  • IEC 60898-1
• Rated Voltage
  • 400 V AC
  • 125 V DC

Standards and Certifications

• Standards
  • EN/IEC 60898-1
  • EN/IEC 60947-2

Environmental Data

• Operating Temperature
  • -35 to 70 °C

Physical Data

• Mounting
  • 35 mm DIN rail
• Mechanical Life
  • 20,000 cycles
• Electrical Life
  • 10,000 cycles
• Dimensions
  • 85 × 36 × 78.5 mm
  • Height × Width × Depth
• Weight
  • 0.25 kg

Lifecycle

• Status
  • Active
  • In production
  • Acti9 range
• Last Verified
  • 2026-09

Expert Review

The iC60N 2P C32 is a solid pick for daily protection. Because the C curve handles small motor surges well, it fits many jobs. Also, the 6 kA breaking capacity works in most small panels. DIN rail mounting saves time during setup. Moreover, the 2-pole design suits single-phase and two-phase loads. As a result, it is a safe and proven choice for builders and panel makers.

Manager’s Insight

Stock this breaker for panel builds and service calls. It is small, light, and easy to fit. Since the Acti9 iC60 range is still in production, parts stay easy to find. Therefore, buy a few extra units to cut wait time on jobs.

Best Fit Devices and Applications

• Home distribution boards
• Shop and office panels
• Small motor circuits
• Lighting and socket lines
• Two-phase load protection
• Control cabinets
• Small machines and pumps

FAQ

Q: What does the C curve mean for my load?

A: It allows a short surge. Because of this, motors and small transformers trip less often.

Q: Can I use this breaker on DC power?

A: Yes, up to 125 V DC. However, check your wiring and polarity first.

Q: How many wires fit in each pole?

A: The data sheet does not list this. Therefore, check the terminal size before you buy.

Q: Is a 2-pole breaker better than two 1-pole units?

A: It saves space and trips both lines together. As a result, it is safer for linked loads.

Q: Does this unit come with a warranty?

A: Yes. We offer a 12-month warranty. Also, we ship in 12 to 24 hours. We use FedEx, UPS, and DHL.

Buying Guide

• First, check your load current. Pick 32 A only when the load needs it.
• Then, match the trip curve to your device. Use C for small motor surges.
• Also, confirm your panel uses 35 mm DIN rail.
• Next, check the breaking capacity against your supply.
• In addition, keep spare units for quick repairs.
• Finally, ask us if you are unsure about fit or wiring.
