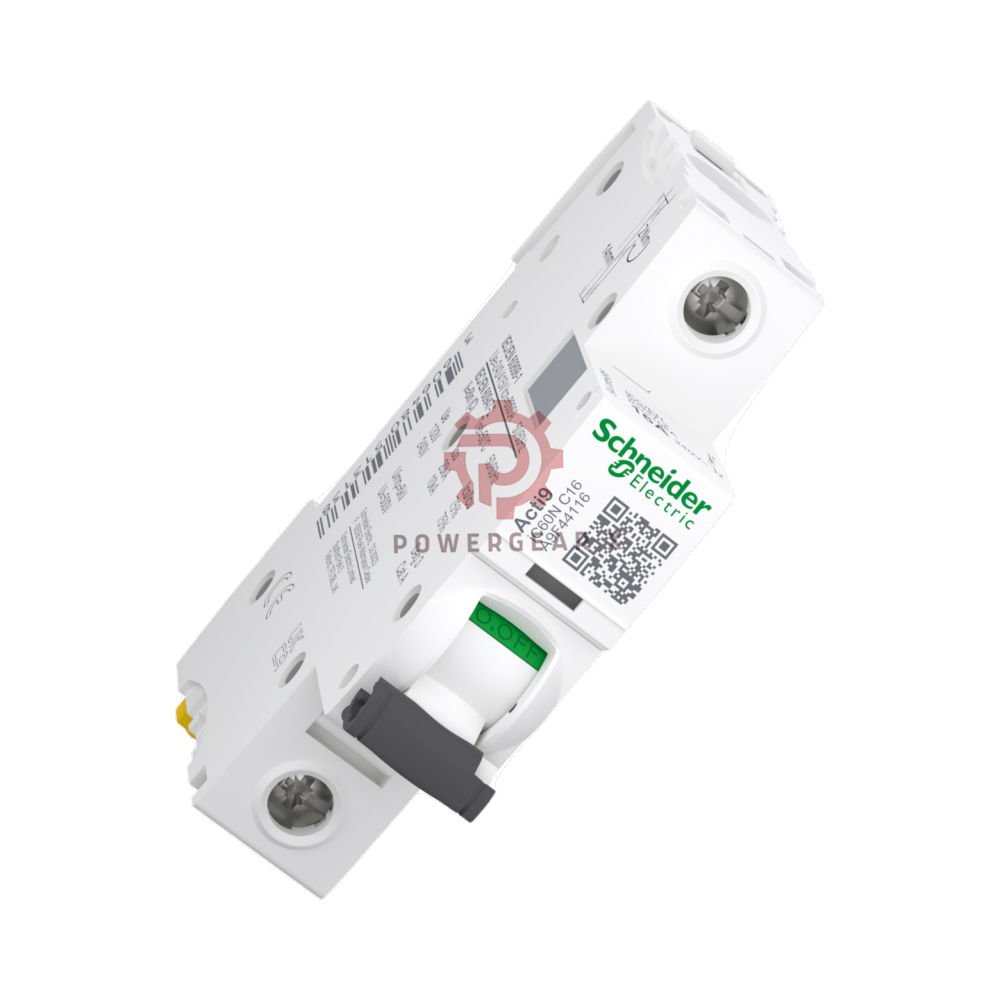

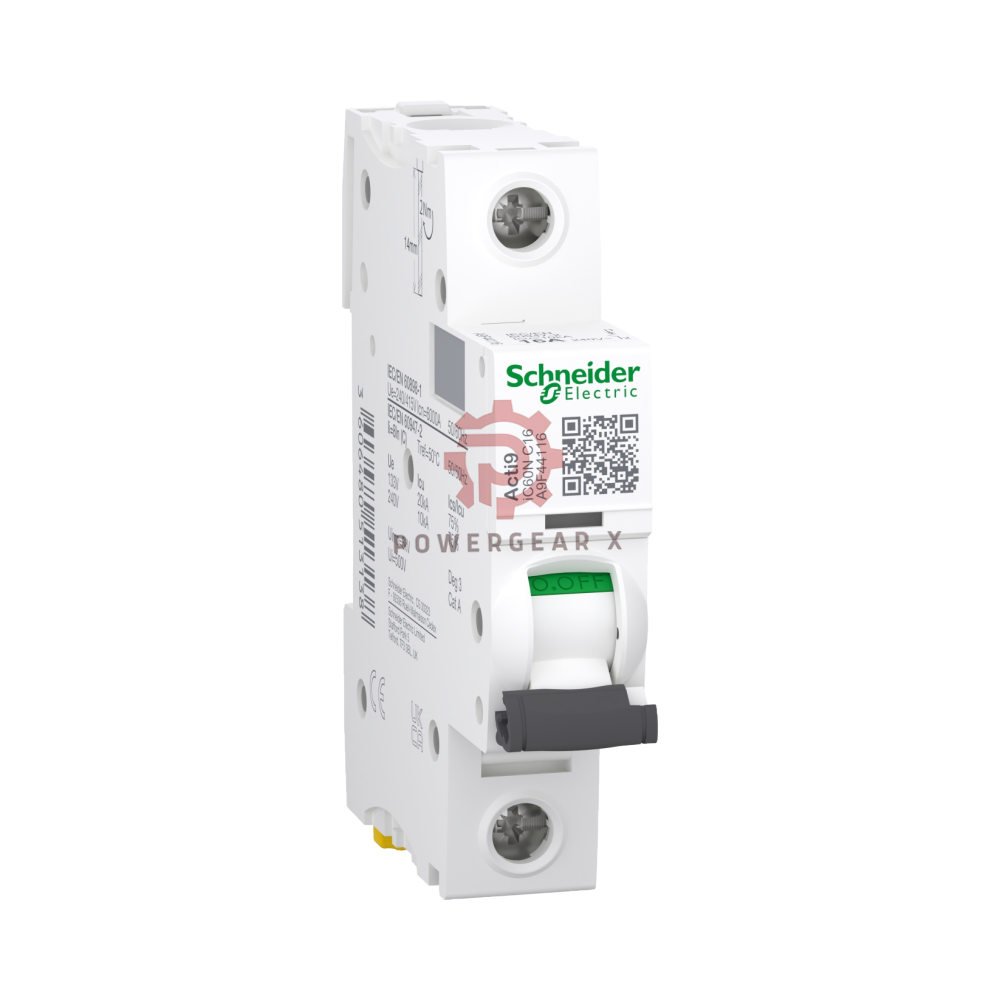

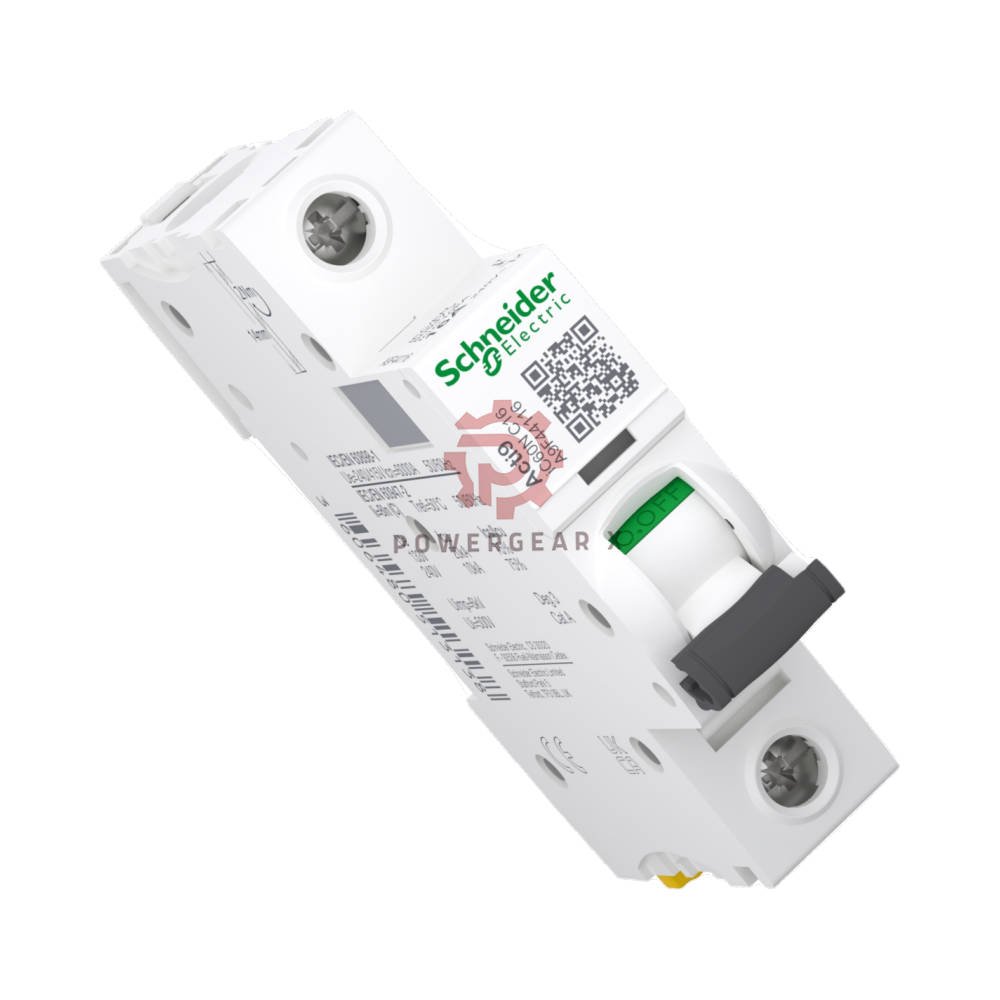

iC60N 1P C16 Schneider Electric Acti9 Miniature Circuit Breaker
iC60N 1P C16 from Schneider Electric is a compact Acti9 iC60 miniature circuit breaker. It protects final circuits against overload and short circuit. The C-curve suits mixed loads with moderate inrush current. This 1-pole device saves DIN rail space. It is a strong choice for industrial, commercial, and residential distribution boards.
Why This Breaker Stands Out
- Brand: Schneider Electric
- Model: iC60N 1P C16
- Series: Acti9 iC60
- Type: Miniature circuit breaker
- Protection: Overload and short circuit
- Best for: Lighting, sockets, small motors, control panels
- Status: Active production, last verified 2026-09
Core Electrical Data
- Poles: 1P
- Rated current: 16 A
- Trip curve: C curve
- Magnetic trip: 8 x In, plus or minus 20 percent
- Breaking capacity: 6 kA at 230/400 V AC
- Standard: IEC 60898-1
- Rated voltage: 230/400 V AC, 125 V DC
Technical Specifications
- Brand: Schneider Electric
- Model: iC60N 1P C16
- Series: Acti9 iC60
- Module type: Miniature circuit breaker, 1 pole
- Current rating: 16 A
- Curve type: C, thermal-magnetic
- Magnetic trip range: 8 x In, plus or minus 20 percent
- Short circuit capacity: 6 kA at 230/400 V AC
- AC voltage range: 230/400 V AC
- DC voltage range: 125 V DC
- Frequency: 50/60 Hz, standard AC supply
- Measurement range: 0 to 16 A rated current
- Sensitivity: Thermal and magnetic trip response
- Linearity: Stable trip performance across the rated range
- Resolution: 1 A rated current step in this family
- Temperature range: -35 to 70 degrees C
- Environmental resistance: Wide temperature tolerance for indoor panels
- Interference immunity: Built for standard industrial EMC conditions
- Mounting: 35 mm DIN rail
- Mechanical life: 20,000 cycles
- Electrical life: 10,000 cycles
- Dimensions: 85 x 18 x 78.5 mm, H x W x D
- Weight: 0.125 kg
- Compliance: EN/IEC 60898-1 and EN/IEC 60947-2
- Lifecycle: Active, Acti9 range
- Last verified: 2026-09
Installation Guide
- Switch off power before you start.
- Check the rail and panel space.
- Clip the breaker onto a 35 mm DIN rail.
- Keep the device upright for best performance.
- Tighten terminals to the correct torque.
- Use cables that match the 16 A rating.
- Leave space for airflow around the device.
- Test the circuit before full load.
Setup and Maintenance Ease
- Front access makes wiring simple.
- Clear ON and OFF positions save time.
- No special tools are needed for mounting.
- Visual checks are easy during service.
- Replace only with the same model and curve.
- Keep terminals clean and dry.
Compatibility Notes
- Fits standard 35 mm DIN rail systems.
- Works with Acti9 distribution boards.
- Pairs with Schneider Electric accessories.
- Suits 230/400 V AC networks.
- Also rated for 125 V DC use.
- Can replace same-size 1P C16 devices.
Certifications and Standards
- EN/IEC 60898-1: Circuit breaker standard for household and similar use.
- EN/IEC 60947-2: Low voltage switchgear and controlgear standard.
- Breaking capacity: 6 kA at 230/400 V AC.
- Lifecycle: Active and in production.
What You Get
- 1 x Schneider Electric iC60N 1P C16 breaker
- Protective retail or bulk packaging
- Documentation as supplied by the factory
- 12 month warranty
Shipping and Warranty
- Warranty: 12 months
- Dispatch: 12 to 24 hours
- Courier: FedEx, UPS, DHL
- Tracking: Shared after dispatch
- Support: sales@powergearx.com
- WhatsApp: +86 18030005825
Expert Review
The iC60N 1P C16 earns trust through simple design and steady performance. Schneider Electric built the Acti9 iC60 line for daily use in busy panels. The C-curve handles small surges without nuisance trips. The 6 kA rating covers many commercial and light industrial needs. The 1-pole width keeps boards tidy. It is not a specialty device. It is a reliable workhorse for standard circuits.
Manager’s Insight
Buy this iC60N 1P C16 when you need a proven 16 A breaker from a top brand. Stock it for panel builds, service calls, and small machine circuits. The Acti9 iC60 range is active, so parts stay easy to source. The 12 month warranty and fast courier options cut project risk. For high-volume buyers, keep this model on the shelf as a fast-moving item.
Best Applications
- Lighting circuits in offices and shops
- Socket outlets in homes and hotels
- Small motors and pumps
- Control panels and machine builders
- Commercial distribution boards
- DC control circuits up to 125 V
- Retrofit and replacement work
FAQ
What does C16 mean?
It means a 16 A breaker with a C curve. The C curve allows short inrush current.
Can I use it for a motor?
Yes, for small motors with moderate starting current. Check the full load current first.
Is it one pole or two?
This model is 1P. It uses one pole and one module width.
What is the breaking capacity?
It is 6 kA at 230/400 V AC. That fits many panel and final circuit duties.
Does it work on DC?
Yes, it is rated for 125 V DC. Follow the correct wiring rules for DC.
How many cycles can it handle?
It handles 20,000 mechanical cycles and 10,000 electrical cycles.
What is the operating temperature?
It works from -35 to 70 degrees C.
How fast do you ship?
We dispatch in 12 to 24 hours. We use FedEx, UPS, and DHL.
Is there a warranty?
Yes, we provide a 12 month warranty.
How do I contact you?
Email sales@powergearx.com or message +86 18030005825 on WhatsApp.
What should I check before buying?
Check poles, current, curve, voltage, and breaking capacity. Match them to your circuit.
Can I mix brands in one panel?
It is best to match brands and series. This keeps trip behavior and fit consistent.
What if the breaker trips often?
Find the cause first. Check load, wiring, and fault level. Then replace only if needed.
Is this a genuine Schneider Electric product?
Yes. We source genuine Schneider Electric products.
Do you offer bulk pricing?
Yes. Contact us with your target quantity and delivery country.
Buying Guide
- Match the rated current to the cable and load.
- Pick C curve for mixed loads with small surges.
- Check the fault level against the 6 kA rating.
- Choose 1P for single-phase final circuits.
- Confirm panel space and DIN rail type.
- Order spare units for service work.
- Ask for bulk pricing on large projects.
