Product details

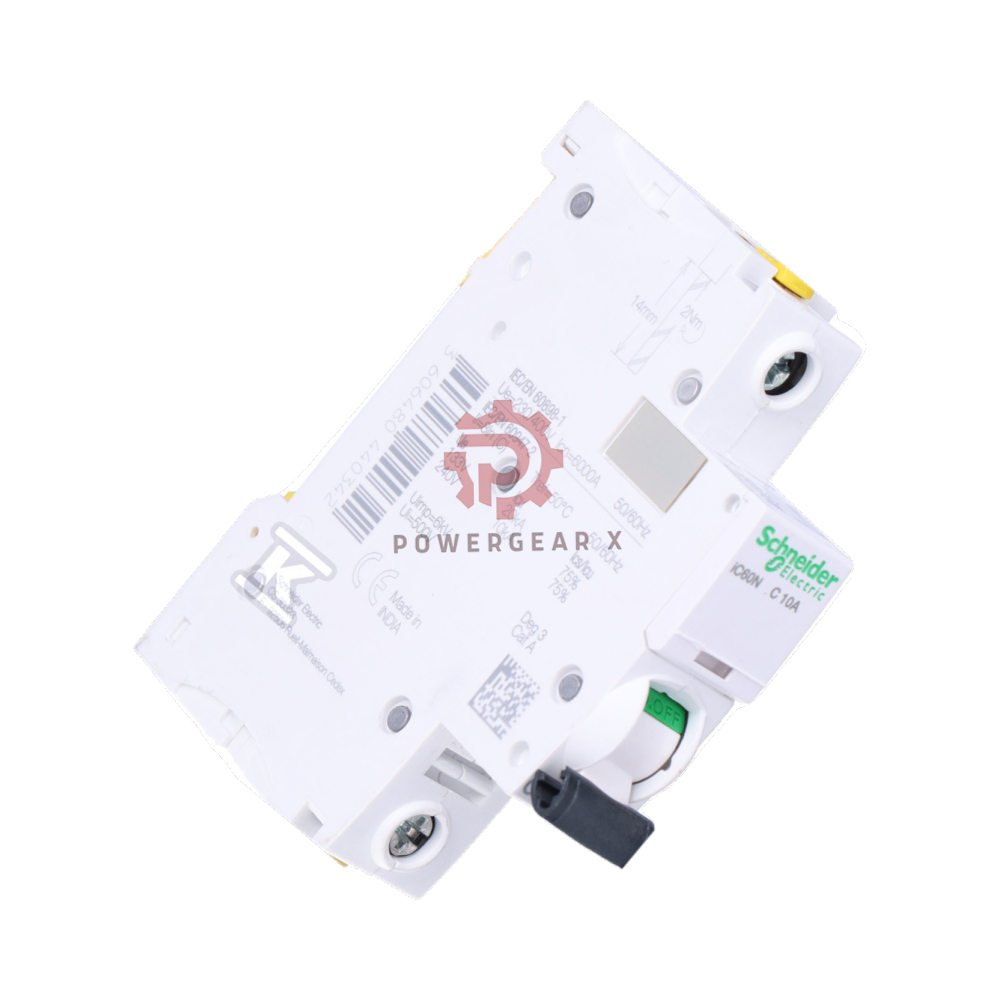

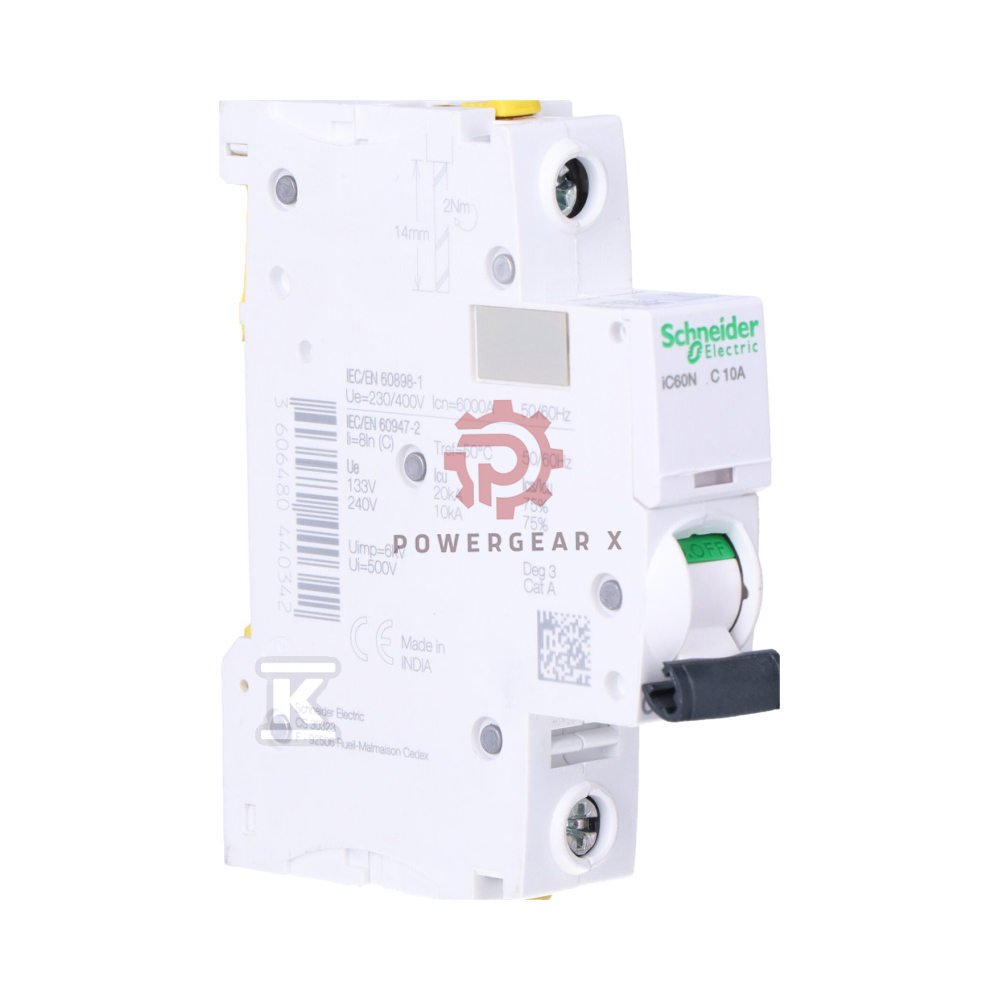

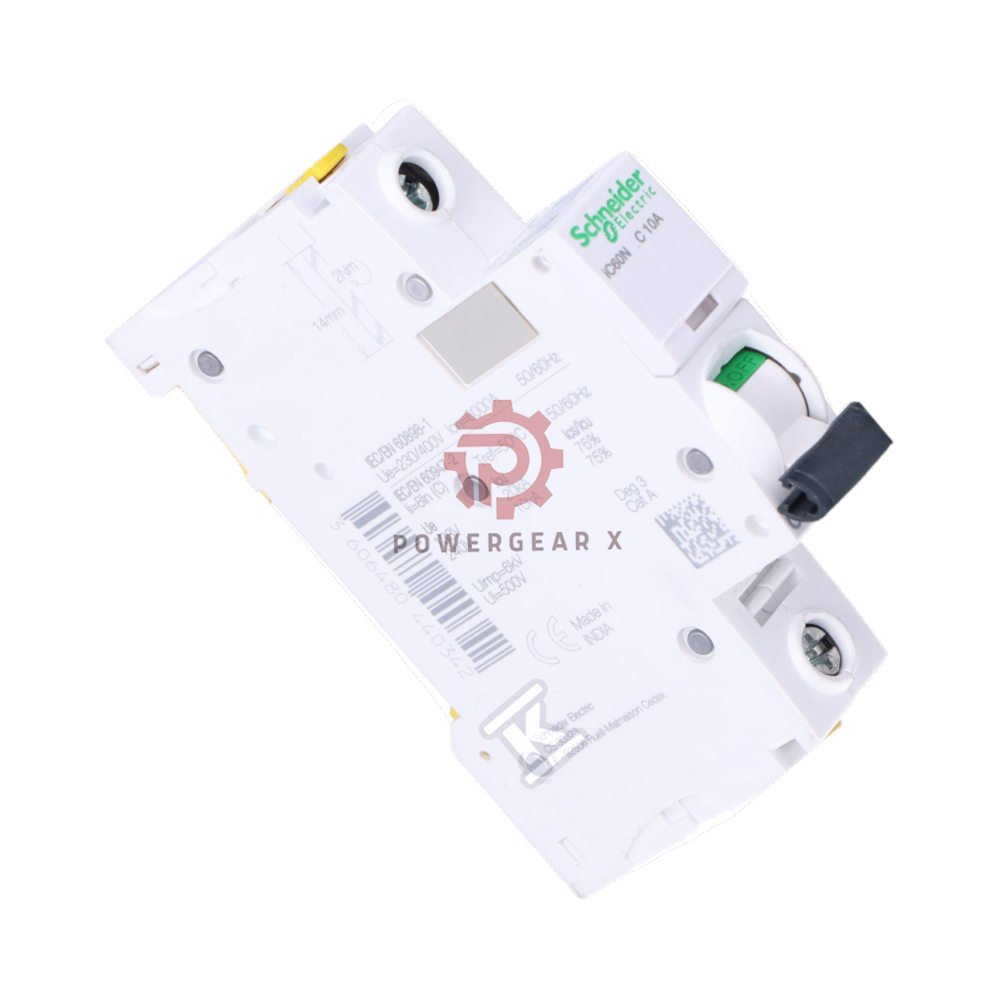

iC60N 1P C10 Schneider Electric Acti9 Miniature Circuit Breaker
Model: iC60N 1P C10
Brand: Schneider Electric
Series: Acti9 iC60
A slim 1-pole breaker for clean circuit protection. It pairs thermal and magnetic trip action in one unit. The C curve rides through small surges without nuisance trips. Use it in homes, shops, and light industrial panels. It clips onto standard 35 mm DIN rail in seconds. The unit stays active in the Acti9 range.
Why It Stands Out
- Quick install: Snap-on DIN rail mount cuts wiring time.
- Balanced trip curve: C curve handles mixed loads with care.
- Strong breaking capacity: 6 kA at 230/400V AC.
- Wide temperature range: Runs from -35 to 70 °C.
- Long service life: 20,000 mechanical cycles and 10,000 electrical cycles.
- Global standards: Meets EN/IEC 60898-1 and EN/IEC 60947-2.
Technical Data
- Brand: Schneider Electric
- Model: iC60N 1P C10
- Series: Acti9 iC60
- Module type: Miniature circuit breaker
- Poles: 1P
- Rated current: 10 A
- Trip curve: C curve, thermal-magnetic
- Magnetic trip: 8 × In ±20%
- Breaking capacity: 6 kA at 230/400V AC
- Rated voltage: 230/400V AC, 125V DC
- Frequency response: 50/60 Hz AC
- Measuring range: Up to 10 A rated current
- Sensitivity: Thermal and magnetic protection
- Linearity: Stable trip action across the rated range
- Resolution: 10 A nominal current rating
- Temperature range: -35 to 70 °C
- Environmental tolerance: Built for normal indoor panels
- Interference resistance: Good immunity in standard industrial settings
- Mounting: 35 mm DIN rail
- Dimensions: 85 × 18 × 78.5 mm
- Weight: 0.125 kg
- Lifecycle: Active, last verified 2026-09
Installation Guide
- Cut power before you begin.
- Clip the breaker onto 35 mm DIN rail.
- Check polarity and tighten terminals well.
- Keep the panel clean and dry.
- Test the circuit after wiring.
Setup and Maintenance
- No complex setup is needed.
- Check terminal torque during routine service.
- Replace the unit if it trips too often.
- Keep spare breakers for key lines.
Compatibility
- Fits standard 35 mm DIN rail systems.
- Works with Acti9 iC60 accessories.
- Suits common 230/400V AC panels.
- Protects lighting, sockets, and small motors.
Certifications
- EN/IEC 60898-1
- EN/IEC 60947-2
Package List
- 1 × Schneider Electric iC60N 1P C10 breaker
- 1 × Product label and quick reference
Warranty and Shipping
- Warranty: 12 months.
- Dispatch: Ships in 12-24 hours.
- Couriers: FedEx, UPS, DHL.
- Contact: sales@powergearx.com
- WhatsApp: +86 18030005825
Expert Review
This breaker suits daily protection work. The C curve shrugs off small surges. The 6 kA rating fits most small panels. Build quality feels solid. Installation is simple. For homes, shops, and light machines, it is a steady pick.
Manager’s Insight
Stock this model for common 10 A circuits. It fits many Acti9 panels. Buyers like the clear label and easy clip-on mount. Pair it with Surge Protective Devices for better system safety. Keep spares for urgent repairs.
Best Applications
- Home distribution boards
- Retail and office panels
- Light industrial control boxes
- Lighting circuits
- Socket outlets
- Small pumps and fans
FAQ
Q: What does C curve mean?
A: It trips at 8 × In ±20% for magnetic faults. It also rides through small inrush currents.
Q: Can I use it for a 10 A lighting circuit?
A: Yes. It fits lighting and socket circuits well.
Q: Is it compatible with other Acti9 parts?
A: Yes. It works with standard Acti9 iC60 accessories.
Q: How fast does it ship?
A: Orders leave in 12-24 hours by FedEx, UPS, or DHL.
Q: What if the breaker trips often?
A: Check load, wiring, and fault level first. Replace the unit if needed.
Q: How do I choose the right breaker?
A: Match rated current to load. Match curve to load type. Match breaking capacity to system fault level.
Q: Do you offer bulk pricing?
A: Yes. Contact sales@powergearx.com for quotes.
Buying Guide
- Check load current before you buy.
- Pick C curve for mixed loads.
- Confirm panel voltage and fault level.
- Order spares for critical circuits.
- Ask for help via +86 18030005825.
