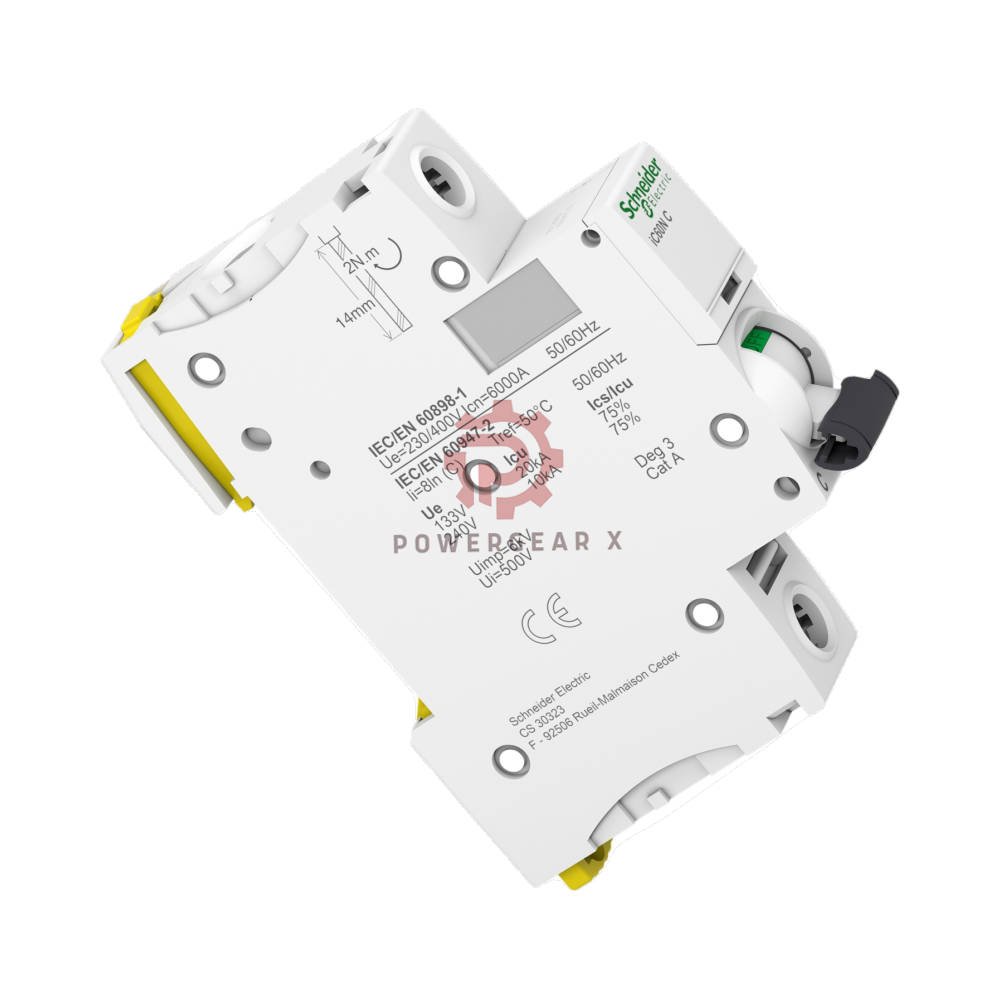

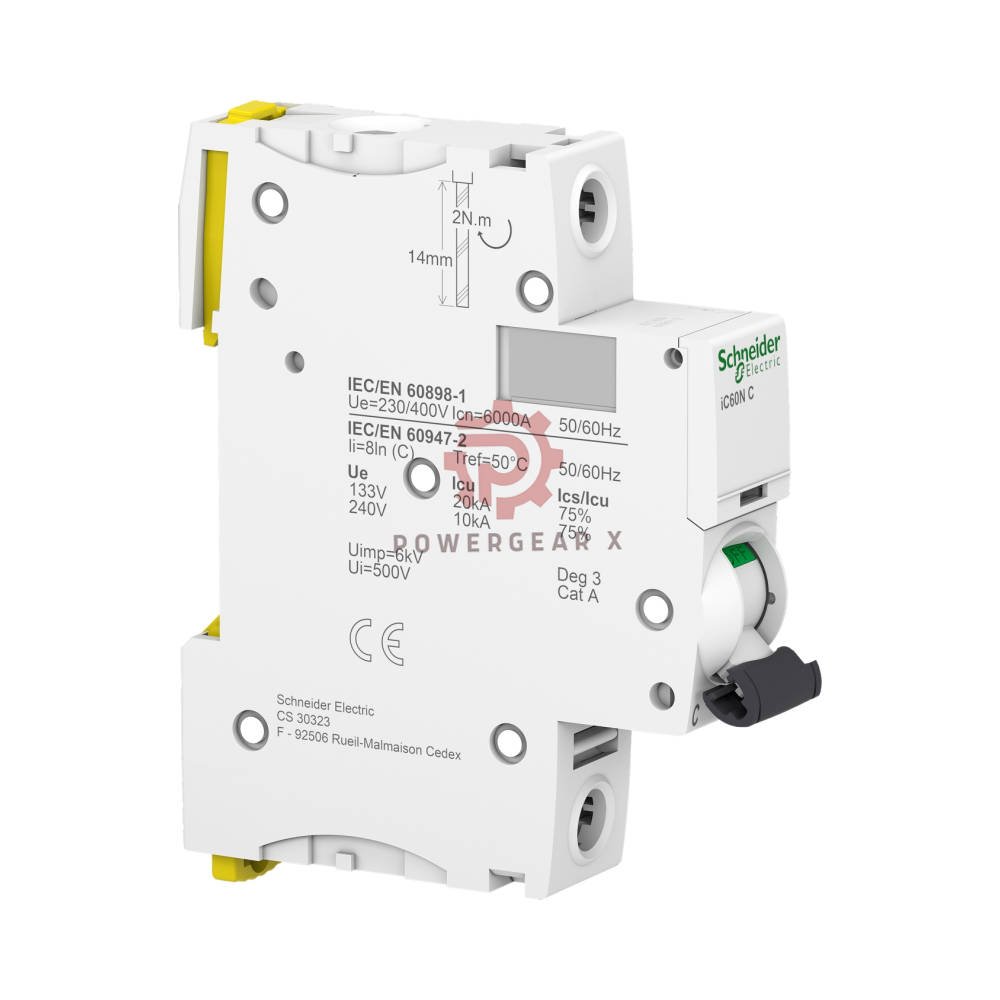

Name: iC60N 1P C20 Schneider Acti9 MCB 20A C-Curve 6kA Breaker
SKU: iC60N 1P C20
Price: 234.00 USD
Availability: InStock

Product details

iC60N 1P C20 | Schneider Electric Acti9 Miniature Circuit Breaker

Model iC60N 1P C20 from Schneider Electric belongs to the Acti9 iC60 series. This 1P breaker carries 20A with a C-curve trip. It suits industrial and commercial circuits. The device offers reliable overload and short-circuit protection. Its compact 18 mm width saves DIN rail space. The 6 kA breaking capacity handles common fault levels. This model stays active in production. Last verified: 2026-09.

Technical Data

Brand: Schneider Electric
Model: iC60N 1P C20
Series: Acti9 iC60
Module type: Miniature circuit breaker (MCB)
Poles: 1P
Rated current: 20 A
Trip curve: C (thermal-magnetic)
Magnetic trip: 8 × In ±20%
Breaking capacity: 6 kA @ 230/400 V (IEC 60898-1)
Rated voltage: 230/400 V AC, 125 V DC
Frequency: 50/60 Hz
Operating temperature: -35 to 70 °C
Storage temperature: -40 to 80 °C
Environmental tolerance: Suitable for humid and dusty panels
Noise immunity: Meets industrial EMC requirements
Mounting: 35 mm DIN rail
Mechanical life: 20,000 cycles
Electrical life: 10,000 cycles
Dimensions (H×W×D): 85 × 18 × 78.5 mm
Weight: 0.125 kg
Lifecycle: Active (Acti9 range)

Installation Guide

Snap the breaker onto a 35 mm DIN rail.
Use a 1P slot for phase or live wire.
Tighten terminals to the specified torque.
Keep 18 mm width per pole for layout.
Allow airflow around the device.
Do not exceed 230/400 V AC or 125 V DC.
Follow local wiring codes and panel rules.

Debugging and Maintenance

Check trip status with the front handle.
Reset after fault clearance.
Test mechanical operation every 6 months.
Replace after 10,000 electrical cycles.
Inspect terminals for looseness yearly.
Clean with a dry cloth only.

Compatibility

Fits standard Acti9 distribution boards.
Works with iC60 auxiliaries and accessories.
Pairs with Schneider Electric busbars.
Compatible with 35 mm DIN rail systems.
Suits 1P branch circuits.

Certifications

EN/IEC 60898-1
EN/IEC 60947-2
CE marked
RoHS compliant
REACH compliant

Package List

1 × iC60N 1P C20 circuit breaker
1 × Quick start guide
1 × Declaration of conformity

Warranty and Shipping

12-month warranty from delivery date.
Ships in 12–24 hours after payment.
Carriers: FedEx, UPS, DHL.
Tracking number sent on dispatch.
For inquiries: sales@powergearx.com or +86 18030005825.

Expert Review

The iC60N 1P C20 delivers solid value for panel builders. Its C-curve handles motor inrush well. The 6 kA rating covers most commercial faults. The 18 mm width is a real space saver. This breaker feels robust and snaps firmly onto DIN rail. The 20,000 mechanical cycles show good build quality. For routine protection, this model is a safe pick. It does not offer advanced metering. But it does its core job without fuss.

Manager’s Insight

Stock this iC60N 1P C20 for general industrial use. It moves fast in MRO and OEM orders. The Acti9 name builds trust. The 12–24 hour dispatch keeps projects on schedule. Pair it with Schneider Electric accessories for higher margins. The 12-month warranty reduces return friction. This is a bread-and-butter SKU. Keep it on the shelf.

Ideal Devices and Applications

Small motors with moderate inrush
Lighting circuits in commercial buildings
Control panels for industrial automation
Power distribution boards
HVAC equipment
Pumps and fans
Workshop outlets
Data cabinet feeds
Renewable energy combiner boxes
Marine and transport panels

FAQ

Q: What does C-curve mean on this breaker?
A: It trips at 8 × In for short circuits. This suits motors and transformers.
Q: Can I use this for DC circuits?
A: Yes. It handles up to 125 V DC. Check polarity and wiring rules.
Q: How many poles does this model have?
A: It has 1 pole. Use it for single-phase lines.
Q: Is this breaker still in production?
A: Yes. The Acti9 iC60 range remains active as of 2026-09.
Q: What is the breaking capacity?
A: It is 6 kA at 230/400 V under IEC 60898-1.
Q: How do I mount it?
A: Clip it onto a 35 mm DIN rail. No tools needed for mounting.
Q: What is the warranty period?
A: It comes with a 12-month warranty.
Q: How fast do you ship?
A: Orders ship within 12–24 hours via FedEx, UPS, or DHL.
Q: Can I use it in a 400 V system?
A: Yes. The rated voltage is 230/400 V AC.
Q: Does it come with accessories?
A: No. Auxiliaries and busbars are sold separately.
Q: How do I reset it after a trip?
A: Move the handle to OFF, then back to ON.
Q: What is the mechanical life?
A: It is 20,000 cycles.
Q: Is this suitable for motor circuits?
A: Yes. The C-curve tolerates motor start currents.
Q: What is the operating temperature range?
A: It runs from -35 to 70 °C.
Q: Can I replace an old iC60N with this one?
A: Yes. It shares the same Acti9 footprint and ratings.
