Product details

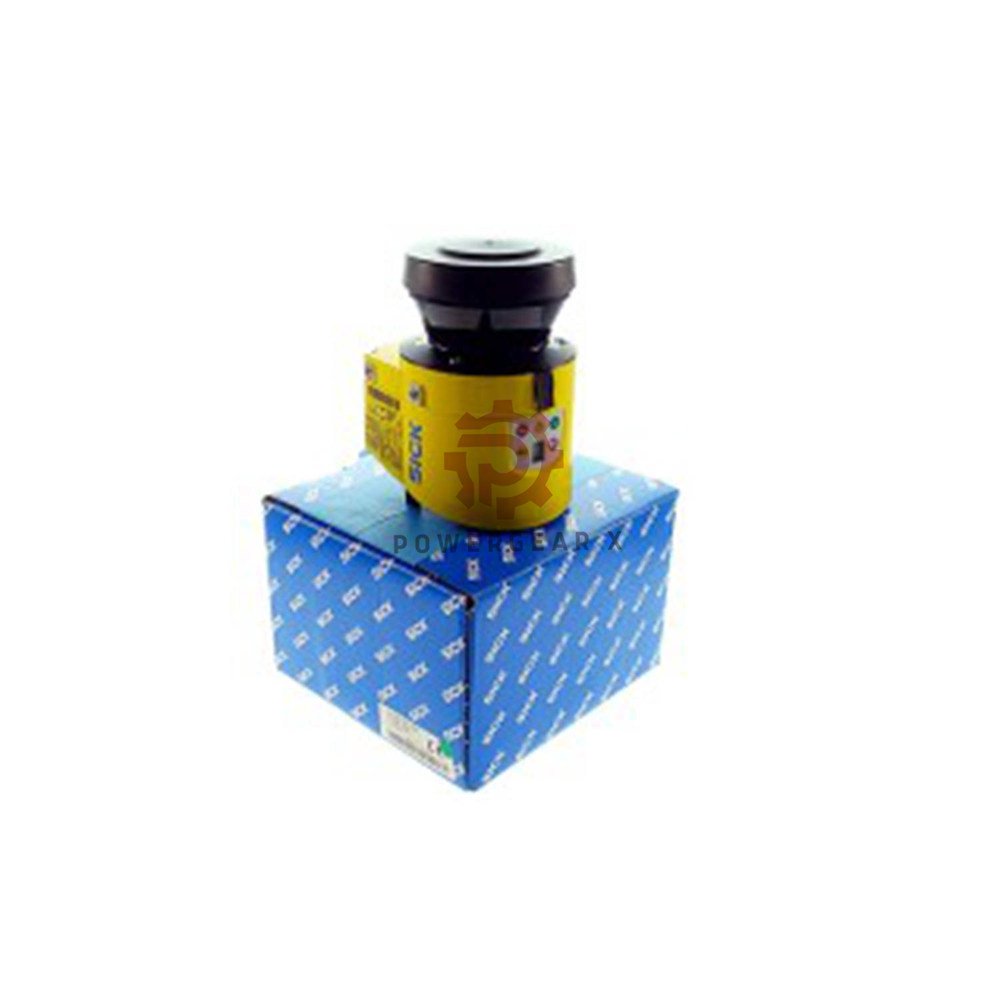

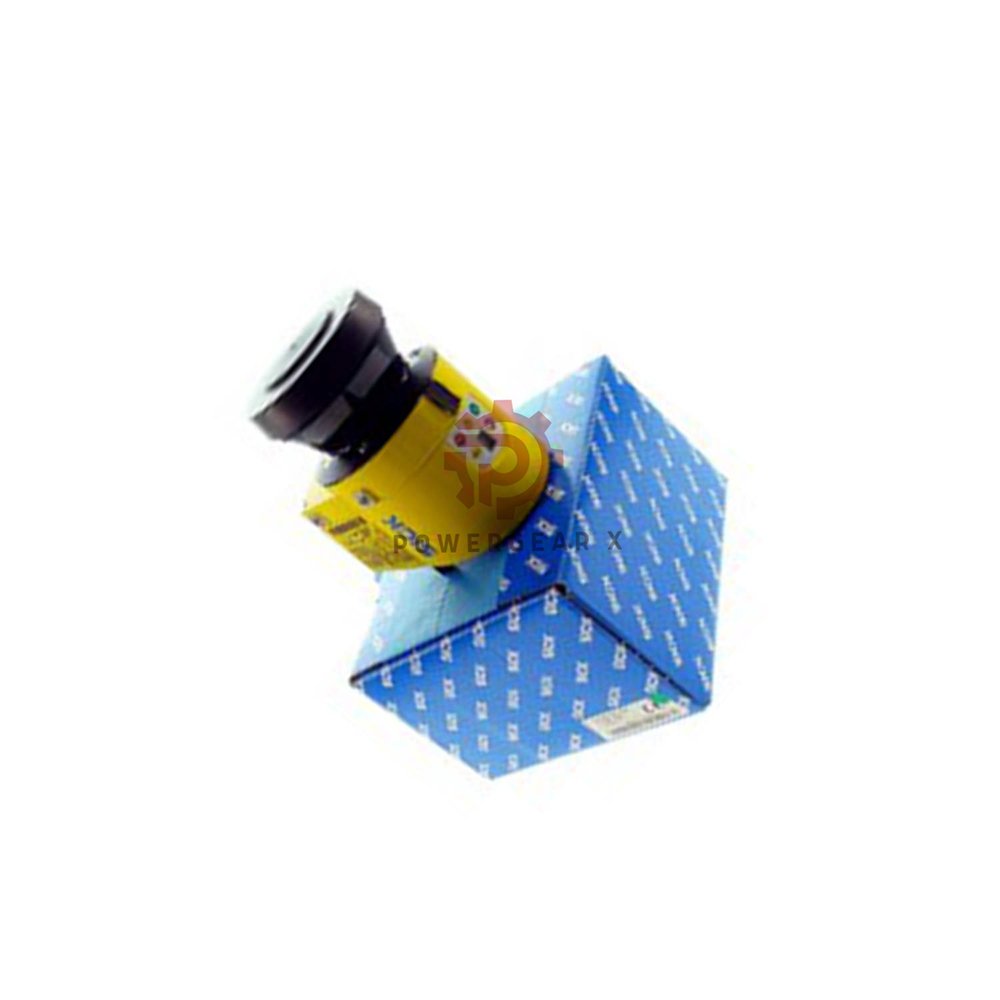

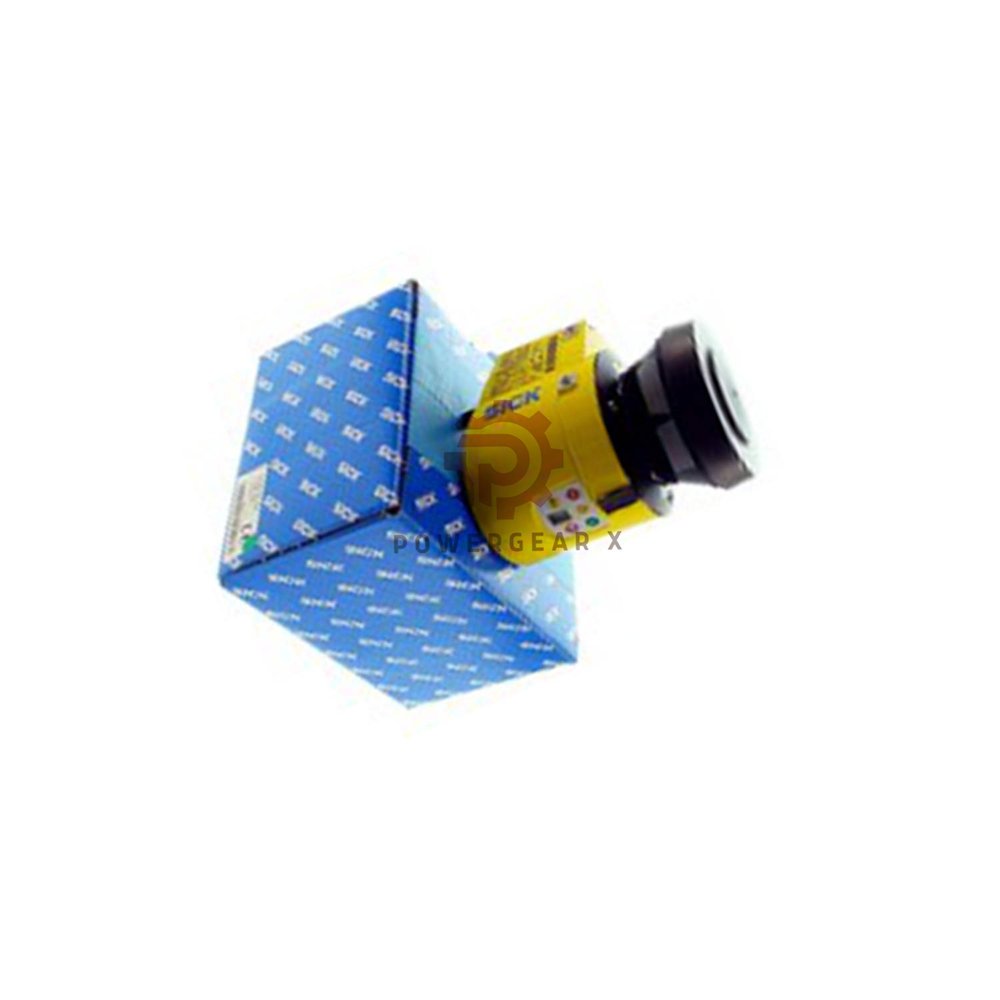

Product Overview – S30B-3011DA
- Type: Safety Laser Scanner
- Brand: SICK
- Model: S30B-3011DA (Alt. 1056429)
- Series: S300 Professional
- Range: 0 to 8 m (warning), 3 m (protective)
- Resolution: Configurable from 30 mm to 150 mm
- Output: 2 PNP semiconductors (OSSDs)
- Angle: 270° scanning
Technical Data – Tree Structure
- Safety & Performance
- SIL: 2 (IEC 61508)
- Category: 3 (EN ISO 13849)
- PL: d (EN ISO 13849)
- PFHD: 8.0 x 10⁻⁸
- Mission time: 20 years
- Response time: 80 ms
- Scanning
- Angle: 270°
- Angular resolution: 0.5°
- Resolution configurable: 30, 40, 50, 70, 150 mm
- Field sets: 8 (24 fields, 32 monitoring cases)
- Multiple sampling: 2…16 (configurable)
- Interfaces
- OSSDs: 2 (250 mA each)
- Diagnostic outputs: 3 (100 mA)
- Universal I/Os: 5
- Inputs: EDM, Reset, Static, Dynamic (encoder), Standby
- Configuration: RS-232 (38.4 kBaud)
- Data interface: RS-422 (≤ 500 kBaud)
- EFI: SICK device communication
- Physical & Environmental
- Housing: Aluminum die-cast (yellow RAL 1021)
- Window: Polycarbonate with scratch-resistant coating
- Protection: IP65
- Weight: 1.2 kg
- Temperature (operation): -10…+50 °C
- Temperature (storage): -25…+50 °C
- Shock: 100 m/s², 16 ms
- Optical
- Light: Pulsed laser diode, 905 nm
- Detectable remission: 1.8 % … > 1000 %
Expert Review
S30B-3011DA offers reliable personnel protection with 3 m protective range. The 270° angle covers wide areas. Multiple resolution settings fit various applications. It meets high safety standards (SIL 2, PL d). A solid choice for machine guarding.
Manager’s Insight
This scanner reduces downtime with fast 80 ms response. The EFI interface simplifies integration with SICK systems. Use it for AGV obstacle detection or robot workcell entry. Its rugged IP65 housing suits industrial environments.
Compatible Devices & Applications
- Controllers: SICK safety controllers, PLCs with PNP inputs
- Applications: AGV obstacle avoidance, robot workcell guarding, conveyor zones
- Industries: Automotive, logistics, packaging, material handling
- Mounting: Standalone or integrated with EFI network
Comparison – Similar Models
- S30A-3011DA – 8 m range, 190° angle
- S30B-4011DA – 4 m protective range
- S32B-3011DA – S3000 series, advanced features
FAQ – Professional Questions
- Q: What is the maximum protective range?
- A: 3 meters (warning field up to 8 m).
- Q: What safety level does it meet?
- A: SIL 2, Category 3, PL d.
- Q: Can I configure the resolution?
- A: Yes, 30, 40, 50, 70, or 150 mm.
- Q: How many field sets can I program?
- A: 8 field sets (24 fields total).
- Q: What is the response time?
- A: 80 ms (configurable with sampling).
Experience-based FAQ & Selection Guide
- Q: Why does my scanner trip randomly?
- A: Check for dirty windows or reflective surfaces.
- Q: Can I use this on an AGV?
- A: Yes, it is commonly used for AGV obstacle detection.
- Q: How to configure the field sets?
- A: Use SICK CDS software via RS-232.
- Q: What cable do I need?
- A: M12 system plug (5-pin or 8-pin depending on version).
- Q: Is it suitable for outdoor use?
- A: Designed for indoor use only (temperature -10…+50 °C).
- Q: How to reset after a fault?
- A: Use the reset input or automatic reset (configurable delay).
Selection Guide – What to Consider
- Range: 3 m protective field for most machine guarding.
- Resolution: Choose 30 mm for small objects, 150 mm for larger areas.
- Environment: Indoor only; IP65 protects against dust/water jets.
- Safety level: SIL 2 / PL d meets most machinery standards.
- Integration: EFI interface simplifies SICK system connection.
Warranty, Shipping & Support
- Warranty: 12 months against manufacturing defects.
- Dispatch: 12–24 hours after order confirmation.
- Couriers: FedEx, UPS, DHL (express delivery).
