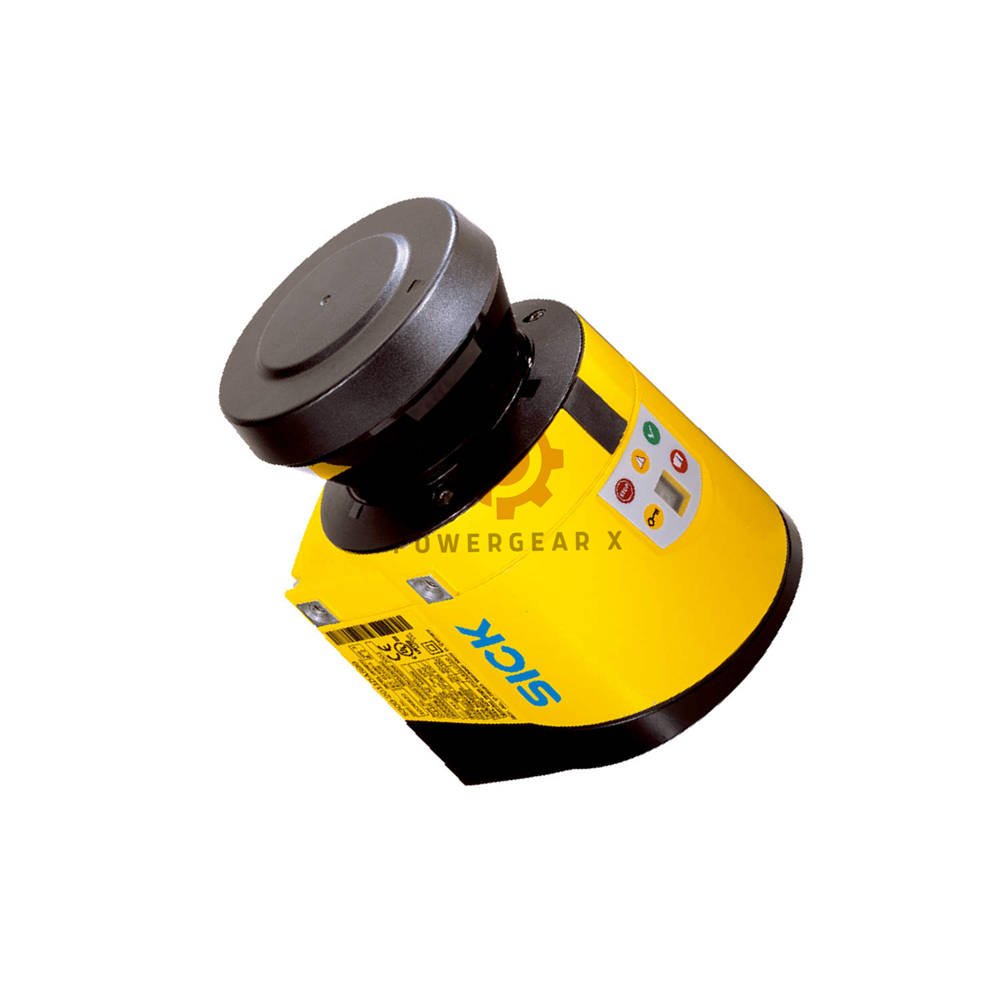

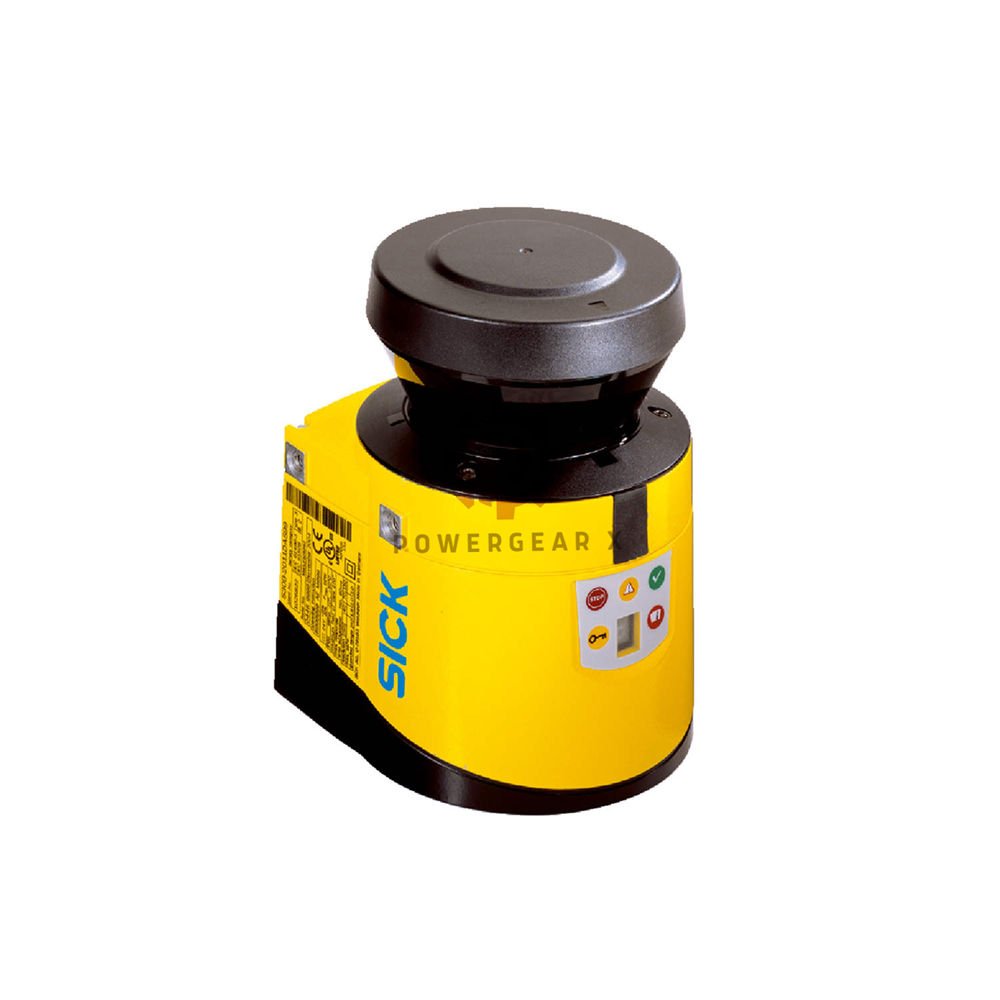

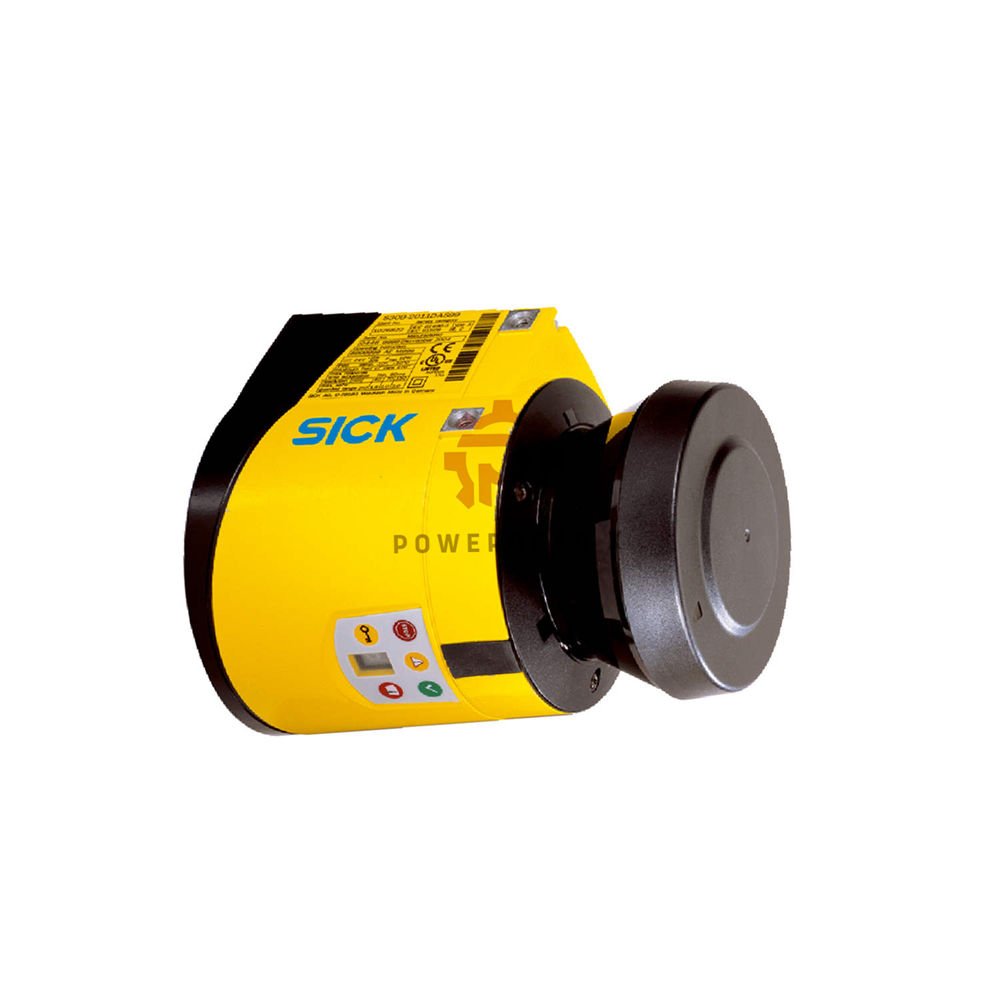

S30B-3011GB – SICK S300 Expert Safety Laser Scanner
Brand: SICK | Model: S30B-3011GB | Series: S300 Expert | Type: Safety Laser Scanner
Advanced safety scanner for mobile and stationary guarding. 3 m protective range, 8 m warning range, 270° scanning angle. Category 3, PL d, SIL 2. EFI interface for SICK controller integration.
Key Features
- Protective field – 3 m (configurable)
- Warning field – 8 m at 15% reflectivity
- Wide scan angle – 270°
- Configurable resolution – 30-150 mm
- Safety rated – SIL 2, Category 3, PL d
- 16 field sets – 48 fields, 32 monitoring cases
Technical Specifications
- General
- Manufacturer: SICK
- Model: S30B-3011GB
- Series: S300 Expert
- Type: Safety laser scanner
- Application: Indoor
- Weight: 1.2 kg
- Performance
- Protective field: 3 m
- Warning field: 8 m (15% reflectivity)
- Distance measuring: 30 m
- Scanning angle: 270°
- Angular resolution: 0.5°
- Resolution: 30/40/50/70/150 mm (configurable)
- Response time: 80 ms
- Multiple sampling: 2-16 (configurable)
- Safety Ratings
- SIL: 2 (IEC 61508)
- Category: 3 (EN ISO 13849)
- Performance level: PL d
- PFHD: 8.0 x 10⁻⁸
- Mission time: 20 years
- Safe state: At least one OSSD OFF
- Functions
- Restart interlock
- EDM (External device monitoring)
- Multiple sampling
- Field set switching
- Static and dynamic field switching
- Contour reference
- Integrated config memory
- EFI safe device communication
- Interfaces
- Connection: System plug (M12)
- OSSD pairs: 1
- Universal I/Os: 5
- Application outputs: 3
- EDM input: 1
- Reset input: 1
- Static control inputs: 3 (5 with EFI)
- Dynamic inputs (encoder): 2
- Configuration: RS-232 (38.4 kBaud)
- Data interface: RS-422 (≤500 kBaud)
- EFI: ≤500 kBaud, ≤50 m cable
- Optical
- Light source: Pulsed laser diode (905 nm)
- Laser class: 1 (IEC 60825-1, 21 CFR 1040)
- Detectable remission: 1.8% … >1000%
- Mechanical
- Dimensions: 102 x 152 x 106 mm (W x H x D)
- Housing: Aluminum die-cast (yellow RAL 1021)
- Cover: Polycarbonate with scratch-resistant coating
- Protection: IP65 (EN 60529)
- Environmental
- Operating temp: -10…50 °C
- Storage temp: -25…50 °C
- Vibration: Class 5M1 (IEC 60721-3-5)
- Shock: 50 m/s² (11 ms) / 100 m/s² (16 ms)
Installation & Commissioning
- Mounting: Bracket mount – 270° field of view.
- Wiring: System plug – quick connection.
- Configuration: Use SICK CDS software (RS-232).
- Field sets: Up to 16 sets with 48 fields.
- Integration: EFI interface connects to SICK safety controllers.
Compatibility & Applications
- Controllers: SICK safety controllers (via EFI).
- Mobile: AGVs, mobile platforms, automated guided vehicles.
- Stationary: Hazardous area guarding, dangerous points.
- Use cases: Collision avoidance, perimeter protection.
Package & Delivery
- Package: 1 scanner + documentation.
- Warranty: 12 months.
- Shipping: FedEx, UPS, DHL – dispatched within 12-24 hours.
Expert Review
“Top-tier safety scanner for complex applications. The 270° angle covers wide areas. Configurable resolution adapts to any need. EFI makes controller integration seamless.”
Manager’s Insight
“Excellent for AGV navigation. The 8 m warning range gives early detection. 16 field sets handle multiple applications. Use CDS software for quick setup.”
Application Scenarios
- AGV obstacle detection and navigation
- Hazardous area access protection
- Robot cell perimeter monitoring
- Mobile platform collision avoidance
Comparison with Similar Models
- S30B-3011GB – Expert, 3m/8m, 270°, configurable resolution.
- S30A-6011GB – Standard, 8m, 14mm fixed, 190°.
- S30B-3011BA – Expert with 70mm resolution only.
- S30B-2011GB – Expert with different field set configuration.
FAQ
- What is the protective field range?
3 meters. - What is the warning field range?
8 meters at 15% reflectivity. - What scanning angle does it have?
270°. - What resolution options are available?
30, 40, 50, 70, 150 mm (selectable). - Is it rated for safety?
Yes – SIL 2, Category 3, PL d. - What is the response time?
80 ms. - Can I use it on an AGV?
Yes, designed for mobile applications. - How to choose between S300 Standard and Expert?
Expert offers more field sets and configurable resolution – for advanced applications.
Selection Guide
- For advanced mobile safety: S30B-3011GB (Expert).
- For basic safety with 8m range: S30A-6011GB (Standard).
- For fixed resolution (70mm): S30B-3011BA.
- For different field set requirements: Check S30B-2011GB.
