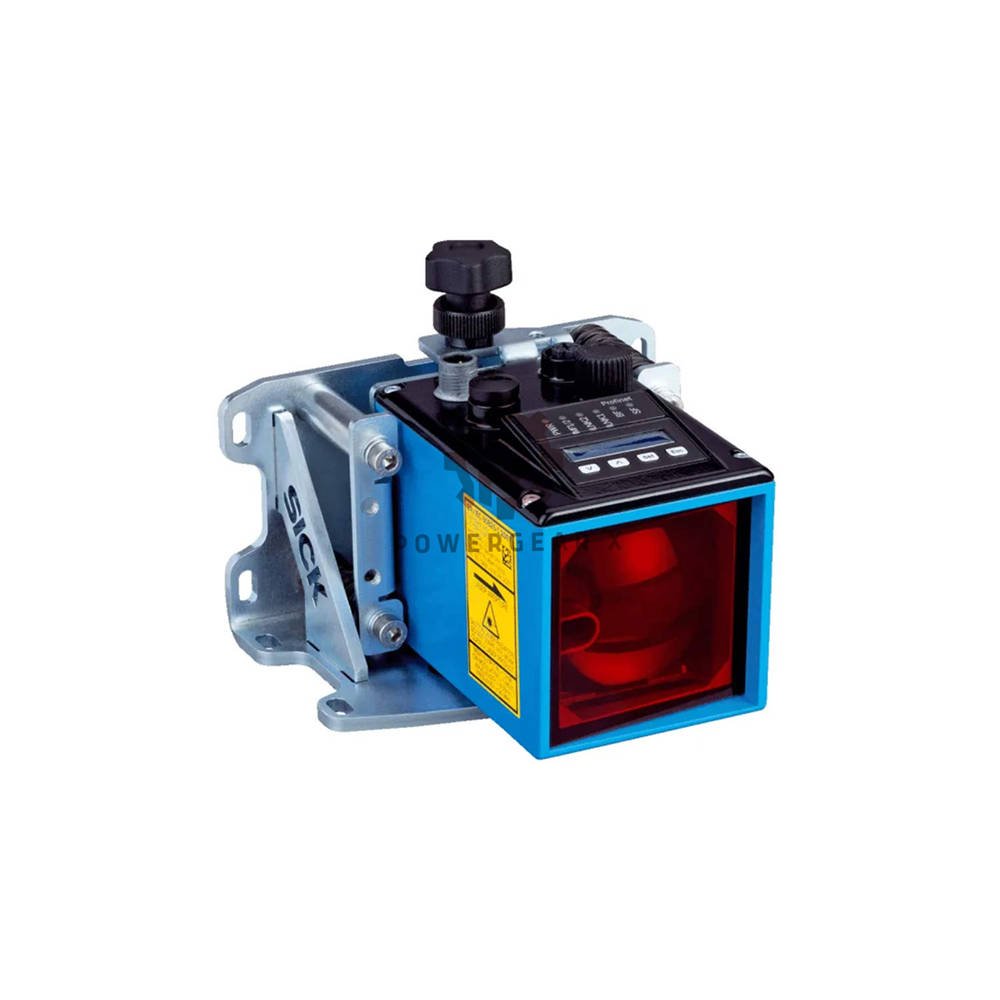

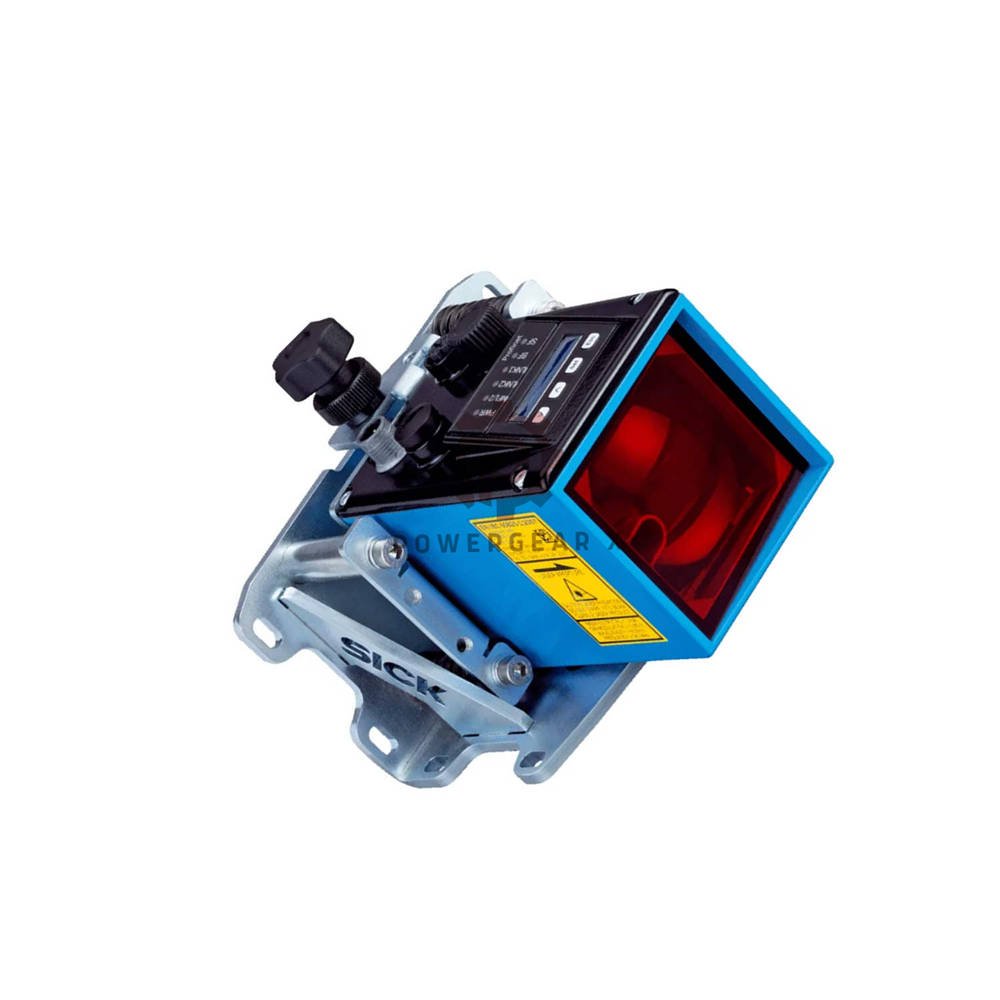

DL100-21AA2212 SICK Dx100 Laser Sensor 100m PROFINET – Long-Range Precision

DL100-21AA2212 – SICK Dx100 Long‑Range Distance Sensor

• Manufacturer: SICK
• Model: DL100-21AA2212
• Series: Dx100
• Type: Long‑Range Distance Sensor
• Measuring Range: 0.15 m … 100 m (on reflective tape)
• Resolution: 0.1 mm … 100 mm (adjustable)
• Repeatability: 0.5 mm
• Accuracy: ±2 mm
• Response Time: 2 ms
• Interface: PROFINET
• Laser Class: 2 (safe for eyes)
• Protection: IP65

Product Description

• The DL100-21AA2212 is a laser distance sensor from SICK.
• It measures from 0.15 to 100 meters with high precision.
• Works with reflective tape or directly on targets.
• Offers adjustable resolution from 0.1 mm to 100 mm.
• Built for high‑speed applications up to 15 m/s.
• Includes PROFINET for easy integration.
• Rugged aluminium housing with IP65 rating.

Technical Specifications (MECE structured)

• Brand & Model
  • Brand: SICK
  • Model: DL100-21AA2212
  • Series: Dx100
• Measurement Performance
  • Range: 0.15 … 100 m (on diamond‑grade tape)
  • Resolution: 0.1 / 0.125 / 1 / 10 / 100 mm (selectable)
  • Repeatability: 0.5 mm
  • Accuracy: ±2 mm
  • Response time: 2 ms
  • Cycle time: 1 ms
• Laser & Optics
  • Light source: Red laser, Class 2 (IEC 60825‑1)
  • Spot size: 5 mm + (2 mm × distance in m)
  • Max. movement speed: 15 m/s
  • Acceleration: ≤ 15 m/s²
• Interfaces & I/O
  • PROFINET (Network load class III)
  • Digital outputs: 2 (push‑pull PNP/NPN)
  • Functions: distance switching, speed output, warning
  • Multifunctional input: 1 (MF1)
• Electrical & Environmental
  • Supply voltage: 18 … 30 V DC
  • Current consumption: < 250 mA
  • Protection: IP65, Class III
  • Operating temp: –20 … +55 °C (–20 … +75 °C with cooling)
  • Storage temp: –40 … +75 °C
  • Light immunity: ≤ 100,000 lx
  • EMC: EN 61000‑6‑2 / ‑6‑4
• Mechanical
  • Dimensions: 69.4 × 82.5 × 100.2 mm
  • Housing: Aluminium die‑cast, PMMA window
  • Weight: ~800 g (with bracket ~1,600 g)
  • Display: 6‑digit LED dot matrix
  • Connection: Male connector

Expert Review

• “With ±2 mm accuracy over 100 m, this sensor is a game‑changer for logistics.”
• “The adjustable resolution makes it versatile for both coarse and fine positioning.”
• “PROFINET integration is seamless – no extra converters needed.”
• “Rugged aluminium housing survives tough factory conditions.”

Manager‘s Insight

• “Reduce downtime with self‑diagnostics – warning outputs flag aging or contamination.”
• “The 101‑year MTTFD means years of reliable operation.”
• “Fast 2‑ms response time boosts throughput on high‑speed lines.”

Applications & Suitable Devices

• Ideal for: automated warehouses, crane positioning, stacker cranes.
• Works with: PLCs via PROFINET, conveyor systems, AGVs.
• Use cases: distance measurement, speed monitoring, collision avoidance.
• Industries: logistics, automotive, steel, and ports.

Frequently Asked Questions (FAQ)

• Question: What is the maximum distance this sensor can measure?
  • Answer: 100 meters on “diamond grade” reflective tape.
• Question: Can I change the resolution after installation?
  • Answer: Yes, resolution is freely adjustable via software.
• Question: Is this sensor safe for human eyes?
  • Answer: Yes, it is Class 2 laser – safe for momentary exposure.
• Question: Does it work outdoors in bright sunlight?
  • Answer: Yes, it withstands up to 100,000 lx ambient light.
• Question: What outputs does it provide?
  • Answer: Two digital outputs for distance, speed, or warnings.

Selection Guide & Comparison

• Choose this model if: you need long range (100 m) with high accuracy (±2 mm).
• For shorter ranges: consider the DL50 series (up to 50 m).
• For analogue output: look at DL100‑21AA2211 (without PROFINET).
• Compare with similar models:
  • DL100‑21AA2211 – analogue output instead of PROFINET
  • DL100‑21AA2213 – with SSI interface
  • Dx50‑2 – shorter range, lower cost
