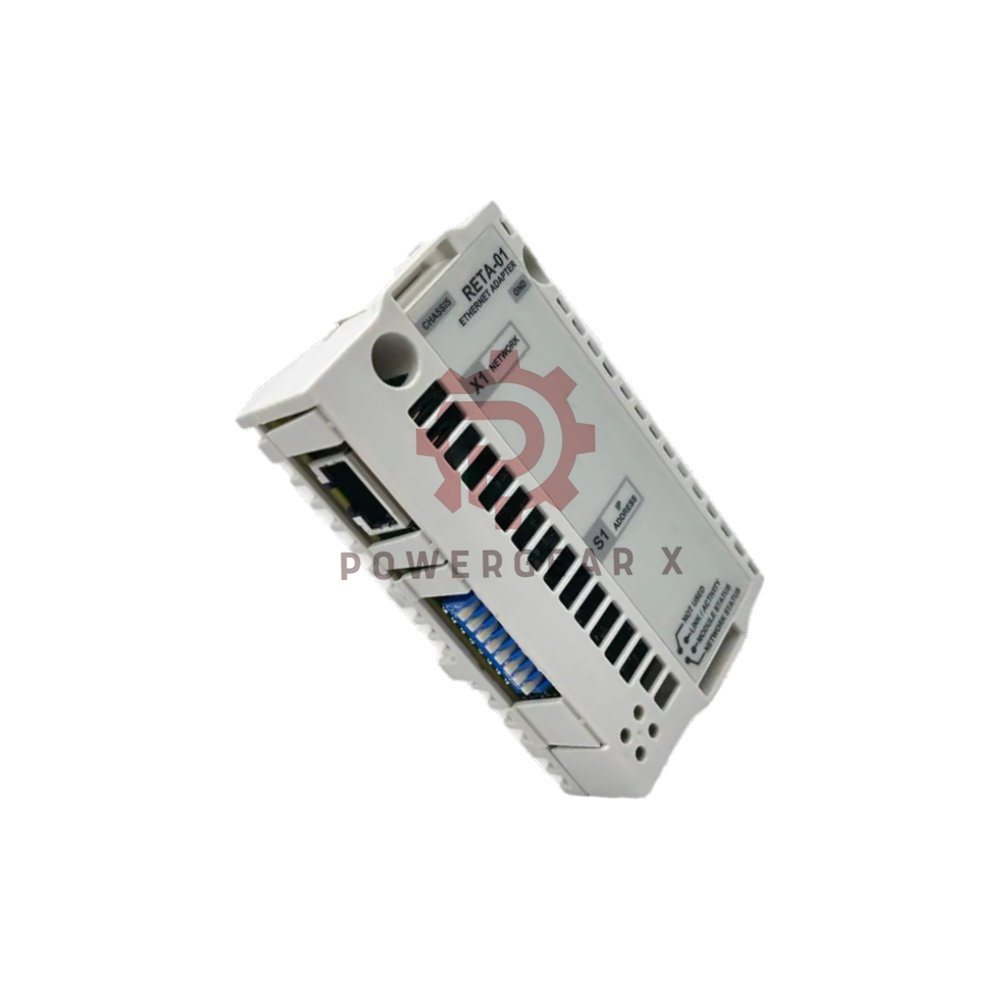

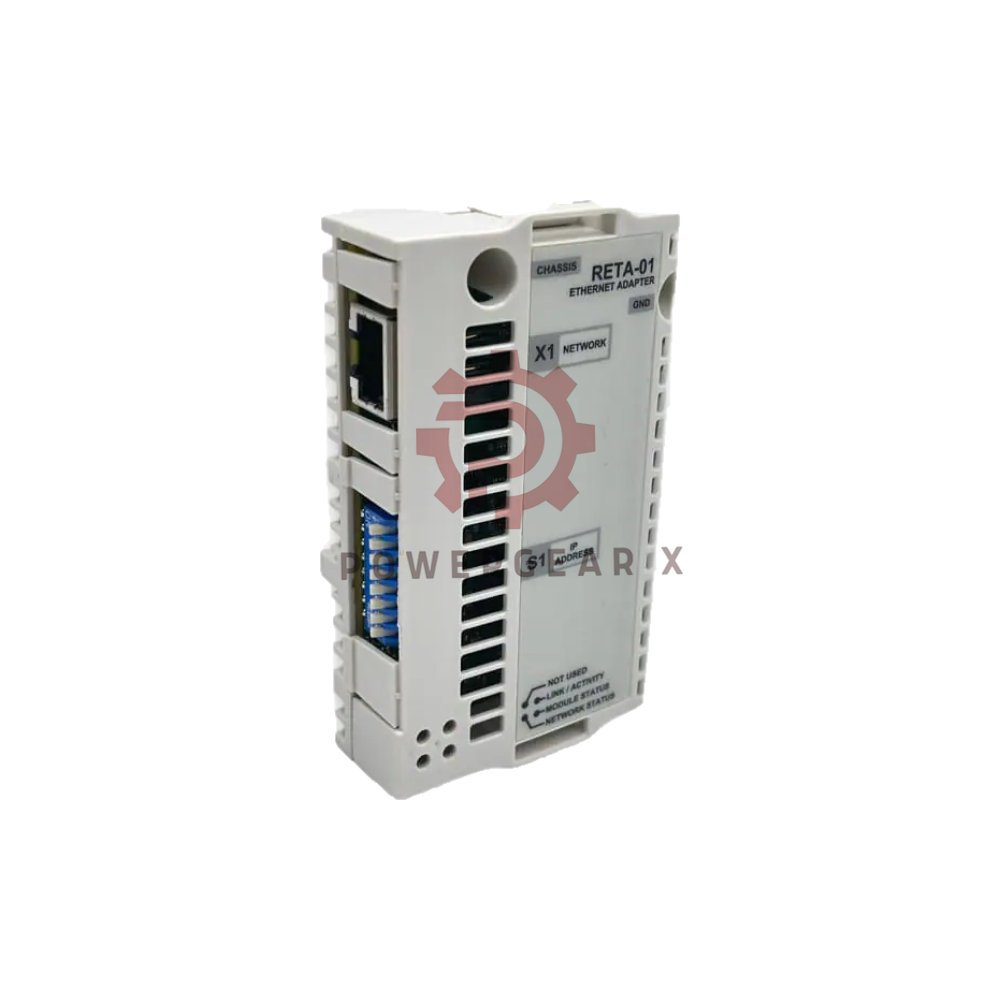

RETA-01 ABB EtherNet Adapter Module EtherNet/IP Modbus/TCP

Product Overview

• ABB RETA-01 is an EtherNet adapter module for ABB drives.
• It fits directly into the drive control board option slot.
• The module adds EtherNet/IP and Modbus/TCP connectivity.
• It supports both 10 Mbps and 100 Mbps Ethernet links.
• An 8-way DIP switch sets the intranet IP address.
• Installation is fast. No external power supply is needed.
• The drive control board supplies 5 V power at 380 mA average.
• Compact IP20 design suits cabinet mounting.
• This module is ideal for factory automation and remote monitoring.

Key Benefits

• Dual protocol support covers EtherNet/IP and Modbus/TCP networks.
• Plug-in mounting saves engineering time.
• DIP switch IP setup simplifies commissioning.
• Standard RJ-45 port works with common CAT 5 cabling.
• Long estimated lifetime of 100 000 hours.
• All materials are UL and CSA approved.

Technical Specifications

• Brand: ABB
• Model: RETA-01
• Series: RETA EtherNet Adapter Module
• Module type: EtherNet adapter module
• Mounting: Drive control board option slot
• Degree of protection: IP20
• Ambient conditions: Follow the drive Hardware Manual
• Current consumption: 380 mA average at 5 V
• Power source: Supplied by the drive control board
• Settings: Drive parameters plus 8-way DIP switch for intranet IP address
• Connectors: 34-pin parallel bus connector and RJ-45 connector
• Ethernet standard: IEEE 802.3 and 802.3u
• Medium: 10base-TX or 100base-TX
• Transfer rate: 10/100 Mbps
• Duplex mode: Half duplex and full duplex
• Termination: Internal
• Wiring: CAT 5 UTP, CAT 5 FTP or CAT 5 STP (FTP and STP recommended)
• Maximum segment length: 100 m
• Topology: Bus or star
• Carrier protocol: TCP/IP
• Application protocols: EtherNet/IP and Modbus/TCP
• Estimated minimum lifetime: 100 000 h
• Approvals: All materials UL/CSA-approved
• EMC standards: EN 50081-2 and EN 50082-2

Measurement and Performance Profile

• Measurement range: Not applicable to this communication module
• Frequency response: Not applicable to this communication module
• Sensitivity: Not applicable to this communication module
• Linearity: Not applicable to this communication module
• Resolution: Not applicable to this communication module
• Temperature range: Same as the host drive ambient conditions
• Environmental tolerance: IP20 cabinet environment
• Interference immunity: Complies with EN 50082-2

Installation Guide

• Switch off drive power before you start.
• Open the option slot on the drive control board.
• Slide the RETA-01 module into the slot.
• Secure the module as the drive manual instructs.
• Connect the 34-pin parallel bus connector.
• Plug the RJ-45 cable into the Ethernet port.
• Set the DIP switch for the intranet IP address.
• Set drive parameters for network communication.
• Power up the drive and check the link status.

Commissioning and Maintenance

• Parameter setup runs through the drive interface.
• The 8-way DIP switch gives quick IP selection.
• Standard RJ-45 ports make cable checks easy.
• No routine service parts are listed for this module.
• Keep the cabinet clean and within drive limits.
• Contact sales@powergearx.com for setup help.
• Call or message +86 18030005825 for fast support.

Compatibility Notes

• Works with Ethernet standard IEEE 802.3 devices.
• Works with Ethernet standard IEEE 802.3u devices.
• Fits ABB drives with a control board option slot.
• Uses CAT 5 UTP, CAT 5 FTP or CAT 5 STP cable.
• Supports bus and star network topologies.
• Runs EtherNet/IP and Modbus/TCP application protocols.

Certifications and Compliance

• All materials are UL approved.
• All materials are CSA approved.
• Meets EMC standard EN 50081-2.
• Meets EMC standard EN 50082-2.

Packing List and Warranty

• 1 x ABB RETA-01 EtherNet adapter module
• 1 x 34-pin parallel bus connector
• 1 x RJ-45 connector
• 1 x Quick start guide
• Warranty: 12 months
• Dispatch time: 12 to 24 hours
• Courier options: FedEx, UPS and DHL

Manager’s Insight

• The RETA-01 brings two popular protocols into one module.
• That dual support cuts spare-part stock for many plants.
• The DIP switch keeps IP setup simple for field teams.
• Drive-powered operation removes extra wiring work.
• The module suits retrofits and new drive builds alike.
• Long lifetime lowers total cost of ownership.

Expert Review

• The module follows proven ABB option-slot design.
• Link setup is quick for trained drive engineers.
• Speed selection covers most factory network needs.
• CAT 5 FTP or STP cable improves noise immunity.
• The IP20 rating fits clean control cabinets.
• It is a solid choice for EtherNet/IP and Modbus/TCP sites.

Best Fit Devices and Applications

• ABB drives with a free control board option slot
• Factory automation lines
• Remote monitoring systems
• Process control cabinets
• Conveyor and pump drive networks
• Retrofit projects that need EtherNet/IP or Modbus/TCP

FAQ

• Q: Which protocols does this module run?
• A: It runs EtherNet/IP and Modbus/TCP over TCP/IP.
• Q: How do I set the IP address?
• A: Use the 8-way DIP switch and the drive parameters.
• Q: Does it need a separate power supply?
• A: No. The drive control board supplies 5 V power.
• Q: What cable should I buy?
• A: Use CAT 5 UTP, CAT 5 FTP or CAT 5 STP cable. FTP and STP are recommended.
• Q: What is the top link speed?
• A: The module supports 10 Mbps and 100 Mbps links.
• Q: How long can one cable segment be?
• A: Keep each segment at or below 100 m.
• Q: What is the protection rating?
• A: The module carries an IP20 rating for cabinet use.
• Q: From experience, what causes link faults?
• A: Most faults come from loose RJ-45 plugs or wrong DIP switch settings.
• Q: What should I check before power-up?
• A: Check bus seating, cable type and drive parameter values.
• Q: How fast do you ship?
• A: We dispatch in 12 to 24 hours by FedEx, UPS or DHL.

Buying Guide

• Confirm your drive has a free control board option slot.
• Match the module to your network protocol.
• Choose shielded cable for noisy plant areas.
• Plan IP ranges before you set the DIP switch.
• Order spares for critical drive lines.
• Ask our team for a fit check before you buy.
