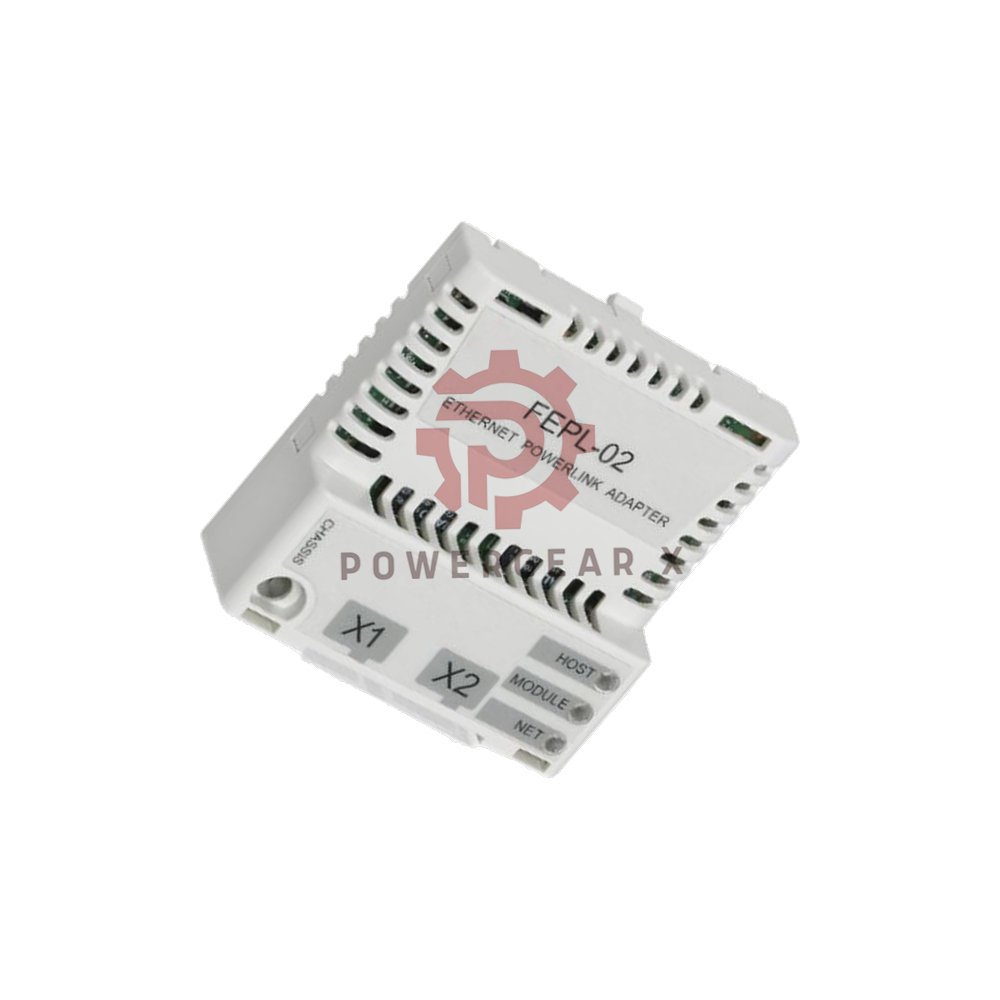

FEPL-02 Ethernet POWERLINK Adapter Module for ABB Drives
FEPL-02 connects ABB drive control units to an Ethernet POWERLINK network. It fits an option slot inside the drive. The module uses 100Base-TX with RJ-45 ports. It supports star, tree, and daisy chain topologies. FEPL-02 suits factory automation, motion control, and machine networking. The board has conformal coating for harsh sites. Materials meet UL/CSA rules. The design complies with EN 61800-3:2004 EMC. Lead time: 12-24 hours. Ships by FedEx, UPS, or DHL.
Technical Data
- Brand: ABB
- Model: FEPL-02
- Series: FEPL Ethernet POWERLINK adapter series
- Module type: Option slot adapter module
- Mounting: Install into an option slot on the drive control unit
- Degree of protection: IP20
- Ambient conditions: The drive manuals define the applicable limits
- Power supply: +3.3 V +5%, max 450 mA, supplied by the drive
- Indicators: Three bicolor LEDs (HOST, MODULE, NET)
- Drive connector: 20-pin connector (X3)
- Network connectors: Two RJ-45 ports (X1, X2)
- Medium: 100Base-TX
- Wiring: CAT 5 UTP, CAT 5 FTP, or CAT 5 STP (FTP and STP recommended)
- Termination: Internal
- Max segment length: 100 m
- Topology: Star, tree, or daisy chain
- Transfer rate: 100 Mbit/s
- Serial communication type: Half-duplex
- Protocol: Ethernet POWERLINK
- Resolution: 100 Mbit/s link rate with half-duplex operation
- Environmental tolerance: Follow the drive ambient limits; the board has conformal coating
- Interference resistance: Complies with EMC standard EN 61800-3:2004
- Materials: All materials are UL/CSA-approved
Installation Guide
- Power off the drive before you open the control unit.
- Insert FEPL-02 into a free option slot.
- Seat the 20-pin connector X3 firmly.
- Connect RJ-45 ports X1 and X2 to the network.
- Use CAT 5 FTP or STP cable for best results.
- Keep each segment at or below 100 m.
- Check the HOST, MODULE, and NET LEDs after power up.
Commissioning and Maintenance
- Set the node address in the drive parameters.
- Confirm the link speed shows 100 Mbit/s.
- Use the LEDs to find wiring or configuration faults.
- Inspect connectors and cables at each service interval.
- Keep the slot cover closed to hold IP20 protection.
Compatibility
- Works with all Ethernet POWERLINK compliant devices.
- Fits ABB drive control units with a free option slot.
- Uses standard RJ-45 and CAT 5 cabling.
- Supports star, tree, and daisy chain layouts.
Certifications and Packaging
- EMC: EN 61800-3:2004.
- Materials: UL/CSA-approved.
- PCB: conformal coated.
- Package: cardboard box.
- Wrapping: antistatic air bubble sheet (PE).
- Warranty: 12 months.
- Dispatch: 12-24 hours.
- Couriers: FedEx, UPS, DHL.
Expert Review
FEPL-02 is a focused adapter, not a full controller. It gives ABB drives a clean path to Ethernet POWERLINK. Setup is simple: one slot, one 20-pin connector, two RJ-45 ports. The three LEDs speed up fault finding on site. Conformal coating helps in dusty or humid cabinets. The 100 m segment limit and half-duplex link fit most machine cells. Buyers should confirm the drive firmware supports the module. This module suits machine builders who standardize on POWERLINK.
