REPL-02 | ABB Ethernet POWERLINK Adapter Module

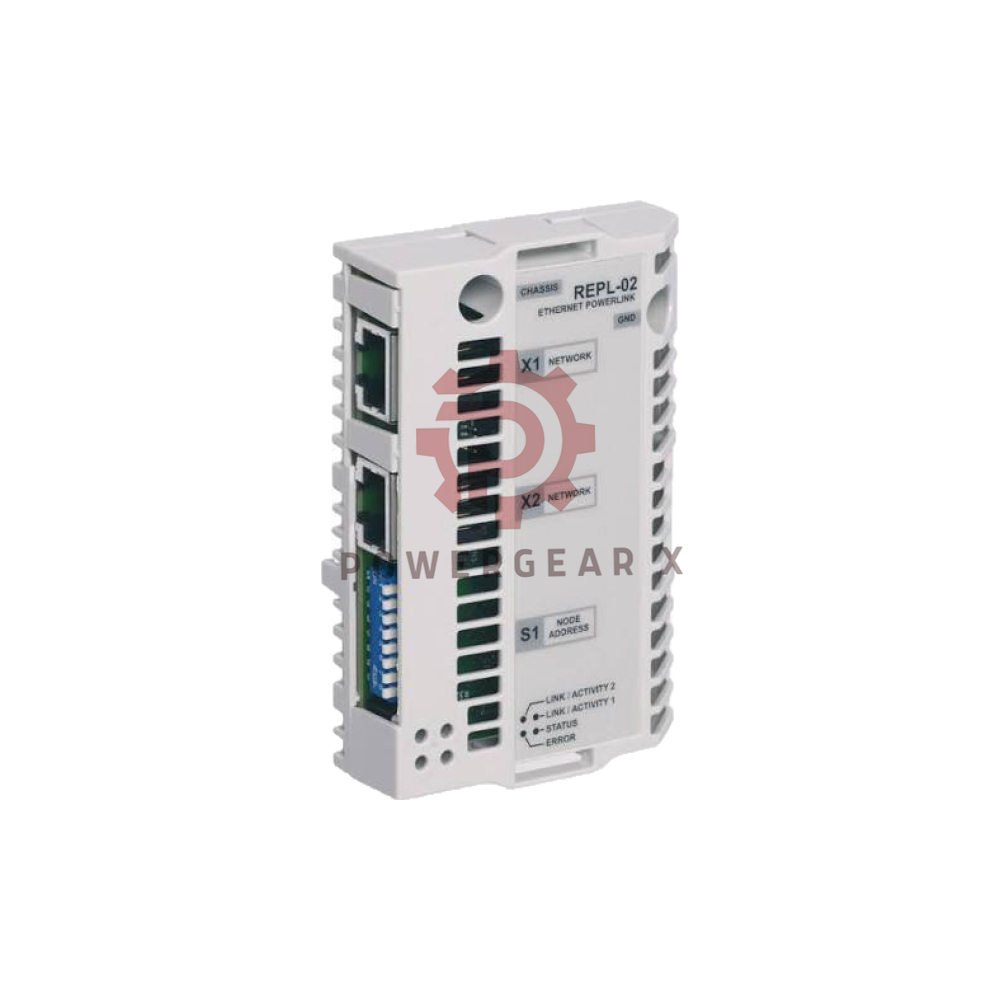

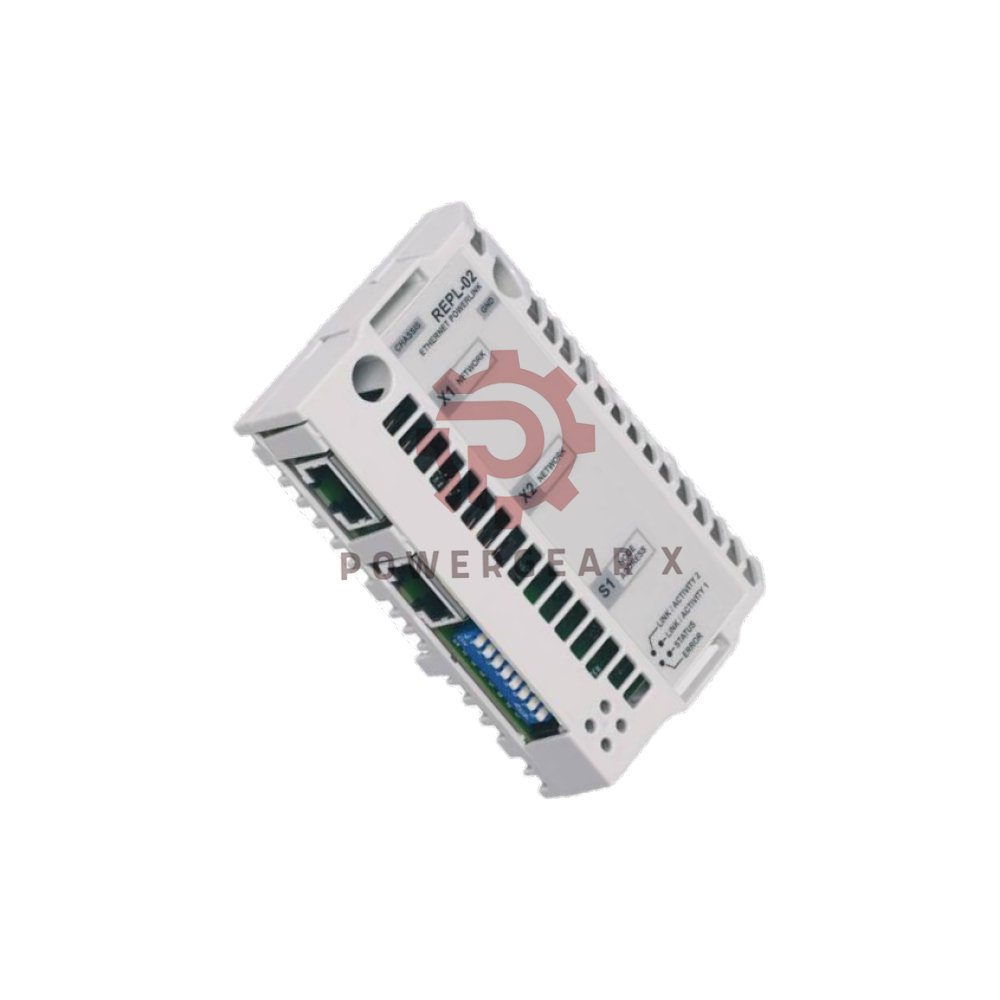

REPL-02 is an ABB Ethernet POWERLINK adapter module for drive option slots. It adds a fast 100 Mbit/s POWERLINK link to your drive. Setup is simple. You get two RJ-45 ports and an 8-way DIP switch for node address selection. The drive control board powers the module. All materials are UL/CSA approved. The module meets EN 50081-2 and EN 50082-2 EMC standards. It fits industrial automation users who need a stable, proven network interface.

Technical Data

• Brand: ABB
• Model: REPL-02
• Series: ABB Drive Option Modules
• Module Type: Ethernet POWERLINK Adapter Module
• Mounting: Into an option slot on the drive control board
• Degree of Protection: IP20
• Ambient Conditions: Follow the drive hardware manual
• Current Consumption: 380 mA average (5 V), supplied by the drive control board
• Estimated Min. Lifetime: 100 000 h
• Materials: All UL/CSA approved
• EMC Standards: EN 50081-2 and EN 50082-2

Ethernet POWERLINK Link

• Compatible Devices: All Ethernet POWERLINK compliant devices
• Medium: 100Base-TX
• Transfer Rate: 100 Mbit/s
• Protocol: Ethernet POWERLINK
• Serial Communication Type: Half duplex
• Termination: Internal
• Wiring: CAT 5 UTP, CAT 5 FTP (recommended), or CAT 5 STP (recommended)
• Connector: RJ-45
• Maximum Segment Length: 100 m

Connectors and Settings

• Connectors:
  • 34-pin parallel bus connector
  • Two RJ-45 connectors
• Settings:
  • Through drive parameters
  • 8-way DIP switch for node address selection

Installation Guide

• Power off the drive before you start.
• Open the option slot on the drive control board.
• Insert the REPL-02 module into the slot.
• Connect the 34-pin parallel bus connector.
• Set the node address with the 8-way DIP switch.
• Use CAT 5 cable for the RJ-45 ports.
• Keep each segment under 100 m.
• Power on the drive and check the network link.

Commissioning and Maintenance Ease

• Drive parameters handle all basic settings.
• The DIP switch gives fast node address setup.
• Internal termination removes extra wiring steps.
• No external power supply is needed.
• Long 100 000 h lifetime lowers service needs.

Compatibility Notes

• Works with all Ethernet POWERLINK compliant devices.
• Fits ABB drives with a free option slot.
• Uses standard CAT 5 cabling.
• Follow the drive hardware manual for ambient limits.

Certifications

• UL/CSA approved materials
• EN 50081-2 EMC standard
• EN 50082-2 EMC standard

Package List

• REPL-02 adapter module
• Quick start guide

Warranty and Shipping

• 12-month warranty
• Ships in 12–24 hours
• Delivery by FedEx, UPS, or DHL
• Questions? Email sales@powergearx.com or call +86 18030005825 on WhatsApp.

Expert Review

The REPL-02 does one job well: it puts a reliable Ethernet POWERLINK port on an ABB drive. The 100 Mbit/s half-duplex link suits motion and control traffic. The 8-way DIP switch speeds up node setup. Power comes from the drive board, so wiring stays clean. For engineers who value simple, proven hardware, this module is a sound pick.

Manager’s Insight

This module cuts commissioning time. The DIP switch and internal termination remove common setup errors. The 12-month warranty and fast 12–24 hour dispatch make it a low-risk spare part. Stock it for drive upgrades and network retrofits.

Best Fit Devices and Applications

• ABB drives with a free option slot
• Motion control networks
• Factory automation cells
• Machine retrofits that need POWERLINK
• Packaging, printing, and handling lines

FAQ

• Q: Does the module need an external power supply?
  • A: No. The drive control board supplies the 5 V power.
• Q: How do I set the node address?
  • A: Use the 8-way DIP switch on the module.
• Q: What cable should I use?
  • A: CAT 5 UTP works. CAT 5 FTP or STP is recommended.
• Q: How long can one network segment be?
  • A: Up to 100 m.
• Q: From experience, what is the most common install mistake?
  • A: Wrong DIP switch settings. Check the address twice before power on.
• Q: Can I use it with non-ABB POWERLINK devices?
  • A: Yes. It works with all Ethernet POWERLINK compliant devices.

Buying Guide

• Check that your drive has a free option slot.
• Confirm your network uses Ethernet POWERLINK.
• Plan your node addresses before install.
• Keep spare CAT 5 cables on hand.
• Order early. We ship in 12–24 hours.
• Contact sales@powergearx.com or +86 18030005825 for help.
