Product details
Product Overview

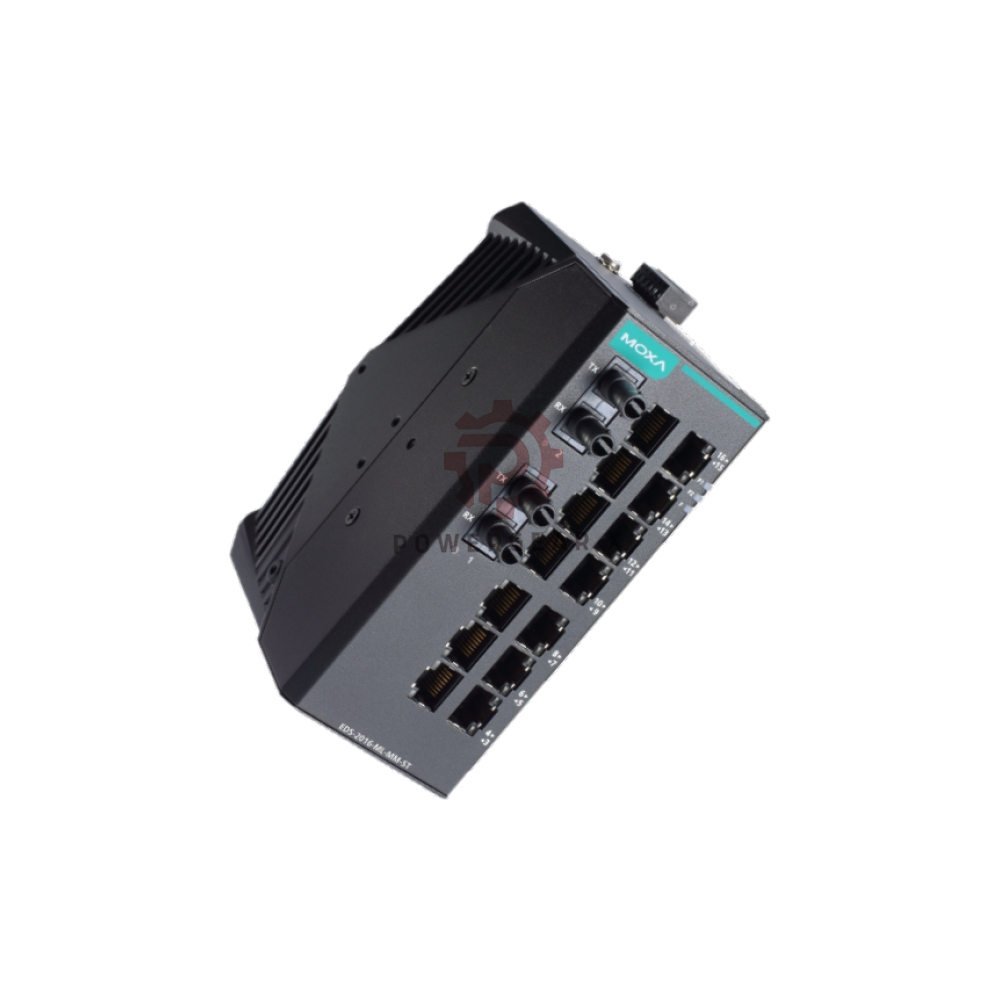

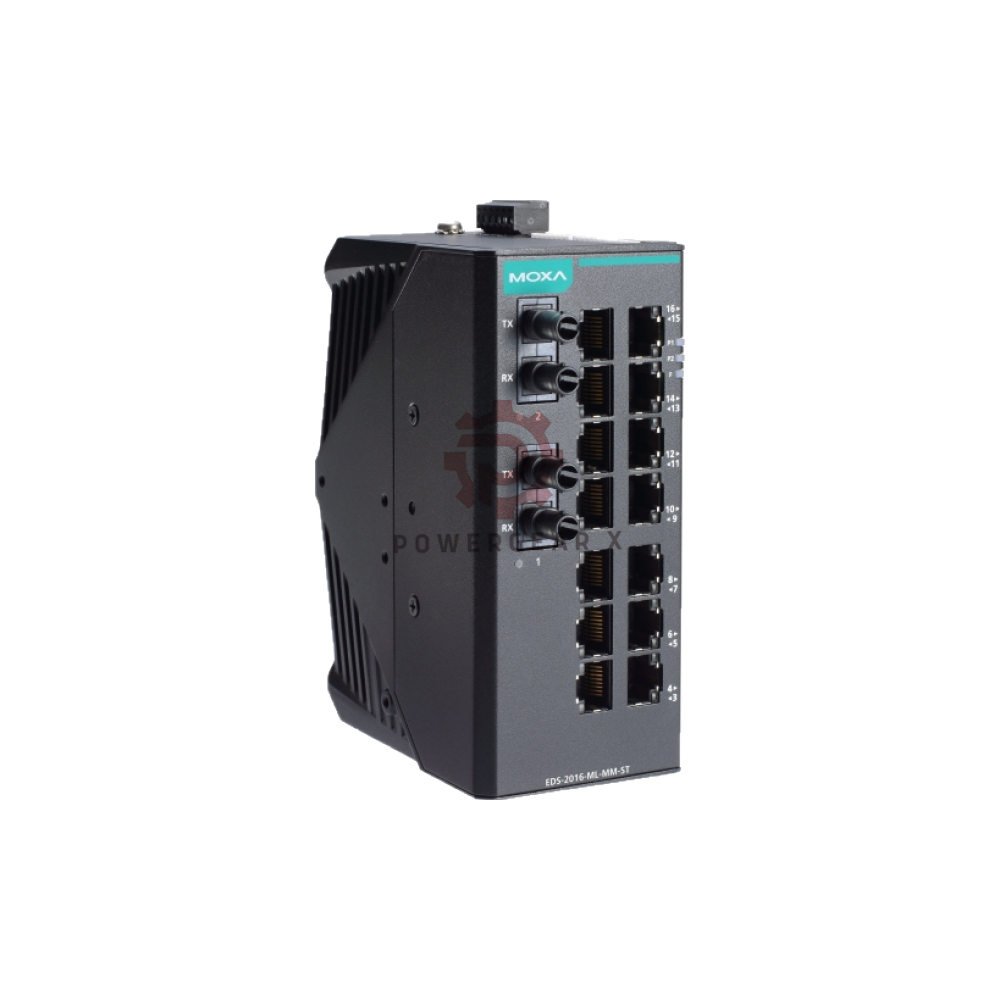

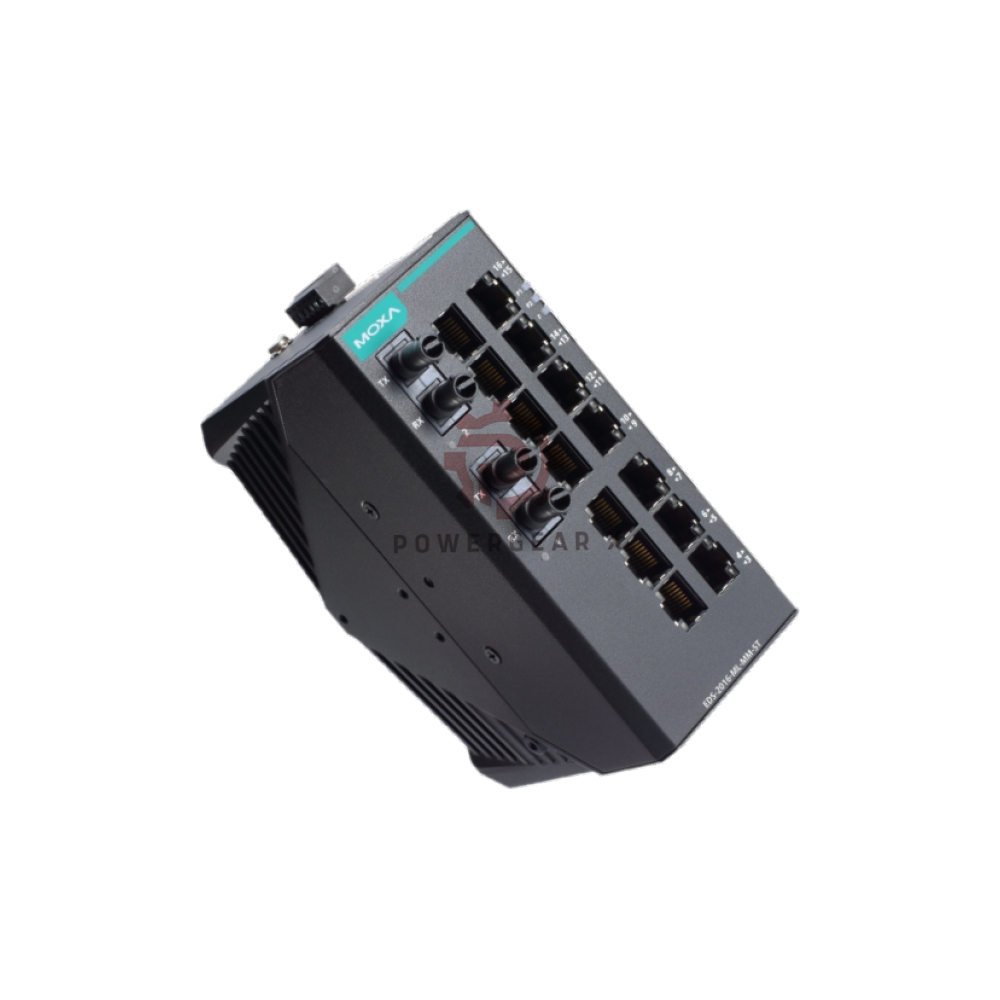

MOXA EDS-2016-ML-MM-ST is an unmanaged industrial Ethernet switch. This model offers 14 10/100BaseT(X) ports and 2 100BaseFX multi-mode ports with ST connectors. Moreover, it supports dual power inputs of 12/24/48 VDC. It works in temperatures from -10 to 60°C.
This switch fits factory floors, control cabinets, traffic systems, and railway sites. It uses store-and-forward switching. In addition, it supports QoS, broadcast storm protection, and port break alarm. The metal housing meets IP30 protection. Also, it mounts on a DIN rail or wall.
Why Choose This Switch
- Reliable power: Dual redundant inputs keep the network alive.
- Flexible fiber links: Two ST multi-mode ports extend distance.
- Rugged design: Metal case and wide temperature range.
- Simple setup: DIP switches control key features.
- Industry ready: Certified for railway, traffic, and hazardous areas.
Technical Specifications
- Brand: MOXA
- Model: EDS-2016-ML-MM-ST
- Series: EDS-2016-ML
- Module Type: Unmanaged Ethernet switch
- Ports: 14 x 10/100BaseT(X) RJ45, 2 x 100BaseFX multi-mode ST
- Standards: IEEE 802.3, 802.3u, 802.3x, 802.1p
- MAC Table Size: 8 K
- Packet Buffer Size: 2 Mbits
- Processing Type: Store and Forward
- Input Voltage: 12/24/48 VDC, redundant dual inputs
- Operating Voltage: 9.6 to 60 VDC
- Input Current: 0.152 A @ 24 VDC
- Connection: 1 removable 6-contact terminal block
- Overload Protection: Supported
- Reverse Polarity Protection: Supported
- Alarm Contact: Relay output, 1 A @ 24 VDC
- Housing: Metal, IP30
- Dimensions: 58 x 135 x 95 mm
- Weight: 648 g
- Installation: DIN-rail, wall mounting with optional kit
- Operating Temperature: -10 to 60°C
- Storage Temperature: -40 to 85°C
- Humidity: 5 to 95%, non-condensing
- MTBF: 2,070,826 hrs
Measurement and Performance Profile
- Measurement Range: Not applicable for switch operation.
- Frequency Response: Supports 10 Mbps and 100 Mbps Ethernet.
- Sensitivity: Relates to port link and alarm response.
- Linearity: Stable store-and-forward traffic handling.
- Resolution: Frame-level switching.
- Temperature Range: -10 to 60°C operating.
- Environmental Tolerance: Shock, vibration, freefall, humidity.
- Anti-interference: ESD, RS, EFT, surge, CS, PFMF protection.
Installation Guide
- Mount the switch on a DIN rail.
- Use the optional kit for wall mounting.
- Connect power to the 6-contact terminal block.
- Use dual inputs for redundancy.
- Check polarity before powering on.
- Connect RJ45 and ST fiber cables.
- Keep airflow clear around the metal case.
Commissioning and Maintenance
- Set DIP switches for QoS and storm protection.
- Confirm link LEDs on each active port.
- Test the alarm relay if needed.
- Clean the case with a dry cloth.
- Check fiber connectors for dust.
- Review power input stability.
Compatibility Notes
- Works with 10BaseT and 100BaseT(X) devices.
- Supports IEEE 802.3x flow control.
- Supports IEEE 802.1p Class of Service.
- Fits standard industrial control panels.
- Uses common ST multi-mode fiber links.
Certifications
- Safety: UL 61010-2-201, EN 62368-1 (LVD)
- EMC: EN 55032/35, EN 61000-6-2/-6-4
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2, -4-3, -4-4, -4-5, -4-6, -4-8
- Hazardous Locations: Class I Division 2, ATEX, IECEx
- Railway: EN 50121-4
- Traffic Control: NEMA TS2
- Vibration: IEC 60068-2-6
- Shock: IEC 60068-2-27
- Freefall: IEC 60068-2-32
- Maritime: DNV, LR, ABS, NK
- MTBF Standard: Telcordia (Bellcore), GB
Package List
- 1 x MOXA EDS-2016-ML-MM-ST switch
- 1 x terminal block
- 1 x quick installation guide
- 1 x warranty card
Warranty and Shipping
- Warranty: 12 months.
- Dispatch: 12 to 24 hours.
- Couriers: FedEx, UPS, DHL.
- Support: sales@powergearx.com
- WhatsApp: +86 18030005825
Expert Review
The MOXA EDS-2016-ML-MM-ST is a solid choice for simple industrial networks. It gives many copper ports and two fiber uplinks. Also, the dual power design reduces downtime risk. The metal case and wide certifications suit harsh sites. However, it lacks managed features. Therefore, it fits basic, stable, and low-maintenance jobs.
Manager’s Insight
Buy this switch when you need fast deployment and low upkeep. It works well for panel builders, system integrators, and plant teams. The ST fiber ports help connect remote cabinets. Moreover, the unmanaged design cuts setup time. For complex VLAN or routing needs, choose a managed model instead.
Best Fit Devices and Applications
- PLC cabinets and machine control panels
- Factory automation cells
- Traffic control cabinets
- Railway trackside networks
- Maritime and offshore systems
- Hazardous area monitoring
- IP cameras and sensors
- Industrial data acquisition units
FAQ
Q: Is this switch managed or unmanaged?
A: It is unmanaged. It works right out of the box.
Q: How many fiber ports does it have?
A: It has two 100BaseFX multi-mode ports with ST connectors.
Q: Can I use one power input only?
A: Yes. But dual inputs give better redundancy.
Q: What is the operating temperature?
A: It runs from -10 to 60°C.
Q: Does it support DIN-rail mounting?
A: Yes. Wall mounting needs an optional kit.
Q: What couriers do you use?
A: We ship by FedEx, UPS, and DHL.
Q: How fast is dispatch?
A: Orders usually ship within 12 to 24 hours.
Q: What is the warranty?
A: It comes with a 12-month warranty.
Q: Can this switch handle video traffic?
A: Yes. It supports QoS and flow control.
Q: What should I check before buying?
A: Check port count, fiber type, power input, and temperature.
Q: Is it good for a large factory network?
A: It suits edge cabinets. Use managed switches for the core.
Q: How do I get support?
A: Email sales@powergearx.com or message +86 18030005825 on WhatsApp.
Buying Guide
- Count copper ports before you order.
- Confirm ST fiber connectors match your cable.
- Check 12/24/48 VDC power availability.
- Match the temperature range to your site.
- Choose unmanaged for simple links.
- Choose managed for VLANs and control.
- Add spare units for critical cabinets.
