Meggitt Vibro-Meter 111-412-000-013 Proximity Measuring System | Eddy-Current Probe

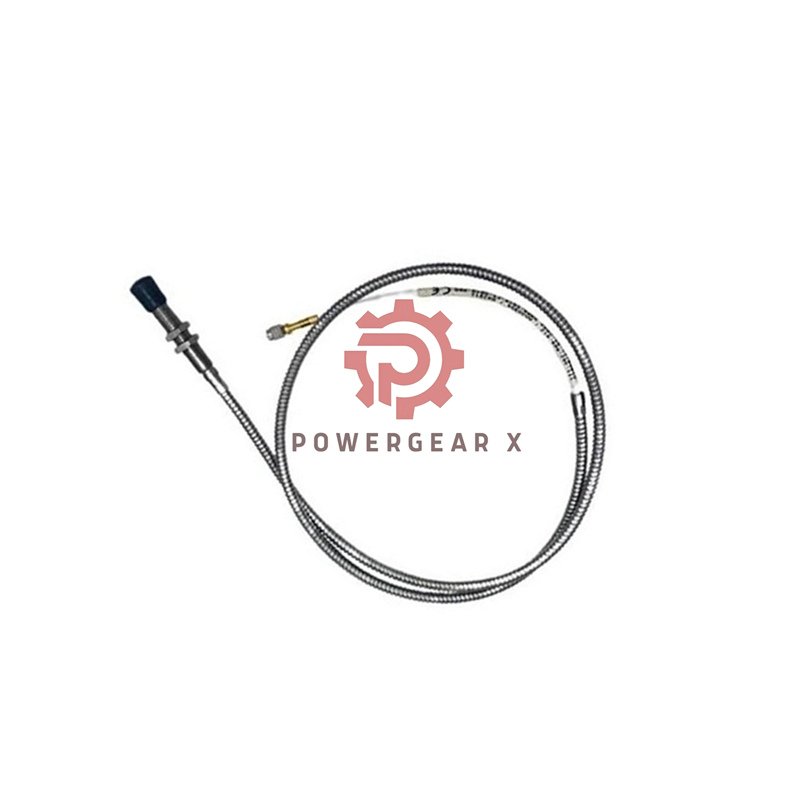

Meggitt Vibro-Meter 111-412-000-013 Proximity Measuring System

111-412-000-013 is a non-contact proximity system based on the eddy-current method. It reads shaft vibration and gap movement with high accuracy, even in harsh areas.

• Brand: Meggitt (Vibro-Meter)
• Model: 111-412-000-013
• Type: Proximity measuring system for rotating machines
• Measurement: Shaft vibration and shaft position (gap)

Key Advantages

• Non-contact measurement, no wear on shaft
• API 670 compliant for turbine and compressor protection
• Fast dynamic response from DC to 20 kHz (−3 dB)
• Temperature-compensated design, stable output
• Supports VM600Mk2 / VM600 / VibroSmart systems
• Available system length: 1 m, 5 m, 10 m
• MTBF > 120,000 hours (typical industry data)

Technical Specs

• Measurement range: 2 mm or 4 mm
• Operating temperature: −40 to +180°C
• Short-term survival: +180 to +220°C
• Vibration limit: 5 g peak (10–500 Hz)
• Shock limit: 15 g peak (11 ms)
• Protection rating: IP68 transducer head
• Output: Voltage or current with short-circuit protection
• Cable type: FEP coated coaxial, Ø3.6 mm
• Mass: 0.22 kg

Suffix Tree (Model Breakdown)

• 111-412-000-013
  • A1: Standard environment
  • B1: Body thread M10 × 1
  • E010: Integral cable length 1.0 m ±100 mm
  • F0: No protective hose
  • G000: No flexible stainless hose
  • H10: Total system length: 10 m

Build & Material

• Torlon probe tip with stainless steel housing
• Epoxy sealed internal coil prevents humidity damage
• Optional stainless protective hose or FEP sheath

Shipping & Warranty

• 12-month warranty from delivery date
• Fast shipment via FedEx / UPS / DHL
• Each unit packed with moisture and impact protection

FAQ

• How do I confirm probe distance?
  Place probe on target, adjust gap to mid-range, check output on the conditioner.
• How far can the cable run without signal loss?
  Use extension cables matched to the system length (1 m / 5 m / 10 m).
• Can this be installed near hot bearing housings?
  Yes. It works up to +180°C continuous.
• What causes unstable readings?
  Check grounding and avoid routing the probe cable near VFD motor cables.
• How do I connect to VM600?
  Use an IQS900 conditioner and follow polarity marks on the coax connectors.
