Meggitt Vibro-Meter 111-412-000-013-A1-B1-E050-F0-G000-H05 Proximity System

Meggitt Vibro-Meter 111-412-000-013-A1-B1-E050-F0-G000-H05 Proximity Measuring System

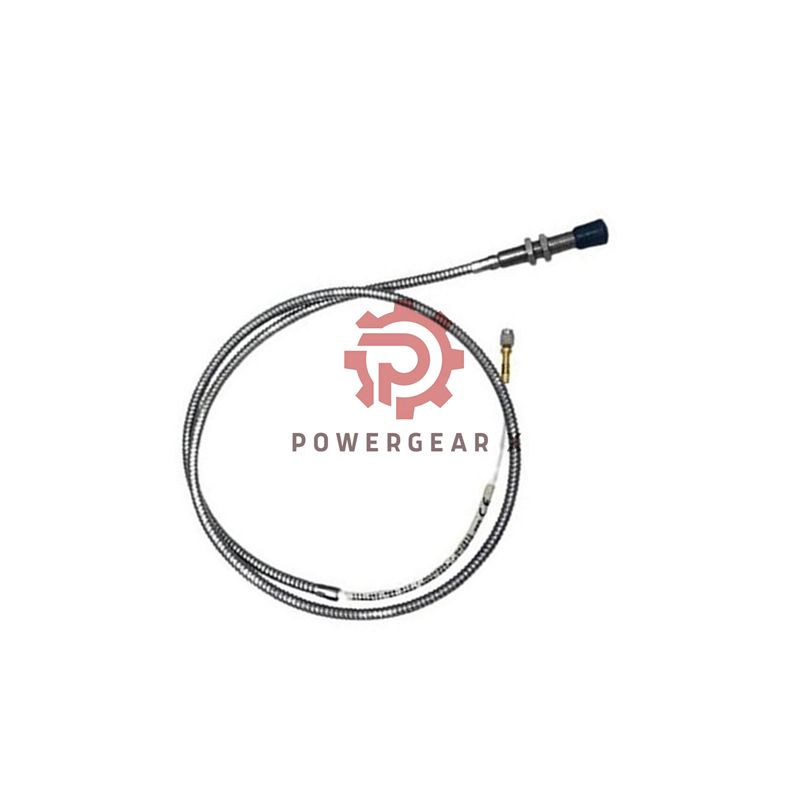

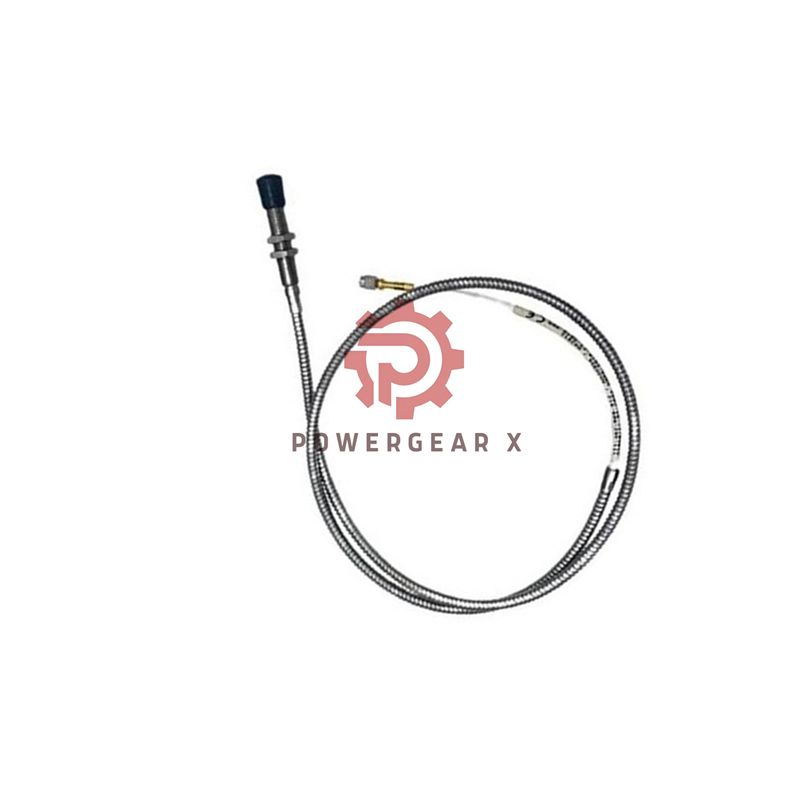

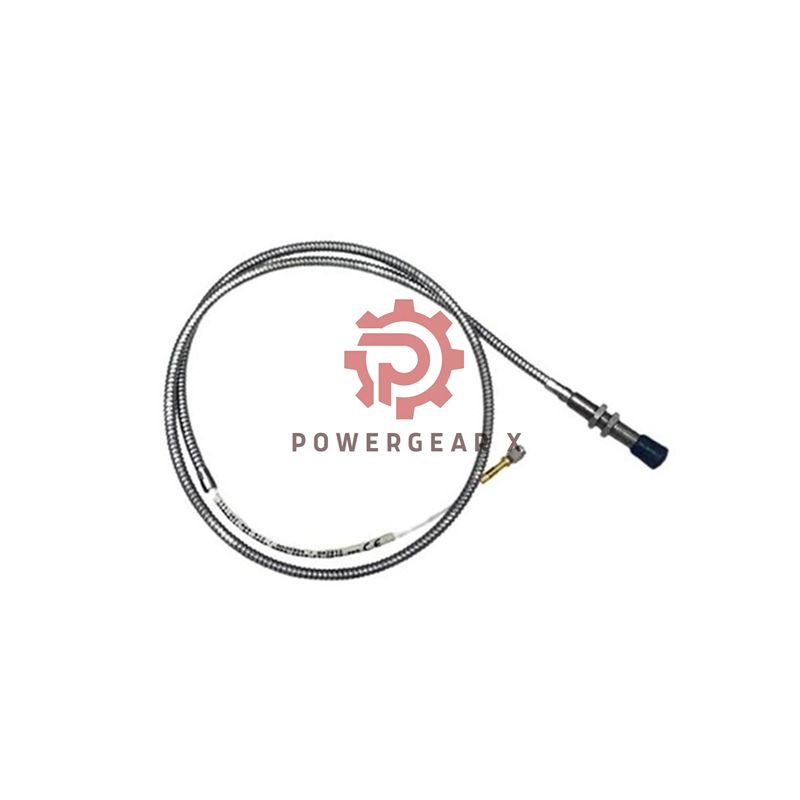

The Meggitt 111-412-000-013-A1-B1-E050-F0-G000-H05 is a non-contact eddy current proximity system from the Vibro-Meter® series. It provides precise shaft vibration and position measurements for machinery monitoring and protection under harsh industrial environments.

Main Highlights

• Based on eddy-current technology for accurate non-contact measurement.
• Complies with API 670 for machinery protection systems.
• Certified for hazardous (Ex) areas.
• Frequency response: DC to 20 kHz (−3 dB).
• Measurement range: 2 mm or 4 mm.
• Temperature range: −40°C to +180°C continuous operation.
• Short-term survival up to +220°C.
• Output: voltage or current, short-circuit protected.
• Integral cable: 5.0 m ±500 mm.
• Body thread: M10 × 1.
• System weight: 0.22 kg.

Product Configuration Tree

• 111-412-000-013-A1-B1-E050-F0-G000-H05
  • A1 – Environment: Standard
  • B1 – Thread: M10 × 1
  • E050 – Integral Cable: 5.0 m ±500 mm
  • F0 – Optional Protection: None
  • G000 – Flexible Hose: None
  • H05 – Total System Length: 5 m

Technical Parameters

• Transducer coil diameter: Ø8 mm, stainless steel body (AISI 316L).
• Transducer material: Torlon (polyamide-imide) with epoxy encapsulation.
• Coaxial cable: FEP-covered, 70 Ω, Ø3.6 mm.
• Connector: self-locking miniature coaxial type.
• Protection rating: IP68 at transducer head.
• Shock resistance: 15 g peak (11 ms duration).
• Vibration resistance: 5 g peak (10–500 Hz).
• Temperature drift: <5% from −40°C to +180°C.
• Compatible with IQS900 signal conditioner.

Optional Protection

• Flexible stainless-steel hose: adds mechanical protection, not leak-tight.
• FEP sheath: chemical resistant, low permeability, and flexible.

Applications

• Shaft vibration and displacement monitoring for rotating machinery.
• Machinery protection systems compliant with API 670.
• Integration with VM600Mk2 / VM600 / VibroSmart® monitoring systems.
• Used in turbines, compressors, and critical industrial equipment.

Environmental Performance

• Operating temperature: −40°C to +180°C.
• Storage temperature: −40°C to +200°C.
• Ex Zone use: −40°C to +195°C (transducer + cable).
• Protection rating: IP68 (transducer tip and integral cable).

Package & Shipping

• Includes: proximity probe, integral cable, connector, and manual.
• Standard warranty: 12 months.
• Ships via FedEx, UPS, or DHL worldwide.

FAQ

• How does this system measure shaft vibration?
  It uses an eddy-current sensor to detect metal displacement without contact.
• Can I use it near high temperatures?
  Yes, it works up to +180°C continuously and survives short peaks of +220°C.
• Which conditioners are compatible?
  The probe connects directly to IQS900 or compatible Meggitt signal conditioners.
• Is it suitable for hazardous areas?
  Yes, Ex certified versions are available for explosive environments.
• What is the recommended maintenance interval?
  Inspect cable and connectors every six months for wear or corrosion in harsh areas.
