Product details

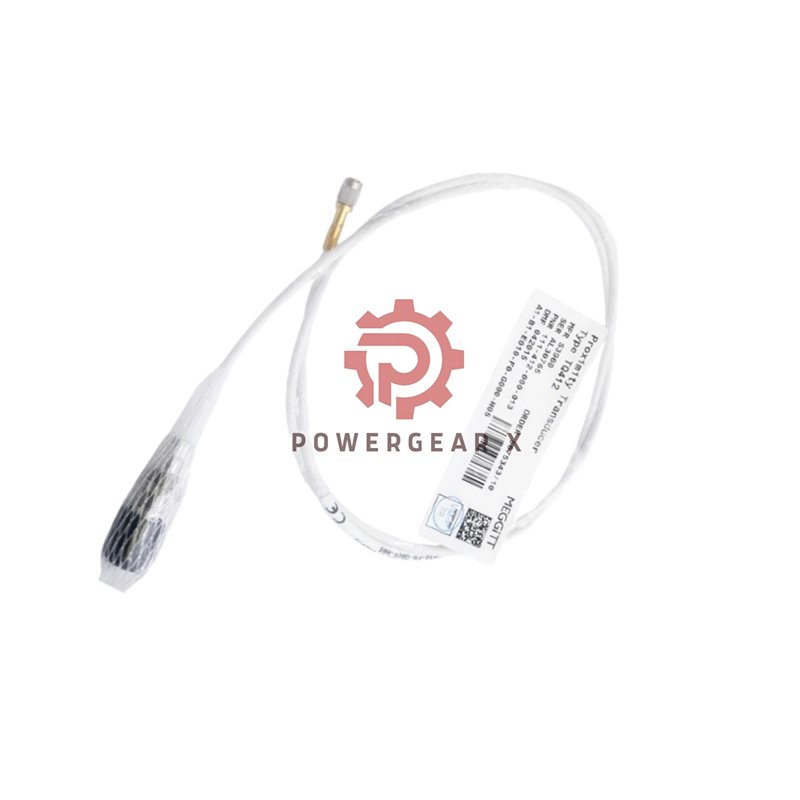

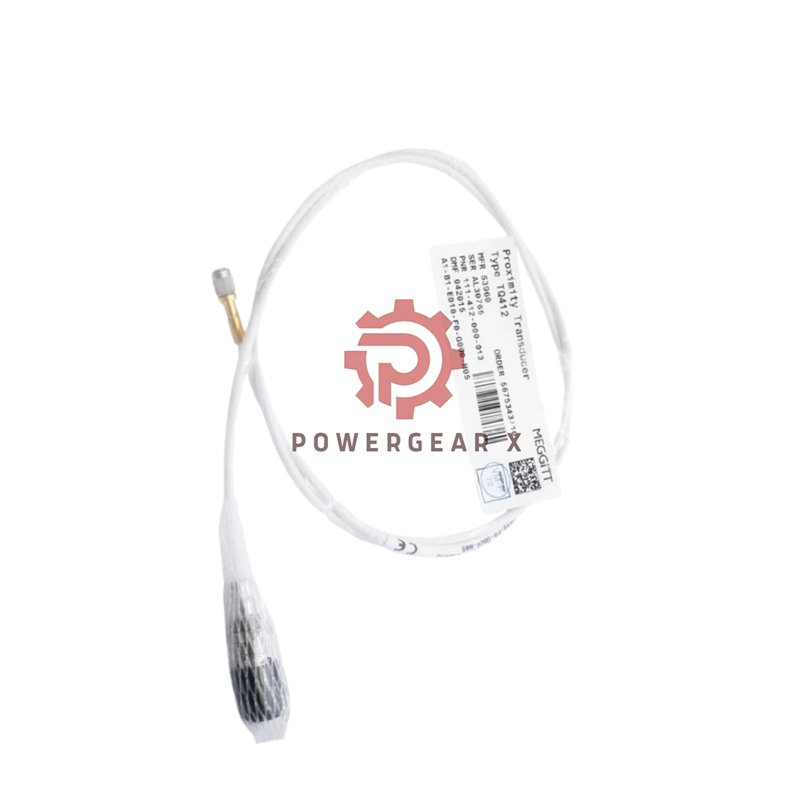

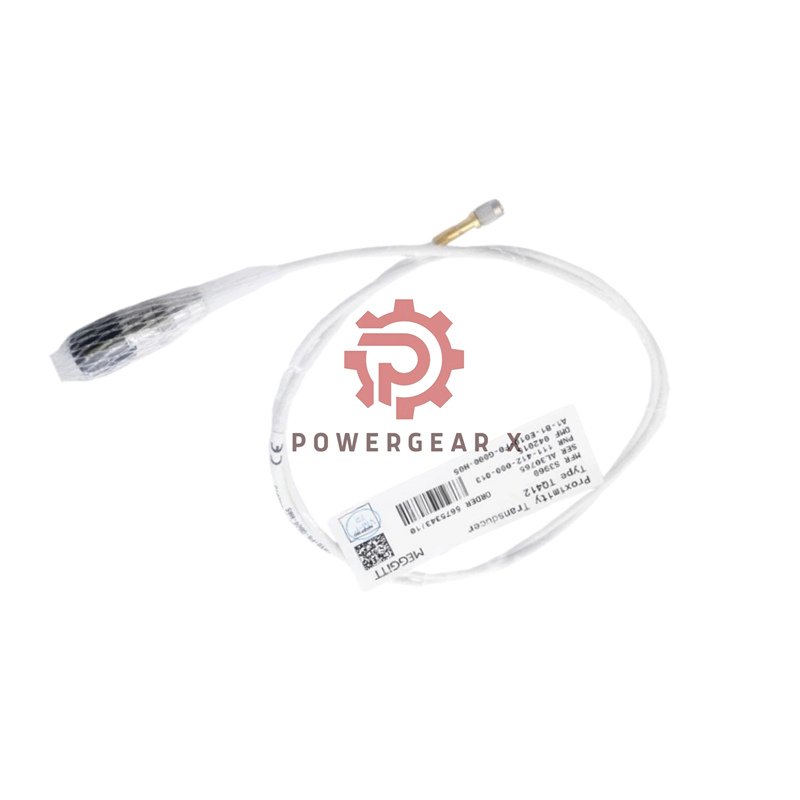

Meggitt Vibro-Meter 111-412-000-013-A2-B1-E005-F0-G000-H05 Proximity Measuring System
- Manufacturer: Meggitt (Vibro-Meter)
- Model: 111-412-000-013-A2-B1-E005-F0-G000-H05
- Type: Proximity Measuring System
- Warranty: 12 Months
- Shipping: FedEx, UPS, DHL
- Weight: 0.22 kg
Key Advantages:
- Compact M10×1 thread with stainless steel (AISI 316L) body
- Temperature range up to +180°C continuous, short-term +220°C
- Explosion protection Ex i – safe for hazardous zones
- Durable FEP cable and optional steel hose for protection
- IP68-rated probe tip for full environmental sealing
- Fast response with high-frequency IQS900 signal conditioner
Technical Highlights:
- Input: High-frequency excitation via IQS900 conditioner
- Cable impedance: 70 Ω coaxial, Ø3.6 mm FEP insulation
- Operating temperature (sensor): −40°C to +180°C
- Storage temperature: −40°C to +195°C (Ex Zone use)
- Vibration limit: 5 g peak (10–500 Hz)
- Shock resistance: 15 g peak, 11 ms half-sine
- Transducer coil: Ø8 mm with Torlon tip
- Cable length: 0.5 m ±50 mm, system total: 5 m
Structure Tree (Suffix Info):
- A2 – Explosive Ex i environment
- B1 – M10×1 body thread
- E005 – 0.5 m cable
- F0 – No additional protection
- G000 – No flexible hose
- H05 – 5 m total system length
Design & Materials:
- Stainless steel body with high-temperature epoxy sealing
- Torlon tip for heat resistance and insulation
- Optional flexible stainless steel hose (mechanical protection)
- Optional FEP sheath for chemical and moisture resistance
Reliability:
- Excellent long-term stability in high-temp and Ex zones
- Low signal drift (<5% under 180°C)
- Simple hand-tight coaxial connection system
FAQ – Expert Answers
- Q: How should the sensor be mounted in confined areas?
A: Use the M10×1 threaded connection and secure it to a rigid, vibration-free surface. - Q: What is the ideal cable routing for Ex zones?
A: Keep the cable away from heat sources; use a flexible steel hose if physical damage is likely. - Q: Can I replace the cable if it’s damaged?
A: The integral cable is factory-fitted; contact sales@powergearx.com for service options. - Q: What is the maximum shock tolerance during transport?
A: Up to 15 g peak, tested per IEC 60068-2-27 standard. - Q: What’s the recommended maintenance schedule?
A: Inspect every 6 months for cable wear or corrosion, especially in Ex-rated areas.
