2300/20_KIT-001-00 Bently Nevada Condition Monitoring System Kit | Vibration Analysis

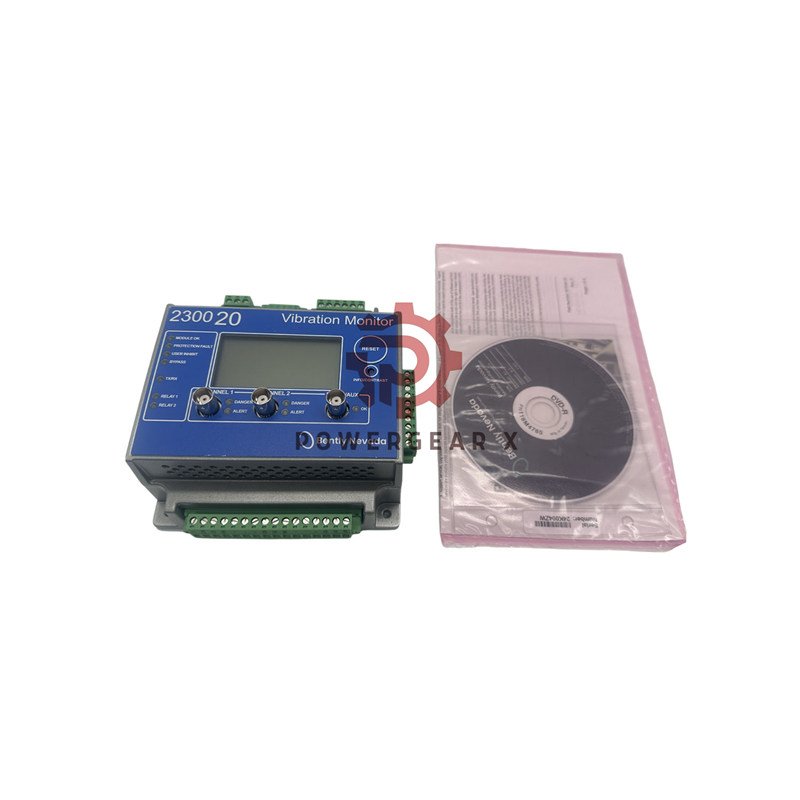

Bently Nevada 2300/20 Monitoring System

The Bently Nevada 2300/20 provides reliable machinery protection. It monitors vibration, speed and temperature for industrial equipment.

Key Specifications

• Brand: Bently Nevada
• Model: 2300/20_KIT-001-00
• Temperature Range: -30°C to +65°C
• Power: 18-36 Vdc, 7.5 W max
• Dimensions: 127 x 127 x 76.2 mm
• Weight: 1.03 kg

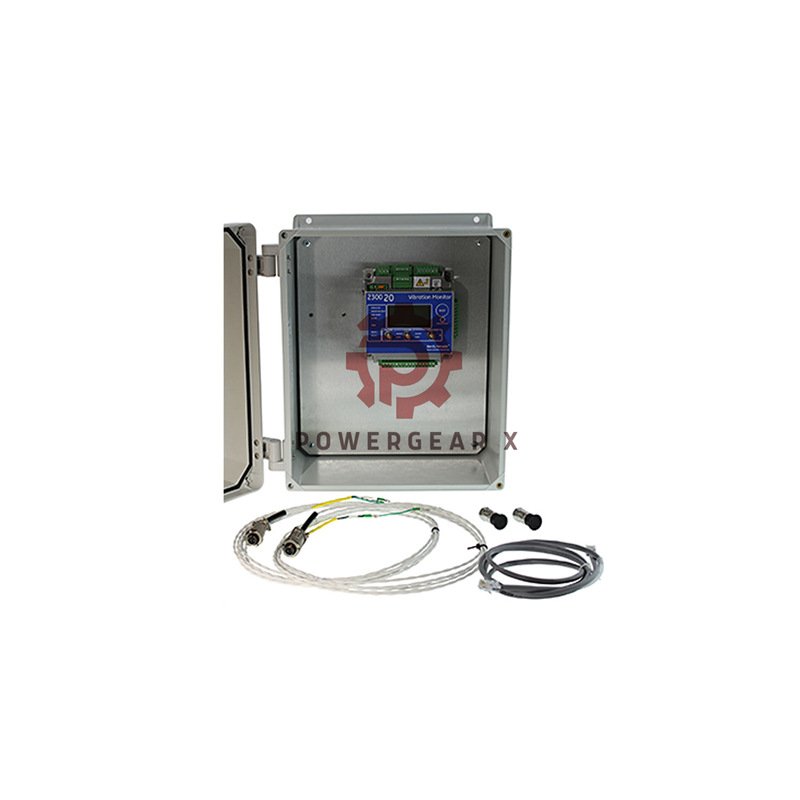

Package Contents

• 1 x 2300/20 Monitor
• 1 x 6 ft Ethernet Cable
• 1 x Housing Kit
• 2 x AM3100T2-Z2 Sensors
• 2 x 17 ft Cables
• 1 x DIN Rail Adapter

Monitoring Features

• ICP Accelerometer Inputs
• Velocity and Vibration Channels
• Temperature Monitoring
• Speed Input to 120,000 RPM
• 4-20 mA Outputs
• 24-bit ADCs

Technical Specifications

• Frequency Range: 0.2 Hz to 20 kHz
• Accelerometer Range: 2 to 80 g
• Velocity Range: 0 to 50 in/s
• Vibration Range: 0 to 160 mil
• Proximity Supply: -22.8 to -25.2 Vdc

Communication Interfaces

• Ethernet 10/100Base-TX
• 3 BNC Outputs
• 2 Relay Outputs
• LCD Display
• Status LEDs

Environmental Ratings

• Operating Temp: -30°C to +65°C
• Storage Temp: -40°C to +85°C
• Humidity: 95% non-condensing
• Vibration: 3 g

Data Recording

• Pre-event Data: 10 minutes
• Post-event Data: 1 minute
• 5 Alarm Captures Minimum
• Real-time Clock

Installation

• Panel or DIN Rail Mount
• Shielded Cable Included
• Multiple Transducer Support
• Easy Ethernet Configuration

FAQ

• What is the maximum RPM?
• 120,000 RPM supported
• Are sensors included?
• Yes, two accelerometers included
• Power requirements?
• 18-36 Vdc, 7.5 W maximum
• Hazardous area use?
• Yes with stainless steel housing
• Relay outputs available?
• Two dry-contact relays provided
