Product details

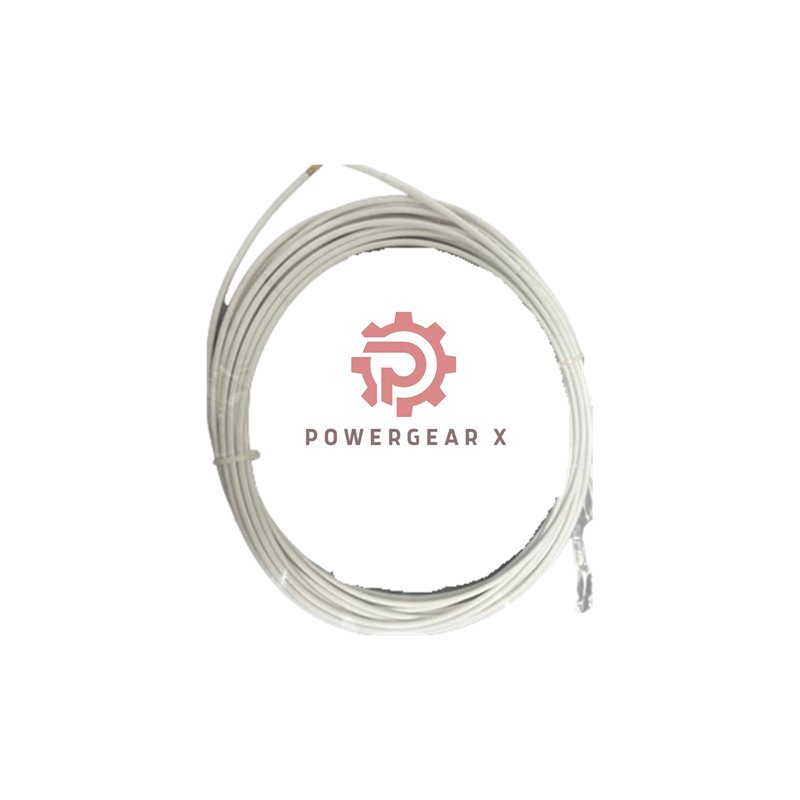

Meggitt Vibro-Meter 913-402-000-013-A1-E090-F0-G000 Proximity Measuring System
- Manufacturer: Meggitt (Vibro-Meter)
- Model: 913-402-000-013-A1-E090-F0-G000
- Type: Proximity Measuring System
- Weight: 0.22 kg
- Warranty: 12 Months
- Shipping: FedEx / UPS / DHL Worldwide
Tree Structure – Model Suffix Details
- A1 → Environment: Standard
- E090 → Extension Cable: 9.0 m ±900 mm
- F0 → Protection: None (Cable, Connector)
- G000 → Flexible Hose: None
Main Highlights
- Non-contact eddy-current measurement system
- API 670 compliant design
- ATEX/Ex certified for hazardous areas
- Temperature-compensated performance
- Wide bandwidth DC–20 kHz (−3 dB)
- Measurement range: 2 mm or 4 mm
- High signal stability with IQS900 conditioner
- Voltage or current output, short-circuit protected
- IP68-rated stainless-steel sensor body
- Works in −40°C to +200°C environments
Construction & Design
- Transducer: Ø8 mm Torlon tip, AISI 316L body
- Cable: FEP 70 Ω coaxial, Ø3.6 mm
- Connectors: Self-locking mini coaxial type
- Vibration tolerance: 5 g (10–500 Hz)
- Shock resistance: 15 g (11 ms)
- Optional sheath: FEP or flexible steel protection
- Mounting: Two M4 screws (no DIN adaptor)
Performance & Reliability
- High-frequency power source from IQS900
- Fast response for dynamic shaft monitoring
- Excellent chemical and heat resistance
- Long service life with low drift (<5%)
- Ideal for VM600Mk2 / VibroSmart® systems
Applications
- Shaft vibration and position monitoring
- Gap measurement in rotating machinery
- Condition monitoring for turbines and compressors
- Use in Ex and non-Ex industrial environments
FAQ
- How long can the cable be for this sensor?
Standard cable is 9 m; custom lengths (1–10 m) are available on request. - What happens if exposed above 200°C?
Short-term operation up to 220°C is possible but may cause calibration drift. - Can I use this with other signal conditioners?
It performs best with the Meggitt IQS900; other conditioners may affect linearity. - Is it suitable for vertical shaft monitoring?
Yes, it maintains sensitivity regardless of orientation. - What maintenance is recommended?
Inspect cable ends quarterly and ensure connectors are hand-tightened only.
