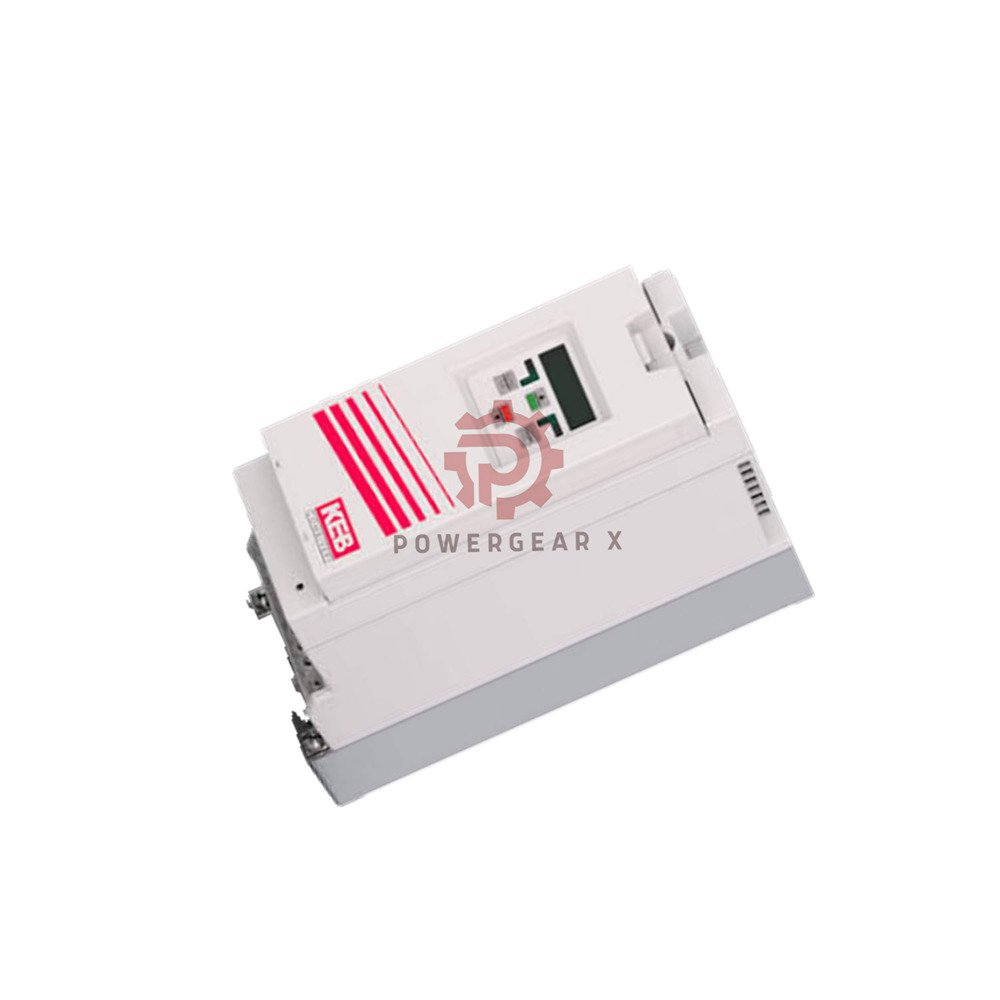

KEB F5 10F5A1D-3AGA Drive – 4.0kVA VFD, 2.2kW, 400V, 599Hz Output

Product Overview

• KEB Combivert F5 frequency inverter (P/N 10F5A1D-3AGA)
• Rated 4.0 kVA / 400V / 5.8A / 2.2 kW
• For AC/DC, 3-phase systems
• Delivers precise motor speed control

Key Features

• Encoder interface 1: Incr. TTL input
• Encoder interface 2: Incr. TTL input
• Brake transistor: GTR7
• Cooling: Air cooler (heat sink)

Technical Data

• Power: 4.0 kVA
• Motor: 2.2 kW, 2/4P, 50/60 Hz
• Input voltage: 305…528V AC, 3 PH
• Output voltage: 0 to Uin
• Rated output current: 5.8A
• Max. short-time limit current: 10.4A
• Max. output frequency: 599 Hz
• Switching frequency: 8 kHz
• Protection class: IP20
• Dimensions (WxHxD): 90 x 250 x 181 mm

Series & Ratings

• F5 SERIES
• 50/60 Hz input
• 800 Hz output capability
• 3-phase, 4.0 kVA, 3 HP

Expert Review

• “Reliable and flexible for many motor applications.”
• Easy to set up with dual encoder inputs.
• Handles short-term overloads well.

Manager’s Insight

• “A solid choice for upgrading older drives.”
• Reduces energy waste with precise control.
• Compact design saves panel space.

Applications & Compatible Devices

• Conveyor systems and material handling
• Pumps, fans, and compressors
• Packaging machinery
• Textile and printing equipment

Compare with Other Models

• Model A – higher power, 7.5kW version
• Model B – 3-phase 230V input variant

Frequently Asked Questions

• Q: What is the maximum output frequency?
• A: 599 Hz (with 8 kHz switching).
• Q: Can I use this with a single-phase supply?
• A: No, it requires 3-phase input (305-528V AC).
• Q: Does it support encoder feedback?
• A: Yes, two incremental TTL inputs.
• Q: What is the warranty period?
• A: 12 months against manufacturing defects.
• Q: Is this suitable for high-temperature areas?
• A: Use with adequate ventilation; IP20 rating.

Selection Guide

• Confirm motor power (2.2kW max).
• Check input voltage (305-528V AC, 3PH).
• Verify enclosure space (90 x 250 x 181 mm).
• Choose for applications needing encoder feedback.
• Order P/N 10F5A1D-3AGA for reliable operation.

Shipping & Delivery

• We ship within 12–24 hours (Monday–Friday).
• Choose FedEx, UPS, or DHL.
• Tracking number sent promptly.
