KEB 10F5H1D-3A0A F5 Multi Inverter | 5.8A, IP20, Closed-Loop Ready

Product Overview

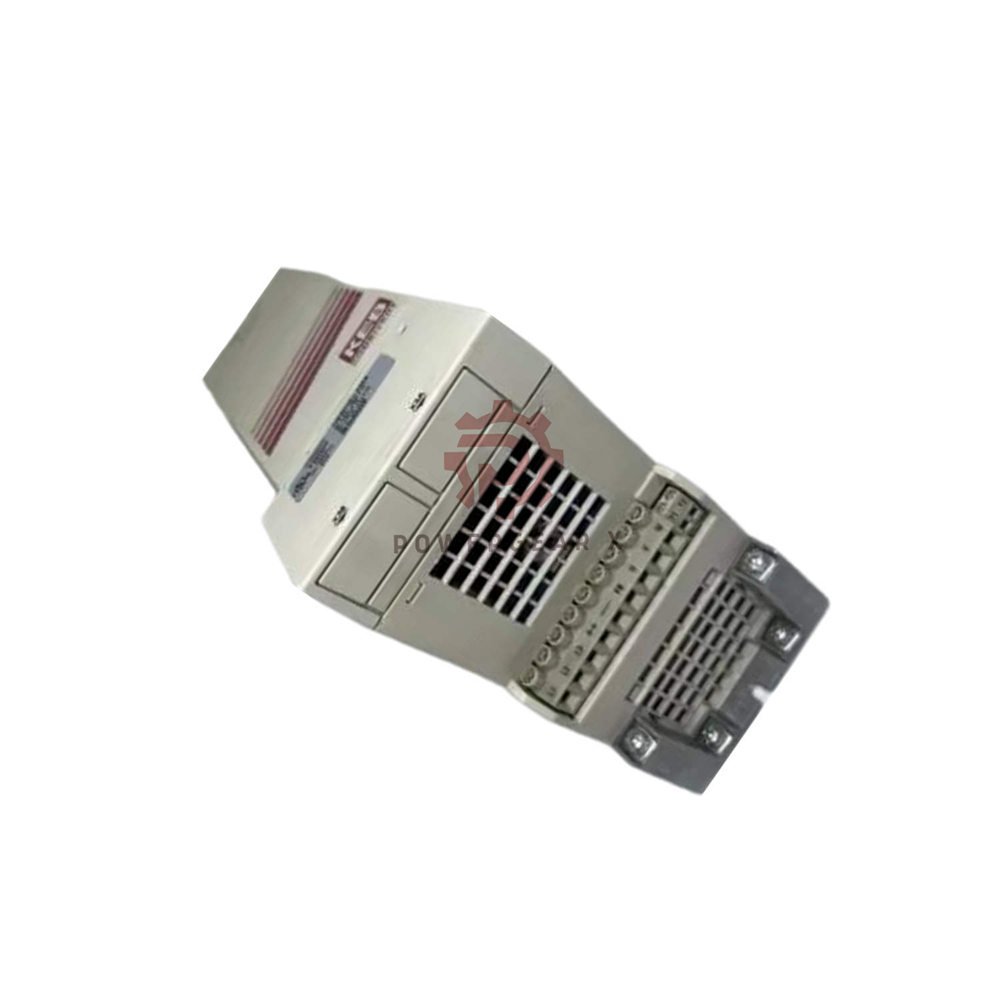

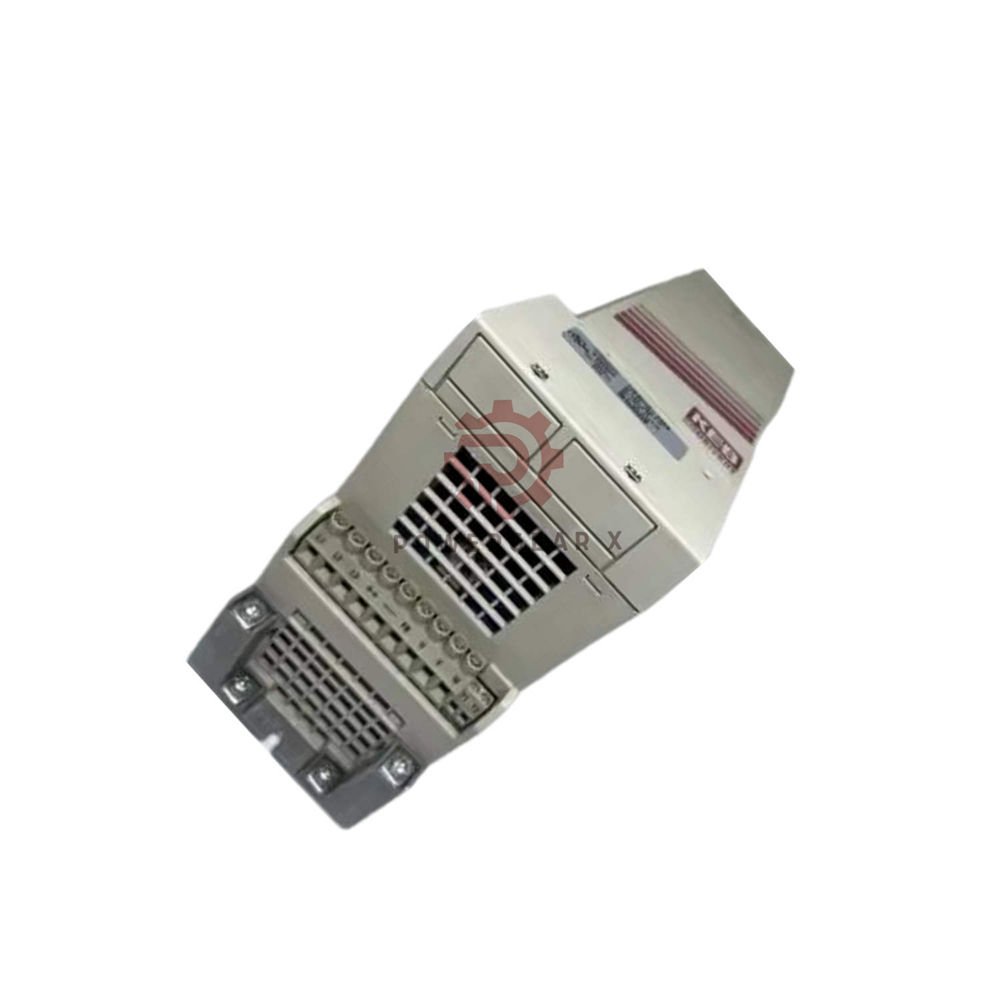

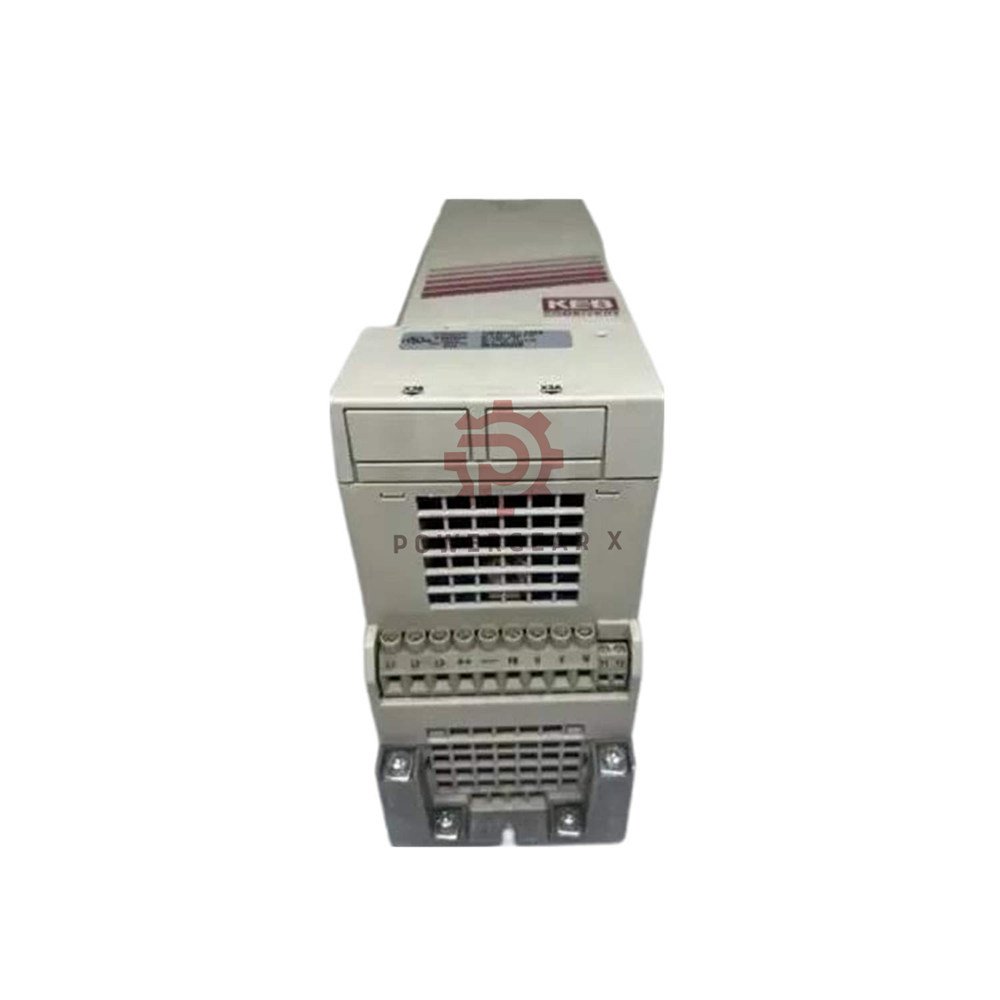

10F5H1D-3A0A is a KEB Combivert F5 Multi drive. It is a general-purpose frequency inverter. This model works with 3-phase power at 400V. It delivers 2.2kW of power. The drive supports both open-loop and closed-loop control.

Key Features

• Power Output: 2.2kW, enough for many industrial motors.
• Current Rating: 5.8A for reliable operation.
• Overload Capacity: 216% for 1 minute handles peak loads.
• Flexible Control: V/f control, field-oriented, and synchronous motor control.
• Built-in Braking: Includes a braking unit for quick stops.

Technical Specifications

• Brand: KEB
• Series: Combivert F5 Multi
• Model: 10F5H1D-3A0A
• Application: General purpose
• Power: 2.2 kW
• Current: 5.8 A
• Supply Voltage: 400 V
• Phase: 3
• Enclosure: IP20
• Overload: 216% for 1 minute
• EMC Filter: Optional
• Braking Unit: Included
• Operating Temp: -10°C to +45°C
• Storage Temp: -25°C to +70°C

Communication & Fieldbus Support

• RS485 with Modbus RTU
• Profibus
• Interbus
• CANopen
• DeviceNet
• EtherNet TCP/IP
• EtherCAT
• ETHERNET POWERLINK
• ProfiNET
• EtherNet/IP
• SERCOS II

Feedback Card Options

• Resolver
• Incremental encoder
• Initiator
• Sin/Cos encoder
• Absolute encoder
• Hiperface
• EnDat
• BISS
• Tacho

Control Modes

• KEB-SMM (Sensorless Motor Management): F5-G
• Field-Oriented Control: F5-M
• Synchronous Motor Control: F5-S
• Speed and Torque Control
• Position Control
• Synchronous Speed Control (Electronic Gear)

Key Advantages

• Flexible plug-in feedback cards for many encoder types.
• Decentralized automation relieves higher-level controls.
• Clear and compact program structure.
• Ready for closed-loop operation with synchronous motors.

Compatible Devices & Applications

• Ideal For: Conveyors, pumps, fans, and mixers.
• Best With: Asynchronous and synchronous motors.
• Common Use: General-purpose industrial drives.
• Advanced Use: Closed-loop positioning systems.

Manager’s Insight

This drive offers excellent value for general-purpose use. The 216% overload helps with heavy starts. The wide fieldbus support makes it easy to integrate. Closed-loop capability adds future flexibility. It is a solid choice for most industrial needs.

Expert Review

We have used this KEB drive in many installations. It performs well with both simple and complex motors. The plug-in feedback cards simplify setup. The control options are extensive. The built-in braking unit is a helpful addition. It handles demanding conditions reliably. A versatile and capable drive.

Comparison with Similar Models

• 10F5H1D-3A0A vs. Standard F5: Adds closed-loop and synchronous motor control.
• 10F5H1D-3A0A vs. Competitor Drives: More fieldbus options and feedback cards.
• 10F5H1D-3A0A vs. Larger KEB Models: Compact size for 2.2kW applications.
• For other options, check our full product range.

Frequently Asked Questions (FAQ)

• What is the power rating of this drive?
  2.2kW with 5.8A current at 400V 3-phase.
• Does it support closed-loop control?
  Yes, it is specially prepared for closed-loop operation.
• What feedback cards can I use?
  Resolver, encoder, Sin/Cos, Hiperface, EnDat, and more.
• What fieldbus protocols are supported?
  Profibus, CANopen, Modbus, EtherNet/IP, EtherCAT, and others.
• What is the operating temperature range?
  -10°C to +45°C for reliable operation.

Buyer’s Guide & Selection Advice

• Check your motor power (kW) to ensure 2.2kW is sufficient.
• Verify your supply voltage matches 400V 3-phase.
• Choose the right feedback card for your motor encoder.
• Select the fieldbus option that fits your control system.
• Consider future closed-loop needs when buying.

Warranty & Support

• Warranty: 12 months against defects.
• Shipping: 12-24 hour dispatch.
• Carriers: FedEx, UPS, DHL.
• Support: Technical help available.
