Product details

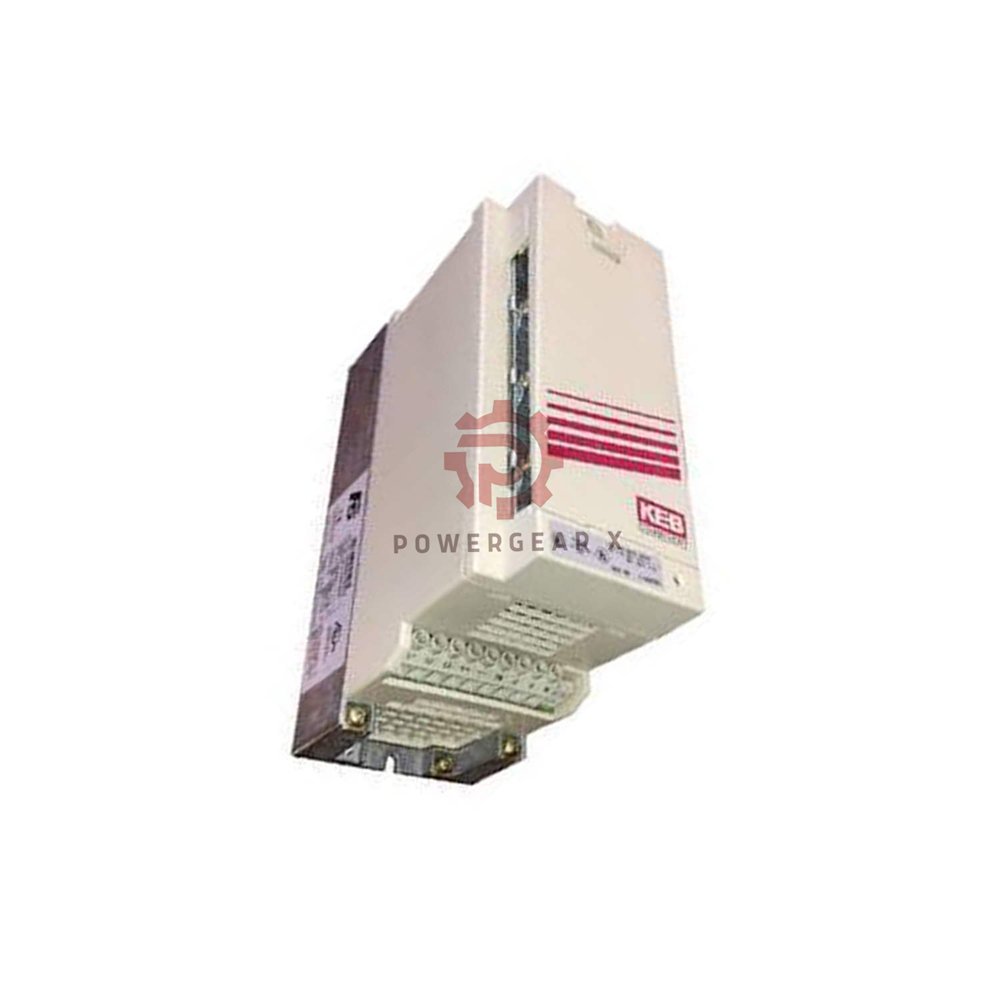

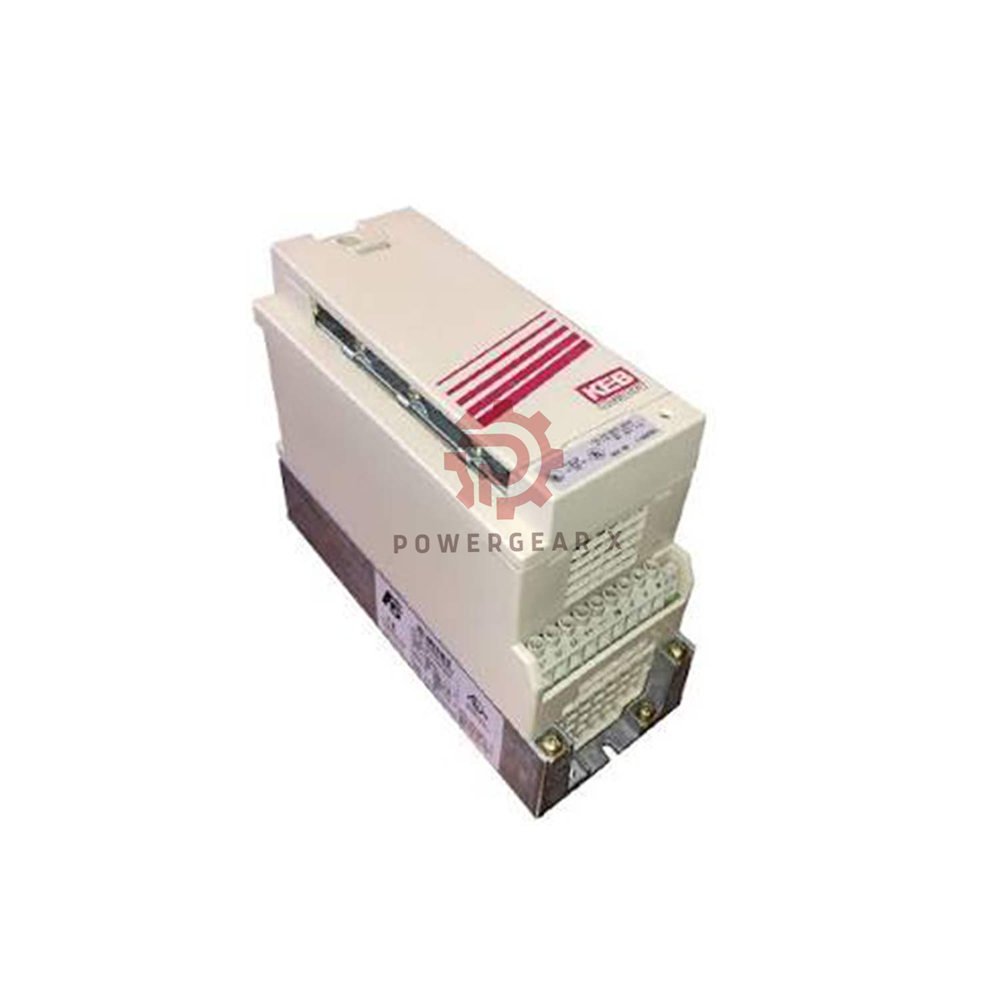

KEB Combivert F5 18F5A1G-340F Frequency Inverter
High-performance 35 kVA drive for AC/DC motors. Controls speed and torque in heavy industrial applications. Reliable 22kW output with built-in braking.
Equipment
- Braking Transistor: GTR7
- Heatsink: Air Cooler (Aufbauversion)
Technical Data
- Power: 35 kVA
- Motor: 22 kW (2/4P, 50/60 Hz)
- Input voltage: 305…528 V AC, 3-phase
- Output voltage: 0 to Uin
- Rated output current: 50 A
- Max output frequency: 599 Hz
- Switching frequency: 2 kHz
- Protection class: IP20
- Dimensions (W×H×D): 170 × 340 × 255 mm
Drive Overview
- Series: F5
- Horsepower: 30 HP
- Board: Standard
- Braking: Built-in transistor
- Housing: G type
- Input: 3-phase 400 V AC/DC
Expert Review
“A workhorse for demanding motor control. The 599 Hz output gives fine speed control. The braking transistor handles rapid stops without external modules.” — Senior Automation Engineer
Manager’s Insight
“We use these on conveyor lines and mixers. The IP20 enclosure keeps dust out. Easy to parameterize via the keypad. Great value for 22kW applications.” — Plant Operations Manager
Compatible Devices & Applications
- AC induction motors up to 22 kW
- Conveyors, hoists, and cranes
- Pumps, fans, and compressors
- Mixers, extruders, and agitators
- Machine tools and textile machinery
Comparison Models (Links)
- KEB F5 30HP 18F5A1G-341F – higher current rating (62A)
- KEB F5 25HP 18F5A1G-339F – compact housing, 18kW
- KEB F5 40HP 18F5A1G-342F – with extended I/O board
Professional FAQ
- What is the maximum output frequency?
- 599 Hz – suitable for high-speed spindles.
- Does it support regenerative braking?
- Yes, the internal GTR7 transistor handles dynamic braking.
- Can I use it with single-phase input?
- No, it requires a 3-phase 400V supply.
- What is the ambient temperature limit?
- Operates up to 50 °C without derating.
- Is a separate output reactor needed?
- For motor cable longer than 50m, yes – recommended.
Selection Guide & Experience Tips
- Match motor FLA (Full Load Amps) to the 50A rating.
- For crane applications, add a braking resistor for heavy loads.
- Set switching frequency to 2 kHz for quiet motor operation.
- Use shielded cables for encoder feedback if installed.
- Always ground the drive properly to avoid EMI issues.
Warranty & Shipping
- 12-month warranty against manufacturing defects.
- 24-hour dispatch on business days.
- Express delivery via FedEx, UPS, or DHL – tracking included.
