KEB 09F5A1D-3A0A Frequency Inverter – 2.8kVA VFD for AC/DC Motors

Product Overview

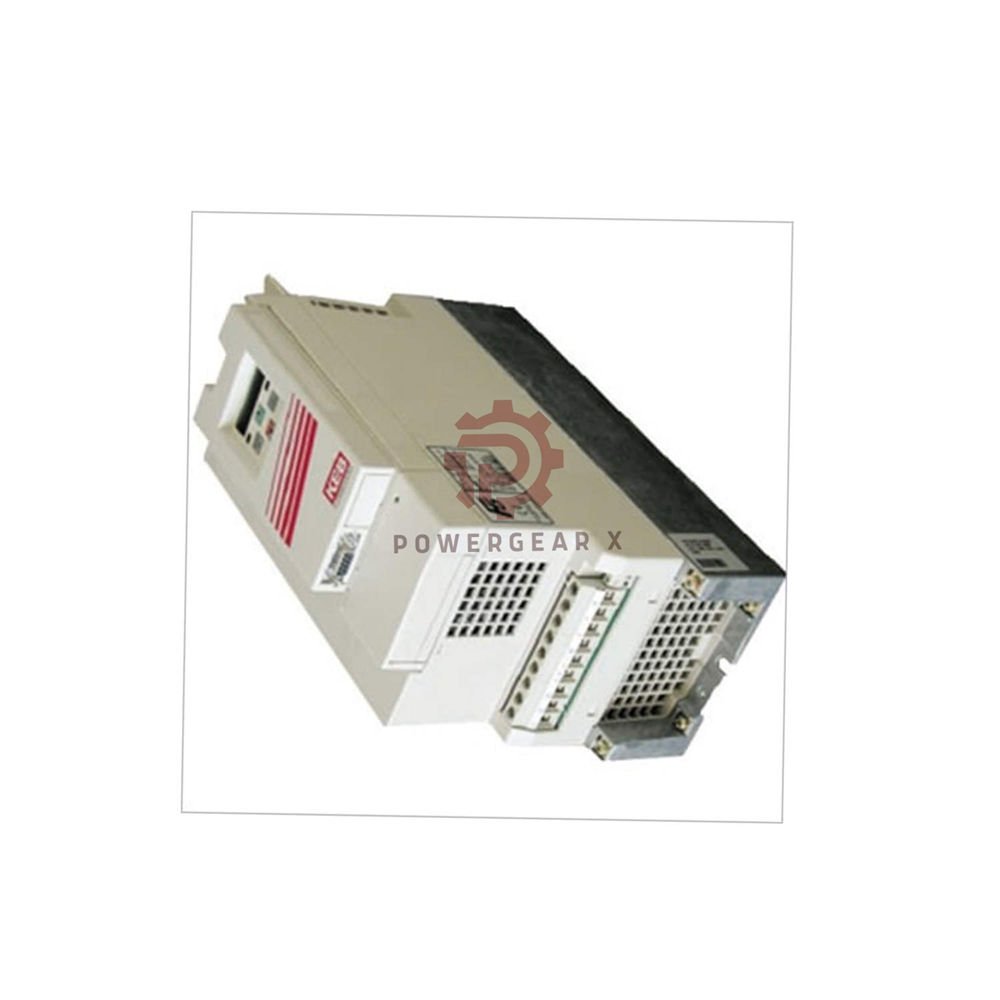

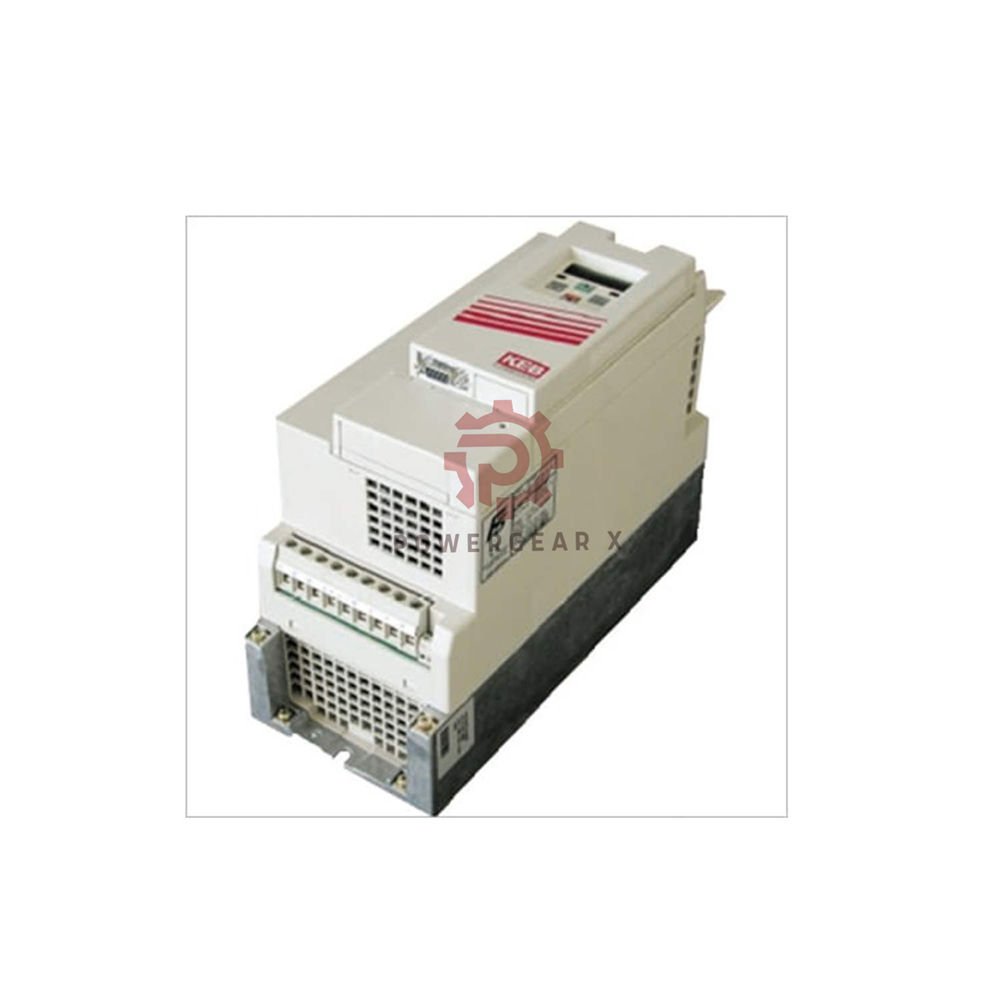

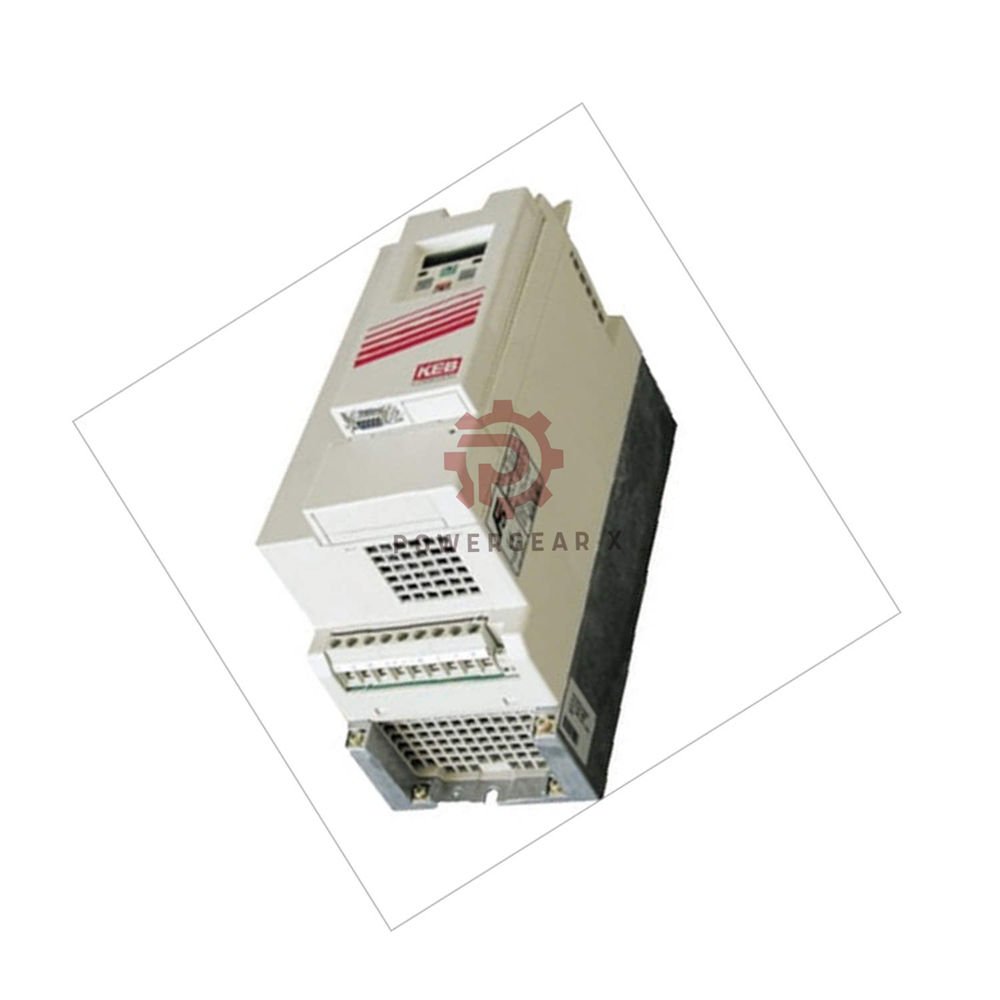

09F5A1D-3A0A from KEB is a compact frequency inverter. It runs AC/DC motors with 2.8 kVA power. This drive suits 3-phase 400V systems.

Key Features

• Brake transistor GTR7 built-in.
• Air cooling with integrated heat sink.
• 29 control terminals – PNP/NPN switchable.
• 2 analog inputs (0–10 V, ±10 V, 0/4–20 mA).
• 2 analog outputs (0–±10 V).
• 8 digital inputs and 2 relay + 2 transistor outputs.
• 4 software I/O for flexible logic.
• 8 parameter sets with S-curves and DC-braking.
• Internal PID controller and motor protection.
• Output freq up to 1600 Hz (with derating).
• Switching freq up to 16 kHz (quiet operation).
• DC-link and motor-PTC evaluation.
• Hardware current limit for safety.
• Energy saving function reduces power use.

Technical Data

• Brand: KEB
• Model: 09F5A1D-3A0A
• Series: Combivert F5 Multi
• Type: Frequency inverter / VFD
• Power: 2.8 kVA
• Motor power: 1.5 kW (2/4P, 50/60 Hz)
• Input voltage: 305–528 V AC, 3-phase
• Output voltage: 0 to Uin
• Rated current: 4.1 A
• Max short-term current: 7.4 A
• Max output frequency: 599 Hz (standard), 1600 Hz (with derating)
• Switching frequency: 8 kHz (standard), up to 16 kHz
• Protection class: IP20
• Dimensions (W×H×D): 90 × 250 × 181 mm
• Brake chopper: Internal (GTR7)
• Cooling: Air cooler (heat sink)

Terminal & Control Details

• 29 plug-in terminals – easy wiring.
• PNP/NPN switch fits different PLCs.
• 2 analog inputs – voltage or current.
• 2 analog outputs – 0–±10 V for feedback.
• 8 digital inputs – start, stop, speed select.
• Outputs: 2 relays + 2 transistors.
• 4 software I/O – no extra wiring.
• Scan time: 2 ms for fast response.

Advanced Functions

• 8 parameter sets – store different motor settings.
• S-curve ramps for smooth starts.
• DC-braking stops motor quickly.
• PID control – pressure, flow, or speed.
• Motor PTC input – protects from overheating.
• Output phase monitor – detects cable faults.
• Energy saving – optimizes motor efficiency.
• Positioning to end stop or counter pulse.

Installation & Compatibility

• Mount on flat panel or wall.
• Fits standard 3-phase motors (0.75–1.5 kW).
• Brake resistor (optional) for quick stops.

Certifications & Warranty

• CE and UL certified.
• 12-month warranty – parts and labor.

Package Contents

• 1 × 09F5A1D-3A0A VFD
• Quick start manual
• Mounting screws

Shipping & Delivery

• 12-24 hours dispatch for in-stock units.
• Carriers: FedEx, UPS, DHL.

Expert Review

“This drive is powerful yet easy to set up. The 29 terminals give great flexibility. I like the 8 parameter sets – perfect for multi-motor lines.” – Senior Drive Engineer, Powergear X

Manager’s Insight

“A reliable workhorse for 1.5kW motors. The PID and energy saving cut running costs. Simple to install and maintain.” – Product Line Manager, KEB

Application Scenarios

• Conveyor belts in packaging lines.
• Fan and pump speed control.
• Mixers and extruders in plastic plants.
• Machine tools and spindle drives.
• HVAC systems with VFD control.

Comparison with Similar Models

• 09F5A1D-2A0A – 2.2 kVA / 1.1 kW (lower power).
• 09F5A1D-4A0A – 4.0 kVA / 2.2 kW (higher current).
• 09F5A1D-3B0A – same power but with fieldbus.
• 09F5A1D-3A0B – with brake resistor included.

Frequently Asked Questions (FAQ)

• Can I run a 1.1 kW motor with this VFD?
  Yes, but set motor parameters correctly.
• What is the max cable length from VFD to motor?
  50 meters with shielded cable (unshielded: 25 m).
• Does it support Modbus or Profibus?
  Not built-in – use optional fieldbus module.
• Can I use it for single-phase input?
  No, it needs 3-phase 305–528 V AC.
• How to reset after overcurrent trip?
  Press STOP/RESET key or cycle power.

Experience-Based Tips

• Use external brake resistor for high-inertia loads.
• Set switching freq to 8 kHz for most motors (quieter at 16 kHz but may derate).
• Always connect shield of control cables at one end only.
• Save parameter set before changing – easy restore.

Selection Guide

• Step 1: Check motor power (≤1.5 kW for this model).
• Step 2: Verify supply voltage (305–528 V AC, 3-phase).
• Step 3: Decide if you need fieldbus – choose optional module.
• Step 4: For quick stop, order brake resistor separately.
• Step 5: For higher power, see 09F5A1D-4A0A.
