iC60N 4P C16 Schneider Acti9 MCB 16A C-Curve Fast Shipping

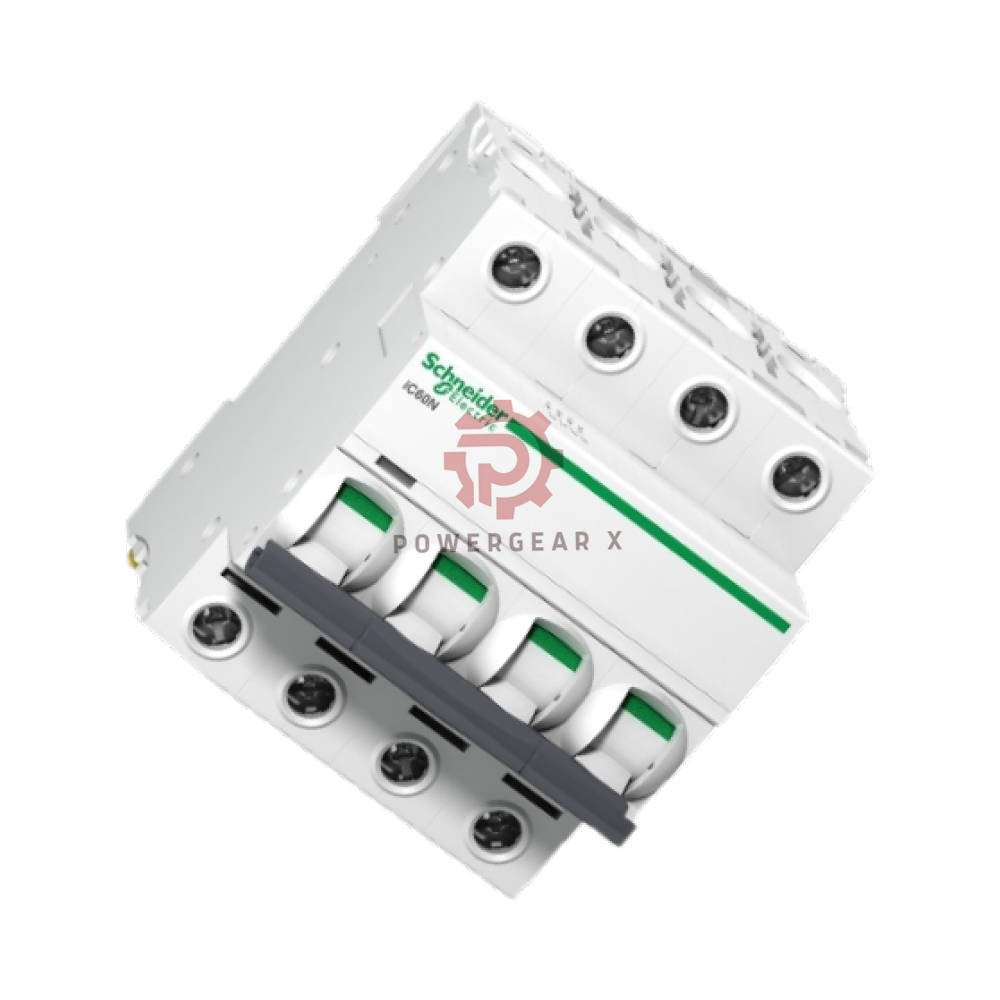

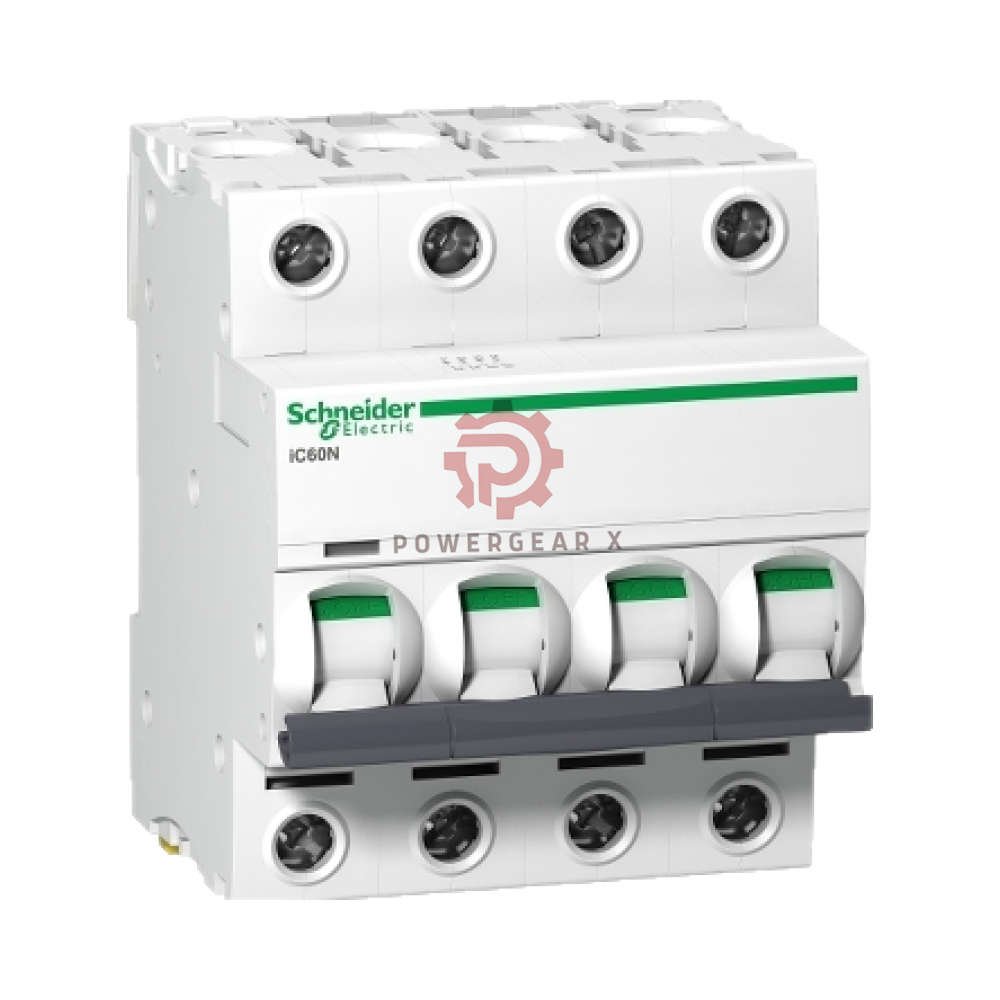

iC60N 4P C16 Acti9 Miniature Circuit Breaker by Schneider Electric

Protect your four-pole circuits with the iC60N 4P C16 from Schneider Electric. This Acti9 iC60 breaker handles 16 A and trips on C-curve loads. It saves space and works on standard DIN rail. It is a solid pick for industrial and commercial panels.

Product Snapshot

• Model: iC60N 4P C16
• Brand: Schneider Electric
• Series: Acti9 iC60
• Type: Miniature circuit breaker
• Poles: 4P
• Rated current: 16 A
• Trip curve: C curve, thermal-magnetic
• Magnetic trip: 8×In ±20%

Technical Tree

• Electrical
  • Poles: 4P
  • Rated current: 16 A
  • Trip curve: C curve
  • Magnetic trip range: 8×In ±20%
  • Breaking capacity: 6 kA at 230/400 V
  • Rated voltage: 400 V AC
  • Standard: IEC 60898-1
• Physical
  • Mounting: 35 mm DIN rail
  • Height: 85 mm
  • Width: 72 mm
  • Depth: 78.5 mm
  • Weight: 0.5 kg
• Durability
  • Mechanical life: 20,000 cycles
  • Electrical life: 10,000 cycles
• Environment
  • Operating temperature: -35 to 70 °C
  • Heat tolerance: Stable in hot and cold plants
  • Noise immunity: Suits noisy industrial lines
• Compliance
  • Standard: EN/IEC 60898-1
  • Standard: EN/IEC 60947-2
  • Lifecycle: Active
  • Last verified: 2026-09

Installation Guide

• Switch off power before you start.
• Clip the breaker onto a 35 mm DIN rail.
• Check that the clip locks tight.
• Wire line and load to the correct poles.
• Tighten each terminal to the right torque.
• Test the trip function before normal use.

Setup and Care Made Easy

• Front label shows the rating at a glance.
• Tool-free rail mount saves fitting time.
• Inspect terminals for heat or looseness.
• Keep the panel free of dust and water.
• Replace the unit if it trips without a fault.

Where It Fits

• Modicon and Acti9 control panels
• Commercial distribution boards
• Machine power circuits
• Motor and lighting feeders
• Three-phase plus neutral loads
• Workshop and plant retrofit jobs

Expert Review

The iC60N 4P C16 is a dependable breaker for daily use. The C curve handles small surges well. The 6 kA rating covers most panel needs. It fits standard rails with no extra parts. For teams that want a known name and simple install, this is a safe buy.

Manager’s Insight

Keep this breaker in stock with other Acti9 spares. It is an active part, so it stays valid for new builds. The 4P 16 A size is a common request. Buy a few extra units to cut downtime on site. Bulk orders ship fast from our warehouse.

FAQ

• Q: What does C curve mean?
  A: It trips at 8×In for short surges, which suits mixed loads.
• Q: Can I use it on a single-phase line?
  A: Yes, but you only need one pole for that job.
• Q: How many poles does this unit have?
  A: It has four poles.
• Q: Is it hard to fit?
  A: No, it clips onto a 35 mm DIN rail in seconds.
• Q: What is the warranty?
  A: We offer a 12 month warranty on this breaker.
• Q: How fast do you ship?
  A: Orders leave in 12 to 24 hours by FedEx, UPS, or DHL.
• Q: How do I reach you?
  A: Email sales@powergearx.com or chat on +86 18030005825 via WhatsApp.

Buying Guide

• Check your load current before you buy.
• Pick C curve for motors and mixed loads.
• Count the poles you really need.
• Match the breaking capacity to your panel.
• Order spares for critical lines.
• Ask us for bulk pricing or fast delivery.
