Product details

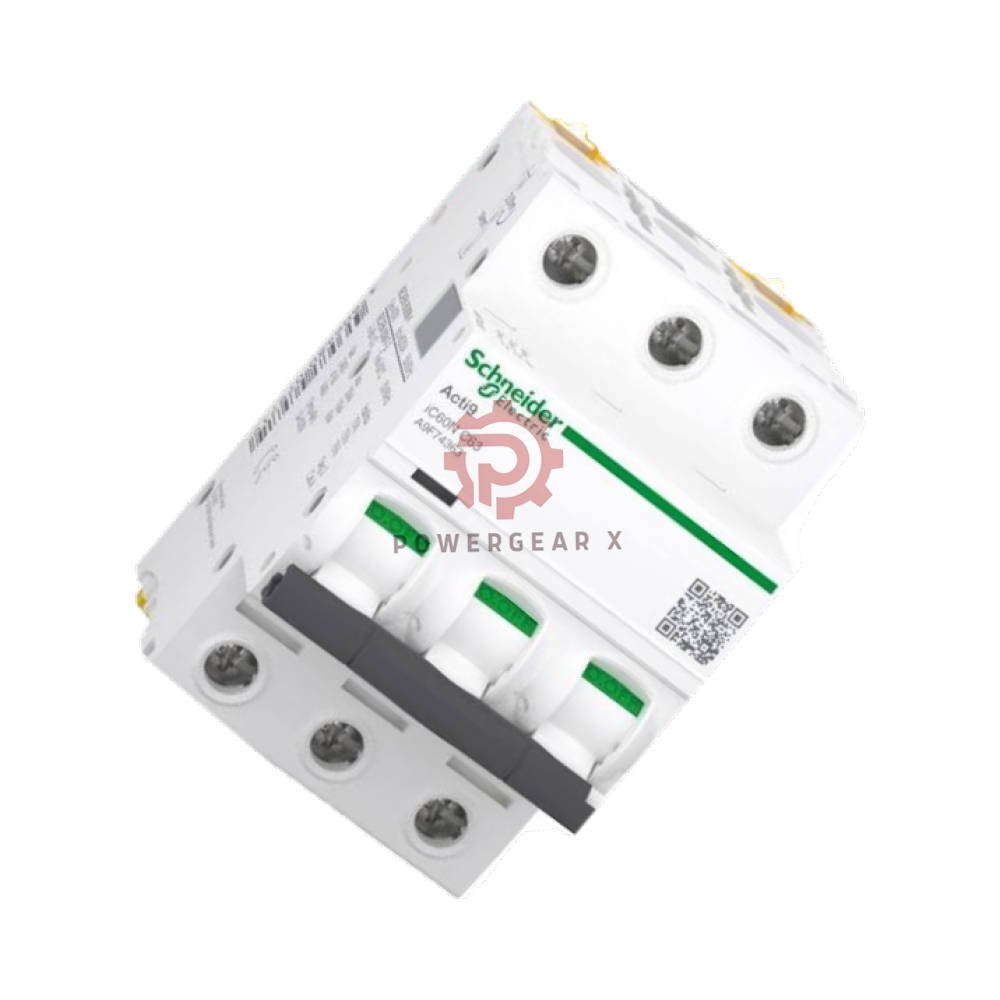

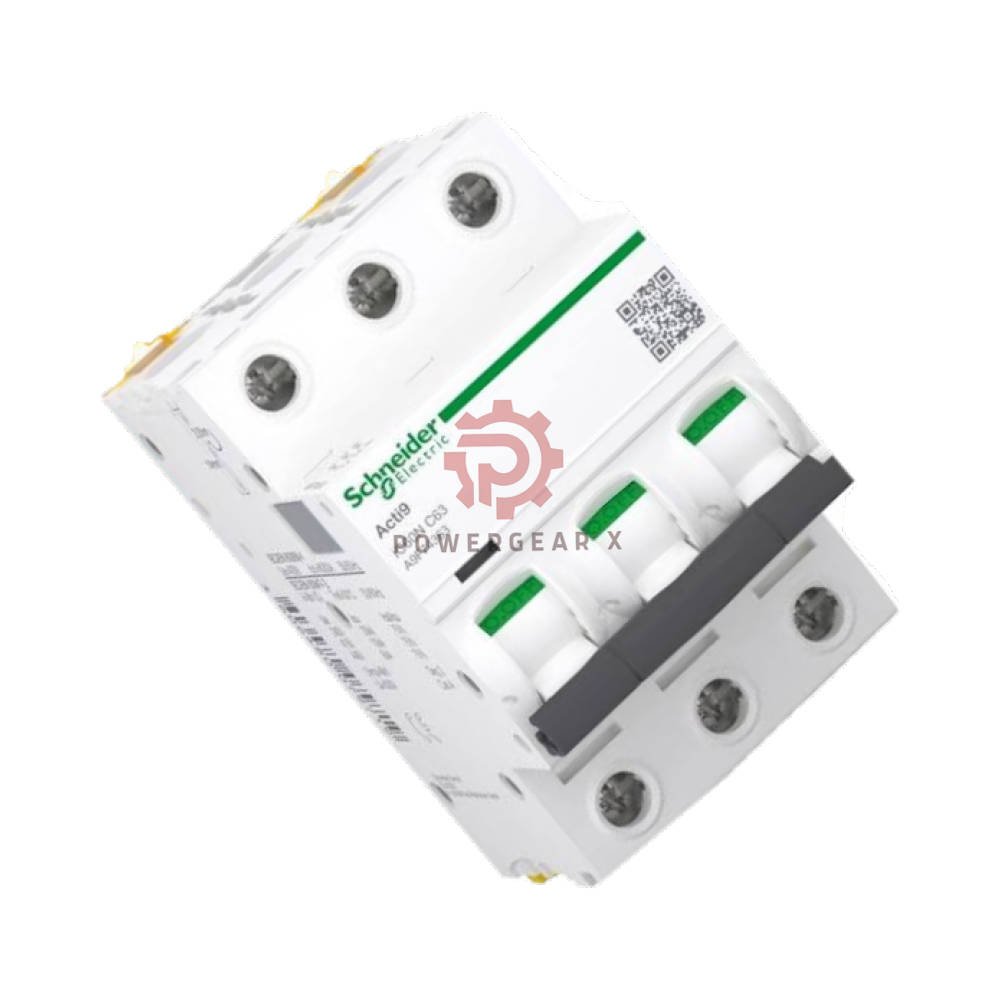

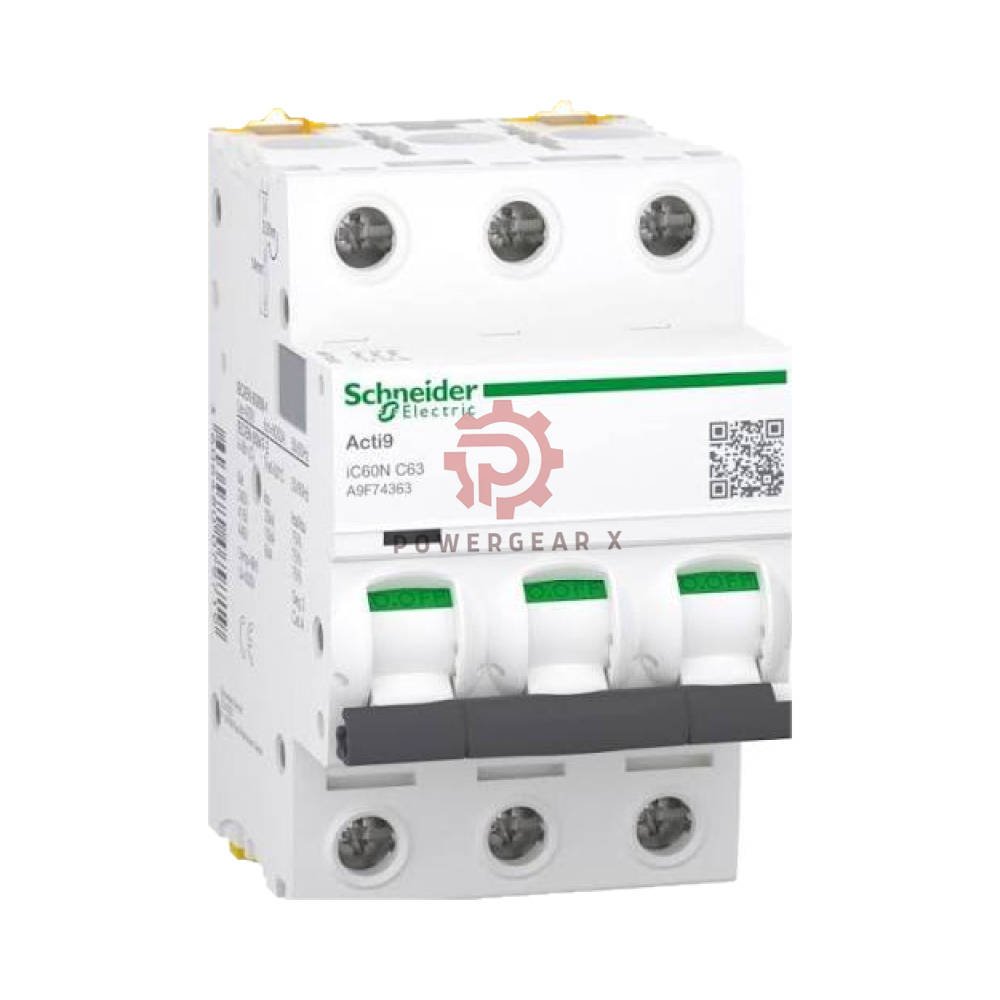

iC60N 3P C63 Schneider Electric Acti9 iC60 Miniature Circuit Breaker
- Model: iC60N 3P C63
- Brand: Schneider Electric
- Series: Acti9 iC60
- Type: Miniature circuit breaker, 3 poles, 63 A, C curve
- Lifecycle: Active in production, Acti9 range. Last verified: 2026-09.
Product Snapshot
- This is a Schneider Electric breaker.
- It belongs to the Acti9 iC60 family.
- It has 3 poles and a 63 A rating.
- It uses a C trip curve.
- It protects circuits from overload and short circuit.
- It fits a 35 mm DIN rail.
- It is a common choice for building and machine panels.
- It is easy to install and replace.
Electrical Data
- Poles: 3P
- Three protected paths in one device
- Saves rail space
- Rated Current: 63 A
- Trip Curve: C type
- Thermal-magnetic trip
- Magnetic trip at 8 x In, plus or minus 20%
- Breaking Capacity: 6 kA at 230/400 V
- Tested to IEC 60898-1
- Rated Voltage: 400 V AC
Standards and Certifications
- Standard: EN/IEC 60898-1
- Standard: EN/IEC 60947-2
- Meets common global breaker rules.
- Fits many industrial and commercial jobs.
Environment
- Operating Temperature: -35 to 70 °C
- Works in cold rooms and hot panels
- Handles normal indoor use
Physical Data
- Mounting: 35 mm DIN rail
- Snap-on fit
- No tools needed for rail lock
- Mechanical Life: 20,000 cycles
- Electrical Life: 10,000 cycles
- Size (H x W x D): 85 x 54 x 78.5 mm
- Weight: 0.375 kg
Install Guide
- Turn off power first.
- Clip the breaker onto the DIN rail.
- Check that it sits tight.
- Wire the top and bottom terminals.
- Tighten each screw with care.
- Confirm the 63 A load matches the cable.
- Test the trip function before use.
- Label the circuit for later service.
Care and Service
- Check for heat marks now and then.
- Look for loose wires at each visit.
- Do not open the sealed case.
- Replace the unit if it trips often.
- Keep spare units on the shelf.
- Use the correct torque on terminals.
Compatibility
- Fits standard 35 mm DIN rails.
- Works with Acti9 iC60 accessories.
- Pairs with common Acti9 distribution boards.
- Suits 400 V AC three-phase circuits.
- Check your board size before you buy.
Best Uses and Devices
- Main and sub distribution boards
- Machine control panels
- Motor feeders with C curve loads
- Lighting and power circuits
- Commercial buildings
- Small factory lines
- OEM equipment panels
- Retrofit and repair jobs
Expert Review
- The iC60N 3P C63 is a solid workhorse.
- The C curve suits mixed loads.
- The 6 kA rating fits most panels.
- The 63 A size covers many feeders.
- The 3-pole design saves space.
- It is easy to find and easy to fit.
- Good for teams that value simple service.
Manager’s Insight
- Keep two or three units in stock.
- A tripped feeder can stop a whole line.
- This part is small but very useful.
- Its active lifecycle means long support.
- Buy with other Acti9 parts to save freight.
- Ask sales@powergearx.com for bulk pricing.
- Message +86 18030005825 on WhatsApp for quick help.
FAQ
- Q: What does C curve mean on this unit?
- A: It trips at 8 x In for short bursts.
- Q: Can I use it on a 400 V three-phase line?
- A: Yes. It is rated for 400 V AC.
- Q: How many wires can it take?
- A: It has 3 poles, so 3 lines plus neutral if needed.
- Q: Is it hard to fit on a rail?
- A: No. It snaps onto 35 mm DIN rail.
- Q: What if the breaker keeps tripping?
- A: Check the load and the cable first.
- Q: Do you offer a warranty?
- A: Yes. You get a 12-month warranty.
- Q: How fast do you ship?
- A: We ship within 12 to 24 hours.
- Q: Which couriers do you use?
- A: We use FedEx, UPS, and DHL.
Buying Guide
- Check your panel voltage first.
- Match the 63 A load to your cable.
- Pick C curve for mixed loads.
- Pick 3P for three-phase circuits.
- Measure the rail space you have.
- Order spares for critical feeders.
- Email sales@powergearx.com for a quote.
- Chat on +86 18030005825 for fast advice.
