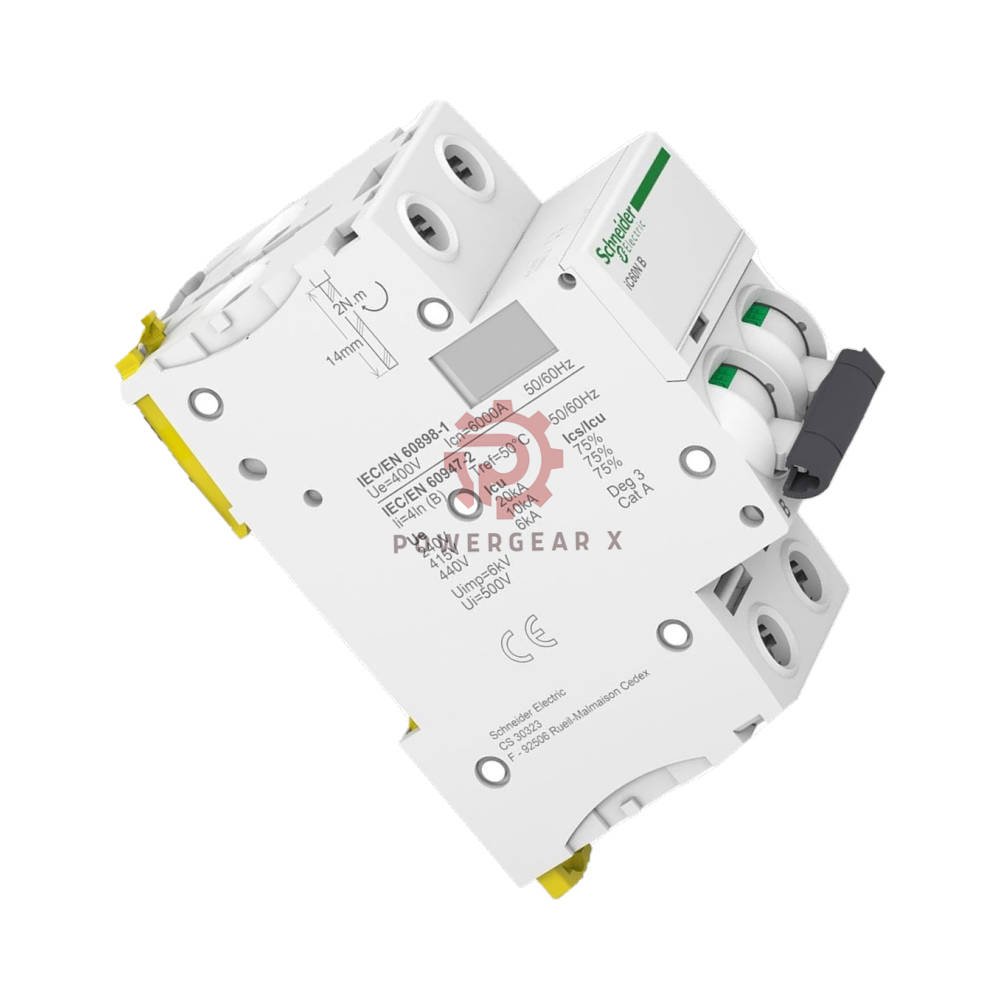

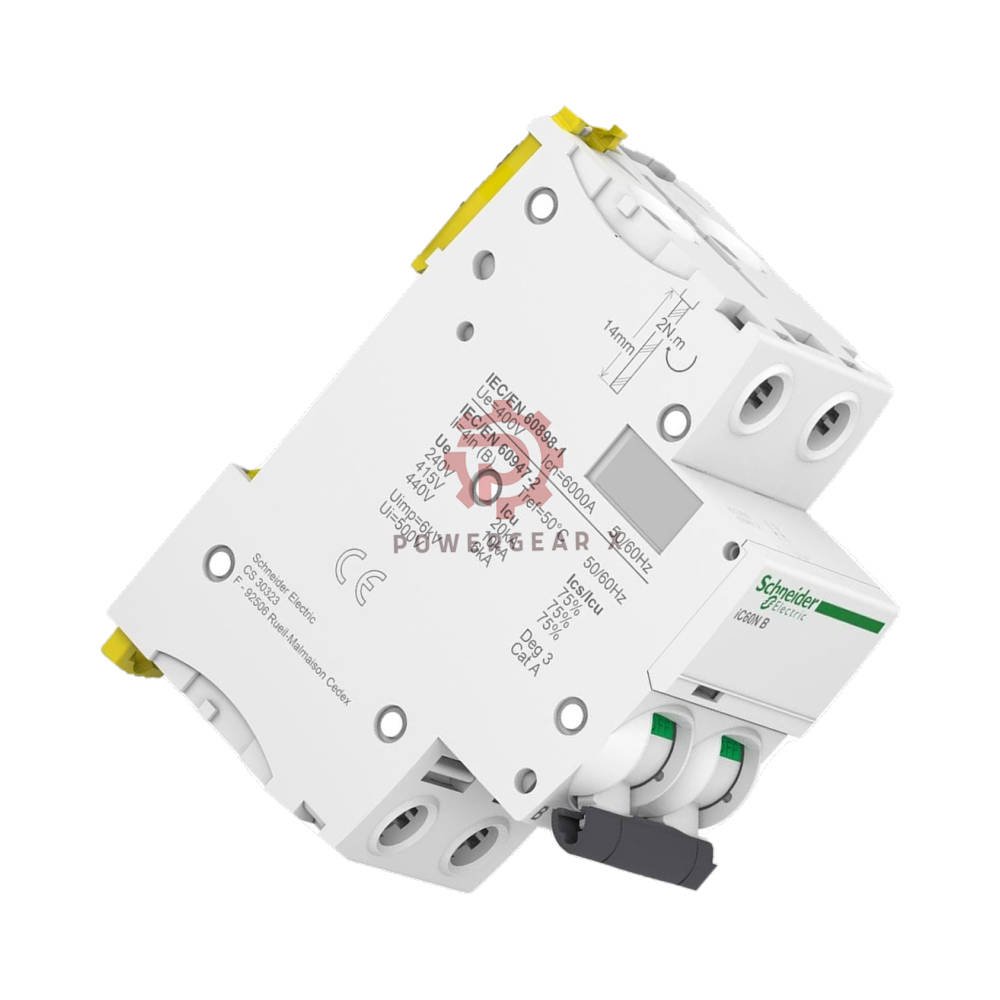

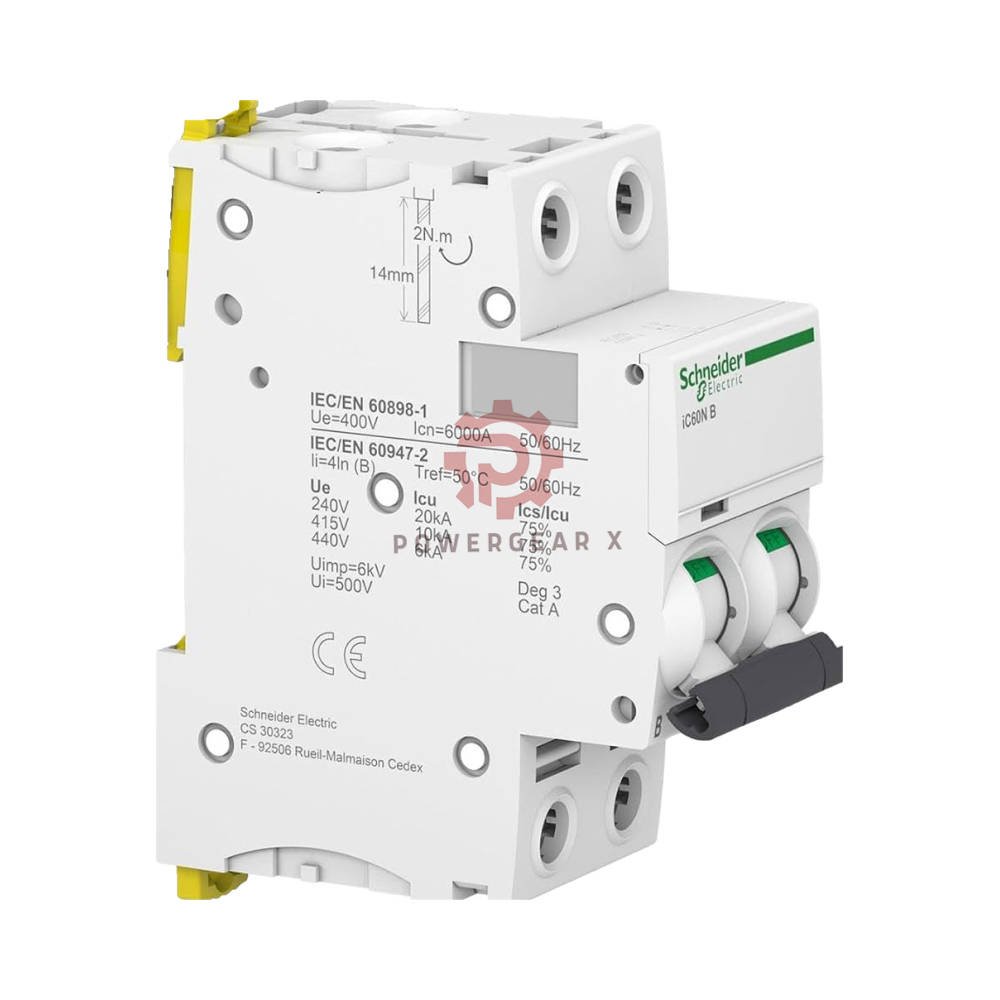

iC60N 2P C16 Schneider Acti9 MCB 16A C-Curve 400V 6kA Miniature

iC60N 2P C16 – Schneider Electric Acti9 Miniature Circuit Breaker

Model: iC60N 2P C16
Brand: Schneider Electric
Series: Acti9 iC60

A compact and reliable 2-pole miniature circuit breaker for industrial and commercial power distribution. The iC60N 2P C16 combines thermal-magnetic protection with a C-curve trip and 6 kA breaking capacity. It mounts easily on 35 mm DIN rail and works in harsh conditions from -35 to 70 °C. This breaker is active in production and widely used in control panels, machinery, and building systems.

Technical Specifications

• Brand: Schneider Electric
• Model: iC60N 2P C16
• Series: Acti9 iC60
• Poles: 2P
• Rated current: 16 A
• Trip curve: C (magnetic trip 8×In ±20%)
• Breaking capacity: 6 kA @ 230/400 V (IEC 60898-1)
• Rated voltage: 400 V AC, 125 V DC
• Frequency response: 50/60 Hz (standard AC operation)
• Sensitivity: Thermal-magnetic, C-curve
• Linearity: Stable trip performance across rated current
• Resolution: 1 A step for precise circuit protection
• Temperature range: -35 to 70 °C
• Environmental resistance: Industrial-grade, DIN rail mounting
• Anti-interference: Designed for noisy industrial environments
• Mounting: 35 mm DIN rail
• Mechanical life: 20,000 cycles
• Electrical life: 10,000 cycles
• Dimensions (H×W×D): 85 × 36 × 78.5 mm
• Weight: 0.25 kg
• Standard: EN/IEC 60898-1, EN/IEC 60947-2
• Lifecycle: Active (in production, Acti9 range)

Expert Review

The iC60N 2P C16 is a solid choice for panel builders who need dependable overcurrent protection. Its C-curve handles motor inrush and small surges well. The 6 kA breaking capacity covers most commercial and light industrial circuits. The 2-pole design saves space and simplifies wiring. Users report easy DIN rail installation and long mechanical life. This breaker is not a surge protector, but it pairs well with SPDs for full protection.

Manager’s Insight

Stock this breaker for projects that demand Schneider quality without custom lead times. The Acti9 iC60 range is widely accepted in OEM and MRO markets. Its active lifecycle means stable supply. The 16 A rating and C-curve fit many lighting and control circuits. The 2-pole version is often chosen for single-phase and DC applications up to 125 V. Expect fast turnover and low return rates.

Best Applications and Compatible Equipment

• Industrial control panels and machine tools
• Commercial lighting and power distribution boards
• HVAC systems and pump controllers
• Renewable energy combiner boxes (DC up to 125 V)
• Works with Acti9 accessories: auxiliaries, shunt trips, undervoltage releases
• Fits standard 35 mm DIN rail enclosures
• Compatible with Schneider Electric busbars and terminal covers

Installation Guide

• Switch off power before mounting or wiring.
• Clip the breaker onto a 35 mm DIN rail until it clicks.
• Connect line and load wires to the marked terminals.
• Use copper conductors sized for 16 A per local code.
• Tighten terminals to the specified torque.
• Do not exceed 400 V AC or 125 V DC per pole.
• Verify trip function with a tester after installation.

Debugging and Maintenance Convenience

• Front-mounted toggle shows ON/OFF/TRIPPED status clearly.
• No routine calibration needed.
• Replace unit if tripping persists after fault removal.
• Mechanical life of 20,000 cycles reduces downtime.
• Electrical life of 10,000 cycles supports long service.
• Spare parts and accessories are widely available.

Compatibility Notes

• Compatible with Acti9 iC60 auxiliaries and add-on modules.
• Works with standard DIN rail enclosures and busbars.
• Can be combined with Schneider Electric RCDs for residual protection.
• Not interchangeable with other series without checking pin configuration.
• Approved for IEC 60898-1 and IEC 60947-2 installations.

Certifications and Standards

• EN/IEC 60898-1 – Miniature circuit breakers for household and similar installations.
• EN/IEC 60947-2 – Low-voltage switchgear and controlgear.
• CE marked and RoHS compliant.
• Manufactured under Schneider Electric quality system.

Packaging List

• 1 × iC60N 2P C16 circuit breaker
• 1 × Installation leaflet
• Original box with Schneider Electric labeling

Warranty and Shipping

• 12-month warranty against manufacturing defects.
• Orders ship within 12–24 hours after payment.
• Express delivery via FedEx, UPS, or DHL.
• Tracking number provided for every shipment.

Frequently Asked Questions

Q: What does the C-curve mean on this breaker?

A: The C-curve trips at 5 to 10 times the rated current. It handles small motor surges without nuisance tripping.

Q: Can I use this breaker for DC circuits?

A: Yes, it is rated for 125 V DC per pole. Always check polarity and connection diagram.

Q: How many poles does this device have?

A: It has 2 poles. Both poles are protected and switch together.

Q: Is this breaker compatible with other Acti9 accessories?

A: Yes. It accepts standard Acti9 auxiliaries like shunt trips and auxiliary contacts.

Q: What is the difference between iC60N and iC60H?

A: The iC60N has 6 kA breaking capacity. The iC60H offers 10 kA. Choose based on your fault level.

Q: How do I know if this breaker is genuine Schneider Electric?

A: Buy from authorized distributors. Check the laser-etched logo and packaging hologram.

Q: Can I install this breaker myself?

A: Installation requires electrical knowledge. Hire a licensed electrician for safety and code compliance.

Q: What wire size should I use with 16 A?

A: Use 1.5 mm² to 2.5 mm² copper wire, depending on cable length and local wiring rules.

Q: Does this breaker protect against electric shock?

A: No. It protects against overcurrent and short circuits. Add an RCD for shock protection.

Q: Why does my breaker trip immediately after reset?

A: A short circuit or faulty load likely exists. Disconnect all loads and test again.

Buying Guide

• Check your system voltage: 400 V AC or 125 V DC maximum.
• Match the rated current to your load: 16 A for typical lighting and control circuits.
• Confirm your fault level does not exceed 6 kA.
• Choose 2P for single-phase or DC applications needing double-pole isolation.
• Select C-curve for mixed resistive and small inductive loads.
• Verify DIN rail compatibility in your enclosure.
• Buy from a trusted source to ensure authentic Schneider Electric product.
