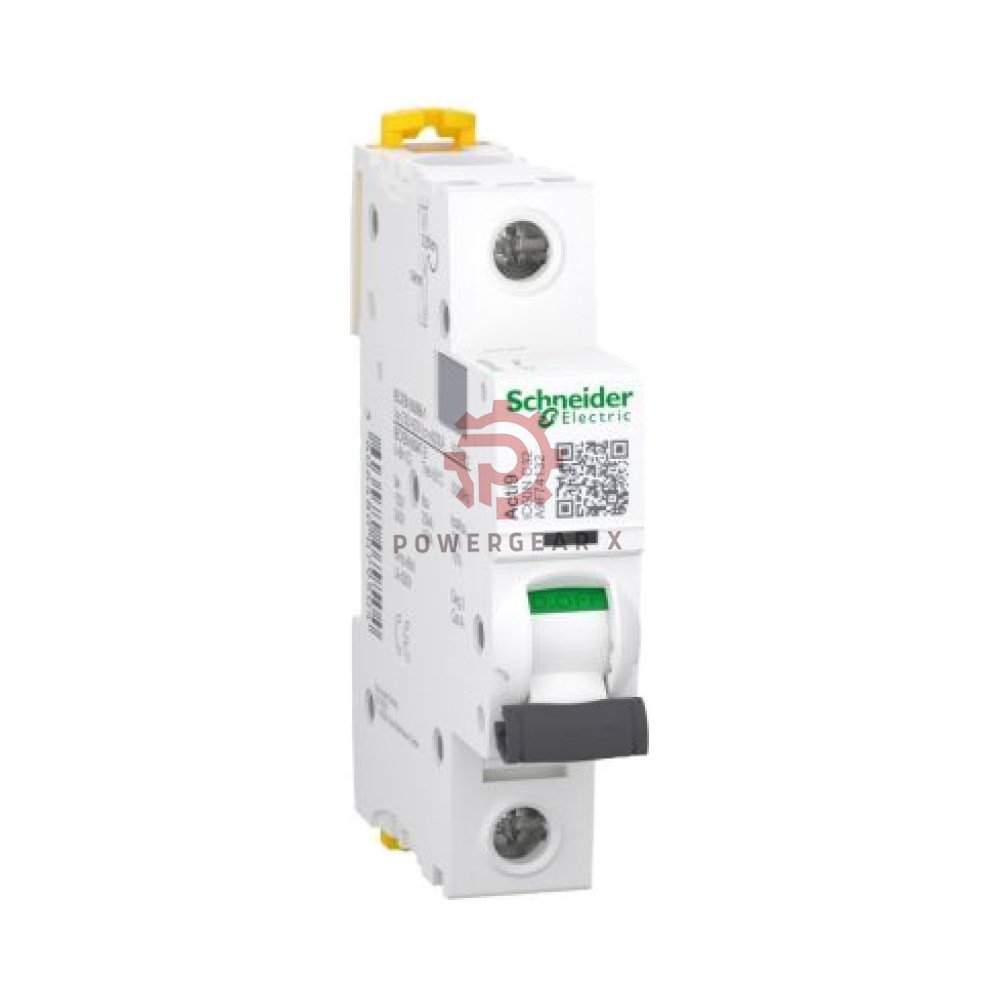

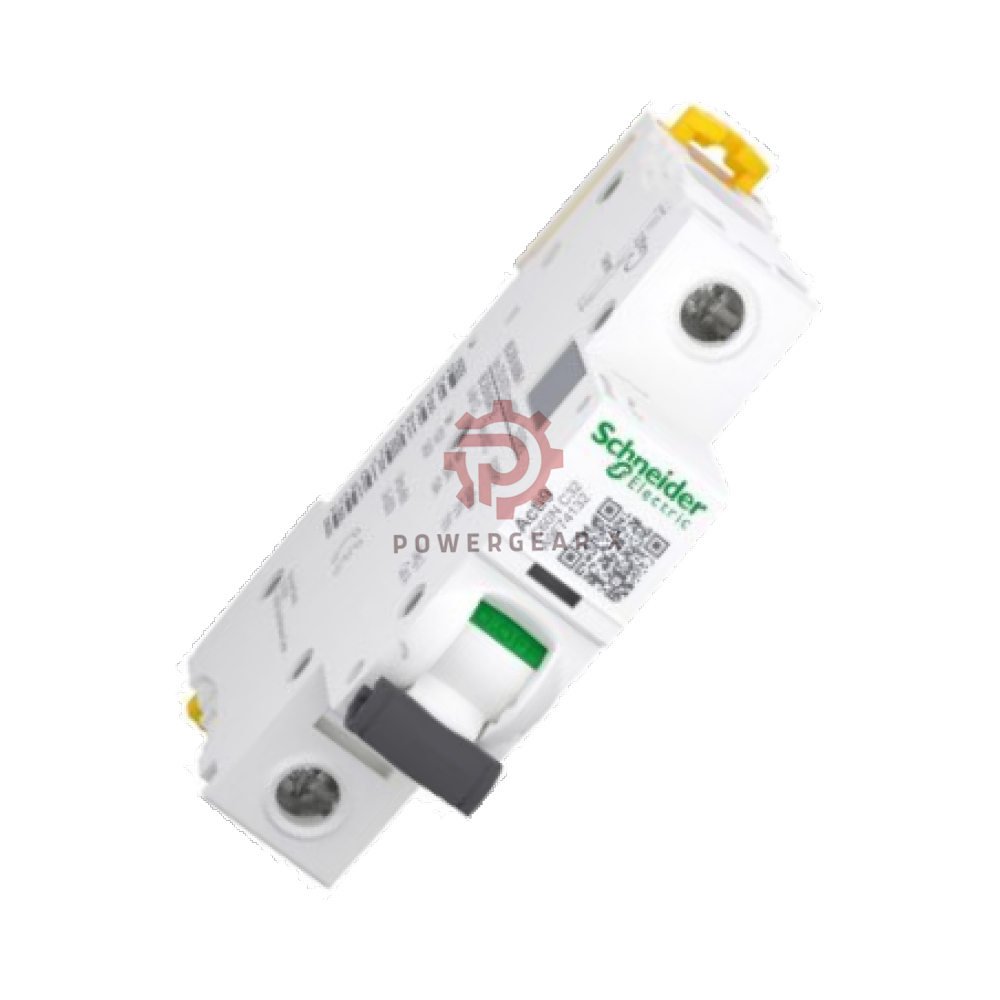

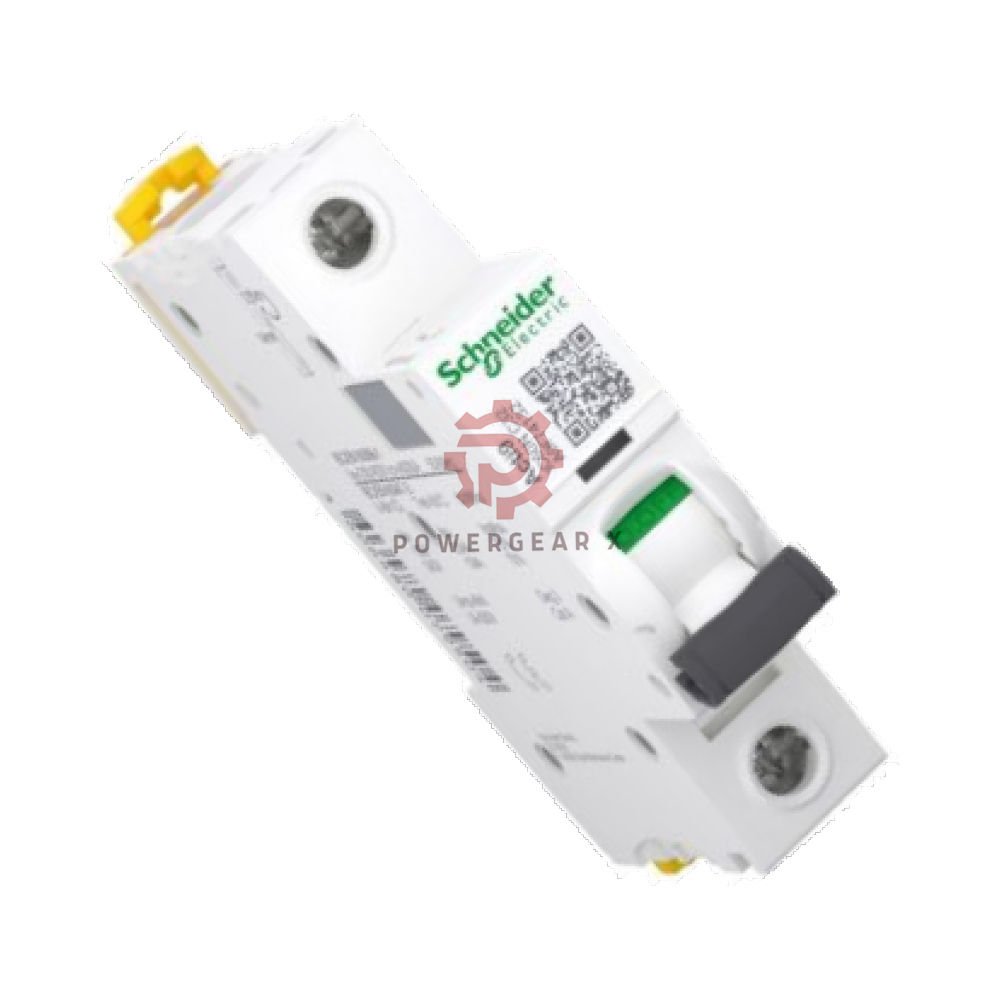

iC60N 1P C32 Schneider Acti9 Circuit Breaker 32A C-Curve 6kA DIN Rail

iC60N 1P C32 | Schneider Electric Acti9 Miniature Circuit Breaker

iC60N 1P C32 from Schneider Electric is a reliable miniature circuit breaker. It belongs to the Acti9 iC60 series. This 1-pole device handles 32A with a C-curve trip. It protects circuits from overload and short circuit. The 6 kA breaking capacity suits many residential and light commercial loads. It mounts on standard 35 mm DIN rail. Operating temperature spans -35 to 70 °C. Mechanical life reaches 20,000 cycles. Electrical life reaches 10,000 cycles. This product is active and in production as of September 2026.

Technical Data

• Brand: Schneider Electric
• Model: iC60N 1P C32
• Series: Acti9 iC60
• Poles: 1P
• Rated current: 32 A
• Trip curve: C (thermal-magnetic, magnetic trip 8×In ±20%)
• Breaking capacity: 6 kA @ 230/400 V (IEC 60898-1)
• Rated voltage: 230/400 V AC, 125 V DC
• Frequency response: 50/60 Hz (standard AC operation)
• Sensitivity: Thermal-magnetic protection, C-curve for general use
• Linearity: Stable trip performance across rated current range
• Resolution: 1 A increments available in the iC60N family
• Temperature range: -35 to 70 °C
• Environmental tolerance: Designed for indoor industrial and commercial panels
• Interference immunity: Complies with EN/IEC 60898-1 and EN/IEC 60947-2
• Mounting: 35 mm DIN rail
• Mechanical life: 20,000 cycles
• Electrical life: 10,000 cycles
• Dimensions (H×W×D): 85 × 18 × 78.5 mm
• Weight: 0.125 kg
• Standards: EN/IEC 60898-1, EN/IEC 60947-2
• Lifecycle: Active (in production, Acti9 range) (Last verified: 2026-09)

Expert Review and Manager’s Insight

Expert Review: The iC60N 1P C32 offers solid performance for its class. The C-curve handles motor inrush and small transformers well. The 6 kA breaking capacity covers most sub-distribution needs. Users report easy DIN rail clipping and reliable tripping. The compact 18 mm width saves panel space.

Manager’s Insight: This breaker fits projects that need a trusted brand without high cost. It works well in automation panels, control cabinets, and small machine builds. Stock is active. Lead times stay short. For volume orders, contact sales@powergearx.com or +86 18030005825 for pricing.

Target Equipment and Application Scenarios

• Industrial control panels: Protects PLC power supplies, relays, and sensors.
• Commercial distribution boards: Serves lighting circuits and socket outlets.
• Small machine building: Guards motors up to 32A with C-curve tolerance.
• Renewable energy systems: Works in DC strings up to 125V DC.
• Building automation: Fits HVAC controllers and access control panels.
• Workshop retrofits: Replaces older 1P breakers on 35 mm rail.

Installation Guide

• Switch off main power before mounting.
• Clip the breaker onto 35 mm DIN rail.
• Tighten terminal screws to specified torque (see datasheet).
• Connect line to top terminal, load to bottom.
• Verify rated voltage matches system (230/400 V AC).
• Test trip function with test button after wiring.
• Label the circuit clearly for future maintenance.

Commissioning and Maintenance Convenience

• Visual trip indicator shows ON, OFF, or TRIPPED status.
• Front-face test button allows quick function check.
• No special tools needed for DIN rail removal.
• Replace units without rewiring adjacent breakers.
• Spare parts share same 18 mm width across iC60N range.
• Operating temperature range reduces derating concerns.

Compatibility Notes

• Fits all standard 35 mm DIN rail enclosures.
• Works with Acti9 iC60 accessories: auxiliaries, shunt trips, undervoltage releases.
• Interchangeable with other iC60N 1P breakers in same panel.
• Compatible with Schneider Acti9 busbars and comb busbars.
• Use only copper conductors sized for 32A per local code.
• Not for use as a disconnecting means unless properly rated.

Certifications and Standards

• EN/IEC 60898-1 (circuit breakers for household and similar installations)
• EN/IEC 60947-2 (circuit breakers for industrial applications)
• CE marked (European conformity)
• RoHS compliant (hazardous substances restriction)
• Manufactured under Schneider Electric quality system

Packing List

• 1 × Schneider iC60N 1P C32 miniature circuit breaker
• 1 × Product documentation (basic leaflet)
• Original packaging with label and barcode

Warranty and Shipping

• Warranty: 12 months from date of shipment.
• Dispatch time: 12 to 24 hours after payment clears.
• Courier options: FedEx, UPS, DHL.
• Tracking: Provided once shipment leaves warehouse.
• Support: Email sales@powergearx.com or WhatsApp +86 18030005825.

FAQ

Q: What does the C-curve mean for my load?
A: C-curve trips at 5 to 10 times rated current. It handles moderate inrush. Good for small motors and transformers. Not ideal for pure resistive heaters which prefer B-curve.

Q: Can I use this breaker for DC circuits?
A: Yes. Rated voltage is 125V DC. But check polarity and arc suppression. For higher DC voltages, use a DC-rated breaker.

Q: How do I know if this is genuine Schneider?
A: Buy from authorized sources. Check packaging hologram and traceability code. Our stock comes from official channels.

Q: What if the breaker trips often?
A: First check for overload or short. Then verify load does not exceed 32A. If load is fine, replace breaker. Persistent tripping may indicate wiring fault.

Q: Is a 1P breaker enough for 230V single phase?
A: Yes for phase protection. But neutral must be separately protected or isolated. For full isolation, use 1P+N or 2P.

Q: How to choose between 6kA and 10kA?
A: 6kA covers most panelboards with moderate fault current. 10kA suits heavy industrial mains. Check your system fault level before buying.

Q: Can I mount this sideways?
A: Vertical or horizontal DIN rail is fine. But keep ventilation space. Avoid mounting near heat sources.

Q: What wire size for 32A?
A: Use 6 mm² copper for short runs. For longer runs, up to 10 mm². Follow local electrical code.

Q: Does it come with a test certificate?
A: No individual certificate. But the product meets IEC standards. Batch test reports available on request.

Q: How to order in bulk?
A: Email sales@powergearx.com or WhatsApp +86 18030005825. Share quantity and target price. We reply within 12 hours.

Buying Guide

• Check your panel’s fault current before choosing breaking capacity.
• Match trip curve to load type: B for resistive, C for mixed, D for high inrush.
• Confirm pole count: 1P for phase only, 1P+N for phase and neutral.
• Verify voltage: 230/400 V AC for most single-phase and three-phase systems.
• Buy from a source that offers 12-month warranty and fast dispatch.
• For automation projects, pair with Acti9 auxiliaries for status feedback.
