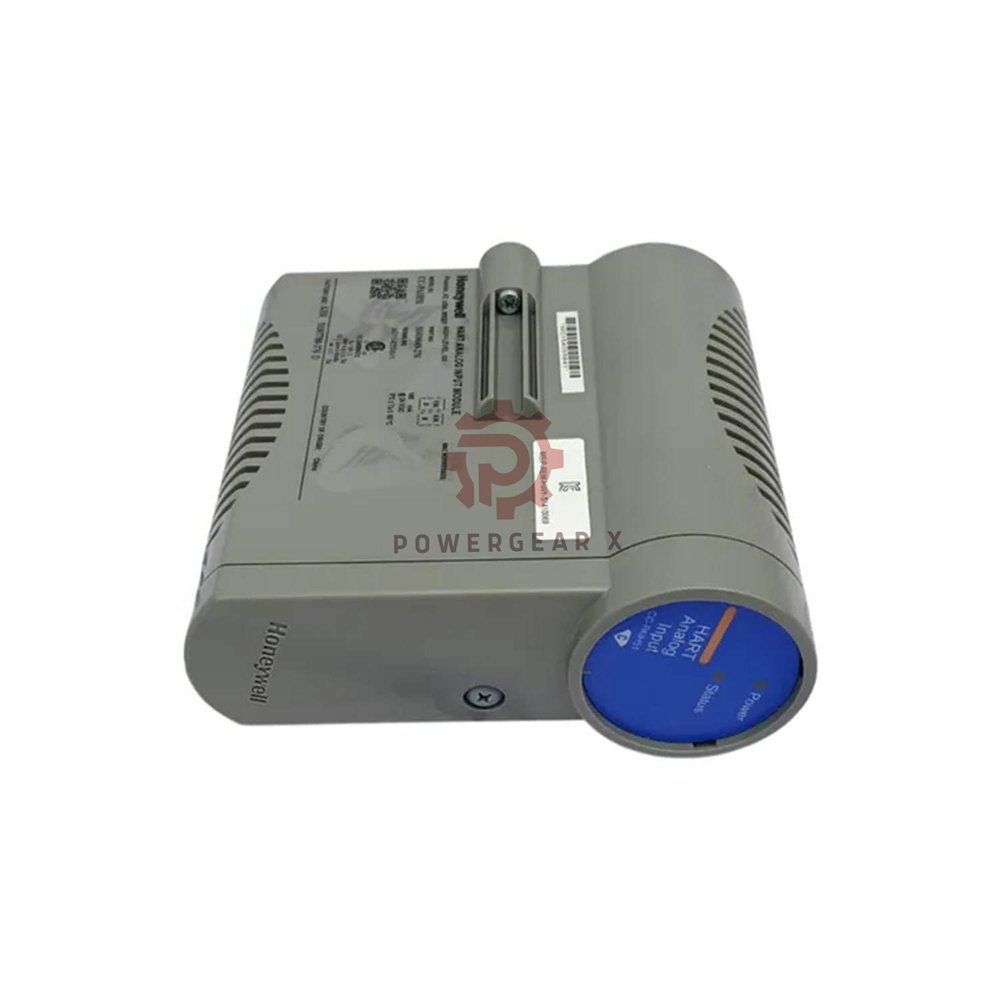

Name: Honeywell CC-PAIH51 Experion Series-C Analog Input HART Module 16ch
SKU: CC-PAIH51
Availability: InStock

Product details

Product Snapshot

The Honeywell CC-PAIH51 is an Analog Input with HART module. It is part of the Experion Series-C I/O family. This module reads 4-20 mA signals from field transmitters. It also handles HART communication for device diagnostics. Built for continuous process control, it offers high accuracy and reliable performance. Use it in refineries, power plants, or chemical facilities.

Model Structure – Suffix Breakdown

CC – Series-C Platform
- PAI – Product Type: Analog Input with HART
  - H – High-Level Input
    - 51 – Base Model (requires IOTA)

IOTA Carrier Options

CC-TAIX51 – Non-Redundant IOTA, 6 inch depth
CC-TAIX61 – Redundant IOTA, 12 inch depth

Key Technical Data

Input Type: Current from 2-wire or self-powered transmitters
Channels: 16 single-ended inputs
Input Range: 4-20 mA only (through 200 Ω resistor)
Resolution: 16-bit A/D converter
Scan Rate: 50 ms per module
Accuracy at 23.5°C: ±0.075% of full scale
Accuracy 0 to 60°C: ±0.15% of full scale
Common Mode Rejection: 70 dB (DC to 60 Hz)
Normal Mode Rejection: 19 dB at 60 Hz
Filter Response: Single-pole RC, -3 dB at 6.5 Hz
Max Input Voltage: ±30 V normal mode
Crosstalk: -60 dB channel-to-channel
Field Power: Individually protected current limiting circuits. No fusing needed. Meets Class 1, Div 2 non-incendive requirements.

Installation & Integration

Mounting: Plugs into CC-TAIX51 or CC-TAIX61 IOTA base.
Wiring: Simple termination on IOTA. Supports 2-wire transmitters.
Redundancy: Use CC-TAIX61 for 1:1 redundant operation.
Configuration: Set up via Experion CEE tools.

Diagnostic & Maintenance Features

HART Communication: Passes through digital HART signals to the host.
Channel Status: Each input monitors for open wire or overrange.
No Field Fuses: Self-limiting circuits reduce maintenance.
Hot Swap: Replace module without powering down the IOTA (non-incendive area).

Typical Applications

Oil & Gas Platforms: Connect pressure and temperature transmitters.
Power Generation: Monitor boiler drum level and flow.
Chemical Reactors: Gather precise 4-20 mA data with HART diagnostics.
Water Treatment: Interface with smart flow meters and analyzers.

Compatibility & System Fit

Controller: Works with Experion Series-C C300 Controller.
Firmware: Seamless integration with Experion PKS.
Third-party: Accepts signals from any 4-20 mA HART device.

Frequently Asked Questions (FAQ)

Q: Can the CC-PAIH51 read both 4-20 mA and voltage signals?A: No. It accepts only 4-20 mA current inputs through an internal 200 Ω resistor. For voltage signals, use a different module.
Q: How do I choose between the CC-TAIX51 and CC-TAIX61 IOTA?A: Use CC-TAIX51 for non-redundant applications where losing one module is acceptable. Choose CC-TAIX61 if you need 1:1 redundancy for critical loops. The 12-inch depth provides space for two modules.
Q: Does it support HART digital data?A: Yes. The module passes HART frequency signals to the controller. You can access device diagnostics and second variables through Experion.
Q: What is the typical lead time and shipping method?A: We ship via FedEx, UPS, or DHL express. Stock items usually ship within 24 hours. The module comes with a 12-month warranty.
Q: Any field advice for first-time users?A: When wiring, ensure the transmitter loop has proper polarity. The input is single-ended, so common mode voltage must stay within -6 to +5 V. Also, always install the module in the correct IOTA slot before powering up to avoid ground loops.
