Honeywell CC-PAIM01 Low Level Analog Input – 64ch RTD/TC Module

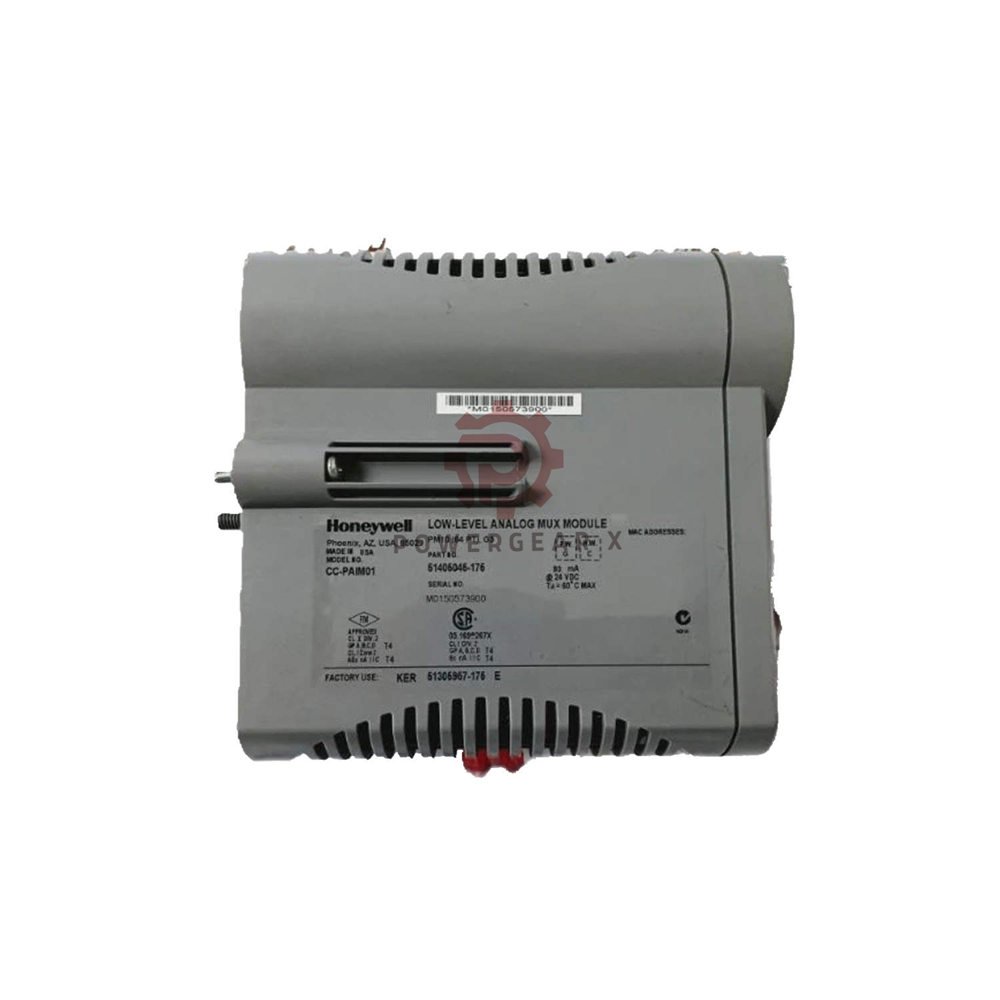

🔹 Honeywell CC-PAIM01 Low Level Analog Input Module

Manufacturer: Honeywell | Model: CC-PAIM01 | Type: Low Level Analog Input IOP

High-density temperature input module for Honeywell PMIO systems. Supports up to 64 RTD or TC channels with 1-second scanning. Features open thermocouple detection and cold junction compensation.

🔷 Model Architecture – Configuration Tree

• CC-PAIM01 – Base LLMUX IOP Module
  • Supports up to 64 channels temperature inputs
    • PMIO LLMUX FTA – 16 channels per FTA
      • Option 1: RTD Input FTA (16 RTD inputs)
        • Pt100 DIN/JIS, Ni120, Cu10 supported
      • Option 2: TC/mV Input FTA (16 TC or mV inputs)
        • Types J,K,E,T,B,S,R,R’ supported
        • mV range -20 to +100mV
      • Mix & match any combination of FTAs

⚙️ Technical Specifications

• Input channels: 64 fully isolated
• Scan rate: 1 second fixed (all channels)
• Bandwidth: 0 to 4.7 Hz (-3 dB)
• TC range: -20 to +100 mV
• Gain error: 0.050% full scale max
• Temperature stability: ±20 ppm/°C
• CMRR: 120 dB min at 50/60 Hz
• NMRR: 60 dB min at 50/60 Hz
• Open TC detect: ≤1000Ω no trip, ≥1500Ω guaranteed trip
• Cold junction accuracy: ±1.0°C (0-50°C)
• RTD excitation: 1 mA
• Surge protection: EN 61000-4-5 (1kV/2kV)

📋 Supported FTA Models

• MU-TAMR04 – RTD input FTA
• MU-TAMT04 – TC/mV input FTA
• MU-TAMT14 – TC/mV input FTA (alternate)
• FTA dimensions: 2.5″ D x 4.9″ W x 12.1″ L

✅ Supported Sensor Types

• RTD: Pt100 DIN/JIS, Ni120, Cu10 SEER
• Thermocouple: J, K, E, T, B, S, R, R’ (Japan)
• Millivolt: -20 to +100 mV range

🔧 Key Features

• 1-second PV scanning with OTD protection
• Configurable open thermocouple detection
• Remote cold junction compensation
• Channel-to-channel isolation ±250V
• Add points in 16-channel increments
• 1000 feet max cable distance to FTA

📦 Package & Warranty

• Honeywell CC-PAIM01 LLMUX IOP module
• FTAs ordered separately (MU-TAMR04/TAMT04/TAMT14)
• Warranty: 12 months from invoice date

🚚 Shipping Information

• Couriers: FedEx, UPS, DHL worldwide express
• Tracking within 24 hours
• Same-day dispatch if ordered before 2 PM CET

🏭 Typical Applications

• Process temperature monitoring
• Refinery heater control
• Chemical reactor temperature
• Power plant boiler management
• Pharmaceutical batch processing

❓ Professional FAQ – Experience & Selection Guide

• Q: Can I mix RTD and TC on the same CC-PAIM01?
• A: Yes. Each FTA handles either RTD or TC. You can use different FTAs on the same IOP to get both types.
• Q: How does Open TC Detection affect scan time?
• A: OTD runs within the same 1-second window. No extra delay. Bad values become NAN to prevent wrong control actions.
• Q: What cable do I need between IOP and FTA?
• A: Use two twisted pairs per FTA, 16 AWG wire. Maximum distance is 1000 feet with cable adapter.
• Q: Can this module handle fast temperature changes?
• A: Bandwidth is 4.7 Hz, designed for process temps, not fast transients. 1-second scan suits most thermal loops.
• Q: Selection tip – CC-PAIM01 vs newer models?
• A: CC-PAIM01 is proven, reliable, and fully supported. Choose if you need 64 channels with isolation and OTD. For smaller systems, consider 16-channel options.
