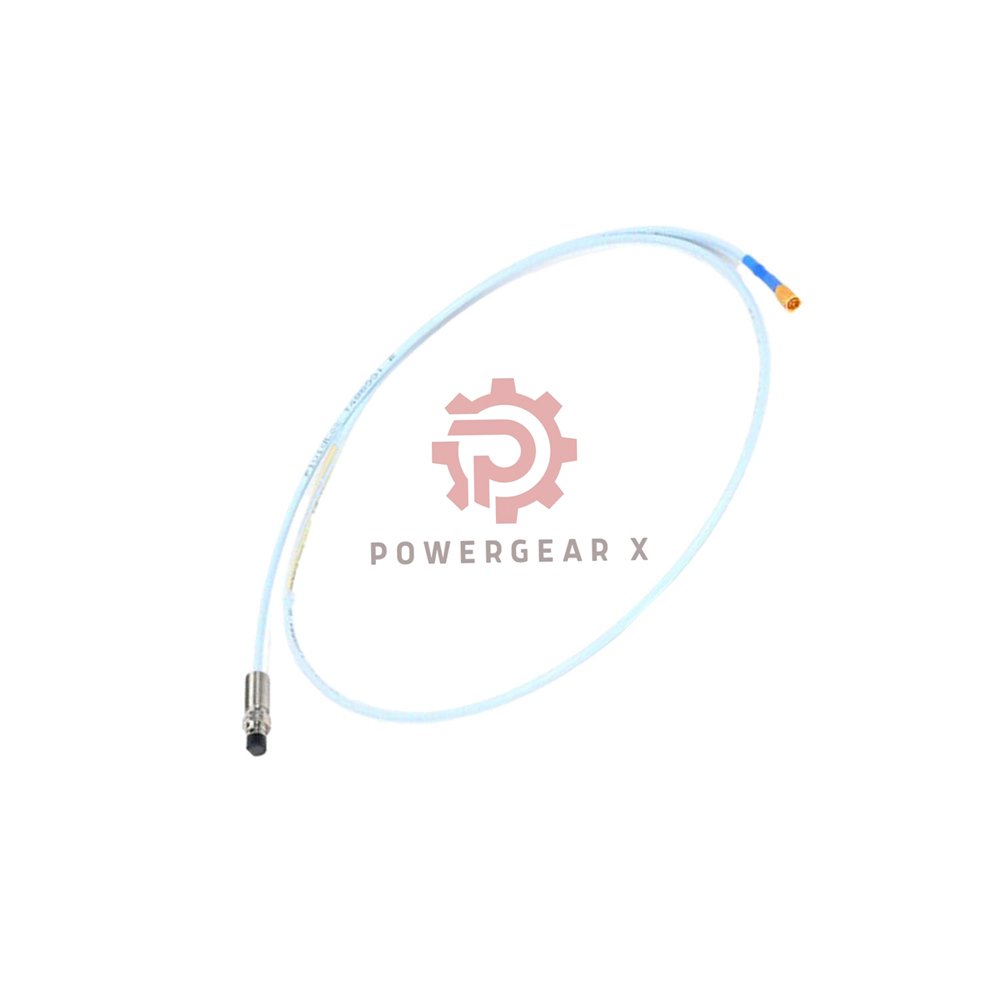

330193-10-20-90-00 Bently Nevada 3300 XL 8 mm Proximity Probe
Brand: Bently Nevada | Model: 330193-10-20-90-00 | Type: 3300 XL 8 mm Probe, without armor
Made in U.S.A | In Stock – 12 to 24 hour shipment via FedEx, UPS, DHL | 12-month warranty
Product Overview
- ▪ Precision vibration and position sensing for rotating machines
- ▪ 3300 XL 8 mm probe with M10 x 1 thread, without armor
- ▪ Total length: 9.0 meters (29.5 feet) – ideal for long reach installations
- ▪ Viton® O-ring seal for differential pressure protection
- ▪ Wide temperature range: -52°C to +177°C, suitable for harsh conditions
Technical Specifications
- Model Breakdown
- └─ 330193-10-20-90-00
- ├─ 330193 : 3300 XL 8 mm Probe, M10 x 1 thread, without armor
- ├─ 10 : 100 mm length configuration
- ├─ 20 : 200 mm overall case length
- ├─ 90 : 9.0 meters total length (29.5 feet)
- └─ 00 : No agency approval required
- └─ 330193-10-20-90-00
- Measurement Performance
- ├─ Linear range: 2 mm (80 mils)
- ├─ Sensitivity: 7.87 V/mm (200 mV/mil) ±5%
- ├─ Linearity: ±0.2% of full scale
- ├─ Frequency response: DC to 10 kHz (-3 dB)
- └─ DC resistance: 9.87 ± 0.50 Ω (center to outer conductor, for 9.0m length)
- Physical Specifications
- ├─ Case thread: M10 x 1
- ├─ Max thread engagement: 15 mm
- ├─ Unthreaded length: 0 to 230 mm
- ├─ Case material: AISI 303 / 304 stainless steel
- └─ Tip material: Polyphenylene sulfide (PPS)
- Environmental Ratings
- ├─ Operating temp: -52°C to +177°C (-62°F to +350°F)
- ├─ Extended tip temp: up to +218°C (+425°F)
- ├─ Humidity: <3% ASF change at 93% RH, tested 56 days per IEC 68-2-3
- └─ Pressure seal: Viton® O-ring – avoid below -34°C to protect seal life
- Hazardous Area Approvals
- ├─ Intrinsic safety (ia): with zener barriers (drawing 141092) or galvanic isolators
- ├─ Non-incendive (nA, ec): per drawing 140979
- └─ Class I, Zone 0 / Zone 2; Class I, Division 2; Class II, III
Installation & Maintenance
- Installation Guide
- ├─ Use M10 x 1 threaded hole for mounting
- ├─ Torque: 20 to 30 N·m for stainless steel case
- ├─ Optimal gap: 1.27 mm (50 mils) for best linear response
- └─ Cable bend radius: minimum 25 mm
- Service & Maintenance
- ├─ Quick check: measure DC resistance 9.87 ± 0.50 Ω
- ├─ Compatible with Bently Nevada Proximitor® monitors
- └─ Works with extension cables for flexible routing
Compatibility & Selection Guide
- Compatible Systems
- └─ 3300 XL 8 mm Proximitor®, 3500 rack systems, API 670 compliant monitors
- Compare with Extension Cables
- ├─ 330190-070-01-CN Armored Standard Cable – for extra protection in harsh environments
- └─ 330190-075-00-00 Extension Cable – standard unarmored option for general use
- Selection Tip
- └─ Choose this 9.0m (90) probe when you need long cable reach without using extension cables. Select 00 suffix when no agency approval is required for your site.
Expert Review & Manager Insight
- Engineer’s Review
- └─ “This 9-meter probe solves long-distance sensing without extra cable joints. The DC resistance at 9.87 Ω is stable and easy to verify. I trust the Viton seal for wet areas. Always check torque and gap during setup – that ensures reliable data for years.”
- Manager’s Insight
- └─ “For large plants, long probes reduce connection points and failure risks. The 12-month warranty gives peace of mind. We stock these for fast turnaround – order before 2 PM for same-day dispatch via FedEx or DHL. Great for planned outages.”
Typical Applications & Equipment
- ├─ Large steam turbines and gas turbines
- ├─ Centrifugal compressors in oil & gas
- ├─ Hydroelectric generators
- ├─ Pumps and fans with remote monitoring panels
- └─ API 670 compliant machinery protection systems
Frequently Asked Questions
- Q: Why choose the 9.0 meter version instead of a shorter probe with extension cable?
- └─ A: Fewer connection points mean better signal quality and less risk of water ingress. Ideal for long runs from machine to junction box.
- Q: What is the warranty period and how does it work?
- └─ A: 12 months from shipment date. Covers manufacturing defects. Contact us with proof of purchase and we will help with replacement or repair.
- Q: How fast can I get this probe delivered?
- └─ A: We ship within 12 to 24 hours after order confirmation. Carriers: FedEx, UPS, DHL. Express delivery typically takes 2 to 5 business days worldwide.
- Q: Can I use this probe with armored extension cables?
- └─ A: Yes. It works with 330190-070-01-CN armored cable for extra protection in abrasive or high-traffic areas.
- Q: What does the “00” suffix mean for agency approval?
- └─ A: “00” means no specific agency approval required. Use this for non-hazardous areas or where local codes do not mandate third-party certification.
- Q: How do I know if this probe fits my existing monitor?
- └─ A: It works with any Bently Nevada 3300 XL Proximitor® and 3500 series monitors. Check your system manual for compatibility with 8 mm probes.
Order & Support
- ├─ Warranty: 12 months against defects
- ├─ Shipping: 12-24 hour dispatch via FedEx, UPS, DHL
- ├─ Packaging: Anti-static bag with foam protection, includes probe and datasheet
- └─ Contact: sales@powergearx.com | +86 18030005825 (WhatsApp)
