Honeywell 900H32-0102 Digital Output Module – 32ch 24VDC Sourcing

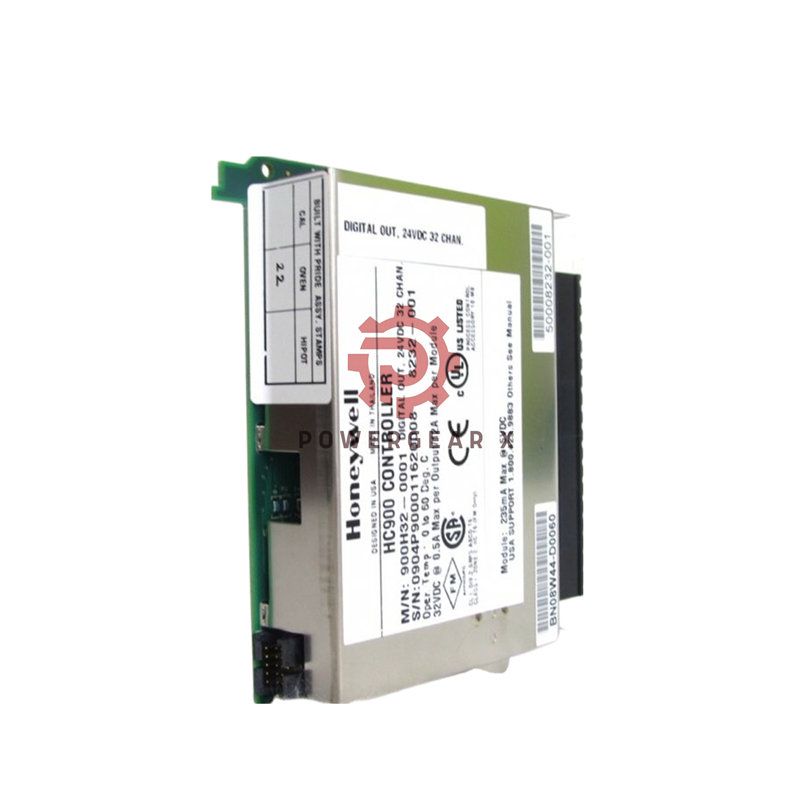

🔹 Honeywell 900H32-0102 Digital Output Module – 32 Channel 24VDC

Manufacturer: Honeywell | Model: 900H32-0102 | Type: Digital Output Module

High-density 32-channel digital output module with 24VDC sourcing. Features 2 isolation groups, overload protection, and compact design. Ideal for industrial control applications.

🔷 Model Architecture – Configuration Tree

• 900H32-0102 – Digital Output Module
  • 32 Outputs total (current sourcing, high side)
    • Group 1: Outputs 1-16 (galvanic isolation)
      • Supports TPO, PPO, TPSC output types
    • Group 2: Outputs 17-32 (galvanic isolation)
      • Not for TPO/PPO/TPSC applications
    • Protection groups: 4 groups of 8 channels each
      • Active current limiting integrated
      • No power cycle needed after fault

⚙️ Technical Specifications

• Operating voltage: 10.5 to 32 VDC
• Output type: High side driver
• Peak voltage: 32 VDC
• ON voltage drop: 0.15 VDC @ 0.5A load
• Maximum load current:
  • 0.5A per point
  • 6A max per channel group
  • 12A max per module (resistive)
  • 0.25A per point incandescent lamp (5mH max)
• Dimensions: 137mm H x 35.6mm W (5.4″ x 1.4″)
• Weight: 0.18 kg

✅ Key Features

• 2 groups of galvanic isolation (16 outputs each)
• Active current limiting (4 protection groups)
• Automatic fault recovery – no power cycle needed
• Compact size – saves panel space
• Lightweight – only 0.18 kg

📦 Package & Warranty

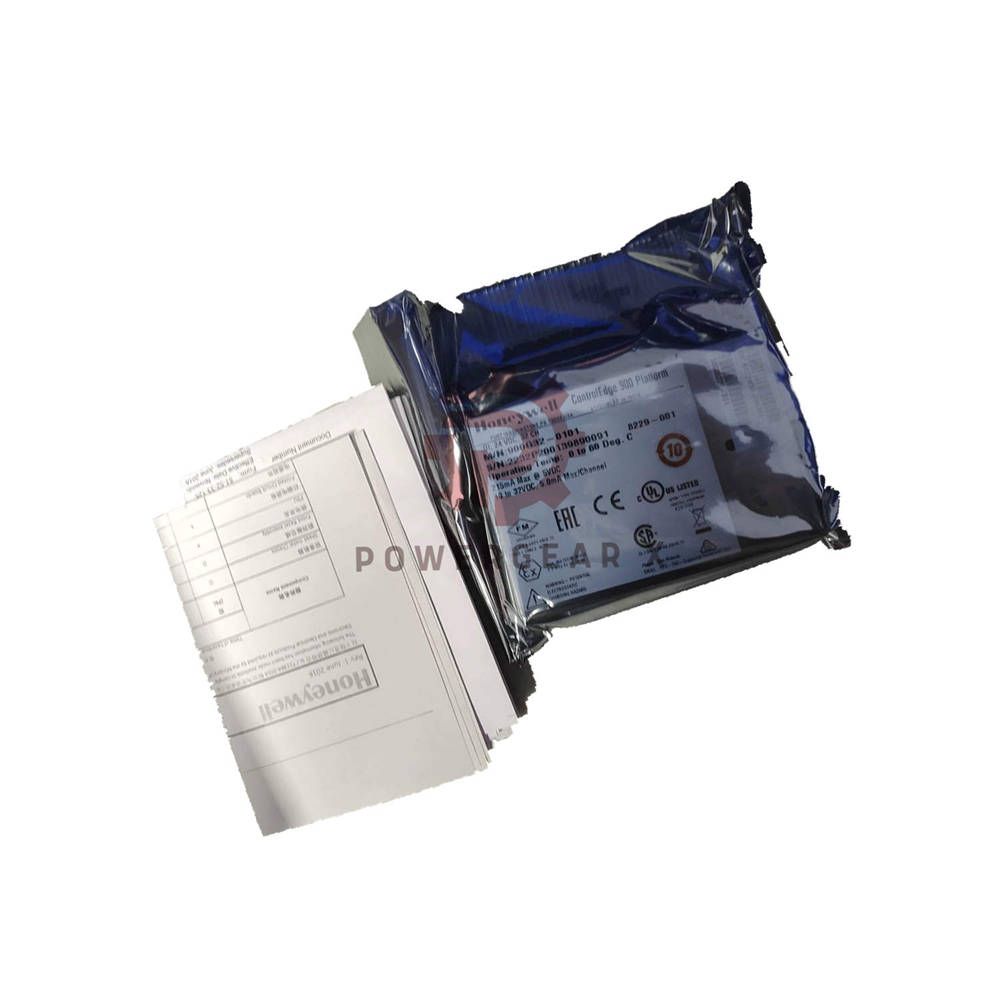

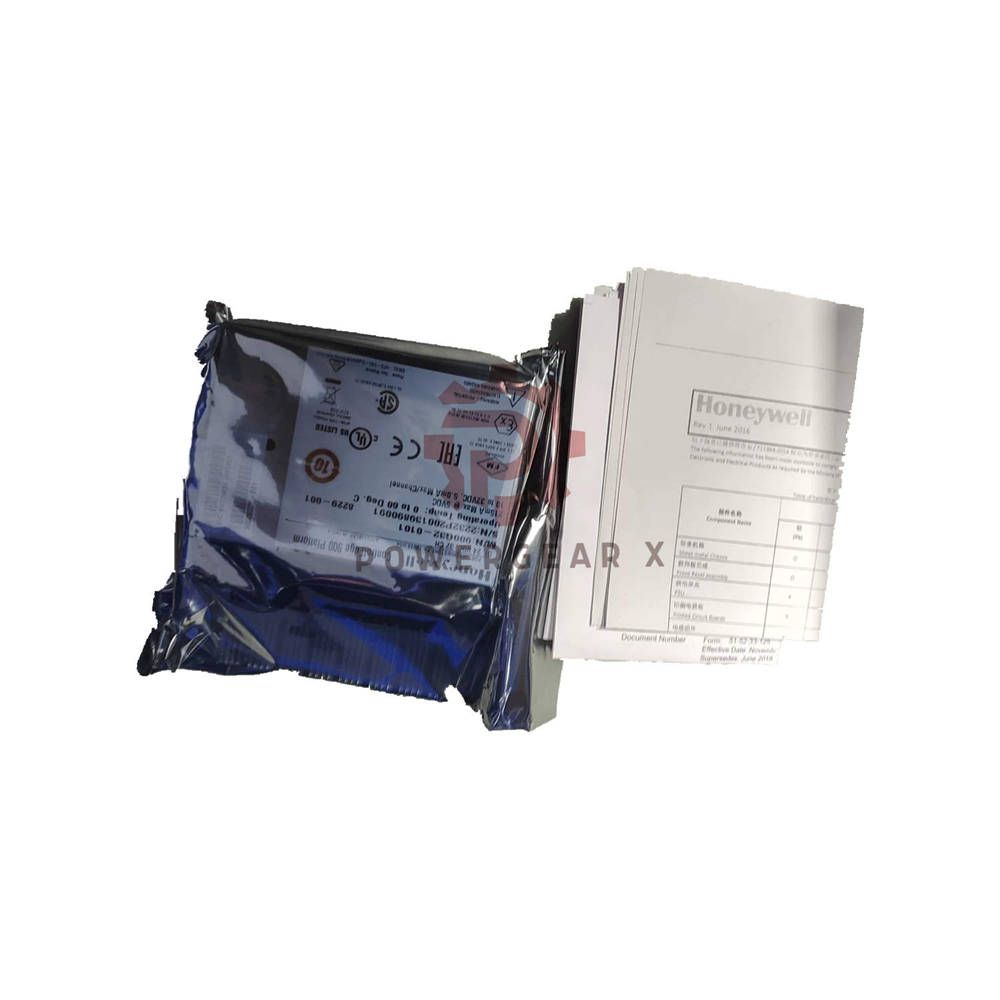

• Honeywell 900H32-0102 digital output module
• Documentation included
• Warranty: 12 months from invoice date

🚚 Shipping Information

• Couriers: FedEx, UPS, DHL worldwide express
• Tracking within 24 hours
• Same-day dispatch if ordered before 2 PM CET

🏭 Typical Applications

• Industrial automation control
• PLC output expansion
• Valve and actuator control
• Indicator lamp switching
• Relay replacement applications

⚠️ Important Usage Notes

• Outputs 17-32 cannot be used for TPO/PPO/TPSC functions
• Incandescent lamp loads limited to 0.25A with 5mH max
• Resistive loads only for maximum current ratings

❓ Professional FAQ – Experience & Selection Guide

• Q: Why can’t outputs 17-32 be used for TPO/PPO/TPSC?
• A: Hardware design limits timing-critical outputs to first group. Use outputs 1-16 for proportional or time-proportional applications.
• Q: How does the overload protection work?
• A: Four groups of 8 channels each have active current limiting. When overload clears, module resumes automatically. No reset needed.
• Q: Can I drive solenoids directly with this module?
• A: Yes, if solenoid current is under 0.5A. Add flyback diodes for inductive loads to protect outputs.
• Q: What happens if I exceed 6A per channel group?
• A: Current limiting activates. For reliable operation, stay under 6A per group and 12A total module.
• Q: Selection tip – 900H32-0102 vs 900H32-0202?
• A: 900H32-0102 is 24VDC sourcing. Choose if you need high-side switching. For sinking or other voltages, check 900H32-0202 or -0302 models.
