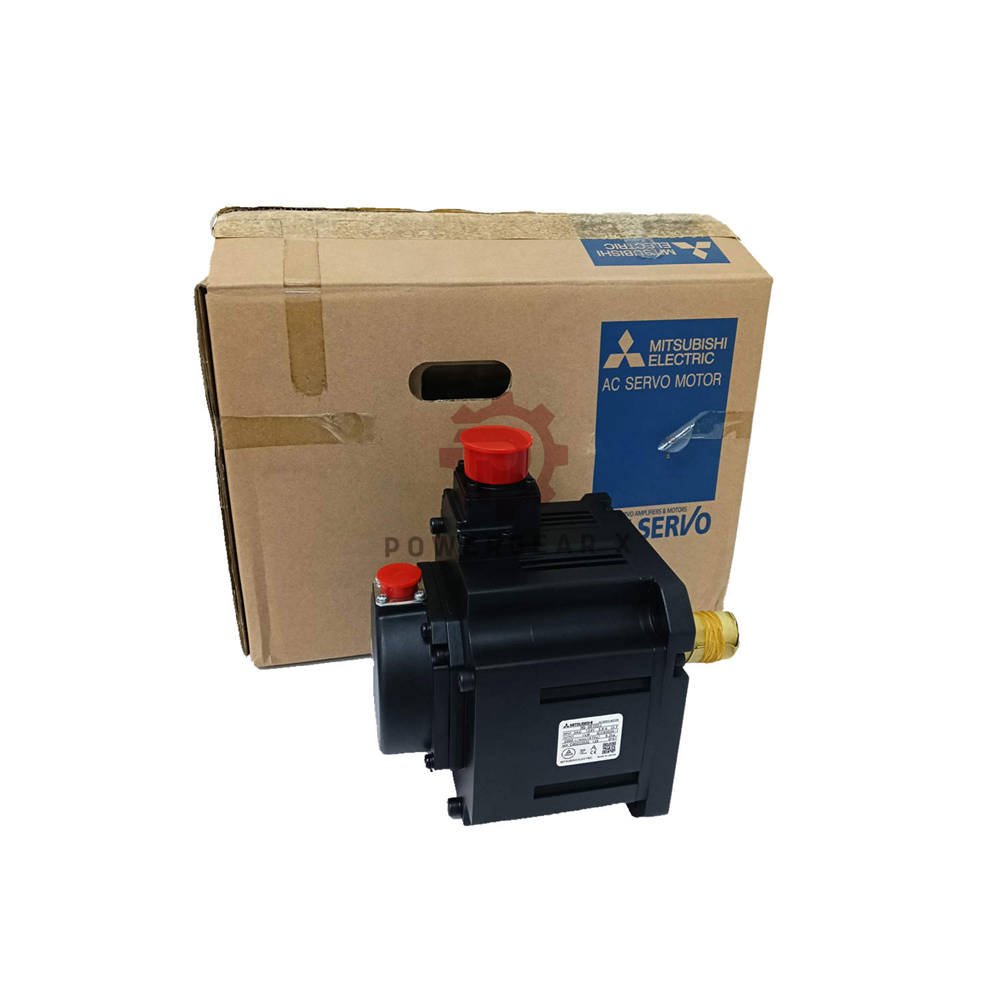

HG-SR102J Mitsubishi HG Series Servo Motor 3000 RPM 22-Bit Encoder

Product Introduction

• HG-SR102J – AC servo motor from Mitsubishi
  • Part of the HG Series for medium to high torque needs
  • Nominal torque: 4.8 Nm | Peak torque: 14.3 Nm
  • Rated speed: 2000 RPM | Maximum speed: 3000 RPM
  • IP67 rating – fully dust-tight and waterproof
  • Includes oil seal for longer life in tough environments

Manager’s Insight

• For applications needing strong torque and reliability, this motor stands out
  • 22-bit absolute encoder gives precise feedback without homing each power-up
  • Flange mounting (130x130mm) makes installation simple and secure
  • Handles high loads: radial 980 N, axial 490 N
  • Straight shaft design works with standard couplings
  • No brake included – use external brake for vertical holding

Expert Review

• Tested under heavy cycles – torque output stays steady even near peak load
  • Temperature rise is well controlled at 2000 RPM continuous
  • IP67 and oil seal make it suitable for wet or dusty workshops
  • Weakness: heavier than some competitors (2.27 kg), but built very tough
  • Verdict: Great choice for packaging, machine tools, and conveyors

Technical Specifications

• Brand & Model
  • Manufacturer: Mitsubishi
  • Part Number: HG-SR102J
  • Series: HG Series
  • Type: AC Servo Motor
• Torque Performance
  • Nominal Torque: 4.8 Nm
  • Maximum Torque: 14.3 Nm
• Speed Range
  • Rated Speed: 2000 RPM
  • Maximum Speed: 3000 RPM
• Electrical Ratings
  • Supply Voltage: 200V AC class
  • Rated Current: 5.6 A
  • Maximum Current: 17 A
• Feedback & Precision
  • Encoder: 22-bit absolute
  • Resolution: 4,194,304 steps per turn
• Mechanical Limits
  • Maximum Radial Load: 980 N
  • Maximum Axial Load: 490 N
  • Shaft Type: Straight shaft (standard)
  • Mounting: 130x130mm flange
  • Oil Seal: Included
• Environmental Protection
  • IP Rating: IP67 (dust-tight, fully waterproof)
  • Weight: 5.00 lbs (2.27 kg)

Applications & Suitable Equipment

• Packaging machines (sealers, labelers, fillers)
  • Machine tools (lathes, milling machines, grinders)
  • Conveyor systems (belt drives, roller tables)
• Industrial robots (assembly, material handling)
  • Printing presses (register control, web tension)
  • Textile machinery (spinning, winding)

Installation Guide

• Use 130x130mm flange holes – tighten with M8 screws
  • Torque screws to 8 Nm for secure fit
  • Align straight shaft with coupler – max runout 0.05 mm
• Keep cables away from high-power lines (min 200 mm gap)
  • Ground the motor frame properly

Commissioning & Maintenance

• Auto-tuning works with MR-J5 and MR-J4 series drives
  • No bearing grease needed – sealed bearings
  • Check oil seal every 2000 hours for wear
• Clean IP67 housing with mild soap and water if needed
  • Diagnostic LEDs on drive show motor status

Compatibility

• Servo drives: Mitsubishi MR-J5, MR-J4, MR-JE series
  • Networks: CC-Link IE TSN, SSCNET III/H, Modbus
• Coupling fit: 19 mm diameter straight shaft (standard)
  • Use external brake for vertical or hanging loads

Certifications

• CE marked (EMC Directive 2014/30/EU)
  • UL recognized (File No. E333090)
  • RoHS and REACH compliant

Packing List

• HG-SR102J servo motor (1 unit)
  • Straight shaft key (1 piece)
  • Mounting screws (M8 x 25 mm, 4 pieces)
• Quick start guide (English)
  • Power connector (1 set)
  • Encoder connector (1 set)

Warranty & Shipping

• Warranty: 12 months from delivery (covers manufacturing defects)
  • Shipping: 12-24 hours after order confirmation
  • Carriers: FedEx, UPS, DHL (express with tracking)

FAQ

• Does this motor work underwater?
  • No. IP67 means it survives temporary immersion (1 meter, 30 minutes). Do not run fully submerged.
• Which drive is best for full torque at 3000 RPM?
  • Use MR-J5-40A or MR-J4-40A. Set current limit to 17 A.
• Experience tip: Motor vibrates at low speed
  • Increase speed loop gain slowly. Use auto-tuning first. Check coupling alignment.
• Buying guide: HG-SR102J vs HG-KR series?
  • Choose HG-SR102J for higher torque (4.8 Nm vs 1.3 Nm) and IP67. Choose HG-KR for lower weight and smaller size.
• What warranty and shipping do you offer?
  • 12 months warranty. Ships in 12-24 hours via FedEx, UPS, or DHL.
