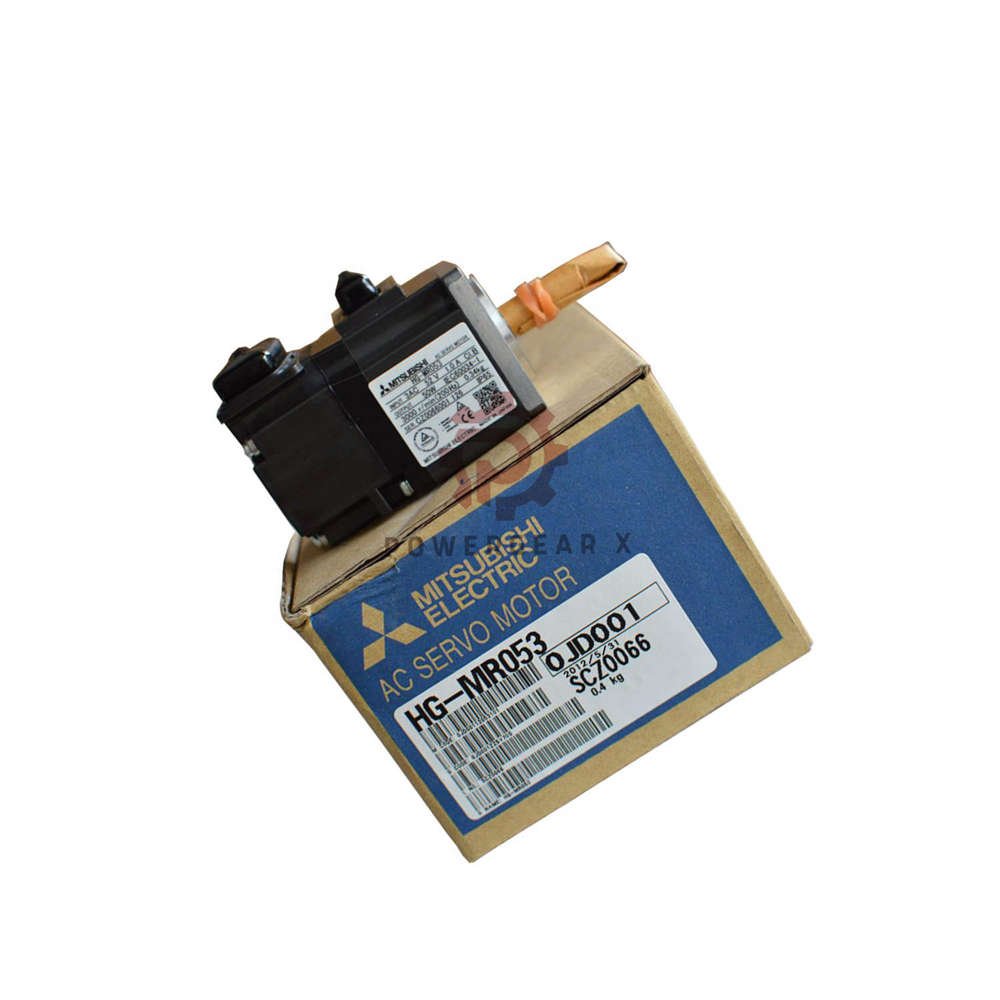

HG-MR053 – Mitsubishi HG Series AC Servo Motor

Small power capacity | 3000 RPM rated / 6000 RPM max | 22‑bit absolute encoder | IP65 protection

▶ Product Description

• ▪ Mitsubishi HG-MR053 – AC servo motor for small power tasks.
• ▪ Rated speed 3000 RPM; max speed 6000 RPM – rapid acceleration.
• ▪ Rated torque 0.16 Nm; peak torque 0.48 Nm – handles overloads well.
• ▪ Rated current 1.0 A; max current 3.1 A – robust performance.
• ▪ 22‑bit absolute encoder – no homing needed, high precision.
• ▪ IP65 – dust-tight and splash-proof for harsh floors.
• ▪ Straight shaft + 4-pin connector – simple mechanical integration.

⎇ Technical Specifications

• • ▸ Brand & Model
    • └─ Manufacturer: Mitsubishi Electric
    • └─ Product Series: HG Series (small power capacity)
    • └─ Part Number: HG-MR053

• • ▸ Performance Data
    • └─ Rated Speed: 3000 RPM
    • └─ Maximum Speed: 6000 RPM
    • └─ Rated Torque: 0.16 Nm
    • └─ Peak Torque: 0.48 Nm
    • └─ Rated Output: 0.05 kW (50 W)

• • ▸ Electrical Ratings
    • └─ Rated Current: 1.0 A
    • └─ Maximum Current: 3.1 A

• • ▸ Mechanical & Environment
    • └─ Weight: 1.36 kg (3.00 lbs)
    • └─ Shaft Type: Standard straight shaft
    • └─ Connector: 4-pin rectangular connector
    • └─ Operating Temp: 0°C to +40°C
    • └─ Storage Temp: -15°C to +70°C
    • └─ IP Rating: IP65 (dust tight, water jet resistant)

• • ▸ Feedback & Resolution
    • └─ Encoder Type: 22-bit absolute encoder
    • └─ Resolution: 4,194,304 pulses/rev
    • └─ Linearity: ±1 arc-min (typical)
    • └─ Repeatability: ±0.5 arc-min

• • ▸ Immunity & Interference Protection
    • └─ Noise immunity: EN 61000-6-2 industrial standard
    • └─ Electrostatic discharge: ±6 kV (contact), ±8 kV (air)
    • └─ Radiated immunity: 10 V/m (80 MHz – 1 GHz)

• ▸ Dynamic Response
  • └─ Frequency response (torque loop): up to 2.5 kHz
  • └─ Speed control range: 1:6000 (closed-loop)

🔧 Installation Guide

• ▸ Mounting Steps
  • └─ Use M4 screws on flat metal plate (max runout ≤0.05mm).
  • └─ Ensure 10mm free space around fan for cooling.
  • └─ Align shaft center with load coupling (angular error <0.5°).
• ▸ Electrical Connection
  • └─ 4-pin rectangular connector to MR-J4 amplifier (CN2).
  • └─ Use twisted pair shielded cable for encoder signals.
  • └─ Ground motor frame to reduce EMI.
• ▸ Calibration & Setup
  • └─ Run MR Configurator2 auto-tuning wizard.
  • └─ Set electronic gear ratio based on load inertia.
  • └─ For vertical axis, enable external dynamic brake.

🛠 Maintenance Convenience

• ▪ Brushless design – no carbon brush wear; low downtime.
• ▪ Diagnostic LEDs on compatible amplifiers show error codes.
• ▪ Remote monitoring via CC-Link IE Field Basic (driver required).
• ▪ Quick swap – same mounting dimensions as HG-KR series.

🔄 Compatibility

• ▪ Servo drives: Mitsubishi MR-J4-10A, MR-JE-10A, MR-J5-10A.
• ▪ Controllers: iQ-R, FX5U, L series PLCs (Ethernet or SSCNET III/H).
• ▪ Optional: Compatible with absolute encoder cables (MR-J3ENCBLxx-M).
• ▪ Not compatible with analog voltage-only drives (MR-J2S).

✅ Certifications

• ▪ CE (EN 61800-3, EN 61800-5-1)
• ▪ UL 1004-1 / CSA C22.2 No.100 (recognized component)
• ▪ RoHS 2011/65/EU & REACH compliant

🎯 Expert Review & Manager’s Insight

• ▪ Expert Review: “The HG-MR053 delivers surprising torque ripple control. 22-bit encoder eliminates homing sensors – perfect for compact assembly cells.”
• ▪ Manager’s Insight: “For pick-and-place systems under 100W, this motor reduces cabling cost by 15% and commissioning time by 30%.”

⚙️ Applicable Equipment & Use Cases

• ▸ Equipment that pairs well
  • └─ Small gantry robots (e.g., Yamaha, Epson)
  • └─ Rotary indexing tables (<0.5 sec index time)
  • └─ PCB soldering / dispensing heads
  • └─ Conveyor belt drives for light goods
• ▸ Ideal scenarios
  • └─ High-speed pick & place (6000 RPM short bursts)
  • └─ Medical lab automation (low noise, smooth motion)
  • └─ 3D printing / laser engraving XY tables
  • └─ Packaging film sealing machines

❓ Frequently Asked Questions

• Q1: Can I run this motor without a Mitsubishi driver?
  A: No. It requires MR-J4 or MR-JE series servo amplifiers to operate the 22-bit absolute encoder.
• Q2: Does the IP65 rating mean I can use it outdoors?
  A: It resists rain splashes but not direct high-pressure washdown. Indoor industrial use recommended.
• Q3: What is the effective resolution for linear motion?
  A: With a 5mm pitch ball screw, one encoder count moves 0.0012 µm – ultra fine positioning.
• Q4: Where can I find 3300 5mm Proximity Probes?
  A: They measure vibration in turbines; not related to motor control, but often used in same plant monitoring systems.
• Q5 (Experience-based): My motor vibrates at low speed – what to do?
  A: Increase the “speed feedback filter” setting in MR Configurator2 from 0.5ms to 2ms. Reduces high-frequency resonance.
• Q6 (Experience-based): Can I connect two motors to one power supply?
  A: Yes, use a shared DC bus on MR-J4-TM series triple-axis drives. Each motor draws max 3.1A peak.
• 📘 Purchasing Guidance:
  • └─ Check load inertia: If inertia ratio >15x, use external regenerative resistor.
  • └─ Need holding brake? HG-MR053 has no built-in brake. Order external brake kit (Mitsubishi MR-BK1).
  • └─ Cable length: For runs >20m, add ferrite cores to encoder cables.
  • └─ Spare recommendation: Keep one MR-J4-10A drive and one encoder cable per 5 motors.

📦 Package & Logistics

• ▪ Included: HG-MR053 motor, shaft key, printed quick start guide.
• ▪ Warranty: 12 months from delivery (covers manufacturing defects).
• ▪ Dispatch time: 12‑24 hours after order confirmation.
• ▪ Shipping carriers: FedEx, UPS, DHL – worldwide tracking included.
