Product details

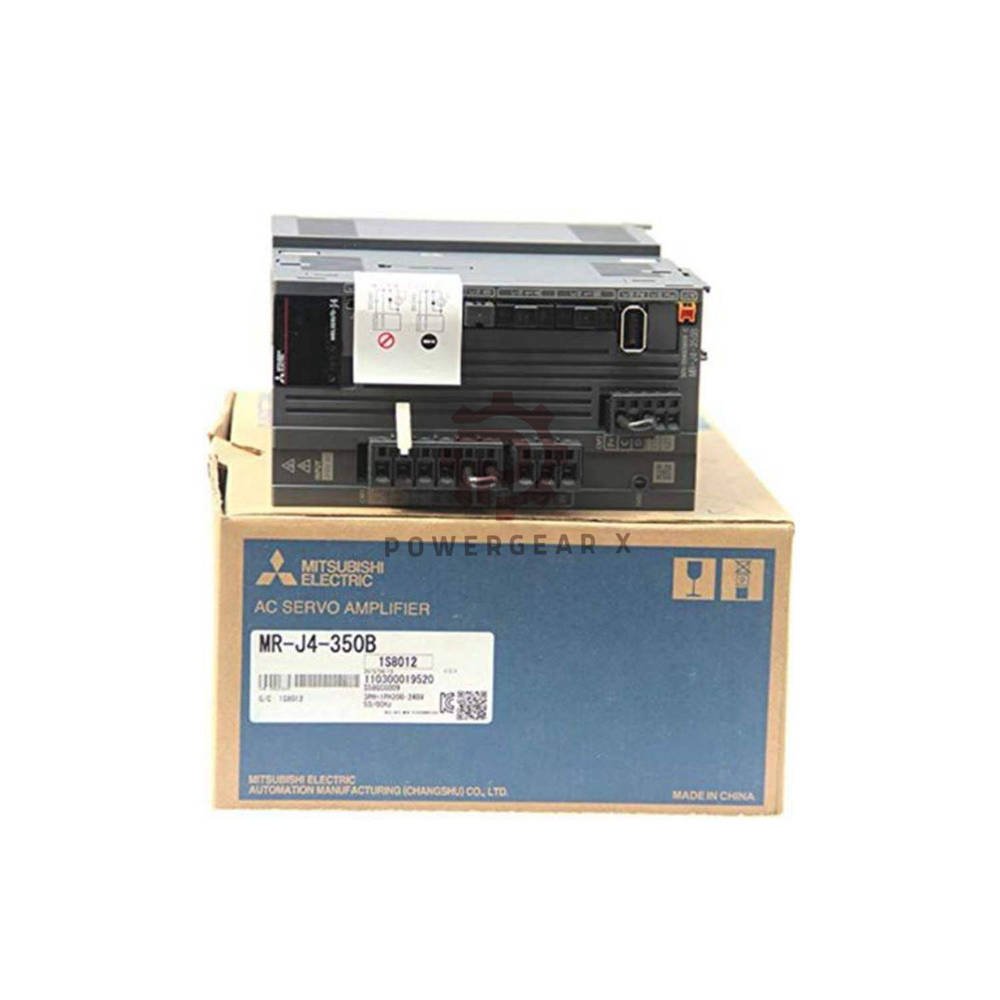

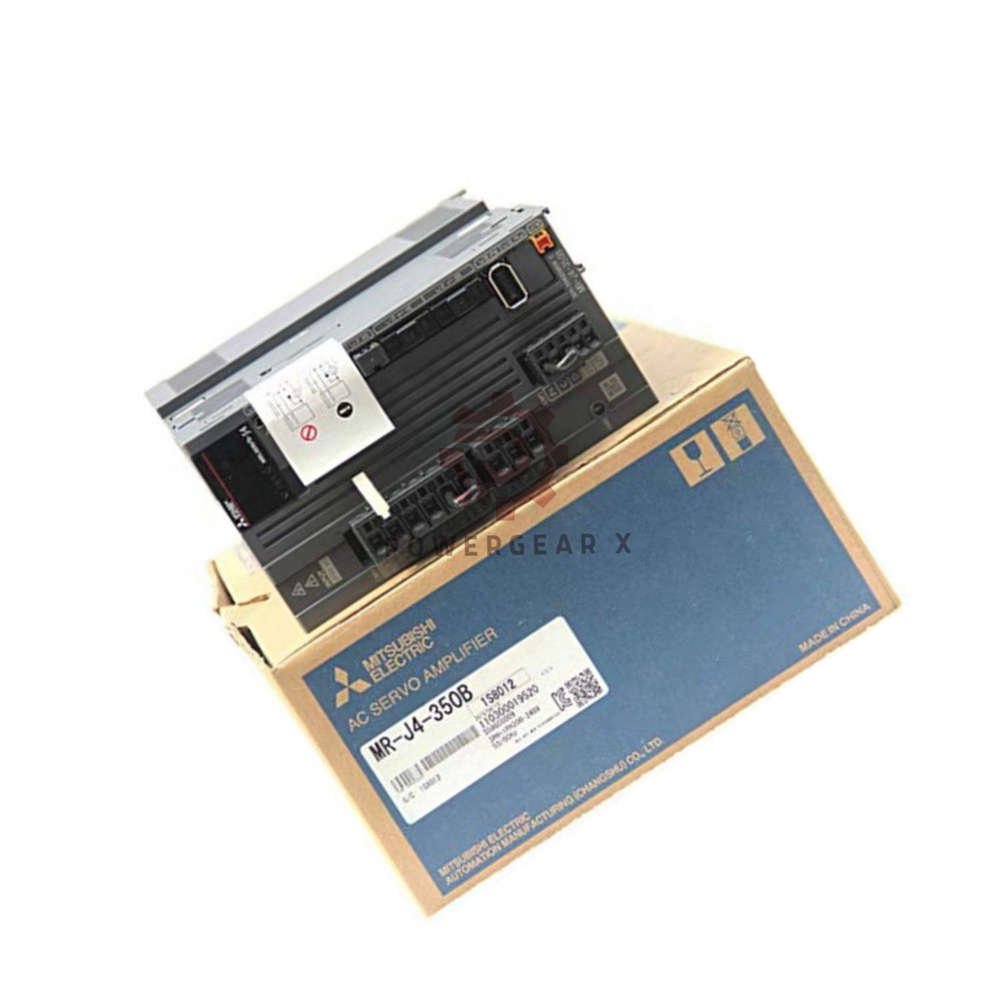

MR-J4-350B – Mitsubishi MELSERVO-J4 Series Servo Amplifier (3.5 kW, SSCNET III/H)
Key Features at a Glance
- Powerful 3.5 kW output for demanding machines.
- STO safety (IEC/EN 61800-5-2) protects people and equipment.
- Uses SSCNET III/H interface for fast real-time control.
- Built-in dynamic brake gives stable motor stop.
- Close mounting design saves space in control panels.
- Sine-wave PWM + current control for smooth torque.
Technical Specifications
- General Identification
- Brand: Mitsubishi Electric
- Product Type: Servo Amplifier (1-Axis)
- Model: MR-J4-350B
- Series / Line: MELSERVO MR-J4 / MELSERVO-J4
- Weight: 5.13 lbs (2.32 kg)
- Power & Output Ratings
- Rated Output Power: 3.5 kW
- Rated Output Voltage: 170 V AC (3-phase)
- Rated Output Current: 17 Amps
- Power Supply Requirements
- Main circuit input: 200-240V AC, 3-phase, 50/60 Hz
- Permissible fluctuation main: 170-264V AC (3-phase)
- Control circuit power: 200-240V AC, 1-phase
- Control fluctuation: 170-264V AC (1-phase)
- Control & Safety Methods
- Control method: Current control + Sine-wave PWM
- Safety function: STO (IEC/EN 61800-5-2)
- Dynamic brake: built-in
- Protections: Overvoltage, overcurrent, motor overheat
- Interface & Communication
- SSCNET III/H interface (high-speed motion network)
- Compatible with Mitsubishi motion controllers
- Dimensions & Mounting
- Width: 90 mm, Height: 168 mm, Depth: 195 mm
- Allows close mounting (space saving)
- Compact design for tight cabinets
- Certifications & Standards
- CE, UL certified
- RoHS compliant
Expert Review
- “The MR-J4-350B delivers rock-solid 3.5 kW power with SSCNET III/H speed. The STO safety reduces external hardware. Its compact frame fits crowded panels. Great for high-duty applications.” – Senior Controls Engineer, Powergear X.
Manager’s Insight
- “For factory upgrades, this Mitsubishi drive cuts wiring time via network control. Built-in dynamic brake and close mounting lower total cost. We recommend it for packaging and CNC retrofits.” – Product Manager, Industrial Automation.
What Devices & Applications Fit Best?
- CNC machines: Milling, lathes, routers – precise axis control.
- Packaging equipment: High-speed indexing, cut-to-length.
- Industrial robots: Pick & place, assembly arms.
- Printing & converting: Tension control, synchronized rolls.
- Material handling: Conveyor drives, stackers.
- Works with Mitsubishi HG series servo motors (medium to high inertia).
Frequently Asked Questions (FAQ)
Q1: Does MR-J4-350B work without a separate dynamic brake resistor?
A: Yes. It has a built-in dynamic brake. For high inertia loads, add an external regenerative resistor.
Q2: Can I use this amplifier with single-phase power only?
A: Main circuit needs 3-phase 200-240V AC. Control circuit works with 1-phase. Use proper 3-phase supply for full 3.5 kW.
Q3: What is the warranty period and shipping speed?
A: 12-month warranty against defects. We ship within 12-24 hours. Couriers: FedEx, UPS, DHL. Tracking provided.
Q4: How to select between MR-J4-350B and other MR-J4 models?
A: Choose MR-J4-350B when you need 3.5 kW power and SSCNET III/H network. For pulse-train control, pick MR-J4-200A. For lower power, check MR-J4-100B.
Q5: Does close mounting affect heat dissipation?
A: Minimal. The design allows side-by-side installation. Keep ambient under 55°C and provide airflow.
Quick Selection Guide
- Confirm motor power: up to 3.5 kW servo motor (Mitsubishi HG series).
- Need network control? SSCNET III/H is high-speed and noise immune.
- Safety required? STO is built-in, no extra relay needed.
- Check voltage: 200-240V AC 3-phase available on site.
- Panel space small? 90mm width allows dense mounting.
- Contact us for load inertia calculation and tuning support.
