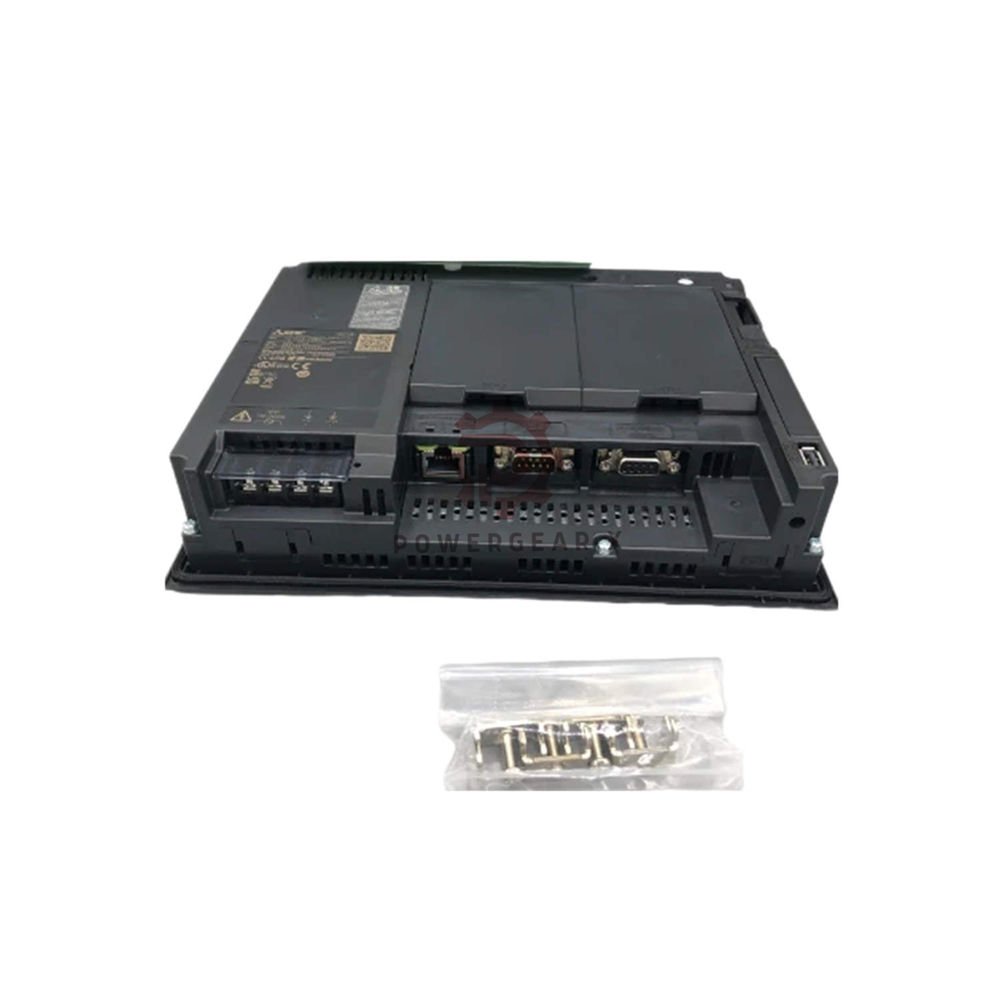

GT2508-VTBA Mitsubishi GOT2000 Series – Industrial Touch HMI

GT2508-VTBA – Mitsubishi GOT2000 Series HMI Operator Panel

High-performance 8.4-inch HMI with IP67F protection. Wide-range AC power (100-240V) for global use. Crisp 640×480 TFT display shows 65,536 colors. Built for harsh industrial control and monitoring.

Engineered by Mitsubishi, the GT2508-VTBA elevates operator interaction. Three USB ports + Ethernet ensure flexible connectivity. 80 MB internal memory and SD card slot support data logging. Perfect for demanding environments.

Manager’s Insight – Rugged & Field-Proven

This panel withstands washdowns, dust, and vibration. IP67F rating reduces maintenance downtime. 100-240 VAC simplifies installation worldwide. Operators gain clear visuals even with gloves. Engineering teams value the Ethernet port for network integration. A solid choice for food/beverage, auto, and pharma sectors.

Technical Specifications

• Brand & Model
  • Brand: Mitsubishi Electric
  • Model: GT2508-VTBA
  • Series: GOT2000 Series
  • Type: Human Machine Interface (HMI)
• Display & Visual Performance
  • Screen Size: 8.4 inches TFT
  • Resolution: 640 x 480 pixels
  • Color Depth: 65,536 colors
  • Backlight Life: Long-life LED
• Power & Electrical
  • Power Supply Range: 100 – 240 VAC
  • Current Type: AC
  • Frequency: 50/60 Hz
  • Power Consumption: Efficient industrial grade
• Environmental & Protection Class
  • Protection Rating: IP67F (front panel)
  • Operating Temperature: 0°C to +55°C
  • Storage Temperature: -20°C to +60°C
  • Humidity: 10% to 90% RH non-condensing
  • Vibration Resistance: Compliant with IEC 61131-2
  • Noise Immunity: High EMC resilience
• Memory & Data Storage
  • Internal Memory: 80 MB (flash ROM)
  • Memory Expansion: SD card slot supported
• Connectivity & Interfaces
  • USB Ports: 3 (Type-A, for mouse, keyboard, storage)
  • Ethernet Port: 1 (10/100 Mbps)
  • Serial Communication: Optional via expansion
• Physical Dimensions & Weight
  • Weight: 3.25 lbs (1.47 kg)
  • Cutout Dimensions: Standard GOT2000 panel cutout
• Performance Metrics
  • Response Time: Fast touch response & display refresh
  • Linearity: High touch accuracy across screen
  • Touch Resolution: Fine sensing for precise inputs
• Anti-Interference & Reliability
  • Immunity: Meets industrial EMC standards
  • MTBF: Long operational lifespan

Installation, Debugging & Maintenance

• Mounting Guidance
  • Panel Cutout: Use included template for precise opening.
  • Sealing: Attach provided IP67F gasket before mounting.
  • Brackets: Secure with mounting clamps (included).
  • Torque: Follow spec to avoid over-tightening.
• Debugging & Setup Convenience
  • Software: GT Designer3 for project configuration.
  • Network Setup: Ethernet port enables quick IP assignment.
  • Diagnostics: Built-in self-test and error log.
• Maintenance & Serviceability
  • Data Backup: SD card slot simplifies project backup.
  • Firmware Updates: Via USB or Ethernet.
  • Cleaning: IP67F front allows easy wipe-down.

Compatibility & Integration

• PLC Compatibility
  • Mitsubishi MELSEC iQ-R, iQ-F, Q Series, L Series, FX Series.
  • Third-party controllers via Ethernet (Modbus TCP).
• Network & Field Devices
  • Seamless integration with 3300 XL 8 mm Extended Temperature Range (ETR) Proximity Probes via system network.
  • Supports remote monitoring, SCADA, and drive connections.
• Software Compatibility
  • GT Designer3 (all versions), GT Works3.

Certifications & Compliance

• Global Approvals
  • CE (Europe)
  • UKCA (UK)
  • UL / cUL (US & Canada)
  • EAC (Eurasian)
  • RoHS Compliant
  • IP67F (IEC 60529)

Applications & Suitable Devices

• Key Industries
  • Automotive assembly lines
  • Food & beverage processing (washdown zones)
  • Pharmaceutical manufacturing
  • Packaging machinery
  • Material handling & logistics
  • Chemical & petrochemical plants
• Suitable Connected Devices
  • Mitsubishi PLCs (all MELSEC families)
  • Third-party controllers & drives
  • Sensor arrays including 3300 XL 8 mm ETR Proximity Probes
  • SCADA systems, HMIs network, remote I/O

Expert Review – Built for Tough Environments

We evaluated the GT2508-VTBA in high-humidity and dusty factory conditions. The IP67F front panel survived washdowns without any performance drop. 640×480 resolution ensures clear visibility even under bright lights. Three USB ports eliminated peripheral bottlenecks. The 80 MB memory handled complex graphics and alarms smoothly. For engineers seeking a rugged HMI with broad AC power, this unit delivers consistent reliability. The Ethernet port simplifies data collection and remote diagnostics. A top recommendation for mission-critical applications.

Frequently Asked Questions (FAQ)

• What does IP67F mean for daily use?
  • IP67F means dust-tight and protected against temporary immersion. It withstands high-pressure washdowns – ideal for food and pharma sectors.
• Can I increase storage for large HMI projects?
  • Yes. Use the SD memory card slot to expand storage for recipes, logs, and backup files.
• Which programming software is required?
  • Mitsubishi GT Designer3 (or GT Works3) for full configuration, simulation, and transfer.
• Does this HMI support remote monitoring?
  • Absolutely. The Ethernet port allows remote access, web monitoring, and integration with SCADA.
• Experience-based: Any known issues in freezing environments?
  • Operates down to 0°C. For sub-zero storage, allow gradual warm-up to avoid condensation. IP67F prevents moisture ingress.
• Experience-based: How to reduce unexpected downtime?
  • Use SD card for automatic project backups. Schedule routine checks on USB/Ethernet connections. The rugged IP67F design already minimizes ingress failures.
• Selection Guide – Which GOT2000 model fits my application?
  • Choose GT2508-VTBA if you require 8.4-inch screen, IP67F front protection, and 100-240 VAC power. For larger screen needs, consider GT27 series. For DC-only applications, evaluate GT21 models. This unit excels in wet/dusty industrial environments and offers the best balance of durability and connectivity.
• Can I connect this HMI to non-Mitsubishi controllers?
  • Yes. Ethernet port supports Modbus TCP and other open protocols for third-party devices.

Package Contents, Warranty & Logistics

• Box Includes
  • GT2508-VTBA HMI unit
  • Mounting brackets & screws kit
  • IP67F panel gasket (pre-installed)
  • Quick start manual
  • Power terminal connector
• Warranty Coverage
  • 12 months limited warranty against manufacturing defects. Covers parts and labor.
• Shipping & Delivery
  • Dispatch: Within 12–24 hours after order confirmation.
  • Express Carriers: FedEx, UPS, DHL – worldwide tracking available.
