Optical Port Overview

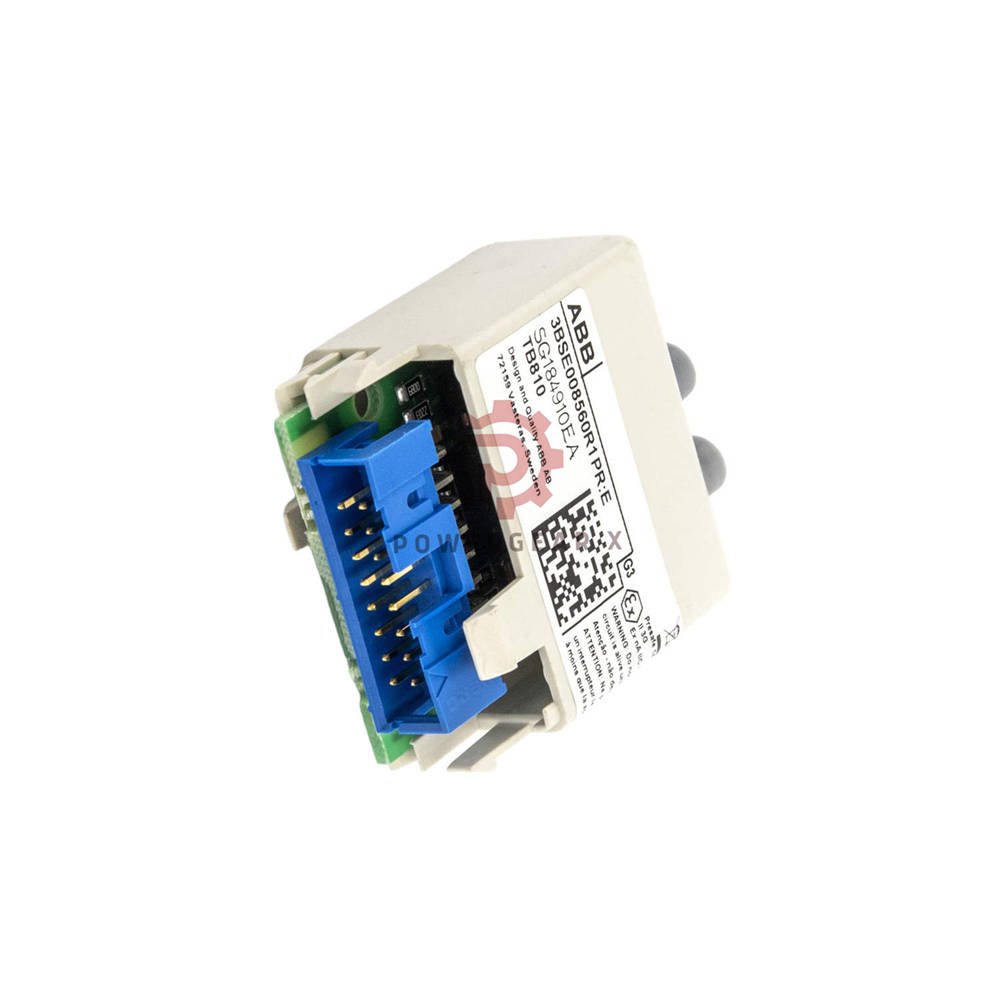

The ABB TB810 Modulebus Optical Port (3BSE008560R1) connects optical fiber to S800 I/O Modulebus. This tiny module converts electrical signals to light for noise-free communication. It mounts directly on the MTU.
- Fiber link: Extends Modulebus using optical cable.
- Ultra-compact: 40 mm cube, weighs only 35 g.
- Plug & play: Inserts into any S800 MTU optical port.
- 12-month warranty against defects.
Model & Key Details
- TB810 – Modulebus Optical Port
- Article number: 3BSE008560R1.
- Type: Communication Module.
- Function: Converts electrical Modulebus to optical signal.
- Weight: 0.035 kg (1.23 oz).
- Dimensions (W x H x D): 40 x 40 x 20 mm.
- HS Code: 85389091.
- Origin: New & original in factory packing.
Environmental & Certifications
- RoHS: Compliant with EU Directive 2011/65/EU.
- WEEE category: 5 (Small Equipment).
- SCIP number: f1308b0e-f4aa-4ba5-ac9f-49a640a64ebf (Estonia).
- Batteries: 0 (none).
Package & Logistics
- Includes: One ABB TB810 optical port module, factory sealed.
- Warranty: 12 months from shipment.
- Shipping partners: FedEx, UPS, DHL – tracked and insured.
- Origin: New & original.
Frequently Asked Questions (FAQ)
- What is the TB810 used for?It converts electrical Modulebus signals to optical fiber. This allows longer distances and noise immunity in harsh plants.
- Where does it install?It plugs directly into the optical port on compatible S800 MTUs (like TU810, TU812). No tools required.
- Do I need one at each end of the fiber?Yes. You need a TB810 at both ends of the optical link to convert back to electrical signals.
- Is this module RoHS compliant?Yes, it follows EU Directive 2011/65/EU. It also has a SCIP number for EU waste registration.
- What is the maximum fiber length?With plastic fiber, up to 20 meters. With HCS fiber, up to 100 meters. For longer distances, use glass fiber and TB825.
Selection Guide
- Choose TB810 when you need to create an optical segment on the Modulebus.
- Order two units for a point-to-point link.
- Verify your MTU has an optical port – older MTUs may need replacement.
- For glass fiber applications, use TB825 media converter instead.
- Keep spare TB810 modules for quick replacement – they are small and easily damaged during installation.
