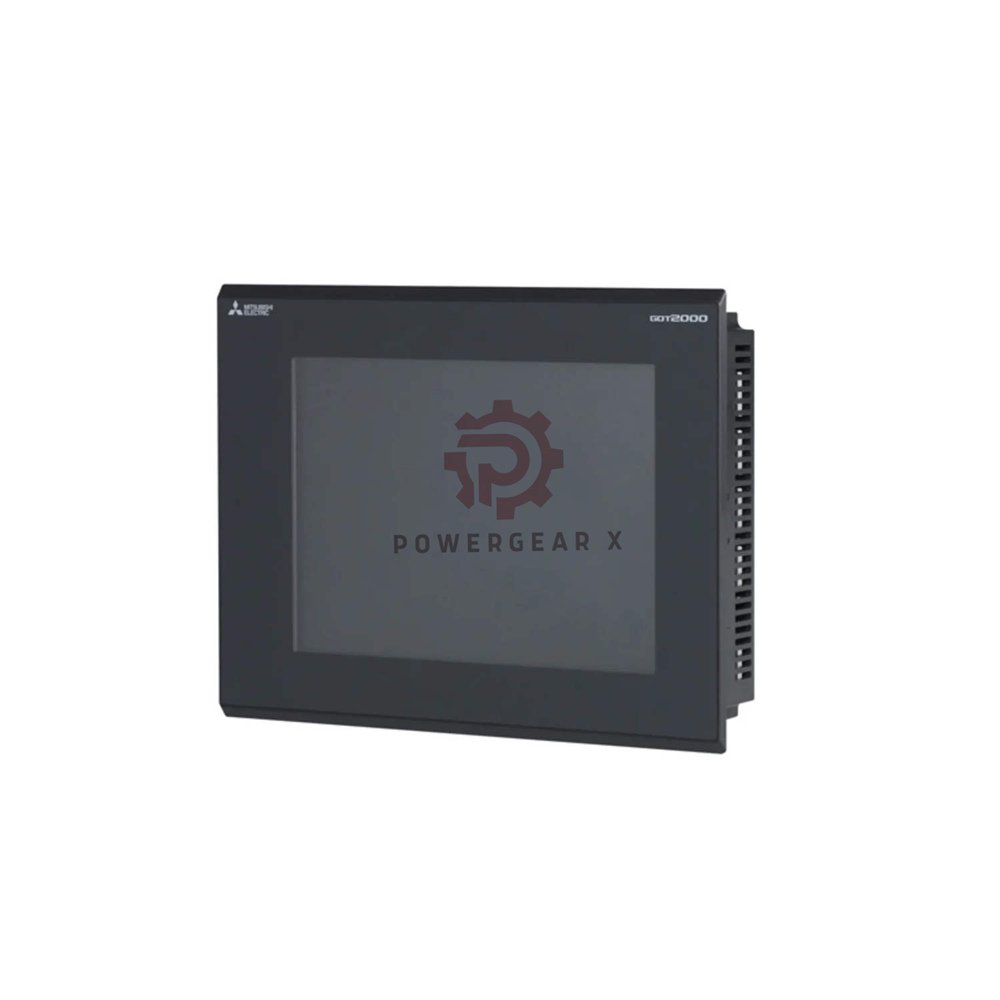

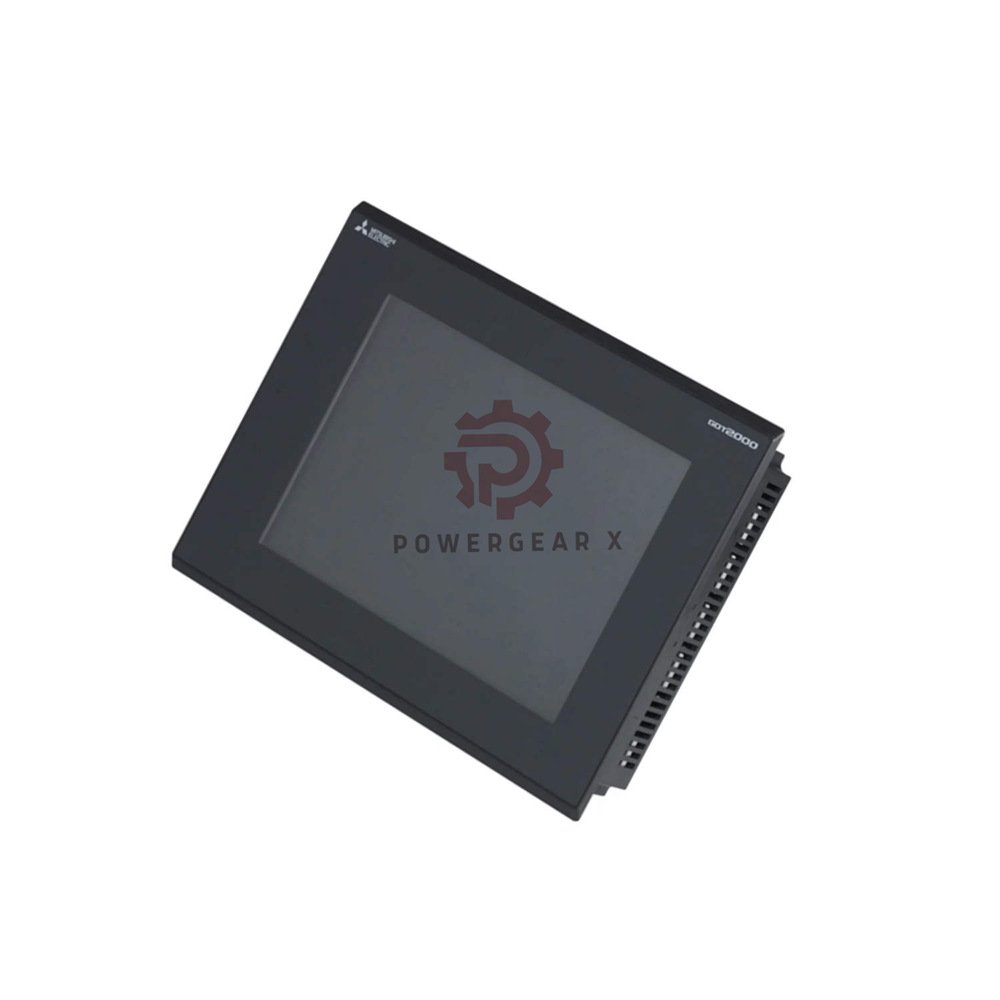

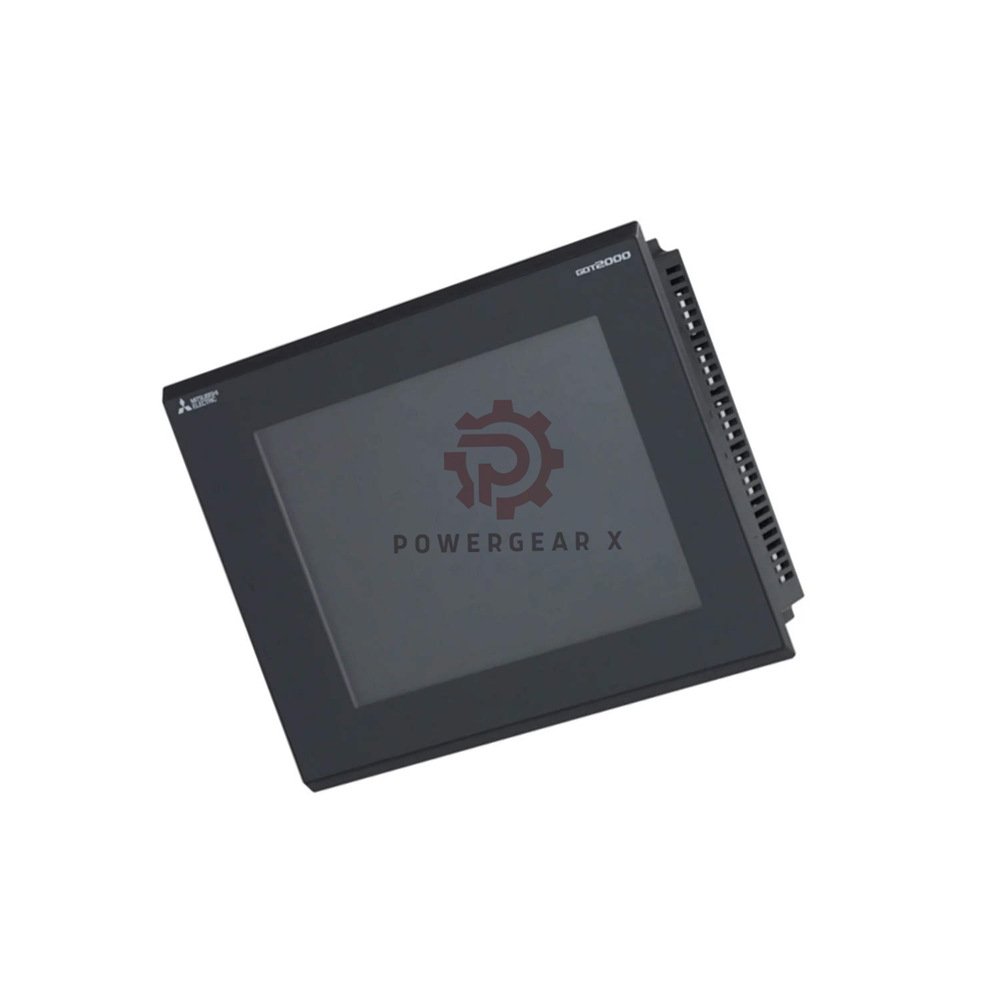

GT2308-VTBD GOT2000 Graphic Operation Terminal – 24V DC HMI with IP67

GT2308-VTBD – Mitsubishi GOT2000 Graphic Operation Terminal (HMI)

GT2308-VTBD delivers high-performance HMI with 8.4-inch TFT color display, rugged IP67 front, and 24V DC operation. Ideal for industrial automation, process monitoring, and machine control.

 Product Architecture & Specifications

• Mitsubishi GOT2000 Series – GT23 Range
  • Model: GT2308-VTBD – Graphic Operation Terminal (HMI)
    • Display System
      • ▪ Type: TFT color LCD, 65536 colors
      • ▪ Screen size: 8.4 inches diagonal
      • ▪ Resolution: 640 x 480 dots (VGA)
      • ▪ Active area (WxH): 170.9 x 128.2 mm (6.73 x 5.05 inch)
      • ▪ Backlight: LED (non-replaceable) / Life: ≈50,000 hours
    • Electrical & Memory
      • ▪ Supply voltage: 24V DC / Power consumption: 8W
      • ▪ Operation memory (RAM): 9 MB
      • ▪ Storage memory (ROM): 9 MB
      • ▪ External storage: SD card slot supported
    • Environmental & Protection
      • ▪ Ambient temperature: 0°C to +55°C
      • ▪ Front panel rating: IP67F (dust-tight, water immersion resistant)
      • ▪ Internal protection: IP2X (protection against solid objects)
      • ▪ Vibration & shock: Compliant with industrial standards
    • Measurements & Physical
      • ▪ Weight: 1.50 kg (3.31 lbs)
      • ▪ Panel color: Black
      • ▪ Dimensions (WxHxD): refer to installation manual

 Technical Performance Metrics

• Visual Performance
  • ▪ Resolution capacity: 640 x 480 sharp graphics & text
  • ▪ Color depth: 65536 colors – smooth gradients & alarm visibility
  • ▪ Response time: <12 ms typical for touch & display update
• Sensitivity & Linearity (Touch)
  • ▪ Resistive analog touch: high accuracy across full screen
  • ▪ Linearity deviation: ≤ ±1.5% ensures precise operator input
• Frequency Response & Throughput
  • ▪ Communication cycle: fast polling via Ethernet/RS232
  • ▪ Screen refresh: 60 fps for smooth animations
• Environmental Tolerance & Noise Immunity
  • ▪ Operating temp range: 0°C to +55°C, storage: -20°C to +60°C
  • ▪ Immunity: meets CE (EMC directive) – high resistance to electrical noise
  • ▪ Humidity tolerance: 10% to 90% RH non-condensing

Installation & Field Integration

• Mechanical Mounting
  • ▪ Panel cutout dimensions: standard (refer to manual)
  • ▪ IP67F sealing gasket included – ensures front protection
  • ▪ Mounting clips provided for secure fastening
• Electrical Wiring
  • ▪ Power terminal: 24V DC (+/-10%), spring-clamp or screw
  • ▪ Protective grounding required for noise immunity
• Debugging & Maintenance Convenience
  • ▪ SD card slot for quick project upload, data logging, firmware update
  • ▪ USB host & device ports for easy screen transfer & backup
  • ▪ Self-diagnostic function: alarms, history, error tracing
  • ▪ No routine maintenance except screen cleaning

 Compatibility & Communication

• PLC & Controller Support
  • ▪ Mitsubishi MELSEC iQ-R, iQ-F, Q, L, FX series (native)
  • ▪ Third-party via built-in Ethernet: Modbus TCP, OPC UA server option
  • ▪ Serial communication: RS-232/422/485 (optional module)
• Software & Engineering
  • ▪ GT Designer3 (GOT2000 version) – advanced screen design, scripting, recipes
  • ▪ Remote monitoring: VNC server, web server function

 Certifications & Compliance

• International Approvals
  • ▪ CE (Europe) – EMC & LVD compliant
  • ▪ UL & cUL (US & Canada) – safety certified
  • ▪ EAC (Eurasian conformity)
  • ▪ KC (Korea certification)
• Industrial Suitability
  • ▪ Suitable for heavy industrial environments, marine and factory automation

 Packaging & Logistics

• Box Contents
  • ▪ GT2308-VTBD main unit
  • ▪ Installation gasket & mounting brackets
  • ▪ Quick start manual (multilingual)
• Shipping & Warranty
  • ▪ 12 months warranty from shipment date
  • ▪ Dispatch: 12-24 hours (business days)
  • ▪ Express couriers: FedEx, UPS, DHL worldwide tracking

 Expert Review & Manager’s Insight

• Field Engineer Perspective
  • ▪ “The 8.4” VGA screen offers ideal readability without occupying excessive panel space. The 50,000-hour LED backlight reduces lifecycle downtime.”
  • ▪ “IP67F front makes it suitable for food & beverage washdowns, while 24V DC simplifies integration into existing control cabinets.”
• Product Manager Insight
  • ▪ “GT2308-VTBD balances cost and performance – 9MB RAM/ROM handles complex projects, SD card slot future-proofs data logging.”
  • ▪ “Seamless with GOT2000 ecosystem, and robust against electrical noise; a top choice for automotive lines and packaging machinery.”

 Suitable Devices & Application Scenarios

• Key Applications
  • ▪ Machine operation panels – CNC, injection molding, printing presses
  • ▪ Process monitoring – water treatment, chemical batch control
  • ▪ Production line HMIs – packaging, automotive assembly, material handling
  • ▪ Remote data logging & recipe management in food/pharma
• Compatible Equipment
  • ▪ Mitsubishi PLCs (iQ-R, iQ-F, Q, FX, L series)
  • ▪ Third-party PLCs: Siemens S7 via Ethernet, Allen-Bradley DF1, Modbus devices
  • ▪ Sensors & instruments: integrate with 3300 XL 8 mm Extended Temperature Range (ETR) Proximity Probes for turbine monitoring

 Frequently Asked Questions (FAQ)

• What is the main advantage of GT2308-VTBD over smaller GOT terminals?
  Larger 8.4” VGA screen gives better visibility for complex layouts; IP67F front adds washdown protection; 24V DC power matches most industrial panels.
• Can I use this HMI with non-Mitsubishi PLCs?
  Yes. Supports Modbus TCP/RTU, Ethernet/IP, and third-party drivers via GT Designer3; works with Siemens, Rockwell, and Omron.
• How to update firmware or transfer projects without PC at site?
  Use SD card slot – copy project files to SD card, insert, and boot; auto-update simplifies field maintenance.
• Is the backlight field-replaceable?
  No. The LED backlight is non-replaceable but rated for 50,000 hours continuous use (approx 5.7 years). After that, replacement unit is recommended.
• Experience-based: does the touchscreen work with gloves?
  Yes, resistive touch works with standard industrial gloves (nitrile, cotton, leather). No capacitive interference.
• What software do I need to design screens?
  Mitsubishi GT Designer3 (GOT2000 version). Supports object library, alarm manager, recipe functions, and ladder monitor.
• Buying guide: which GOT2000 model for mid-size applications?
  Choose GT2308-VTBD if you need 8.4” VGA, rugged IP67 front, 9MB memory, and SD card. For larger 10” or higher processing, consider GT27 series; for compact 5.7” choose GT21.
• Can I monitor the HMI remotely from a smartphone?
  Yes, via Ethernet and VNC server function – remote viewing and operation using any VNC client.
• What is the temperature range for reliable operation?
  Ambient 0 to +55°C. Avoid direct sunlight; internal control panel must maintain ventilation.

 Contact & Order Support

• ▪ Email: sales@powergearx.com for volume pricing and technical queries
• ▪ WhatsApp: +86 18030005825 – instant support
• ▪ Express shipping: FedEx, UPS, DHL – worldwide delivery within 2-5 business days after dispatch

For precision machine monitoring, pair GT2308-VTBD with 3300 XL 8 mm Extended Temperature Range (ETR) Proximity Probes to visualize vibration and position data directly on your HMI.
