FX1N-40MT-001 | Mitsubishi FX1N Series PLC with 100kHz Pulse Output for Servo Control

Product Overview

The Mitsubishi FX1N-40MT-001 is a transistor output PLC from the FX1N series.
It offers 24 inputs and 16 outputs with sink output format.
Built-in high-speed counters and 100kHz pulse outputs support servo and stepper motor control.
Reliable, expandable, and ready for small to mid-size automation tasks.

Technical Specifications

• Brand & Model
  • Manufacturer: Mitsubishi Electric
  • Series: FX1N Series
  • Model: FX1N-40MT-001
  • Type: Programmable Logic Controller (PLC)
  • Output Format: Transistor / Sink output
• Power Supply
  • Rated Voltage: AC100-240V
  • Allowable Range: AC85-264V
  • Rated Frequency: 50/60Hz
  • Power Consumption: 32W (includes input current)
  • DC24V Service Power: 400mA
• I/O Configuration
  • Total I/O Points: 40 points
  • Input Points: 24 points (sink format, DC24V)
  • Output Points: 16 points (transistor sink, 0.5A per point)
  • Max Expansion I/O: 128 points total
• Memory & Speed
  • Program Memory: 8,000 steps (EEPROM built-in)
  • Memory Cassette: FX1N-EEPROM-8L optional
  • Basic Instruction Speed: 0.55-0.7 µs per instruction
  • Application Instruction Speed: 3.7-100 µs per instruction
  • RUN During Write: Yes (change program while running)
• High-Speed Functions
  • Built-in Pulse Output: 2 axes up to 100kHz
  • Positioning Instructions: PLSY, PLSR, ZRN, PLSV, DRVI, DRVA
  • High-Speed Counters: 1-phase up to 60kHz, 2-phase up to 30kHz
• Device Memory (Partial)
  • Auxiliary Relay: 7,680 points (general + keep)
  • Timer: 320 points (100ms, 10ms, 1ms integration)
  • Counter: 235 points (16-bit, 32-bit, high-speed)
  • Data Register: 8,000 points (general + keep)
  • State: 1,000 points (initial + keep)
• Protection & Clock
  • Password Protection: 8-digit keyword
  • Real-Time Clock: Built-in (1980-2079, capacitor backup for 10 days)
  • Battery Option: Available for extended data retention
• Environmental & Physical
  • Operating Temperature: 0°C to 55°C
  • Storage Temperature: -20°C to 70°C
  • Relative Humidity: 35-85% RH (non-condensing)
  • Vibration Resistance: IEC61131-2 compliant
  • Noise Immunity: 1,000Vp-p, 1µs pulse
  • Withstand Voltage: AC1.5kV (power to ground)
  • Weight: 1.65 kg (shipping weight)

Expert Review & Manager’s Insight

Expert Review: The FX1N-40MT-001 delivers reliable motion control with its 100kHz pulse outputs.
High-speed counters handle precise positioning tasks.
The EEPROM memory needs no battery for program storage.
A solid choice for applications requiring transistor outputs and servo control.

Manager’s Insight: This PLC reduces downtime with RUN-time program editing.
The built-in real-time clock and capacitor backup keep data safe for 10 days without power.
Quick 12-24 hour shipping and 12-month warranty ensure project continuity.
Perfect for small machines needing high-speed output capability.

Suitable Devices & Applications

• Suitable Devices
  • Servo motor drives
  • Stepper motor controllers
  • Small packaging machines
  • Assembly equipment
  • Textile machinery
  • Conveyor systems
• Application Scenarios
  • Positioning control with pulse output
  • High-speed counting and measurement
  • Small-scale factory automation
  • Machine tool control
  • CC-Link remote I/O networks

Frequently Asked Questions

• What power supply does FX1N-40MT-001 need?It operates on AC100-240V power. Power consumption is 32W. A 24V DC service power supply provides 400mA for sensors.
• Can this PLC control servo motors?Yes. It has two built-in 100kHz pulse outputs. Use positioning instructions like DRVI or PLSY to control servo or stepper drives.
• Does it keep data when power is off?EEPROM keeps the program. Capacitor backup holds keep relays, counters, and data registers for about 10 days without power. An optional battery is available for longer retention.
• Can I change the program while the PLC is running?Yes. The RUN During Write function lets you modify programs without stopping machine operation. This reduces downtime.
• What is the warranty and shipping policy?The FX1N-40MT-001 comes with a 12-month warranty. Orders ship within 12-24 hours via FedEx, UPS, or DHL.

Selection Guide

• Choose FX1N-40MT-001 if you need:
  • 40 I/O points with transistor sink outputs
  • Two 100kHz pulse outputs for motion control
  • High-speed counters up to 60kHz
  • EEPROM program memory with no battery needed
  • RUN-time program editing capability
• Consider other FX1N models for:
  • Different I/O point counts (14, 24, 60 points available)
  • Relay output versions for AC load switching
  • Source output transistor configurations

Package Contents

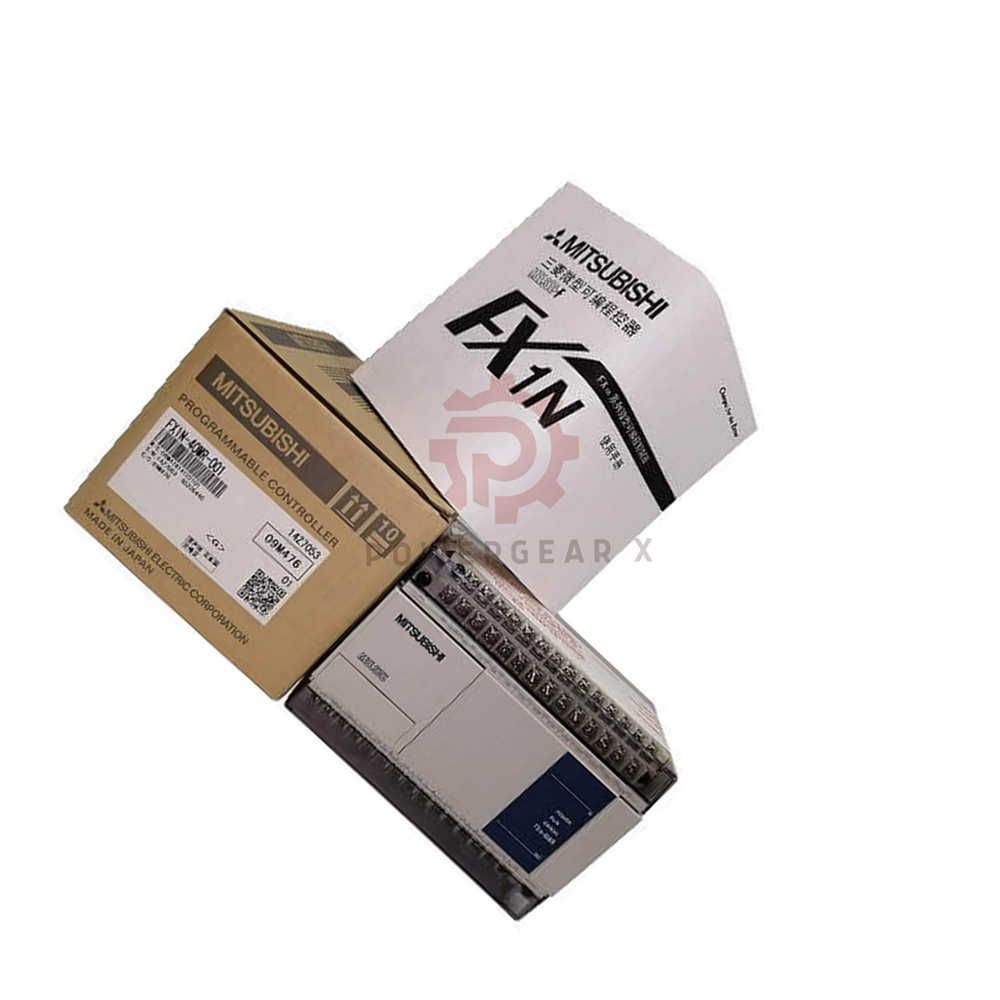

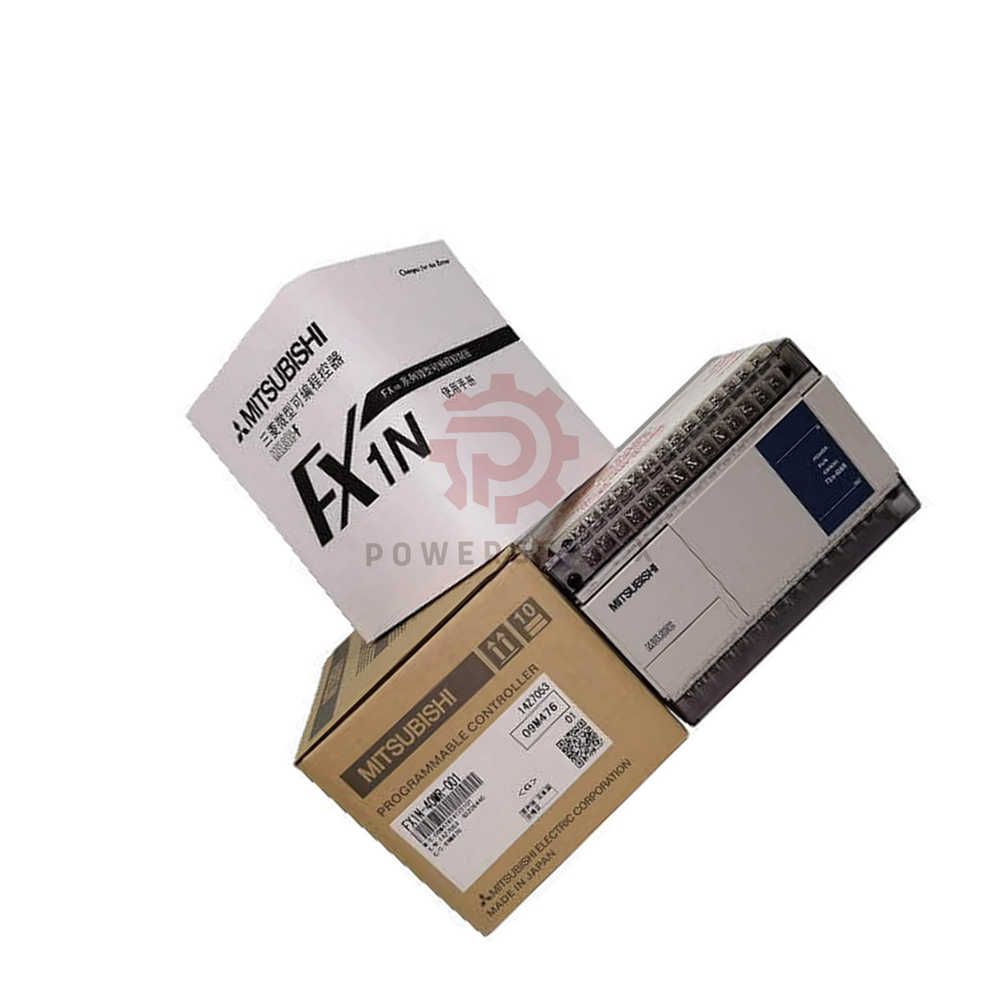

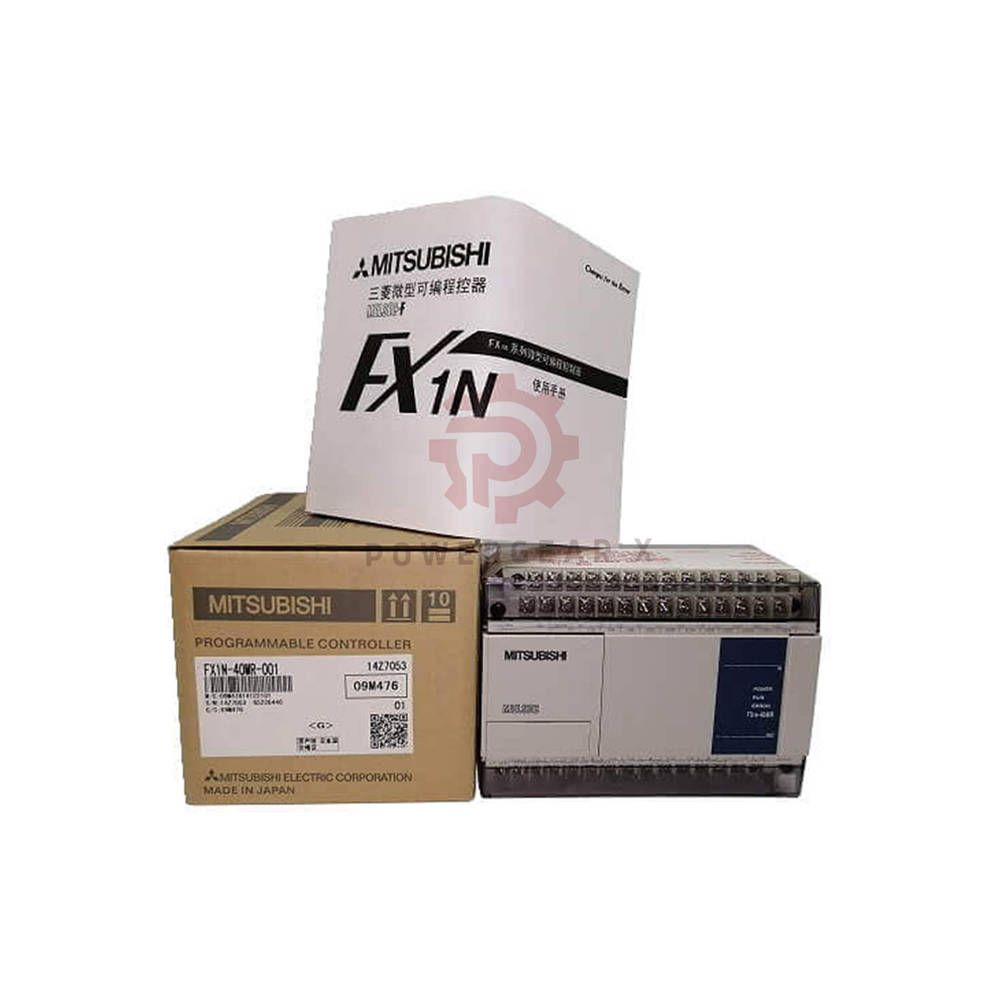

• FX1N-40MT-001 main unit ×1
• Removable terminal blocks (input and output)
• Quick start guide
• Mounting hardware
