Product details

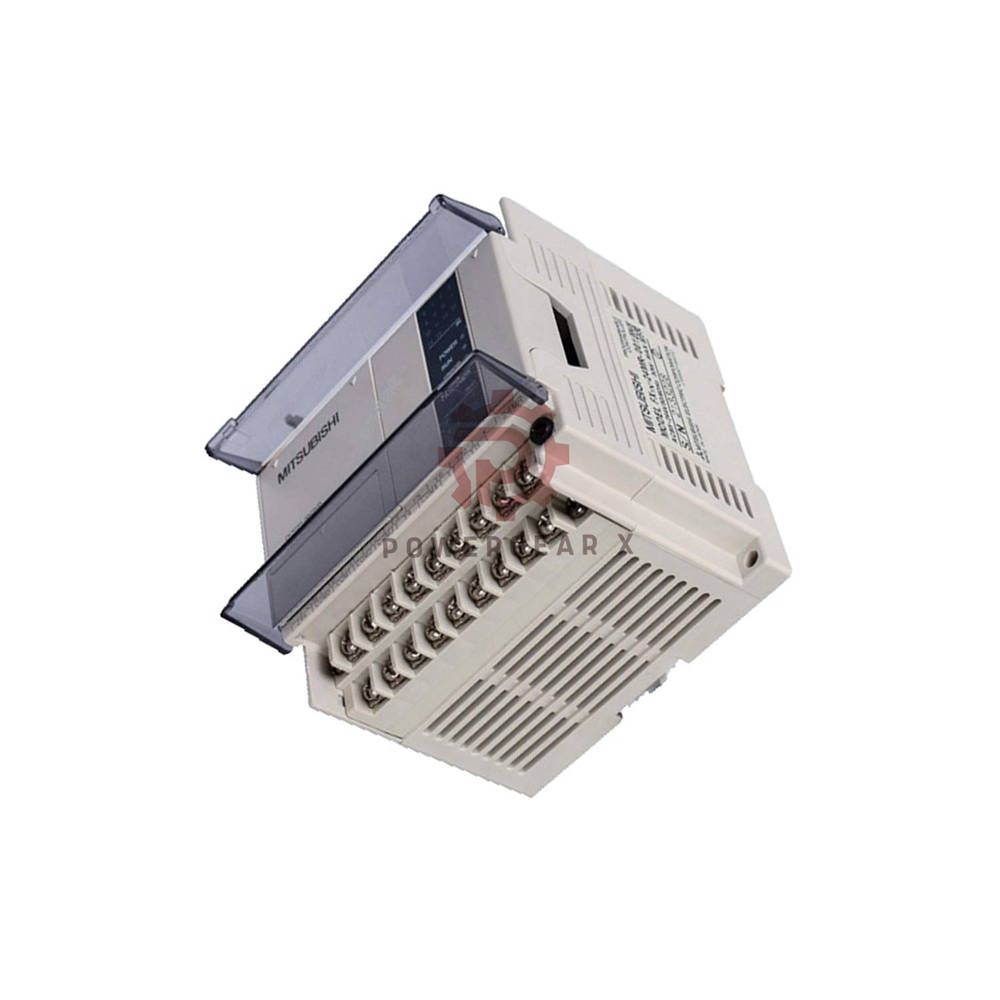

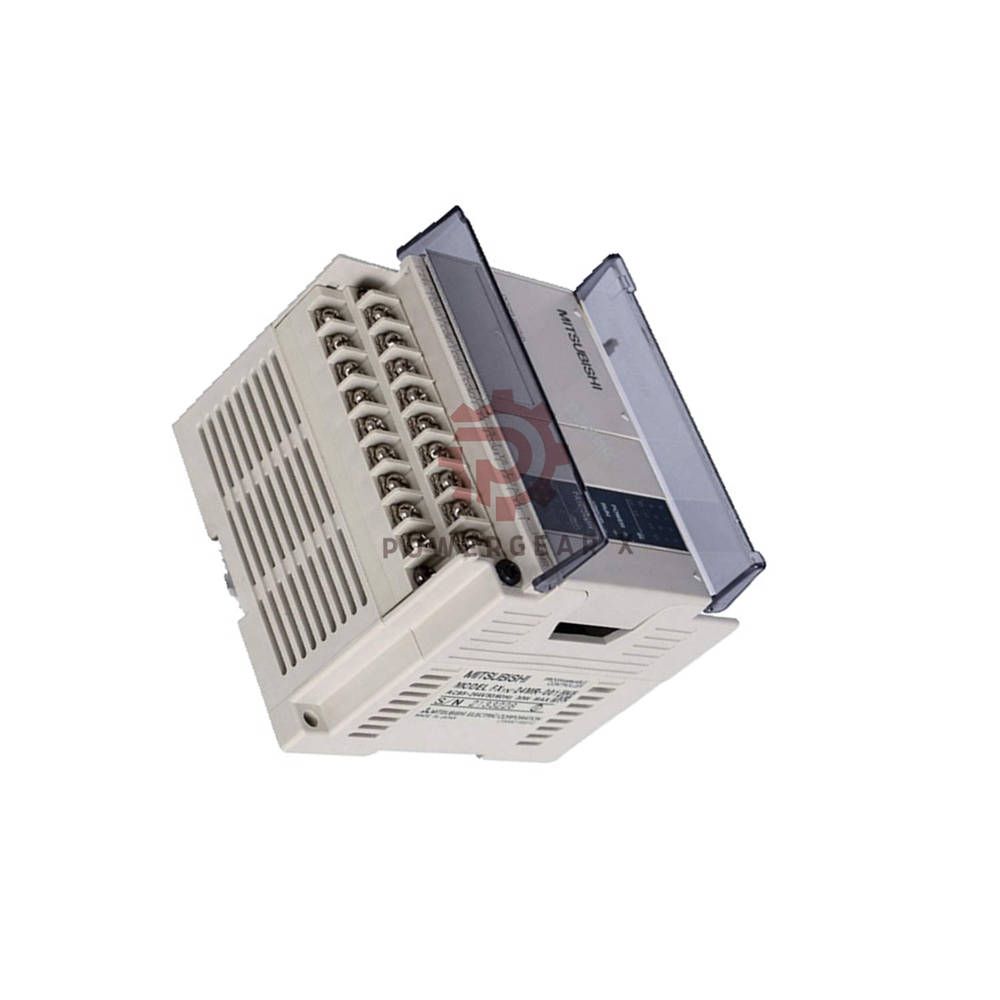

FX1N-24MT-001 – Mitsubishi FX1N Series PLC
Compact PLC with 24 I/O points. Built-in high-speed counters and pulse outputs. Reliable for small to medium automation.
✔ Product Overview – Core Capabilities
- Mitsubishi FX1N Series
- Model: FX1N-24MT-001
- Type: Programmable Logic Controller (Main Unit)
- Series: FX1N – compact and expandable
- I/O Configuration
- Total I/O points: 24
- Input points: 14 (24 VDC, sink type)
- Output points: 10 (transistor, sink output)
- Expandable up to 128 I/O points total
- Power Supply
- Rated voltage: DC12-24V
- Allowable range: DC10.2-28.8V
- Power consumption: 15W
- Momentary power failure: continues operation under 5ms
- Memory & Performance
- Program memory: 8,000 steps (EEPROM)
- Basic instruction speed: 0.55-0.7 µs
- Application instruction speed: 3.7-100 µs
- RUN during write: Yes – change program while running
- Password protection via keyword function
- Built-in Clock & Backup
- Real-time clock built-in (1980-2079, leap year corrected)
- Large capacitor backup: holds time for 10 days after 30 min charge
- Optional battery available for extended backup
- Built-in High Performance Features
- High-speed counters: up to 60kHz (1-phase), 30kHz (2-phase)
- 2-axis independent pulse output up to 100kHz
- Positioning instructions: PLSY, PLSR, ZRN, DRVI, DRVA
- Two built-in analog volume adjustments (VR1, VR2)
⚙ Technical Specifications – Key Data
- Identification
- Brand: Mitsubishi Electric
- Series: FX1N
- Model: FX1N-24MT-001
- Shipping weight: 1.45 kg
- Input Specifications
- Number: 14 points (expandable to 128)
- Voltage: DC24V ±10%
- Format: Sink type (NPN)
- Input impedance: X000-X007: 3.3kΩ, X010+: 4.3kΩ
- Response time: approx. 10ms (adjustable digital filter on X000-X007)
- Output Specifications
- Number: 10 points (expandable to 128)
- Type: Transistor / sink output
- External power: DC5-30V
- Load per point: 0.5A resistive, 12W inductive (DC24V)
- Response time: Y000/Y001: 5µs; others: 0.2ms
- High-Speed Counter & Positioning
- 1-phase 1-count: up to 60kHz (C235-C236)
- 1-phase 2-count: up to 60kHz (C246)
- 2-phase 2-count: up to 30kHz (C251)
- Built-in pulse output: 2-axis independent, max 100kHz
- Positioning instructions: DRVI, DRVA, PLSV, ZRN, PLSY, PLSR
- Environmental & Durability
- Operating temperature: 0 to 55°C
- Storage temperature: -20 to 70°C
- Humidity: 35-85% RH (non-condensing)
- Vibration resistance: IEC61131-2 compliant
- Noise immunity: 1,000Vp-p, 1µs pulse
- Protection class: IP10 (panel mount)
- Device Capacity Highlights
- Auxiliary relays: 1,536 points (with keep areas)
- Timers: 256 points (100ms, 10ms, 1ms integration types)
- Counters: 235 points (16-bit, 32-bit, high-speed)
- Data registers: 8,000 points (D0-D7999)
- Extended registers: up to 24,000 points
🧑🔧 Expert Review – Reliable Workhorse for Motion Control
“Great for small positioning tasks.” The FX1N-24MT-001 delivers 100kHz pulse output and high-speed counters. Easy to program with GX Works2. Built-in clock and capacitor backup add reliability. Perfect for simple axis control.
– Controls Engineer, Powergear X
💼 Manager’s Insight – Cost-Effective & Expandable
Choose FX1N-24MT-001 for budget-friendly automation. Expandable to 128 I/O. Built-in positioning reduces need for extra modules. Long-term reliability with EEPROM memory and capacitor backup.
– Product Manager, Powergear X
🏭 Compatible Equipment & Applications
- Ideal Applications
- Small conveyor systems
- Packaging machines with positioning
- Labeling equipment
- Simple CNC auxiliary controls
- Textile machinery
- Automated testing equipment
- Compatible Components
- Expansion modules: I/O, analog, temperature, communication
- CC-Link remote I/O modules
- Memory cassette: FX1N-EEPROM-8L (8,000 steps)
- HMI: Mitsubishi GOT series, third-party HMIs via RS422
- Drives: Mitsubishi inverters and servo systems
- Programming software: GX Works2, GX Developer
❓ Frequently Asked Questions
What is the maximum pulse output frequency?
Up to 100kHz for 2-axis independent pulse output. Perfect for stepper and servo control.
How does the capacitor backup work?
After 30 minutes of power-on, capacitor holds data and clock for about 10 days. Optional battery available.
Can I change the program while PLC is running?
Yes. RUN during write function allows program changes without stopping operation.
What is the warranty period?
12 months limited warranty covers manufacturing defects. Full technical support included.
How fast is shipping?
Orders ship within 12-24 hours after confirmation. We use FedEx, UPS, and DHL worldwide.
Buying guide – Which PLC for simple positioning with high-speed counting?
FX1N-24MT-001 is ideal. Built-in 100kHz pulse output and 60kHz high-speed counters save cost on extra modules.
Experience-based Q&A – How to maintain capacitor keep devices after long storage?
Initialize capacitor keep devices before first use after long storage. Power on for 30 minutes to fully charge backup capacitor.
