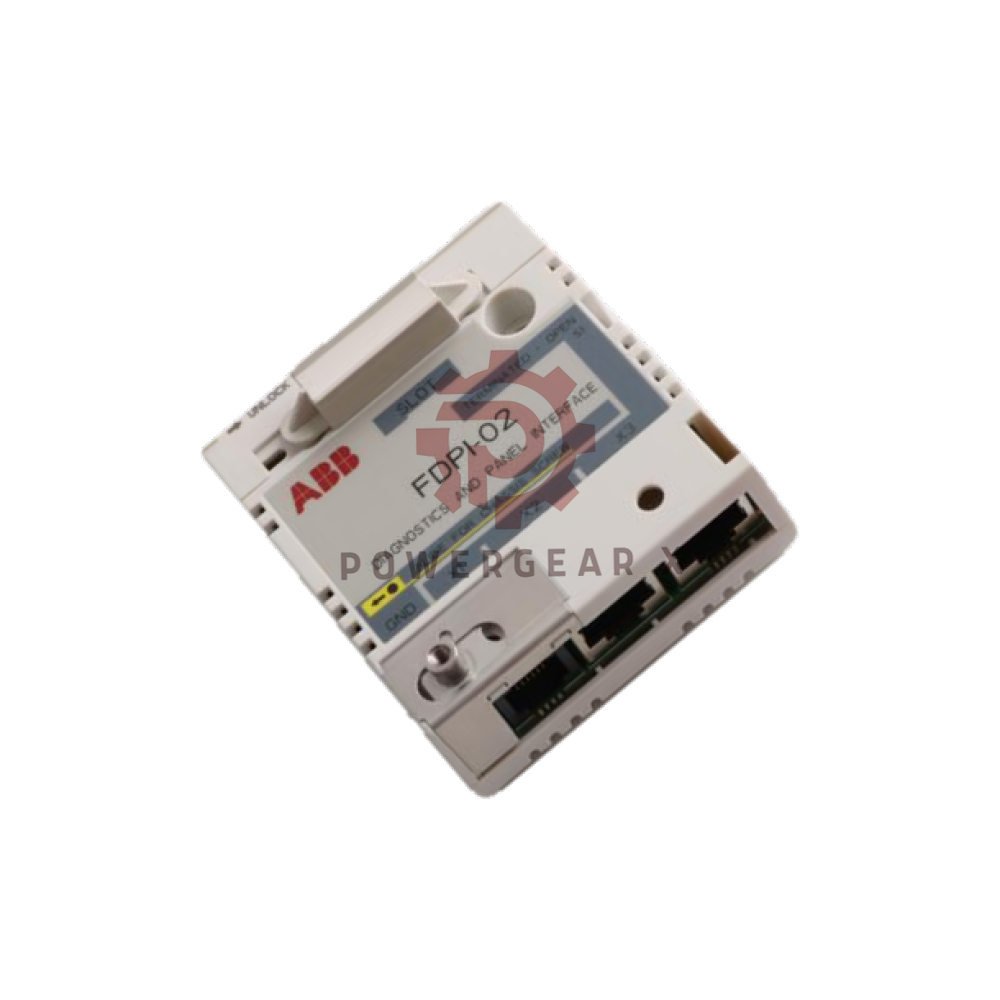

ABB FDPI-02 Panel Bus Adapter Kit – Product Overview

The ABB FDPI-02 is a compact panel bus adapter kit. It connects control panels and PCs to ABB drives. The kit suits industrial environments. It supports fast, reliable communication.

The adapter uses a shielded RS-485 bus. It works as a panel bus or PC bus. You can connect up to 32 nodes. That includes panels, PCs, and drives. The unit has a built-in termination switch (S1) set to 120 ohms. It comes with a shielded CAT 5e or better Ethernet cable for the control unit link.

This kit delivers long-term value. The estimated lifetime is 20 years. The PCB is coated and uses UL-recognized materials. It meets EMC standard EN 61800-3:2004. The adapter saves wiring time. It also reduces installation errors.

Technical Data – ABB FDPI-02

• Brand: ABB
• Model: FDPI-02
• Product type: Panel bus adapter kit
• Bus type: RS-485 (PC bus or control panel bus)
• Max nodes: 32 (panel, PC, and drives)
• Cable type: Shielded CAT 5e or better Ethernet cable
• Termination: 120 ohms, switch S1 built in
• Operating temperature: +0 to +70 °C (+32 to +158 °F)
• Storage temperature: -40 to +70 °C (-104 to +158 °F)
• Maximum relative humidity: 95% (non-condensing)
• Degree of protection: IP20
• Connectors:
  • X1: 6-pin female connector to control unit (RJ-11)
  • X2: 8-pin shielded female connector to control panel (RJ-45)
  • X3: 8-pin shielded female connector to PC (RJ-45)
  • X100: 20-pin female connector to control unit (feed-through for F-type option)
  • X101: 20-pin male connector to small F-type option (feed-through)
• Estimated lifetime: 20 years
• PCB materials: UL recognized
• EMC standard: EN 61800-3:2004
• PCB coating: Coated
• Included cable: Only the cable between FDPI-02 and control unit is included

Installation Guide

• Mount the adapter in a dry, protected area. IP20 rating applies.
• Use the 6-pin RJ-11 cable to link X1 to the control unit.
• Connect the control panel to X2 (RJ-45).
• Connect a PC to X3 (RJ-45) when needed.
• Use X100 and X101 for F-type option feed-through.
• Set switch S1 to 120 ohms for bus termination.
• Keep cable runs short and shielded. Avoid noise sources.

Commissioning and Maintenance Convenience

• Clear labeling speeds up wiring and checks.
• Built-in termination switch cuts setup steps.
• Coated PCB resists dust and humidity.
• Long 20-year lifetime lowers replacement work.
• Standard RJ connectors make replacements easy.

Compatibility Notes

• Works with ABB drives that support the FDPI-02 panel bus adapter.
• Connects to ABB control panels and PCs through RJ-45 ports.
• Supports small F-type options via the 20-pin feed-through connectors.
• Requires shielded CAT 5e or better Ethernet cable for the bus.
• Only the control unit cable ships with the kit.

Certifications and Compliance

• EMC: EN 61800-3:2004
• PCB: UL recognized materials
• Protection: IP20
• Quality: Coated circuit board for longer life

Packing List and Warranty

• 1 x ABB FDPI-02 panel bus adapter kit
• 1 x cable between FDPI-02 and control unit
• Warranty: 12 months
• Dispatch time: 12–24 hours
• Shipping: FedEx, UPS, DHL

Expert Review

The ABB FDPI-02 is a practical choice for panel bus connections. It reduces wiring complexity. The built-in termination switch is a real time-saver. The 20-year lifetime and coated PCB show strong build quality. For system integrators, this kit offers a reliable bridge between drives, panels, and PCs.

Manager’s Insight

This adapter kit fits well in retrofit and new-build projects. It helps engineers standardize panel connections. The IP20 rating suits cabinet use. The wide temperature range supports many industrial sites. Stock this kit for fast service and fewer installation delays.

Suitable Equipment and Applications

• ABB drives with FDPI-02 support
• Industrial control panels
• PC-based drive configuration and monitoring
• F-type option integration in drive systems
• Factory automation and process control cabinets

FAQ

Q: What is the ABB FDPI-02 used for?
A: It connects control panels and PCs to ABB drives over an RS-485 bus. It also supports F-type option feed-through.

Q: How many nodes can the bus support?
A: Up to 32 nodes. This includes panels, PCs, and drives.

Q: Does the kit include the bus cable?
A: Only the cable between the FDPI-02 and the control unit is included. You must supply the shielded CAT 5e or better Ethernet cable for the bus.

Q: What is the termination setting?
A: The built-in switch S1 sets termination to 120 ohms.

Q: What is the operating temperature range?
A: The range is +0 to +70 °C (+32 to +158 °F).

Q: What is the degree of protection?
A: IP20. Install the adapter in a protected cabinet.

Q: How long is the estimated lifetime?
A: 20 years under normal conditions.

Q: What warranty and shipping options are available?
A: The kit has a 12-month warranty. We dispatch in 12–24 hours via FedEx, UPS, or DHL.

Q: Can I use this kit with non-ABB drives?
A: No. The FDPI-02 is designed for ABB drives and their control units.

Q: What should I check before buying?
A: Confirm your drive supports the FDPI-02 adapter. Check the panel and PC port types (RJ-45, RJ-11). Verify the bus length and node count. Also confirm you have shielded CAT 5e cable.

Buying Guide

• Check the drive model for FDPI-02 compatibility.
• Count your bus nodes. Keep total at or below 32.
• Use shielded CAT 5e or better cable for stable data.
• Set termination only on end nodes.
• Confirm cabinet space and IP20 protection needs.
• Order spare cables if the control unit is far from the adapter.
