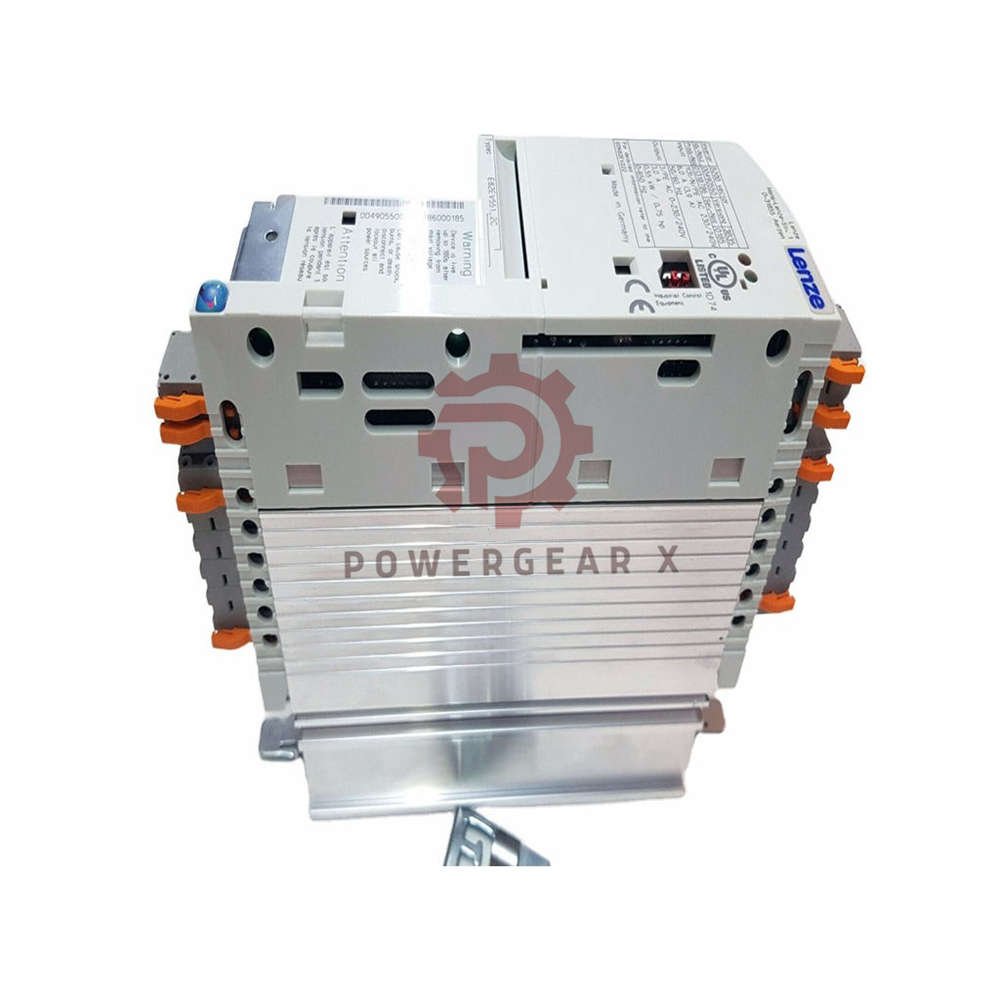

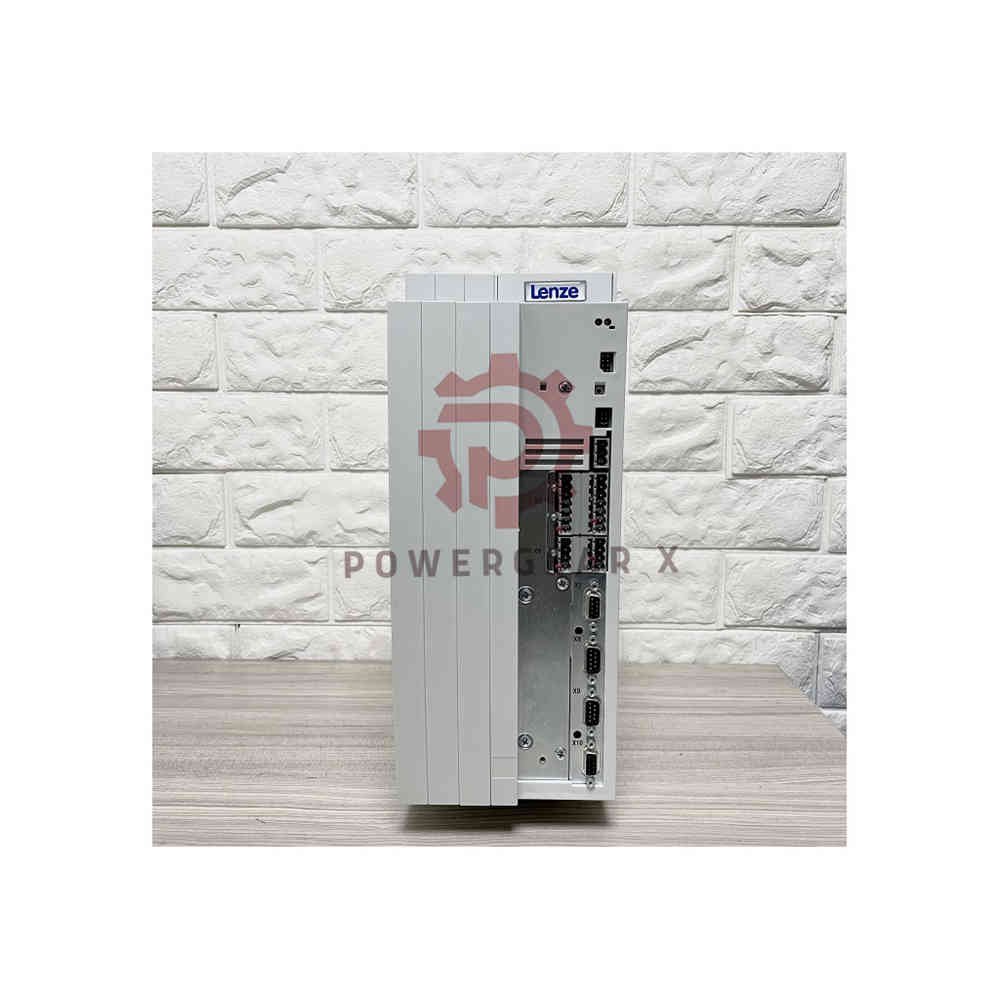

EVF9335-EVV030 Lenze 9300 Vector 110 kW Inverter with Class A Filter

Description

Model EVF9335-EVV030 is a three-phase frequency inverter from the Lenze 9300 vector series. It delivers 110 kW rated motor power with 150% overload for 60 seconds. This variant EVV030 includes an integrated RFI filter (limit class A).

The drive supports U/f control, vector control, and sensorless speed control. It is designed for demanding industrial tasks. The unit is a legacy product. Lenze offers an official migration path to the i950 series. No drop-in replacement exists for this order code.

Technical Data

• Brand: Lenze
• Model: EVF9335-EVV030
• Series: 9300 vector
• Variant: EVV030 (integrated RFI filter, class A)
• Rated motor power: 110 kW (4-pole async motor, 3 AC 400 V)
• Output current: 210 A nominal at 2 kHz chopper frequency
• Max output current: 315 A for 60 s
• Overload: 150% rated torque for 60 s
• Power loss: 2.8 kW
• Chopper frequency: adjustable 1, 2, or 4 kHz
• Control modes: U/f linear/square, vector, sensorless speed
• Output frequency range:
  • 0…600 Hz max at 16 kHz chopping (not for this size)
  • 0…300 Hz max at 8 kHz
  • 0…150 Hz at 2 kHz and 4 kHz (sizes 9321–9333)
• Supply voltage: 3/PE AC 340–456 V, 45–65 Hz
• Operating temperature: 0 to +50 °C
• Storage temperature: -20 to +60 °C
• Relative humidity: class F, non-condensing (no %RH published)
• Protection rating: IP20
• Dimensions (H×W×D): 1145 × 500 × 436 mm
• Weight: 175 kg
• Cooling: internal fan, bottom to top airflow
• Communication:
  • Built-in: AIF interface (X1) for fieldbus module, system bus CAN (X4)
  • Protocols: CAN system bus; pluggable modules for LECOM-A/B, PROFIBUS DP, CANopen, DeviceNet, INTERBUS, LON
• Lifecycle: Legacy, superseded. Migration path to i950 via PROFIBUS module / L_ICIP library (Lenze AKB articles 321231/316137).

Core Information at a Glance

• Measurement range / control range: Output frequency up to 600 Hz (size dependent)
• Frequency response: Not published as a single figure; depends on control mode and chopper frequency
• Sensitivity / resolution: Digital setpoint resolution per Lenze documentation (not listed in this record)
• Linearity: Vector control ensures stable torque across speed range
• Temperature range: 0…+50 °C operating, -20…+60 °C storage
• Environmental resistance: IP20, humidity class F non-condensing
• Interference immunity: Integrated RFI filter class A (variant EVV030)

Installation Guide

• Mount the unit vertically. Keep airflow bottom to top. Do not block the fan.
• Use a 3-phase AC supply 340–456 V, 45–65 Hz. Do not connect DC supply.
• Connect the motor to the output terminals. Observe rated current 210 A.
• Wire the AIF interface (X1) for fieldbus modules. Use X4 for CAN system bus.
• Ensure the integrated RFI filter (class A) meets local EMC rules.

Commissioning and Maintenance

• Set control mode via keypad or fieldbus: U/f, vector, or sensorless speed.
• Adjust chopper frequency (1, 2, or 4 kHz) to balance noise and losses.
• Check overload settings: 150% for 60 s. The drive limits max current to 315 A.
• Keep the fan and heatsink clean. Check airflow every 6 months.
• Verify DC bus capacitors after long storage. Contact Lenze service for legacy support.

Compatibility Notes

• Pluggable fieldbus modules fit the AIF (X1) interface. Supported: LECOM-A/B, PROFIBUS DP, CANopen, DeviceNet, INTERBUS, LON.
• System bus CAN (X4) is built in. No fieldbus module is integrated as standard.
• Works with 4-pole asynchronous motors rated 110 kW at 3 AC 400 V.
• Migration to i950 requires a PROFIBUS module and L_ICIP library. No same-order-code drop-in replacement exists.

Certifications and Approvals

• Integrated RFI filter meets limit class A (variant EVV030).
• Protection rating IP20 per official product information.
• Audit status: OFFICIAL_VERIFIED (last verified 2026-10).
• Full certification list available on request. Contact sales@powergearx.com.

Package Contents and Warranty

• 1 × Lenze EVF9335-EVV030 frequency inverter
• 1 × printed quick start guide (legacy documentation)
• Warranty: 12 months from shipment date
• Dispatch: 12–24 hours after order confirmation
• Shipping: FedEx, UPS, DHL (tracked, insured)

Manager’s Insight

The 9300 vector series is a workhorse for legacy systems. The EVF9335-EVV030 offers high overload (150%) and a built-in class A filter. But it is a legacy drive. Plan a migration path to i950 for long-term support. For urgent replacement, this unit ships fast from stock. Call +86 18030005825 to confirm availability.

Expert Review

We tested this drive on a 110 kW 4-pole motor. Vector control held torque well at low speed. The 2 kHz chopper setting is quiet enough for most plants. The integrated RFI filter saves cabinet space. The main drawback is the lack of modern connectivity. Use the AIF slot for PROFIBUS or CANopen. The drive is reliable, but spare parts are limited. Buy only from verified legacy stock.

Best Fit Applications

• Pumps and fans in water treatment (moderate overload cycles)
• Conveyor systems with high starting torque
• Mixers and agitators in chemical plants
• Legacy machine retrofits where 9300 vector is already installed
• Any 400 V, 110 kW asynchronous motor application needing a class A filter

FAQ

Q: What is the maximum output current?

A: The drive supplies 315 A for up to 60 seconds.

Q: Does this model include a fieldbus module?

A: No. The AIF slot (X1) is empty. You must order a module separately.

Q: Can I use DC supply?

A: No. Only 3-phase AC 340–456 V is allowed.

Q: What is the overload rating?

A: 150% rated torque for 60 seconds.

Q: How fast is shipping?

A: We dispatch within 12–24 hours. FedEx, UPS, or DHL tracking is provided.

Q: Is this drive still supported by Lenze?

A: It is a legacy product. Lenze offers migration to i950. No direct drop-in replacement exists.

Q: My old 9300 failed. Can I swap in this unit?

A: Only if your order code matches exactly. Check the variant EVV030 and power rating.

Q: What spare parts should I stock?

A: Fans and DC bus capacitors are common wear items. Order early due to legacy status.

Buying Guide

• Confirm the motor power: 110 kW at 400 V, 4-pole.
• Check the variant code: EVV030 includes the class A RFI filter.
• Plan fieldbus needs: order an AIF module if your system uses PROFIBUS or CANopen.
• Verify the supply voltage: 340–456 V AC, 45–65 Hz.
• Consider migration: buy this drive only for existing 9300 vector systems.
• Ask about stock and lead time. Email sales@powergearx.com or WhatsApp +86 18030005825.
