EVF8245-E Lenze 8200 Inverter – 5.5 kW, 150% Overload, FTC Control

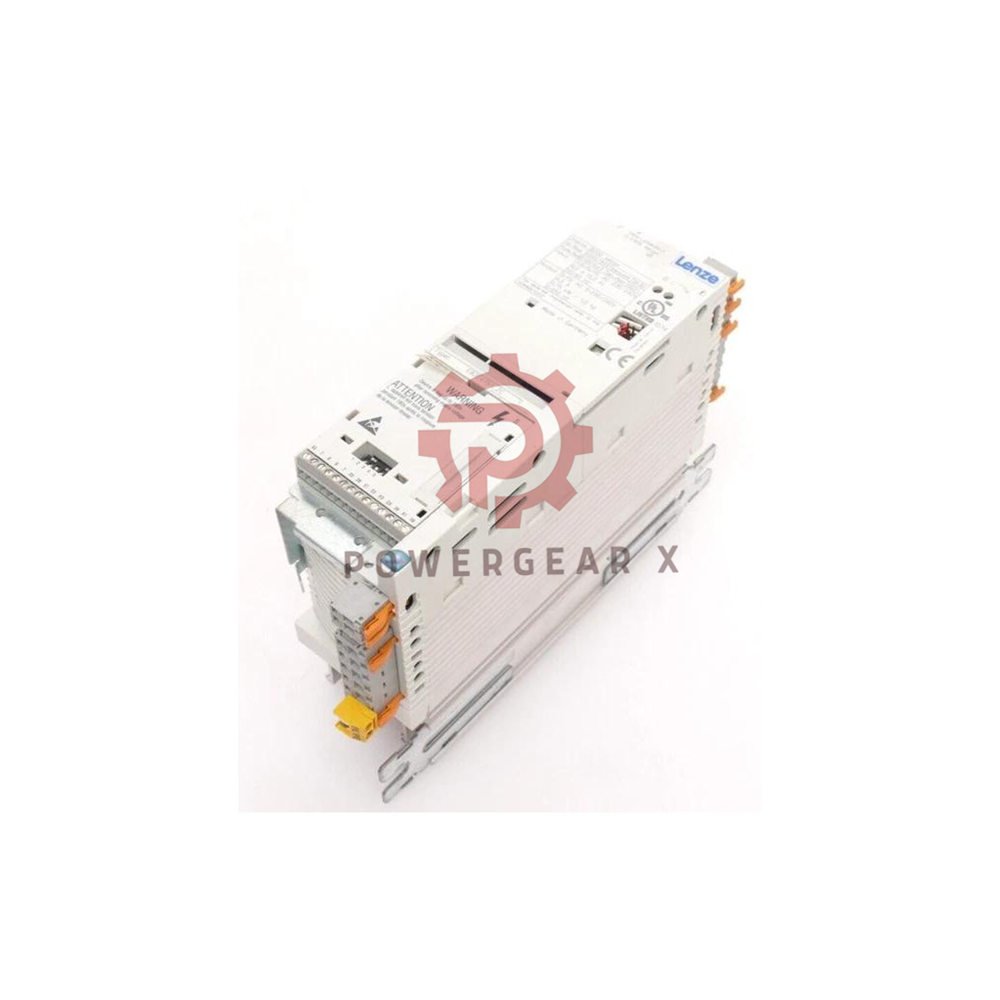

EVF8245-E Frequency Inverter by Lenze – 8200 Series

Model EVF8245-E is a three-phase frequency inverter from the Lenze Global Drive 8200 family. It delivers reliable motor control for standard industrial applications. The design supports 150% overload for 60 seconds. This makes it suitable for demanding load cycles. The unit offers V/f control with auto boost and selectable Flux Torque Control (FTC). It is a proven solution for legacy and replacement projects.

Technical Data

• Brand: Lenze
• Model: EVF8245-E
• Series: 8200 (8240 range)
• Rated motor power: 5.5 kW (4-pole asynchronous motor, 3 AC 400 V)
• Output current: 13.0 A nominal at 8 kHz chopper frequency
• Max. output current: 19.5 A for 60 s (150% overload)
• Output power: 9.0 kVA nominal
• Chopper frequency: Adjustable 4, 8, 12 or 16 kHz
• Control method: V/f characteristic with auto boost; Flux Torque Control (FTC) selectable
• Supply voltage: 3/PE AC 320 to 528 V, 45 to 65 Hz; DC supply 460 to 740 V DC
• Power loss (Ploss): 210 W (device heat dissipation)
• Operating temperature: 0 to +40 °C (up to +50 °C with 2.5% derating per K)
• Storage temperature: -25 to +55 °C
• Relative humidity: Average 85 % RH, without condensation (climatic class 3K3 per EN 50178)
• Protection rating: IP20
• Dimensions (H×W×D): 350 × 135 × 250 mm
• Weight: 7.5 kg

Communication and Expansion

• Built-in ports: Control terminals X1/X2 for setpoint and digital signals
• Communication module slot: Attachable module (e.g. LECOM, bus modules) – no integrated fieldbus as standard
• Protocol support: Pluggable host communication modules per official product information

Environmental and Installation Notes

• Temperature range: 0 to +40 °C standard; +40 to +50 °C with 2.5% power derating per K
• Humidity tolerance: 85% RH average, no condensation (3K3 class)
• Protection: IP20 – install in a control cabinet
• Mounting: Vertical position with adequate clearance for heat dissipation
• Commissioning: Easy setup via control terminals; FTC mode selectable for better torque response
• Maintenance: Fan-free design reduces service needs; check terminal tightness periodically

Compatibility and Certification

• Motor compatibility: Designed for 3-phase asynchronous motors (4-pole, 400 V)
• Fieldbus options: Works with Lenze communication modules (LECOM, bus modules)
• Standards: Climatic class 3K3 per EN 50178; IP20 protection
• Lifecycle status: Legacy product – superseded by newer Lenze drive generations (Last verified: 2026-10)

Expert Review

The EVF8245-E is a robust choice for standard pump, fan, and conveyor applications. Its 150% overload capacity handles peak loads well. The selectable FTC mode improves torque stability at low speeds. As a legacy model, it is ideal for maintenance and spare-part replacement. New designs should consider newer Lenze series. For urgent needs, Powergear X offers fast dispatch.

Manager’s Insight

This inverter balances proven reliability with flexible communication options. The pluggable module slot lets you adapt to different fieldbuses without replacing the drive. The wide voltage range (320–528 V AC) supports global installations. For legacy systems, the EVF8245-E reduces downtime because it matches existing wiring and parameters.

Best Suited Devices and Applications

• Pumps and fans – variable torque loads benefit from V/f control
• Conveyors and material handling – stable torque with FTC mode
• Legacy machine retrofits – drop-in replacement in 8200 series cabinets
• Standard industrial drives – 5.5 kW motors at 400 V

FAQ

Q: What is the overload capacity?

A: 150% of rated output current for 60 seconds. This handles short-term peak loads.

Q: Can I use fieldbus communication?

A: Yes. The built-in slot accepts Lenze communication modules (LECOM or bus modules). No fieldbus is integrated as standard.

Q: How do I mount the inverter?

A: Install vertically in a control cabinet. Ensure clearance for airflow. IP20 rating requires a protected environment.

Q: Does it work with 50 Hz and 60 Hz supplies?

A: Yes. The supply frequency range is 45 to 65 Hz.

Q: What is the recommended ambient temperature?

A: 0 to +40 °C without derating. Above 40 °C up to 50 °C, derate 2.5% per K.

Q: Is this a current production model?

A: It is a legacy model, superseded by newer Lenze series. Stock may be limited. Contact us for availability.

Q: How fast is shipping?

A: We dispatch within 12–24 hours via FedEx, UPS, or DHL.

Buying Guide

• Check motor compatibility: Confirm your motor is 3-phase, 400 V, 4-pole, up to 5.5 kW.
• Verify supply voltage: 3×320–528 V AC or DC 460–740 V.
• Plan communication: Choose a Lenze module if you need fieldbus control.
• Consider replacement: For new designs, look at newer Lenze series. For legacy machines, the EVF8245-E saves engineering time.
• Order with confidence: 12-month warranty. Fast dispatch. Expert support available.

Packaging and Warranty

• Packaging list: Inverter unit, terminal covers, installation instructions (digital copy available).
• Warranty: 12 months from delivery date.
• Dispatch time: 12–24 hours after order confirmation.
• Courier options: FedEx, UPS, DHL.
