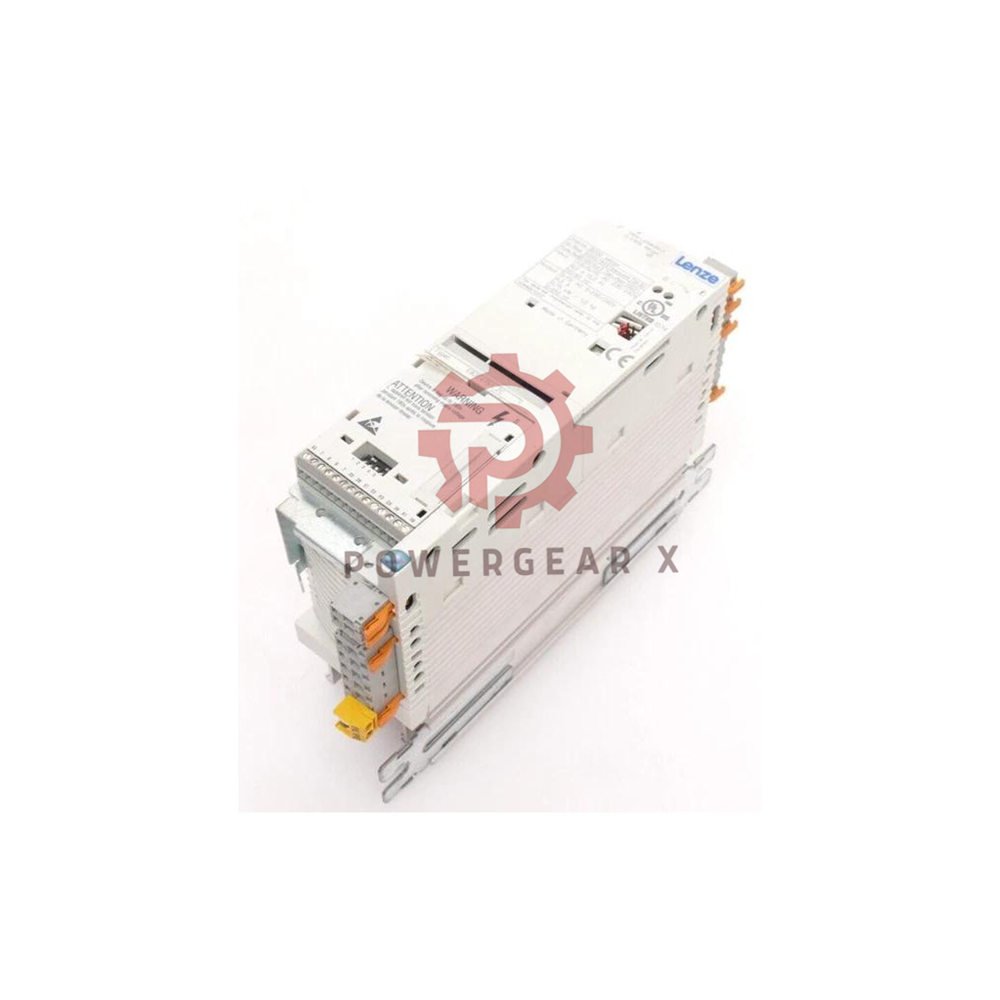

E82EV552K2C Lenze 8200 Vector Drive 22.5 A Panel Unit

E82EV552K2C Lenze 8200 Vector Inverter: A Proven 5.5 kW Drive for Legacy Machines

The E82EV552K2C is a panel-mounted frequency inverter from the Lenze 8200 vector series. It drives a 5.5 kW four-pole asynchronous motor. Engineers trust this unit for its simple setup and tough design. Lenze lists the 8200 vector as a previous product. The i950 series now replaces it. Lenze confirms the i950 copies 8200 vector behaviour through its PROFIBUS module and the L_ICIP library. No same-order-code drop-in exists. Plan a migration path if you stock this drive.

Why This Drive Still Matters

• Proven motor control covers V/f, vector, and sensorless torque modes.
• High overload headroom reaches 1.8 times rated torque for 60 seconds.
• Wide output range runs from 0 to 650 Hz.
• Simple panel mount fits tight cabinets at 240 x 125 x 140 mm.
• Clear migration route to the i950 keeps long-term support open.

Technical Specifications

• Brand: Lenze
• Model: E82EV552K2C
• Series: 8200 vector
• Rated motor power: 5.5 kW (4-pole three-phase asynchronous motor)
• Rated output current: 22.5 A at 8 kHz switching frequency
• Max output current: 33.8 A for 60 s (periodic load cycle)
• Overload capacity: 1.8 x rated torque for 60 s
• Switching frequency: 2 / 4 / 8 / 16 kHz, noise-optimised
• Output frequency range: 0 to 650 Hz
• Control modes: V/f linear, V/f quadratic, vector control, sensorless torque control
• Supply voltage: 1/N/PE or 3/PE AC 180 to 264 V, 230 V class, 45 to 65 Hz
• Power loss: 250 W at rated current and 8 kHz
• Operating temperature: -10 to +55 °C, derated 2.5 % per °C above +40 °C
• Storage temperature: -25 to +60 °C
• Humidity tolerance: average 85 % RH, no condensation, climatic class 3K3 per EN 50178
• Noise immunity: built for industrial cabinets per EN 50178 climate class
• Protection rating: IP20 per EN 60529; IP41 with push-through mounting
• Dimensions (H x W x D): 240 x 125 x 140 mm
• Weight: 3.6 kg
• Design variant: base order code, no trailing hardware or software digits

Communication and I/O

• Built-in terminals X3: digital inputs, analog input and output, relay output K1.
• Onboard fieldbus: none. No Ethernet, no integrated protocol.
• Expansion: plug-in option modules add fieldbus or extra I/O.
• Option modules: E82ZAFSC010 Standard I/O and E82ZAFAC010 Application I/O.

Installation Guide

• Mount the unit vertically on a panel. Keep the heat sink clear.
• Use push-through mounting to reach IP41 and separate heat flow.
• Wire supply to the 230 V class terminals. Check 1-phase or 3-phase links first.
• Connect motor cables to the output terminals. Keep cable runs short.
• Wire control signals to X3. Shield analog cables at one end.
• Derate output above +40 °C. Add 2.5 % derating per extra degree.

Setup and Maintenance

• Set motor data before the first run. Match rated current and frequency.
• Pick V/f for simple pumps and fans. Pick vector mode for torque loads.
• Raise switching frequency to 16 kHz for quieter motor operation.
• Check fan flow and terminal torque at each service visit.
• Clean heat sink fins when dust builds up.
• Log parameter sets. This speeds up replacement or migration.

Compatibility Notes

• Works with standard 5.5 kW four-pole asynchronous motors.
• Fits 230 V class supplies from 180 to 264 V.
• Accepts E82ZAF series plug-in I/O and fieldbus modules.
• No direct same-code successor. The i950 is the official migration target.
• i950 emulation needs the PROFIBUS module and the L_ICIP library.

Certifications and Standards

• Climatic class 3K3 per EN 50178.
• Protection rating IP20 per EN 60529.
• Lifecycle status: official Lenze previous product, verified October 2026.

Packing List and Warranty

• 1 x Lenze E82EV552K2C inverter.
• 1 x printed quick start guide.
• Warranty: 12 months.
• Dispatch: 12 to 24 hours after payment clears.
• Couriers: FedEx, UPS, and DHL.
• Order help: sales@powergearx.com or +86 18030005825 on WhatsApp.

Expert Review

The E82EV552K2C is a solid fit for older machines that already run 8200 vector drives. Its 1.8x overload burst handles heavy starts well. The missing onboard fieldbus is the main limit. Buyers should budget for an option module or plan the i950 swap. Stock spares now, because Lenze lists this family as previous product.

Manager’s Insight

We keep this model for maintenance teams that cannot re-engineer a line. Lead times stay short at 12 to 24 hours. Confirm your motor current before ordering. Check the option module needs early. That step avoids surprise costs. Reach us at sales@powergearx.com for a fit check.

Best Applications

• Conveyors and transport lines.
• Pumps and fans with variable flow.
• Packaging and handling machines.
• Mixers and agitators with high breakaway torque.
• Retrofit projects on legacy 8200 vector panels.

FAQ

• Can I drop this drive into an old 8200 vector slot?
  Yes, if the old unit used the same order code. Check the nameplate first.
• Does it have a built-in fieldbus port?
  No. You need an E82ZAF option module for fieldbus links.
• What replaces this model long term?
  Lenze points to the i950. It copies 8200 vector behaviour with the right module and library.
• Will it run a 5.5 kW motor at full load in a hot cabinet?
  Yes up to +40 °C. Above that, derate 2.5 % per degree.
• How fast do you ship?
  Most orders leave in 12 to 24 hours by FedEx, UPS, or DHL.
• Do you offer technical help before purchase?
  Yes. Message +86 18030005825 on WhatsApp with your motor data.

Buying Guide

• Match rated motor current to 22.5 A before you buy.
• Confirm the supply is 230 V class, single or three phase.
• List the fieldbus you need. Add the right option module.
• Ask for the parameter file from the old drive. It saves setup time.
• Plan a spare unit for critical lines. This family is a previous product.
• Send questions to sales@powergearx.com for a fast reply.
