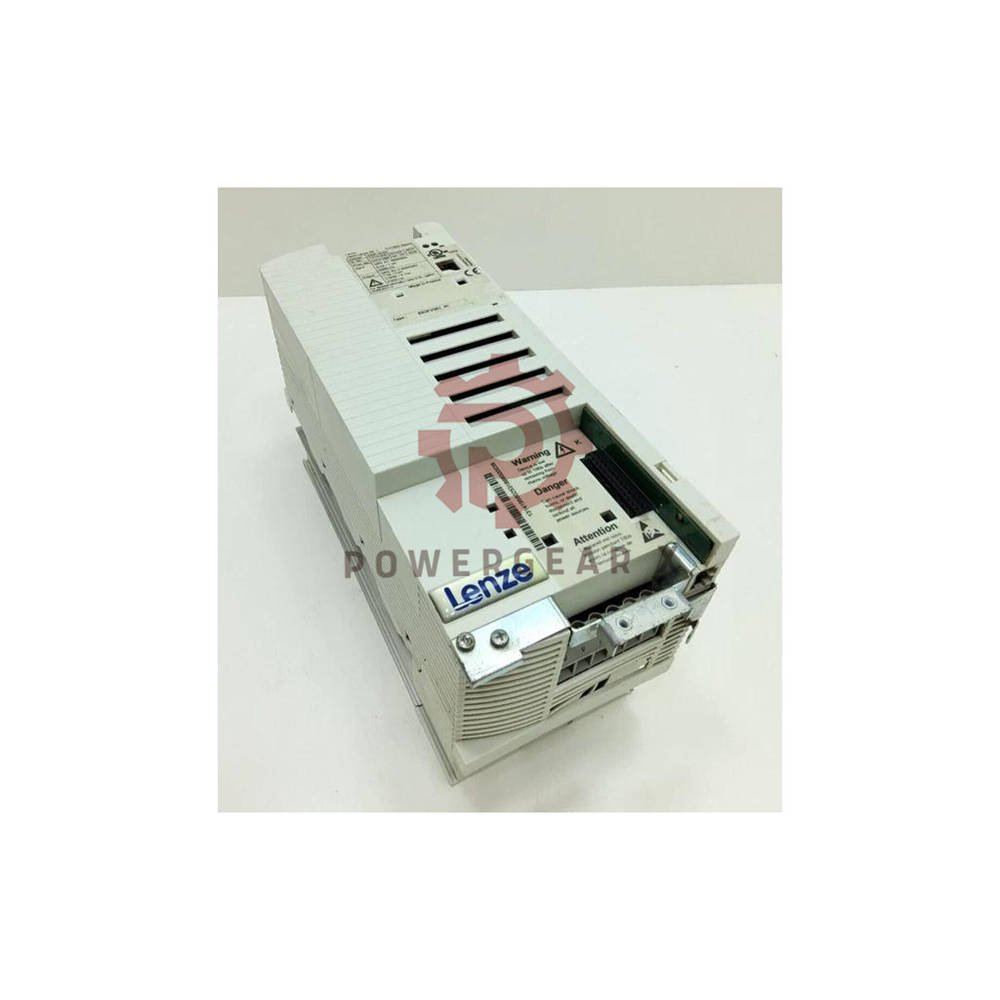

Name: E82EV302K2C200 Lenze 8200 vector 3.0 kW Inverter
SKU: E82EV302K2C200
Price: 214.00 USD
Availability: InStock

Product details

Product Overview

E82EV302K2C200 is a Lenze 8200 vector frequency inverter. It drives a 3.0 kW motor with 12.0 A rated output. This unit is a proven workhorse for industrial speed control. It offers vector control for stable torque. The 230 V class suits single-phase or three-phase mains. A built-in brake transistor saves wiring time. You get 0…650 Hz output for flexible motion tasks. The IP20 housing fits inside standard cabinets. This model is a legacy product, and Lenze confirms a migration path to the i950 series.

Key Benefits

Strong overload: 1.8 x rated torque for 60 s handles tough starts.
Flexible switching: 2/4/8/16 kHz selectable, 8 kHz from factory.
Built-in chopper: Brake transistor included up to 11 kW.
Serial bus: RS232/485 port supports the Lenze system bus.
Fieldbus ready: add PROFIBUS DP, CANopen, DeviceNet, INTERBUS, or AS-Interface modules.
Wide frequency range: 0…650 Hz covers most motion profiles.

Technical Data

Brand: Lenze
Model: E82EV302K2C200
Series: 8200 vector
Module type: built-in vector-controlled frequency inverter
Rated motor power: 3.0 kW (4-pole asynchronous motor)
Rated output current: 12.0 A at 8 kHz
Max output current: 18.0 A for 60 s
Output frequency: 0…650 Hz
Switching frequency: 2/4/8/16 kHz, factory 8 kHz
Mains voltage class: 230 V
Supply voltage: 1/N/PE 180…264 V AC, single-phase, 45…65 Hz
Three-phase option: 3/PE 100…264 V AC
DC supply: 260…370 V DC (not for E82EV251/371)
Power loss: 150 W at rated current / 8 kHz
Overload: 1.8 x rated torque for 60 s
EMC filter: without integrated EMC filter (C2xx variant)
Brake transistor: built-in, chopper up to 11 kW
Serial port: RS232/485 system bus
Protocols: Lenze system bus; fieldbus via plug-in modules
Expansion slots: 2 control interfaces (3 above 15 kW)
Operating temperature: -10…+55 °C; derate 2.5%/°C above +40 °C
Storage temperature: -25…+60 °C
Relative humidity: average 85 % RH, no condensation (3K3 per EN 50178)
Protection rating: IP20
Dimensions (H×W×D): 240 × 100 × 140 mm
Weight: 2.9 kg
Lifecycle: legacy product; Lenze lists it on its previous-products page
Migration path: i950 emulates 8200 vector behaviour via i950 PROFIBUS module / L_ICIP library (Lenze AKB 321231/316137)
Replacement note: no drop-in same-order-code replacement
Audit status: OFFICIAL_VERIFIED (last verified 2026-10)

Installation Guide

Mount the unit vertically inside a cabinet. Keep IP20 protection in mind.
Respect clearances for airflow. The 150 W power loss needs ventilation.
Connect mains per the 230 V class. Use the single-phase or three-phase option.
Wire the motor for 3.0 kW. Check 12.0 A rated current.
Use the built-in brake transistor for fast stops. Add an external resistor.
Add an external EMC filter. This variant has none inside.
Plug communication modules into the 2 slots before power-on.
Set the switching frequency to match cable length and noise limits.

Commissioning and Maintenance

Start with factory settings. The 8 kHz default suits most motors.
Run the motor identification routine. This tunes vector control.
Set overload limits below 1.8 x rated torque for 60 s.
Check the RS232/485 bus wiring for stable communication.
Clean the heatsink on a fixed schedule. Dust raises temperature fast.
Derate above +40 °C by 2.5%/°C to protect the unit.
Log parameter sets. This speeds up spare-part swaps.
Use the i950 migration path when planning a long-term upgrade.

Compatibility Notes

Works with 4-pole asynchronous motors at 3.0 kW.
Fits 230 V single-phase and three-phase mains.
Supports PROFIBUS DP, CANopen, DeviceNet, INTERBUS, and AS-Interface via modules.
Pairs with Lenze 8200 vector accessories and braking resistors.
No same-order-code replacement exists. Plan the i950 path for new builds.
The i950 PROFIBUS module and L_ICIP library emulate 8200 vector behaviour.

Certifications and Compliance

Climatic class 3K3 per EN 50178.
Protection rating IP20.
Lifecycle data audited as OFFICIAL_VERIFIED (2026-10).
Lenze confirms the i950 migration path in official AKB articles.

Packing List

1 x Lenze E82EV302K2C200 frequency inverter
1 x Quick start guide
1 x Terminal kit as shipped by Lenze
Outer carton with anti-static protection

Warranty and Shipping

12-month warranty on the unit.
Dispatch within 12-24 hours after payment.
Shipping by FedEx, UPS, or DHL.
Tracking number sent on the same day.

Expert Review

The 8200 vector is a mature platform. Its 1.8 x overload and built-in chopper still cover many tasks. The 12.0 A rating fits standard 3 kW motors. Engineers like the clear terminal layout and the RS232/485 bus. The main limit is lifecycle. Lenze has moved to newer drives. Buy this unit for existing machines, not for new designs. For new builds, use the i950 path. The i950 emulates 8200 vector behaviour through its PROFIBUS module and L_ICIP library. That keeps spare-part strategy simple.

Manager’s Insight

This model sells well as a drop-in repair part. Plants keep one or two on the shelf. The 230 V class and 3.0 kW rating match many small conveyors and pumps. Stock the E82EV302K2C200 when a line must stay up. Check the C2xx filter note before you quote. Some sites need an external EMC filter. Also confirm the single-phase or three-phase supply. The IP20 housing limits use to cabinets. Fast dispatch matters here. Most buyers order when a drive is down. Our 12-24 hour dispatch and FedEx/UPS/DHL options fit that need.

Best Fit Applications

Conveyors and material handling lines
Pumps and fans with variable speed
Packaging machines with frequent starts
Textile and wire processing equipment
Retrofit projects on existing 8200 vector machines
Small mixers and agitators

FAQ

Q: Does this unit include an EMC filter?

A: No. The C2xx variant ships without an integrated EMC filter. Add an external filter for class-limited sites.

Q: What motor power does it support?

A: It drives a 3.0 kW 4-pole asynchronous motor. The rated output is 12.0 A.

Q: Can I use three-phase mains?

A: Yes. Three-phase versions accept 3/PE 100…264 V AC. The single-phase range is 180…264 V AC.

Q: Is a brake resistor built in?

A: The brake transistor is built in. You still need an external resistor for braking energy.

Q: How do I add PROFIBUS or CANopen?

A: Use the 2 plug-in slots. Add the matching communication module.

Q: Is this model still produced?

A: No. Lenze lists it as a legacy product. The official migration path is the i950.

Q: Can the i950 replace it without rewiring?

A: Not as a drop-in. There is no same-order-code replacement. The i950 needs planning, but it emulates 8200 vector behaviour.

Q: How fast do you ship?

A: We dispatch in 12-24 hours. We use FedEx, UPS, or DHL.

Q: What is the warranty?

A: 12 months from delivery.

Q: What is the operating temperature limit?

A: -10…+55 °C. Derate 2.5%/°C above +40 °C.

Q: I am buying for stock. Which spare parts should I add?

A: Add an external EMC filter and a braking resistor. Keep one communication module per bus type you run.

Q: How do I choose between repair stock and a new design?

A: Buy this unit for existing machines. For new builds, choose the i950 path to avoid lifecycle risk.

Q: What should I check before ordering?

A: Confirm the supply type, the C2xx filter status, and the bus module you need. Check the IP20 cabinet fit.

Buying Guide

Confirm your motor is a 3.0 kW 4-pole unit. Check the 12.0 A rating.
Check your mains: single-phase 180…264 V AC or three-phase 100…264 V AC.
Plan for an external EMC filter on this C2xx variant.
Pick the fieldbus module you need: PROFIBUS DP, CANopen, DeviceNet, INTERBUS, or AS-Interface.
Add a braking resistor if your load stops fast.
Keep cabinet temperature below +40 °C for full rating.
For new machines, compare the i950 migration path first.
Order spares early. This is a legacy product with limited future supply.
