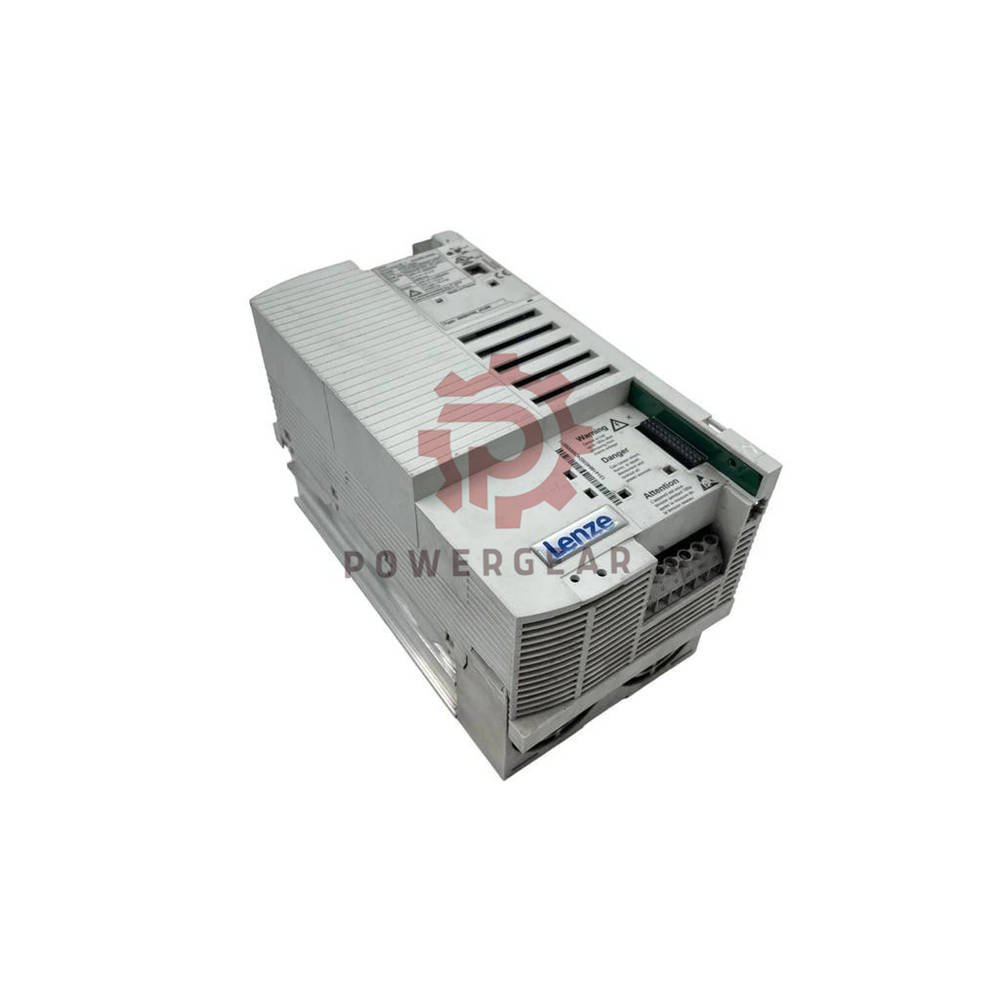

E82EV302K4C040 Lenze 8200 vector 3.0 kW Drive

Product Overview

• Model E82EV302K4C040 is a Lenze 8200 vector built-in vector-controlled frequency inverter.
• It drives a 3.0 kW 4-pole asynchronous motor in the 400 V class.
• Rated output current reaches 7.3 A at the factory 8 kHz switching frequency.
• Short-time current hits 11.0 A for 60 s for periodic load cycles.
• The unit includes an integrated EMC filter and Safe Torque Off (C040 = x4x variant).
• A built-in brake transistor (chopper up to 11 kW) saves cabinet space.
• Output frequency spans 0…650 Hz for flexible speed control.
• This is a legacy product. Lenze lists it on the official previous products page.
• Lenze confirms an official migration path to the i950 drive generation.
• The i950 emulates 8200 vector behaviour via the i950 PROFIBUS module and L_ICIP library.
• There is no drop-in same-order-code replacement. Plan migration carefully.
• Audit status: OFFICIAL_VERIFIED (last verified 2026-10).

Technical Specifications

• Brand: Lenze
• Model: E82EV302K4C040
• Series: 8200 vector
• Module type: built-in vector-controlled frequency inverter
• Rated motor power: 3.0 kW typical (4-pole asynchronous motor)
• Rated output current: 7.3 A nominal at 8 kHz switching frequency
• Max. output current: 11.0 A for 60 s (periodic load change cycle)
• Output frequency range: 0…650 Hz
• Switching frequency: 2/4/8/16 kHz selectable (8 kHz factory setting)
• Mains voltage class: 400 V
• Supply voltage: 3/PE 320…550 V AC (45…65 Hz); alternative DC 450…775 V DC
• Power loss: 145 W at rated current / 8 kHz
• Overload capability: 1.8 x rated torque for 60 s
• Integrated EMC filter: yes, with Safe Torque Off (C040 = x4x variant)
• Integrated brake transistor: yes (built-in chopper up to 11 kW)
• Safety function: Safe Torque Off built in (x4x design variant)
• Built-in ports: RS232/485 serial system bus
• Protocols: Lenze system bus; fieldbus via plug-in communication modules
• Fieldbus options: PROFIBUS DP, CANopen, DeviceNet, INTERBUS, AS-Interface
• Communication expansion: plug-in function/communication module slots (2 control interfaces; 3 for units above 15 kW)
• Operating temperature: -10…+55 °C (derate 2.5%/°C above +40 °C)
• Storage temperature: -25…+60 °C
• Relative humidity: average 85 % RH, without condensation (climatic class 3K3 per EN 50178)
• Protection rating: IP20
• Dimensions (H×W×D): 240 × 100 × 140 mm (per official FU 8200 vector catalogue 11/02 rated-data table)
• Weight: 2.9 kg

Installation Guide

• Mount the drive vertically inside a cabinet with IP20 protection.
• Keep clearance above and below for airflow. Heat rises, so do not block vents.
• Connect 3/PE 320…550 V AC supply. Check terminal torque and polarity.
• Use the integrated EMC filter to meet cabinet emission limits.
• Wire the Safe Torque Off input to your safety relay before first start.
• Set the switching frequency to match cable length and motor noise needs.
• Derate output 2.5 % per °C above +40 °C in hot cabinets.
• For DC supply, use 450…775 V DC on the correct terminals.
• Follow Lenze 8200 vector manuals for cable sizing and grounding.

Commissioning and Maintenance

• Commissioning is simple via the RS232/485 system bus and Lenze tools.
• Key motor data entry takes minutes: rated current, voltage, frequency and speed.
• The vector control mode gives stable torque at low speed.
• Two plug-in slots let you add fieldbus modules without extra wiring.
• Maintenance is low: check fan, vents and terminal tightness each service interval.
• Store spare units between -25…+60 °C in dry conditions.
• Replacing a failed unit is quick thanks to the compact 240 × 100 × 140 mm frame.

Compatibility Notes

• Works with standard 3.0 kW 4-pole asynchronous motors in the 400 V class.
• Fieldbus modules cover PROFIBUS DP, CANopen, DeviceNet, INTERBUS and AS-Interface.
• Fits existing 8200 vector cabinets. Check dimensions before ordering.
• New designs should use the i950 migration path, not the 8200 vector.
• The i950 emulates 8200 vector behaviour via the PROFIBUS module and L_ICIP library.
• There is no drop-in same-order-code replacement between 8200 vector and i950.

Certifications and Standards

• Climatic class 3K3 per EN 50178 for humidity and environment.
• Safe Torque Off function built in per the x4x design variant.
• Integrated EMC filter supports cabinet emission compliance.
• Official Lenze documentation backs all rated data in this listing.
• Audit status: OFFICIAL_VERIFIED.

Packing List and Warranty

• 1 x Lenze E82EV302K4C040 frequency inverter
• 1 x official quick-start or documentation set (as supplied)
• Protective packaging for safe transport
• 12-month warranty on the unit
• 12-24 hour dispatch after order confirmation
• Shipping by FedEx, UPS or DHL with tracking
• Questions? Email sales@powergearx.com or chat on +86 18030005825.

Expert Review

• The 8200 vector is a proven workhorse for 3.0 kW motor control.
• Its integrated EMC filter, brake chopper and STO cut cabinet build time.
• Vector control keeps torque steady during load changes up to 1.8 x rated torque for 60 s.
• The 0…650 Hz output range suits many speed-control tasks.
• Buy it for existing 8200 vector machines that need a spare or replacement.
• For new builds, plan the i950 route early to avoid rework.

Manager’s Insight

• Stock this unit only for legacy support and repair needs.
• Demand stays steady because many 8200 vector cabinets still run in the field.
• The official i950 migration path protects long-term customer support.
• Fast dispatch and a 12-month warranty give buyers confidence.
• Keep at least one spare on hand. Downtime costs far more than the drive.

Best Fit Applications and Equipment

• Conveyors, pumps and fans driven by 3.0 kW 4-pole motors.
• Packaging, textile and material-handling machines with 400 V supplies.
• Existing Lenze 8200 vector cabinets that need a spare or replacement.
• Retrofit projects where fieldbus modules must match the old network.
• Systems that need Safe Torque Off for safe stops.
• Not ideal for brand-new designs. Choose the i950 instead.

FAQ

• Is the E82EV302K4C040 still in production?
  No. Lenze lists it as a previous product. New designs should use the i950.
• Can I replace my old 8200 vector with the same order code?
  Yes, if you find old stock. Lenze offers no drop-in same-order-code replacement.
• What is the C040 suffix?
  It marks the x4x variant with integrated EMC filter and Safe Torque Off.
• Which fieldbus modules fit this drive?
  PROFIBUS DP, CANopen, DeviceNet, INTERBUS and AS-Interface via plug-in slots.
• What current does it deliver?
  7.3 A nominal at 8 kHz. Up to 11.0 A for 60 s in periodic cycles.
• Can it run on DC supply?
  Yes. It accepts 450…775 V DC as an alternative to AC mains.
• How do I migrate to the i950?
  Use the i950 PROFIBUS module and L_ICIP library. Lenze confirms 8200 vector emulation.
• What experience says about heat?
  Derate 2.5 %/°C above +40 °C. Cabinet airflow matters more than the spec sheet suggests.
• How fast do you ship?
  Orders leave in 12-24 hours via FedEx, UPS or DHL with tracking.
• What warranty comes with it?
  A 12-month warranty covers the unit. Keep the invoice for claims.

Buying Guide

• Confirm your motor is 3.0 kW, 4-pole, 400 V class before ordering.
• Check cabinet space against 240 × 100 × 140 mm.
• Match the fieldbus module to your existing network.
• Buy a spare if the machine must stay online during repairs.
• For new projects, budget for the i950 migration path instead.
• Need help choosing? Email sales@powergearx.com or message +86 18030005825 on WhatsApp.
