Product details
Product Description

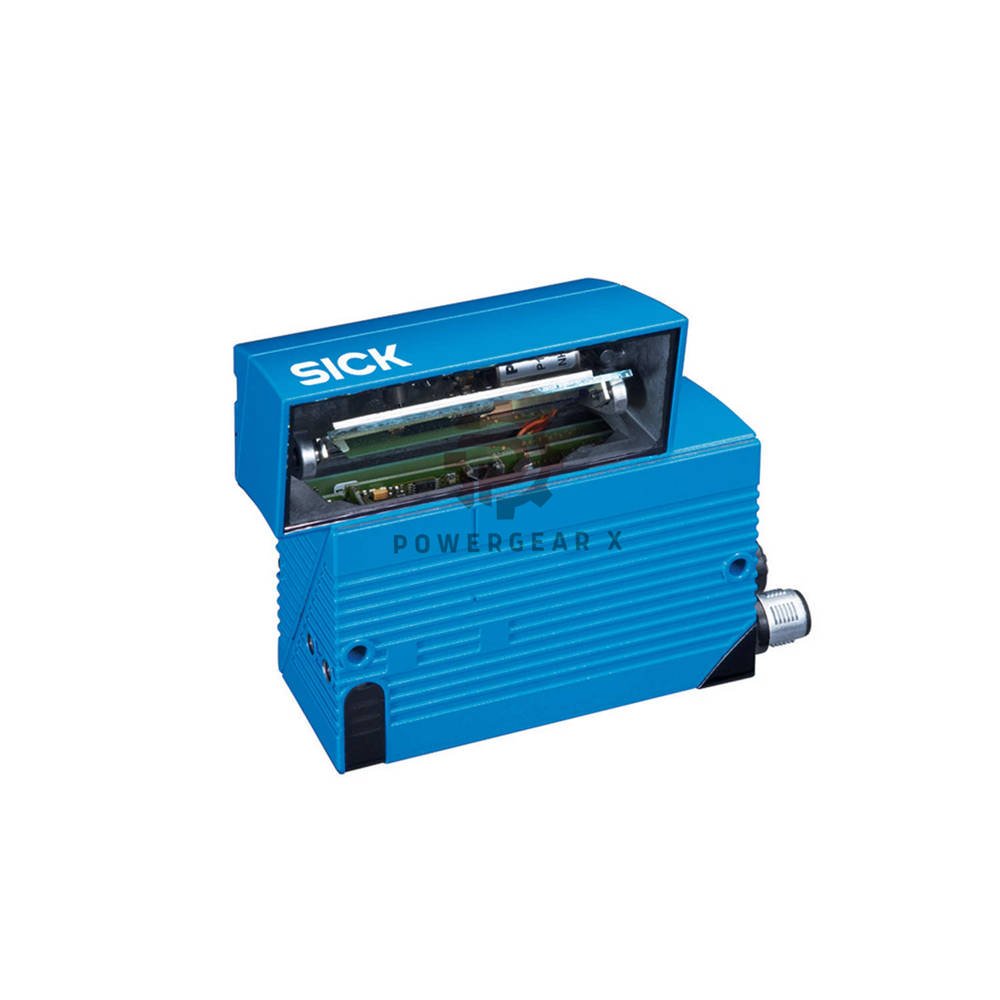

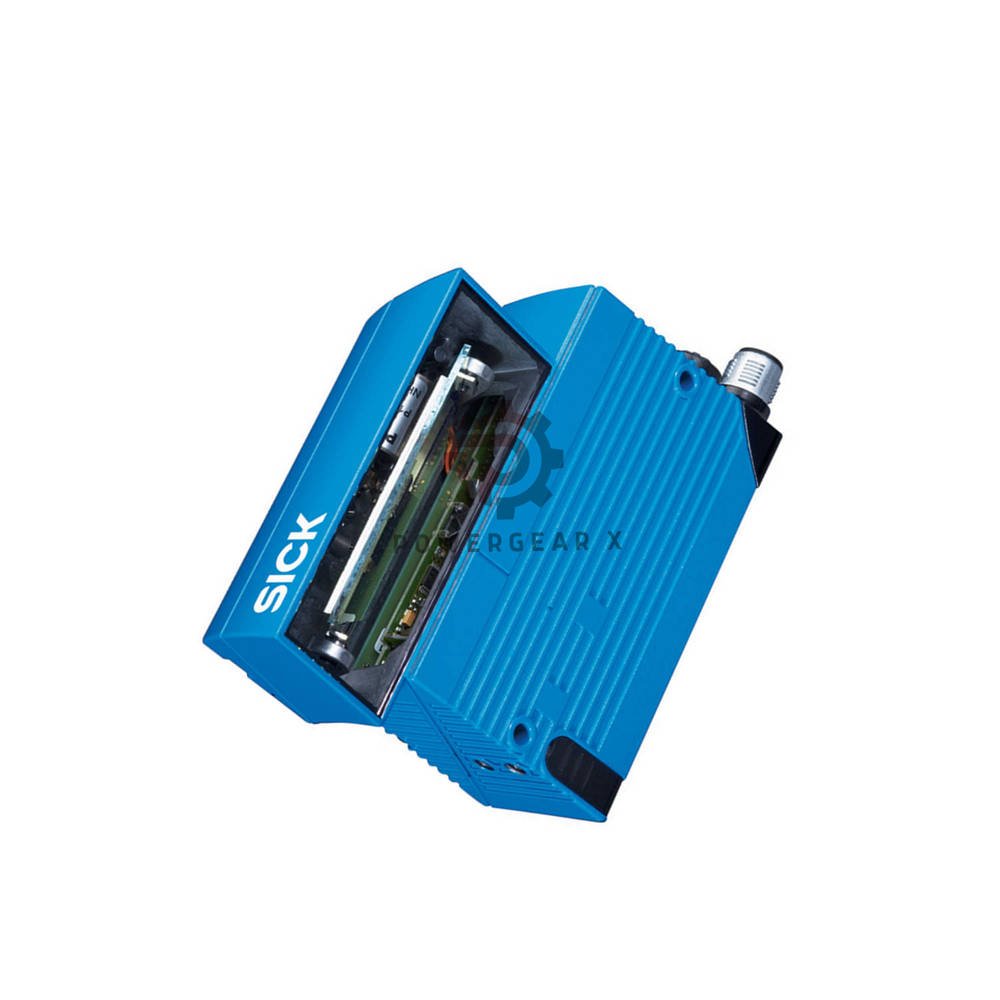

- CLV650-6000 from SICK is a fixed mount barcode scanner.
- It uses an oscillating mirror and auto-focus for reliable reading.
- This scanner reads 1D codes at high speed from 125 mm to 1,570 mm.
- Great for logistics, factory automation, and conveyor systems.
- It has a robust IP65 housing for harsh industrial environments.
- Easy integration via PROFINET, EtherCAT, RS-232, CAN, and more.
Key Features at a Glance
- High scanning frequency: 600 Hz to 1,000 Hz for fast throughput.
- Oscillating mirror: fixed, variable, or one-shot modes.
- Auto-focus: ensures sharp reading at various distances.
- Smart decoding: reads up to 6 codes per scan (SMART decoder).
- Rugged design: aluminum die-cast housing, IP65 rated.
- Visual feedback: 6 LEDs and a 10-LED bar graph for read rate.
- Acoustic indicator: beeper can be turned on/off.
Technical Specifications
- Brand: SICK
- Model: CLV650-6000 (Standard Density)
- Series: CLV65x Fixed Mount Scanner
- Light source: laser, red, 658 nm, laser class 2
- Scanning method: line scanner with oscillating mirror
- Reading distance: 125 mm … 1,570 mm
- Code resolution: 0.25 mm … 1 mm
- Scanning frequency: 600 Hz … 1,000 Hz
- Oscillation frequency: 0.5 Hz … 6.25 Hz
- Angle of deflection: –20° … +20°
- Aperture angle: ≤ 50°
- Supply voltage: 18 V DC … 30 V DC
- Power consumption: 9.5 W
- Enclosure rating: IP65 (EN 60529)
- Protection class: III (EN 61140)
- Housing: aluminum die-cast, light blue (RAL 5012)
- Weight: 320 g with cable
- Dimensions (LxWxH): 95 mm x 107 mm x 41 mm
- MTBF: 100,000 h
- Temperature range: 0 °C … +40 °C (operating), –20 °C … +70 °C (storage)
- Humidity: 90 % non-condensing
- Ambient light immunity: 2,000 lx on barcode
- Print contrast (PCS): ≥ 60 %
- Interfaces: PROFINET, EtherCAT, RS-232, RS-422, RS-485, CAN, CANopen, PROFIBUS DP, DeviceNet
- Digital I/O: 4 inputs, 4 outputs (plus 2 each via CMC600)
- Configuration: SOPAS ET software, optional MicroSD card
- Approvals: EN 61000-6-3, EN 61000-6-2, EN 60068-2-6
Expert Review
- Performance: The CLV650-6000 offers excellent read rates even on poorly printed codes.
- Flexibility: Multiple interfaces and fieldbus options make it suitable for any automation system.
- Durability: IP65 rating and aluminum housing ensure long life in dusty or wet areas.
- Ease of use: SOPAS ET software simplifies setup and diagnostics.
- Value: A robust, high-speed scanner at a competitive price point.
Manager’s Insight
- Invest in the CLV650-6000 to reduce downtime and improve throughput.
- Its auto-focus and oscillating mirror handle varying package sizes with ease.
- Use the CANopen or PROFINET for seamless integration with existing PLCs.
- Consider the SMART decoder for complex or multiple-code applications.
- This scanner is a reliable choice for 24/7 operations.
Compatibility & Application Scenarios
- Compatible with: All common 1D code types (Code 39, 128, EAN, etc.)
- Applications:
- Conveyor belt sorting and tracking
- Warehouse automation and logistics
- Packaging line scanning
- Assembly line verification
- Retail and distribution centers
Installation & Maintenance
- Mounting: Fixed mount with adjustable oscillating mirror.
- Connection: 15-pin D-Sub HD male connector (0.9 m cable).
- Setup: Use SOPAS ET software for quick configuration.
- Maintenance: Clean the front screen regularly; no moving parts to service.
- Firmware updates: Via MicroSD card or software.
Certifications
- Laser class 2 (IEC 60825-1:2014, EN 60825-1:2014)
- IP65 (EN 60529)
- Protection class III (EN 61140)
- EMC: EN 61000-6-3 / EN 61000-6-2
- Vibration: EN 60068-2-6
Package Contents
- 1x SICK CLV650-6000 scanner with 0.9 m cable
- Quick start guide (digital download)
- Mounting bracket kit (sold separately)
- Optional: MicroSD card for parameter storage
Warranty & Shipping
- Warranty: 12 months against manufacturing defects.
- Shipping: 12-24 hours dispatch from our warehouse.
- Carriers: FedEx, UPS, DHL (express shipping available).
Frequently Asked Questions (FAQ)
- What is the maximum reading distance?
- Up to 1,570 mm with good print contrast.
- Can this scanner read 2D codes?
- No, it is designed for 1D barcodes only.
- What is the difference between Standard and SMART decoder?
- Standard reads up to 20 codes/scan; SMART reads up to 6 but handles damaged codes better.
- How do I adjust the oscillating mirror?
- Use SOPAS ET software to set fixed, variable, or one-shot modes.
- Is the scanner compatible with PROFIBUS DP?
- Yes, via the optional CDF600-2 fieldbus module.
- What is the ambient operating temperature?
- 0 °C to +40 °C. Store between –20 °C and +70 °C.
Experience-Based Buying Guide
- For high-speed conveyor lines, choose the CLV650-6000 for its 1,000 Hz scan rate.
- If you have multiple code types, the auto-discriminating feature saves setup time.
- For harsh environments, the IP65 rating ensures reliable operation.
- When integrating with legacy systems, the RS-232 interface is your best option.
- For new installations, PROFINET or EtherCAT offer the best performance.
- Always verify the print contrast (PCS) of your barcodes – 60% minimum required.
- Use the oscillating mirror to cover wider conveyor belts without moving the scanner.
- Consider the SMART decoder if your codes are frequently scratched or poorly printed.
